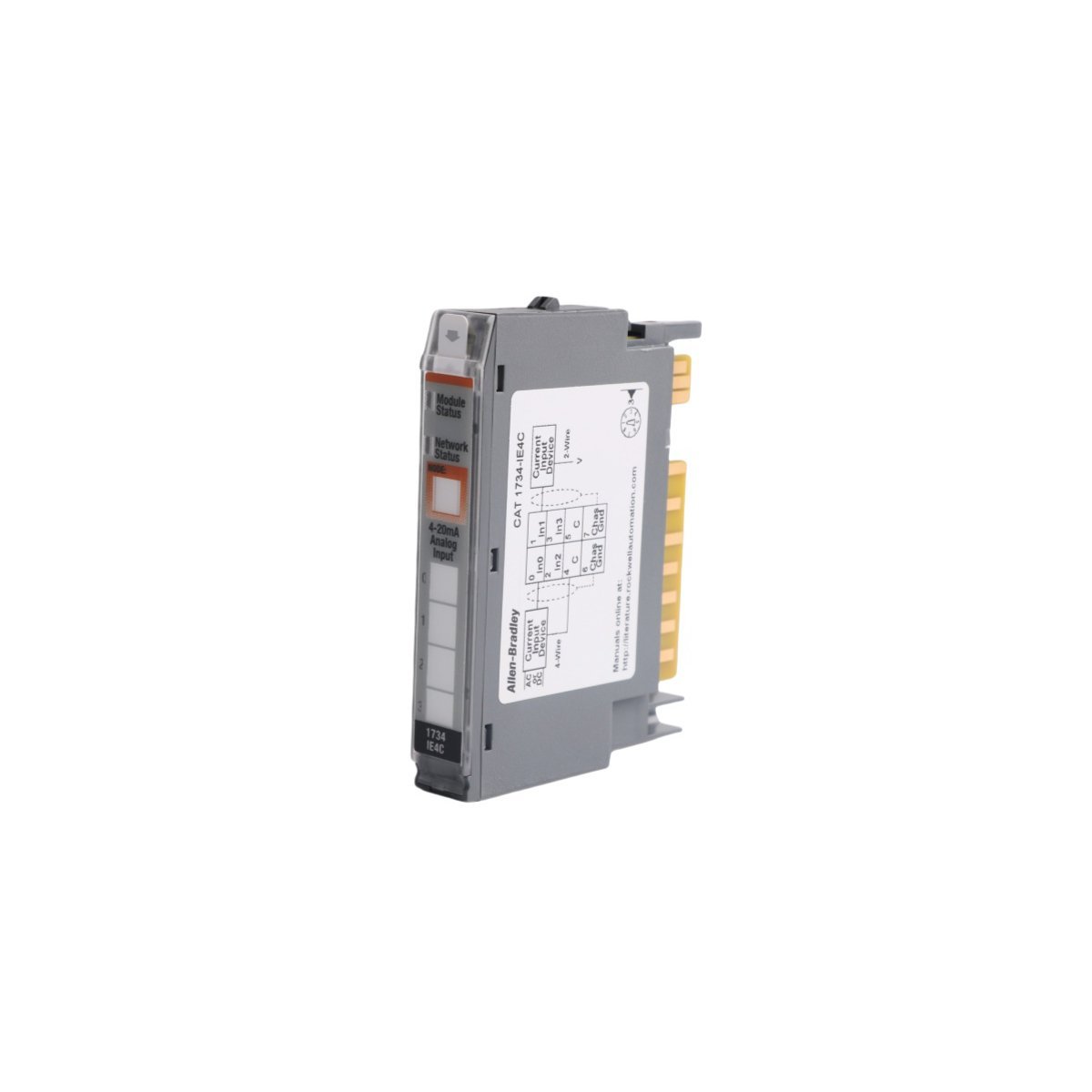

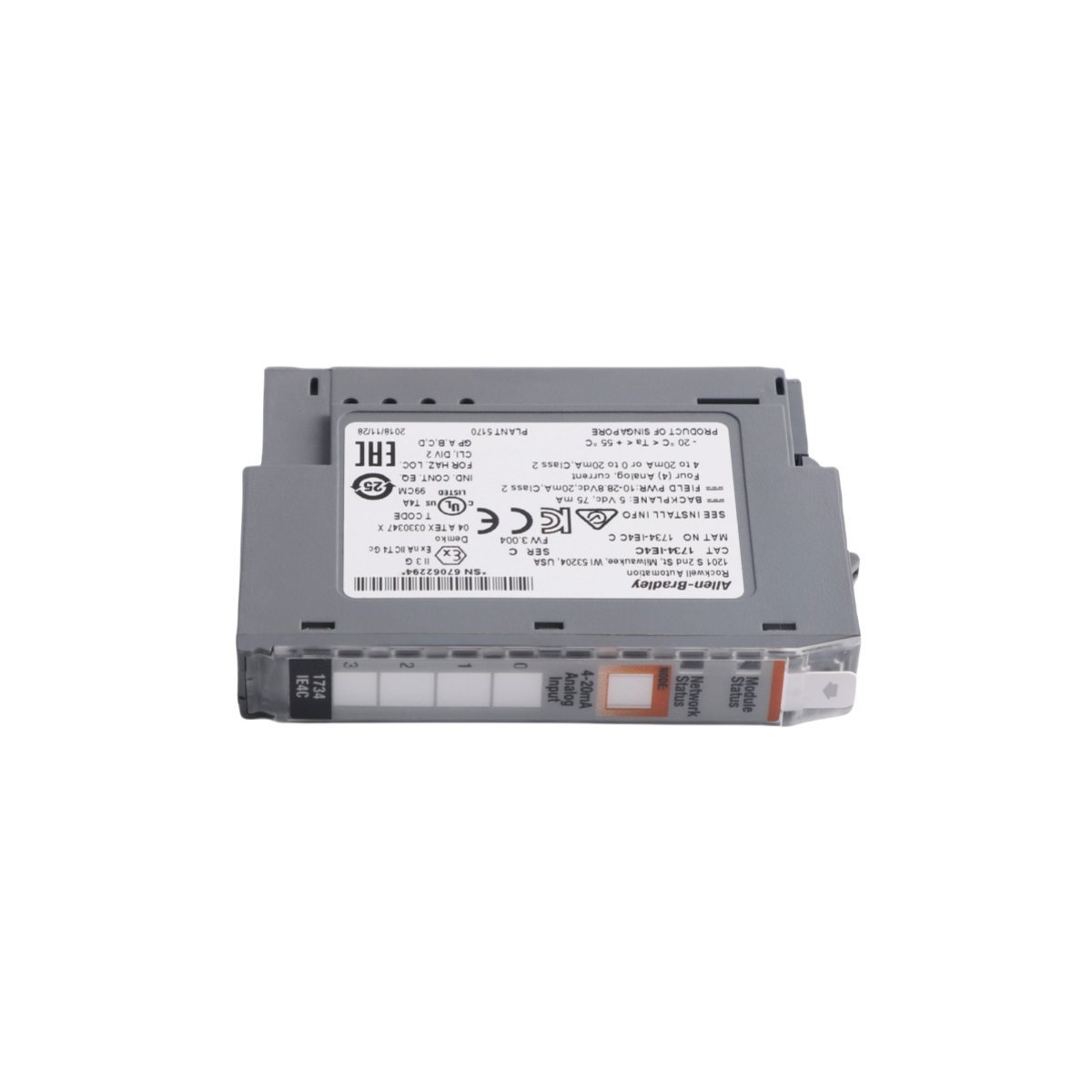

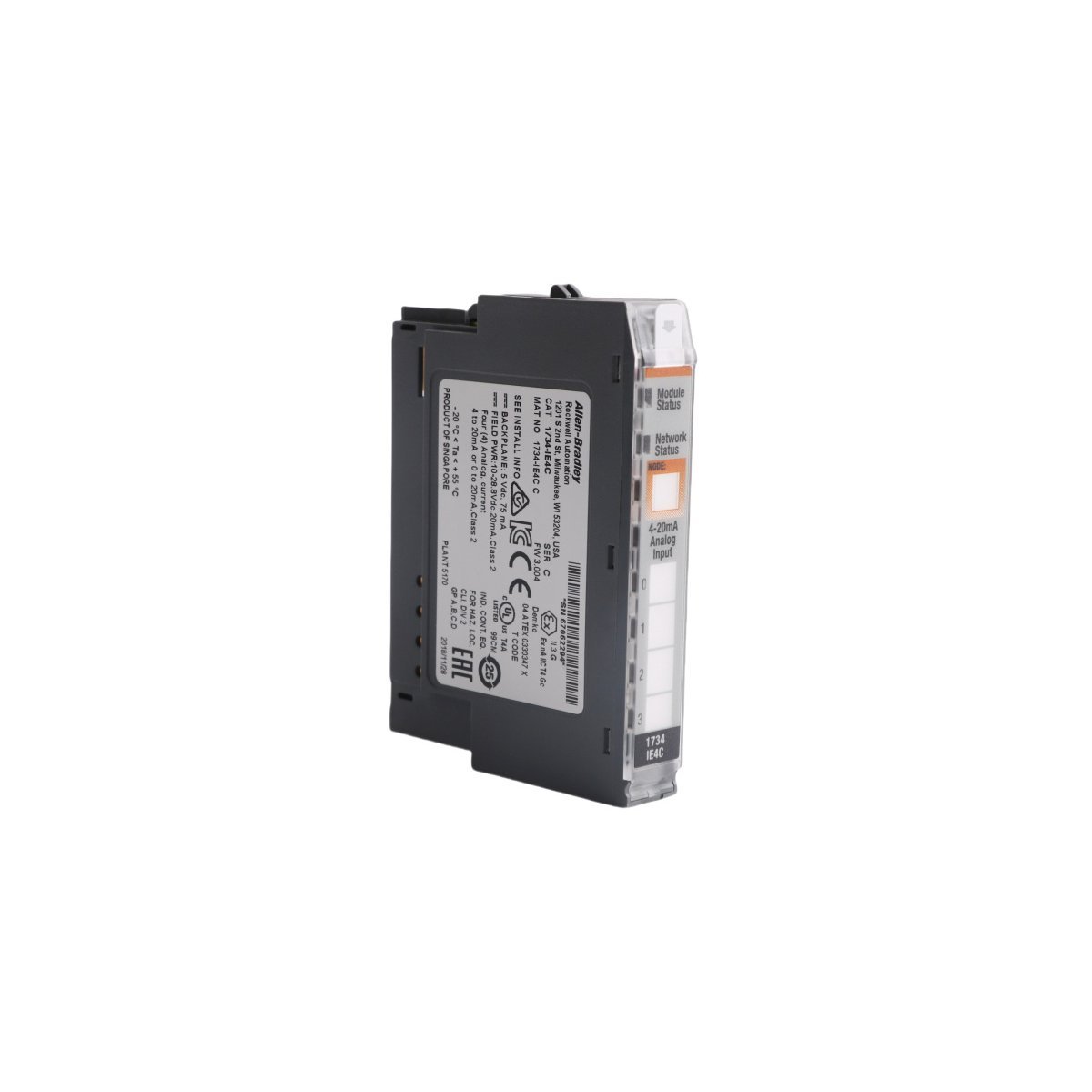

Allen-Bradley 1734-IE4C POINT I/O 4 Point Analog Input Module
The Allen-Bradley 1734-IE4C is a 4-channel analog current input module for the POINT I/O system. It offers 16-bit resolution for 4-20mA signals in a compact, DIN-rail mounted housing. This module provides high-density signal acquisition and precise measurement for industrial process control.
Description
The Allen-Bradley 1734-IE4C serves as a specialized current measurement solution within the POINT I/O family. This module features four high-resolution channels for monitoring industrial process signals. It specifically supports standard current ranges such as 0-20mA and 4-20mA. Furthermore, the 16-bit resolution ensures exceptional precision for critical control loops. Its compact design allows for high channel density in limited cabinet spaces. Consequently, it effectively reduces the overall footprint of the automation system.
Advanced Signal Integrity
This module utilizes a modular architecture to enhance system flexibility. Each channel receives individual signal conditioning to maintain data accuracy. Additionally, the unit provides effective isolation to prevent interference from ground loops. Users can choose the standard version or the conformal-coated 1734-IE4CK model. The coated version offers superior resistance to moisture and chemical contaminants. Therefore, the module remains a reliable choice for wastewater treatment and chemical processing.
Installation and Maintenance Efficiency
The 1734-IE4C integrates seamlessly into the POINT I/O backplane via standard mounting bases. Removable terminal blocks simplify the wiring process significantly. This design allows for module replacement without disconnecting field sensors. Moreover, the faceplate features clear LED indicators for status monitoring. These lights provide immediate feedback on power, channel activity, and fault conditions. Such visual tools accelerate the troubleshooting process during unplanned downtime.
Technical Specifications
| Feature | Specification Details |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model Number | 1734-IE4C |
| Input Type | 4-Point Analog Current (Sourcing/Sinking) |
| Signal Range | 0 to 20 mA, 4 to 20 mA |
| Resolution | 16 Bits (Unipolar) |
| POINTBUS Current | 75 mA @ 5V DC |
| Power Dissipation | 0.6 Watts Maximum |
| Mounting Type | DIN Rail (Horizontal or Vertical) |
| Certifications | CE, C-Tick, Ex, c-UL-us (Class I Div 2) |
| Dimensions | 56 x 12 x 75.5 mm |
Software Integration and Versatility
Engineers can easily configure the 1734-IE4C using Studio 5000 or RSLogix software. The module supports a wide variety of distributed I/O configurations. It functions reliably across various network adapters including EtherNet/IP and ControlNet. Furthermore, its rugged construction withstands the vibrations typical of heavy industrial machinery. The unit also carries hazardous location certifications for oil and gas applications. Ultimately, this module provides a perfect balance of performance and space efficiency.
Additional information
| Weight | 0.04 kg |
|---|---|
| Country of Origin | USA |
| Dimension | 1.1 x 5.5 x 7.7 cm |
