Description

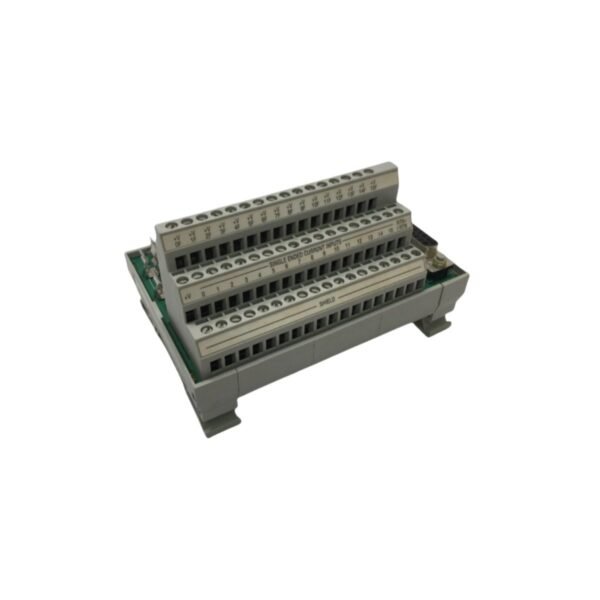

The Allen-Bradley 1492-AIFM16-F-3 serves as a specialized 16-channel analog input interface module. It streamlines the connection between field devices and PLC I/O modules. This unit integrates individual channel protection to ensure system stability.

Technical Specifications and Capabilities

Operational Features and System Protection

The 1492-AIFM16-F-3 module features a high-density design for complex industrial environments. Each of the 16 channels includes dedicated fuse protection. This configuration prevents a single circuit failure from affecting the entire system.

Onboard 24V DC LED indicators provide immediate diagnostic status for every channel. These visual cues allow technicians to identify blown fuses instantly. The fixed terminal blocks provide three connection points per input. This setup supports various wiring schemes for different sensor types.

Industrial Applications and Integration

This interface module fits perfectly into manufacturing automation and process control systems. It provides a bridge for sensors in water treatment and energy management. The compact footprint optimizes space inside crowded control panels.

Engineers utilize this module for high-reliability signal conditioning. The rugged USA-manufactured housing withstands harsh industrial conditions. It integrates seamlessly with Allen-Bradley controller families using pre-wired D-shell cables.
