Description

Product Overview

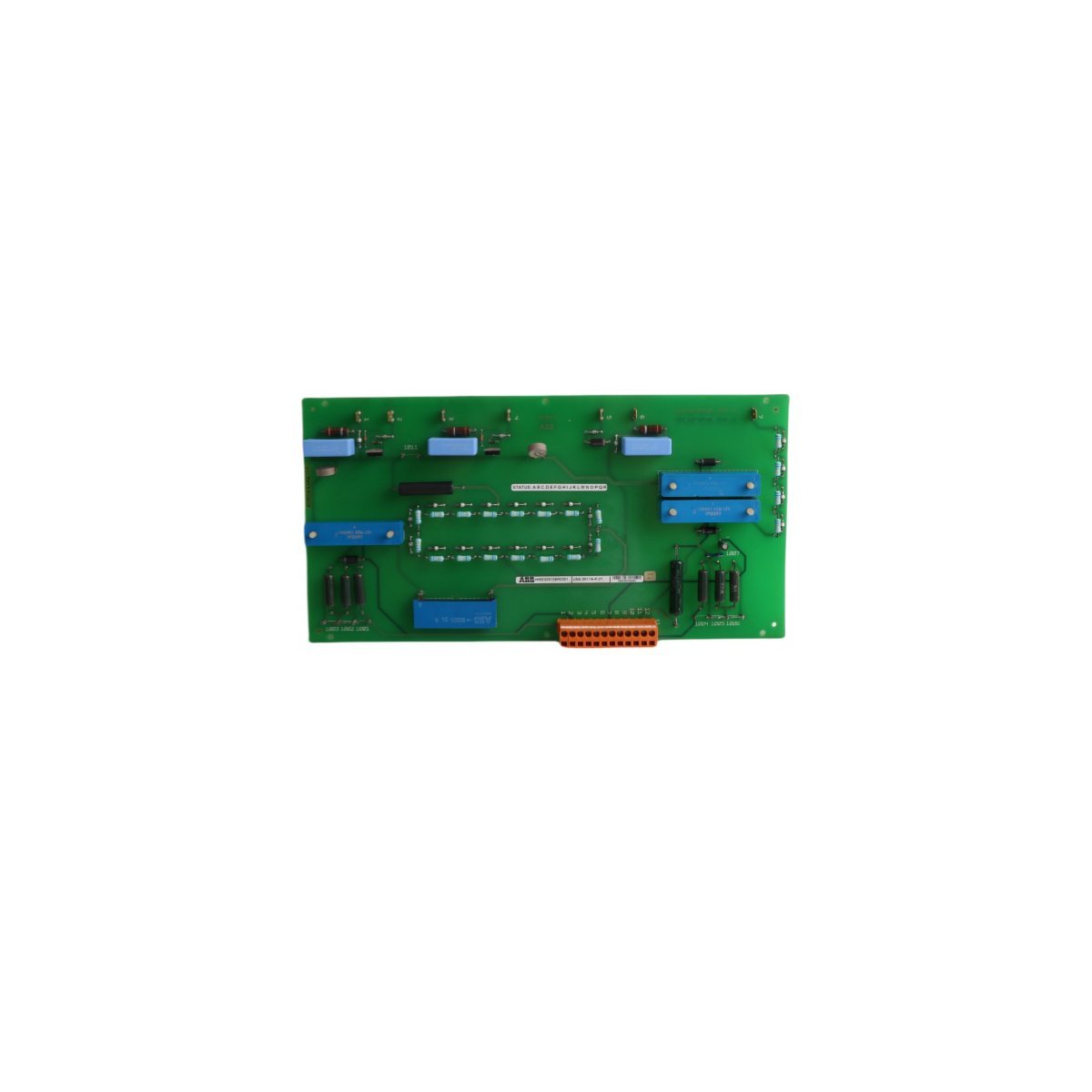

The ABB HIEE305106R0001 UNS0017A-P,V1 is a precision-engineered firing card designed specifically for the UNITROL 5000 excitation system. This essential component generates the gate pulses required to trigger thyristor bridges, ensuring accurate power conversion and voltage regulation in large-scale industrial generators.

Pulse Generation and Signal Integrity

This firing module utilizes advanced semiconductor logic to deliver high-speed trigger pulses with nanosecond precision. By synchronizing pulse delivery with the AC supply phase, the UNS0017A-P,V1 maintains exceptional control over the thyristor conduction angle. This high level of accuracy minimizes harmonic distortion and stabilizes the output of the excitation system. Furthermore, the board features integrated galvanic isolation, which protects sensitive control electronics from high-voltage power circuit transients.

Communication and System Integration

ABB equipped the HIEE305106R0001 with versatile interface options to facilitate seamless integration into a Distributed Control System (DCS). The card supports standardized data exchange protocols and includes RS-485 connectivity for remote diagnostics and real-time monitoring of firing status. Because of its modular design, maintenance teams can install the card into standard UNITROL subracks without extensive rewiring or system downtime.

Compliance and Environmental Resilience

Engineered to operate in the proximity of high-power electronics, the UNS0017A-P,V1 adheres to strict CE and UL safety standards. The circuit board employs high-grade industrial materials that resist thermal cycling and electromagnetic interference. These robust construction standards ensure that the firing card delivers consistent performance in heavy industrial environments, such as power plants and metal processing facilities, where reliability is a critical requirement.

Technical Specifications
