Description

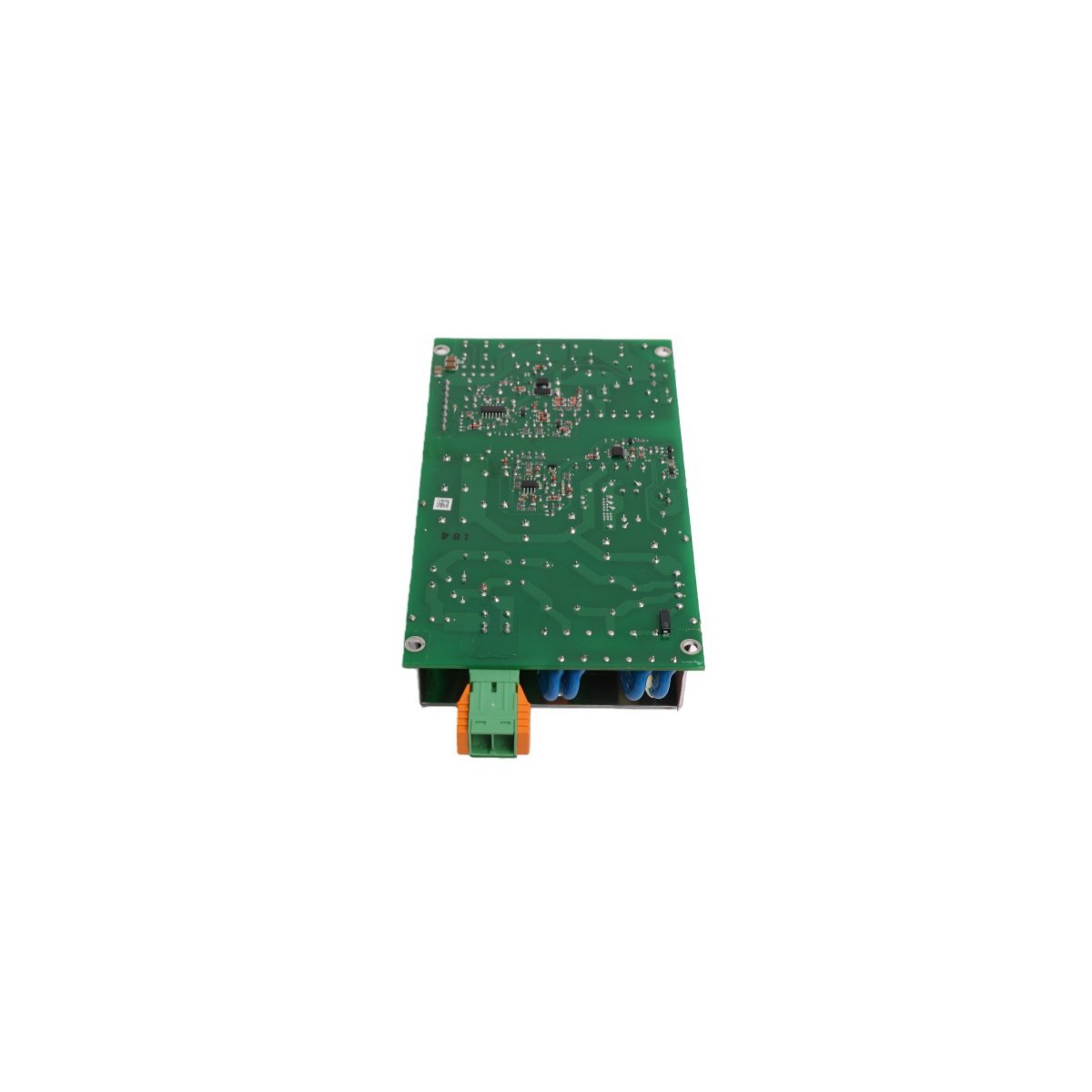

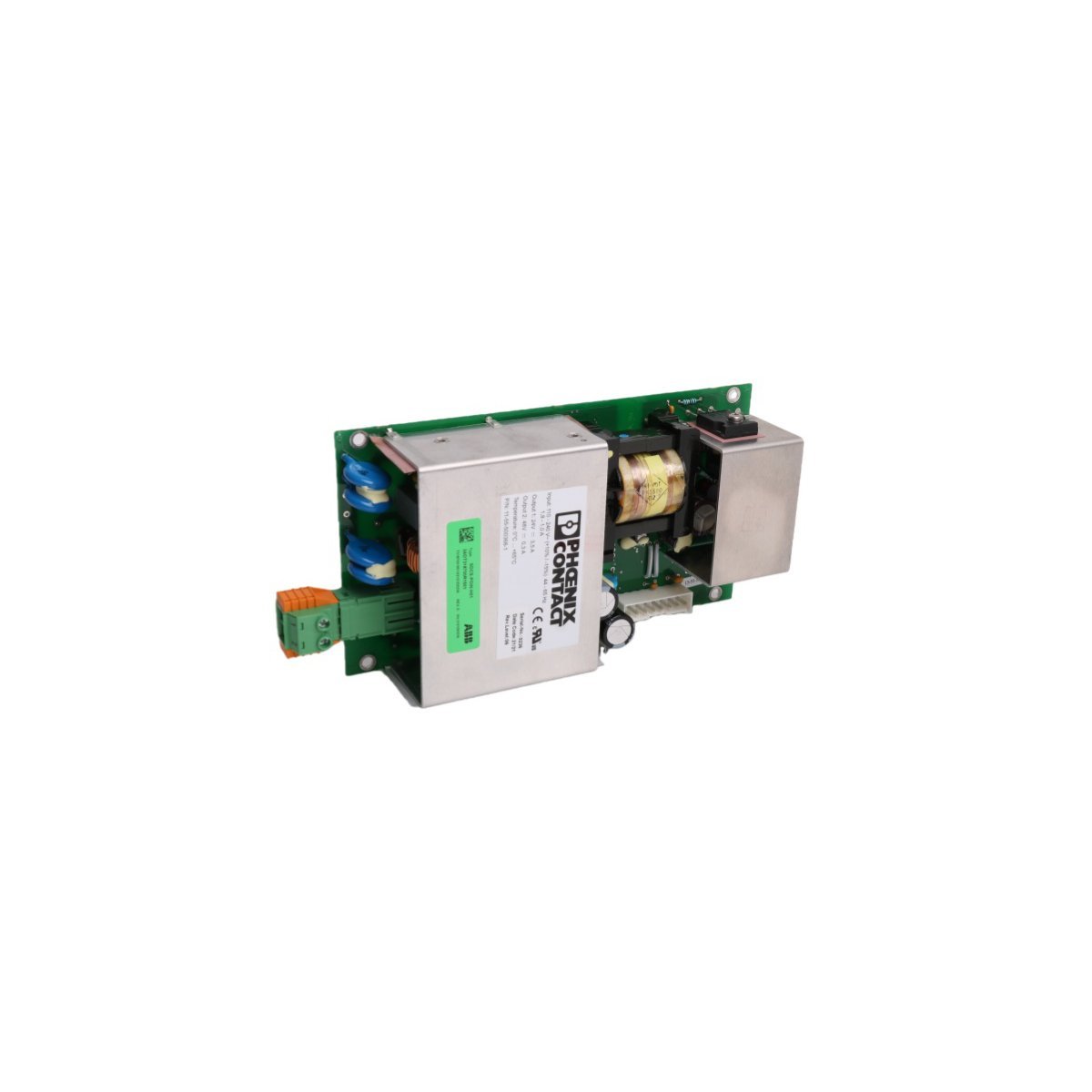

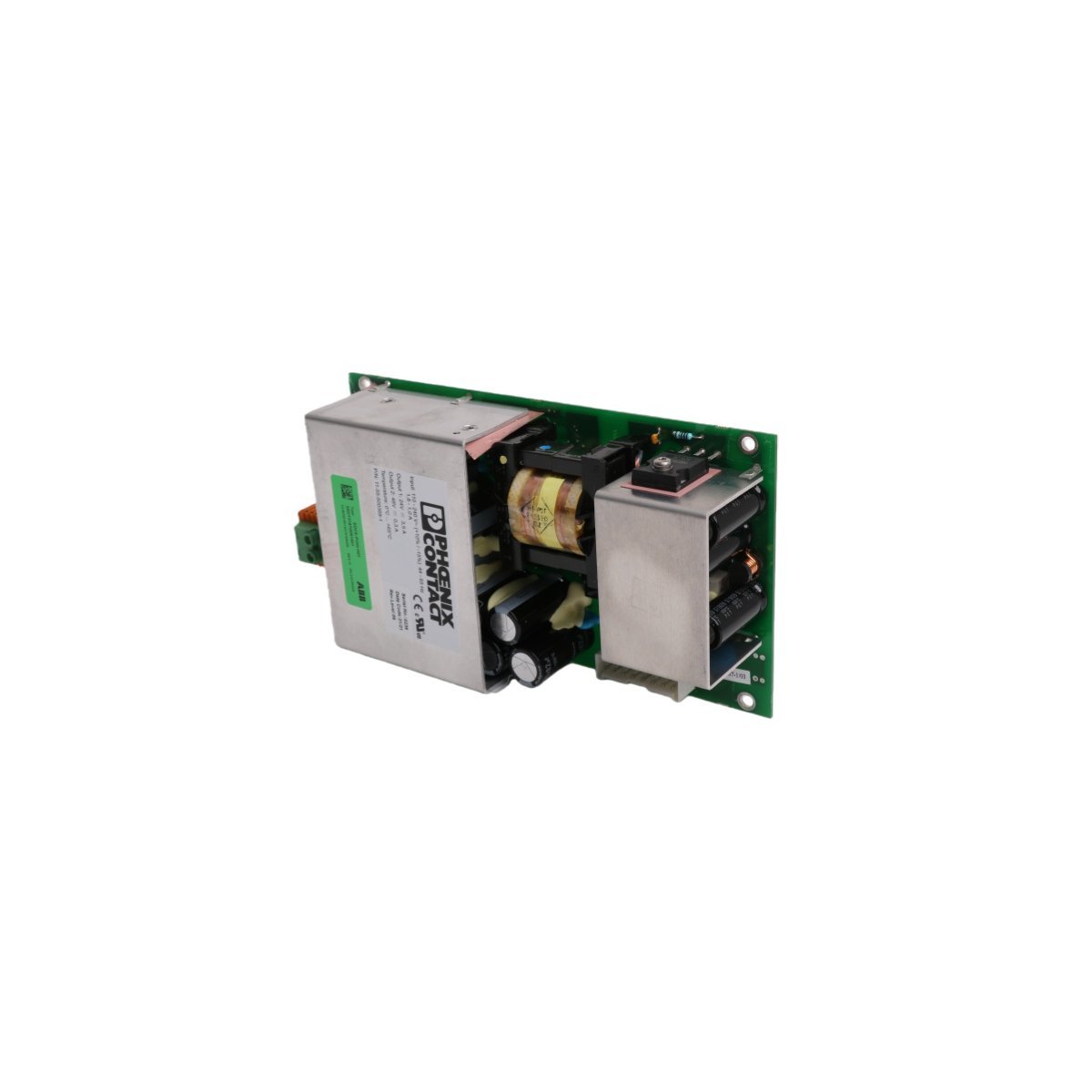

The ABB SDCS-POW-1 serves as the primary energy source for the S800 I/O system architecture. This power supply board converts main input voltages into a regulated 24V DC output. Furthermore, the unit distributes stable power to all connected analog and digital expansion modules. It acts as the electrical backbone within a DCS rack to ensure continuous signal processing. By maintaining voltage consistency, the board prevents data errors caused by electrical fluctuations. Consequently, it supports the high-reliability requirements of complex process automation systems.

Advanced Protection and Regulation Features

Engineers designed this module with sophisticated regulation circuitry to handle industrial power spikes. The hardware includes integrated safety mechanisms like overvoltage and thermal overload protection. Additionally, short-circuit protection prevents damage to sensitive downstream electronic components. The board also features advanced filtering to minimize electrical noise in the control loop. These technical characteristics enhance the operational lifespan of the entire I/O assembly. Therefore, the SDCS-POW-1 provides a secure foundation for mission-critical hardware.

Technical Specifications Summary

Industrial Installation and Durability

The SDCS-POW-1 features a robust PCB construction suitable for high-vibration environments. It mounts directly into the S800 I/O rack for simplified wiring and maintenance. Clear LED status indicators allow technicians to identify power faults or health status instantly. Moreover, the board maintains peak efficiency even in hot industrial cabinets. This reliability makes it a standard choice for oil, gas, and power generation sectors. It provides the necessary durability for long-term service in harsh manufacturing plants.

Seamless System Integration

This power module ensures total interoperability with the complete range of ABB S800 I/O modules. It integrates perfectly into existing Advant OCS or 800xA control infrastructures. Because of its standardized design, maintenance teams can replace units without extensive system reconfiguration. The board also supports distributed control strategies across wide-scale industrial networks. Its high power density allows for more compact cabinet layouts. Overall, the SDCS-POW-1 optimizes both performance and spatial efficiency in modern control rooms.
