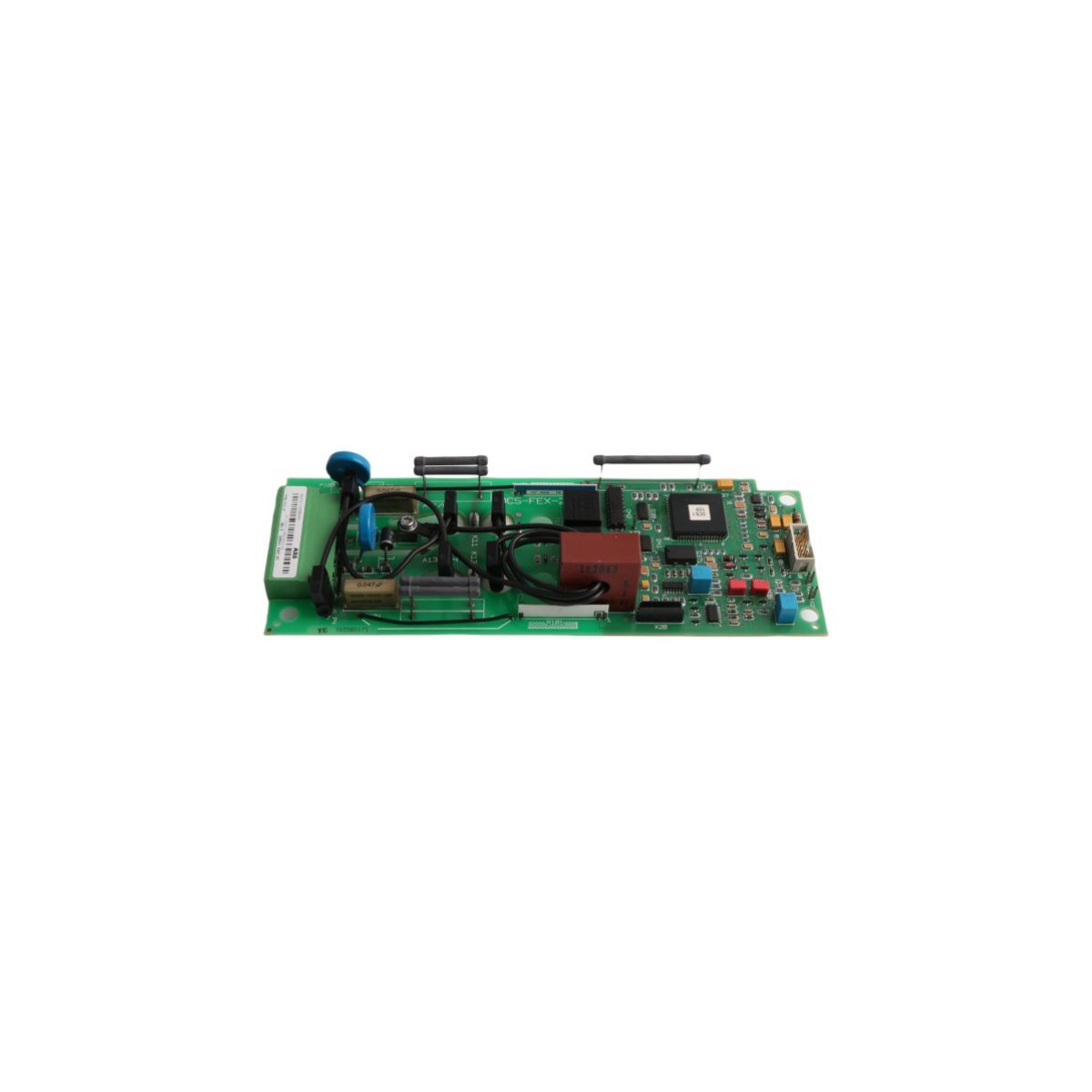

The ABB SDCS-FEX-2A 3ADT311500R1 is a specialized field excitation power supply board designed for the DCS500 industrial drive series. It provides regulated power to the field windings of DC motors, ensuring stable torque and precise speed control across various heavy-duty manufacturing applications.

Technical Performance and System Role

This circuit board functions as a critical interface within the DC drive system, converting and regulating power to manage the motor’s magnetic field. By utilizing high-speed processing logic, the SDCS-FEX-2A maintains consistent field current even during fluctuating load conditions. This stabilization significantly improves the dynamic response of the drive, which leads to enhanced operational efficiency in complex automated processes.

The hardware architecture supports seamless integration with ABB DCS500 control units. Furthermore, the board includes dedicated circuitry for overcurrent protection and thermal monitoring, which prevents damage to both the control electronics and the connected DC motor. Its robust design allows it to thrive in rigorous industrial environments while maintaining high-fidelity signal transmission.

Connectivity and Environmental Durability

The SDCS-FEX-2A 3ADT311500R1 features a compact form factor that simplifies installation within standard drive cabinets.¹ It incorporates high-grade industrial components that withstand temperature variations ranging from -20°C to +55°C. Moreover, the board utilizes standardized connection terminals to facilitate rapid data exchange and power distribution, ensuring that maintenance personnel can perform system upgrades or replacements with minimal downtime.
