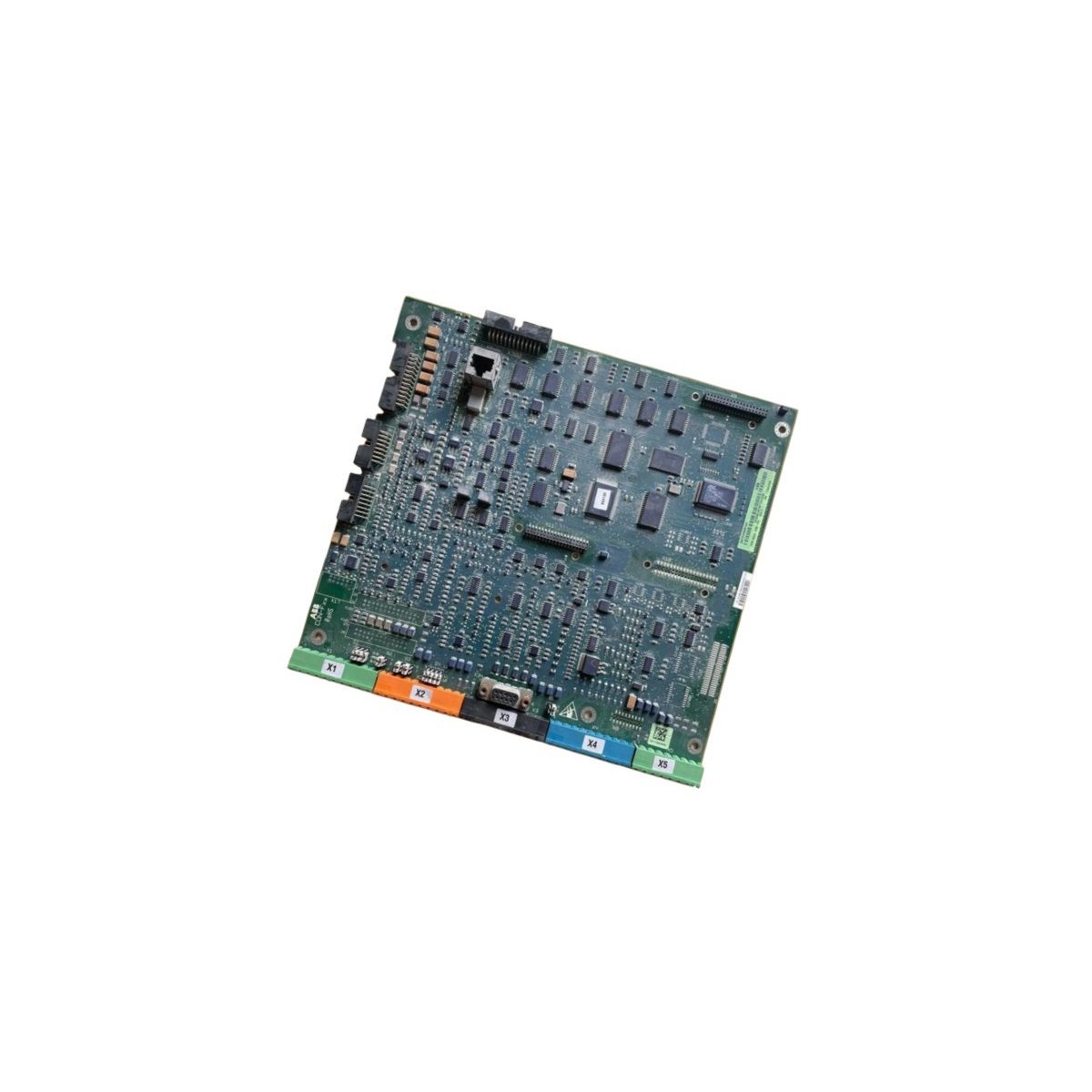

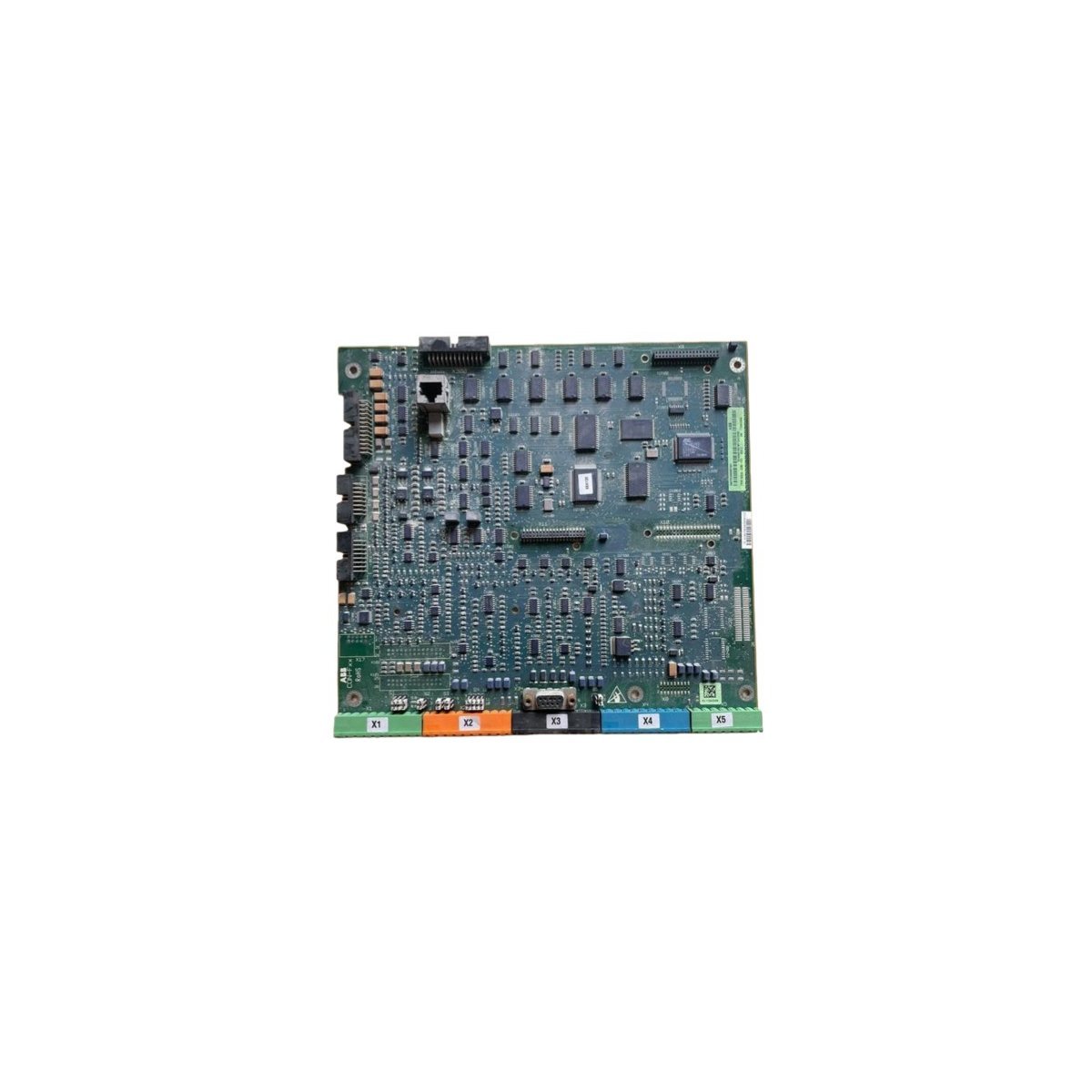

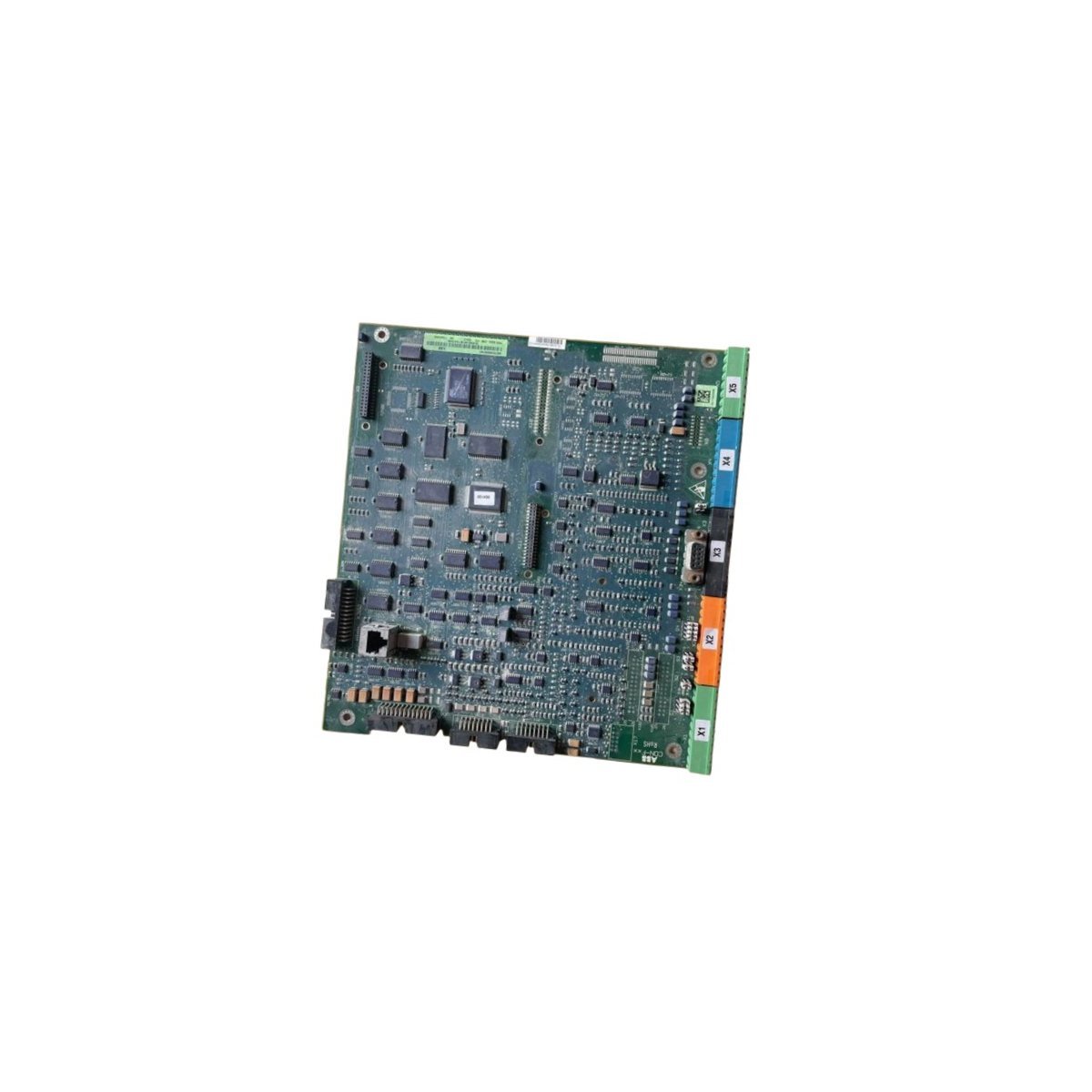

The ABB SDCS-CON-F01 (3ADT316500R1501) serves as the primary intelligence hub for industrial DC drive systems, acting as a high-precision governor motherboard. This central processing unit executes sophisticated control logic to regulate motor torque and velocity in demanding automation environments.

Advanced Drive Logic and Control

The SDCS-CON-F01 motherboard functions as the “brain” of the DC drive system, where it processes complex algorithms to maintain exact operational parameters. By utilizing a 24V DC power input, the board manages internal logic at 3.3V or 5V levels, ensuring high-speed calculation with minimal energy waste. Engineers typically integrate this board to achieve superior motor regulation, as it provides the necessary processing power to handle rapid load changes and precise speed ramping. Furthermore, the board’s architecture facilitates seamless communication between the drive’s power hardware and the supervisory control network.

Industrial Reliability and Thermal Management

ABB manufactures the 3ADT316500R1501 in Sweden using industrial-grade components designed to withstand the rigors of continuous duty cycles. The motherboard operates efficiently within a temperature range of 0°C to +60°C, which covers the typical conditions found inside industrial control cabinets. To ensure safety during transit or long-term facility shutdowns, the board can survive storage temperatures as low as -40°C or as high as +85°C. This thermal resilience, combined with a robust physical layout, prevents premature failure caused by the vibrations and heat common in heavy-duty drive applications.

Precise Integration for Automation

Because this motherboard serves as the primary interface for drive parameters, its correct installation remains vital for system-wide efficiency. The compact footprint allows for straightforward mounting within the drive housing, while the standardized connector layout simplifies the replacement of older control units. Whether implemented in metal processing, paper mills, or mining applications, the SDCS-CON-F01 delivers the stable performance required to maximize machine uptime. Consequently, many facilities rely on this specific ABB governor board to maintain the tight tolerances needed for modern manufacturing excellence.
