Description

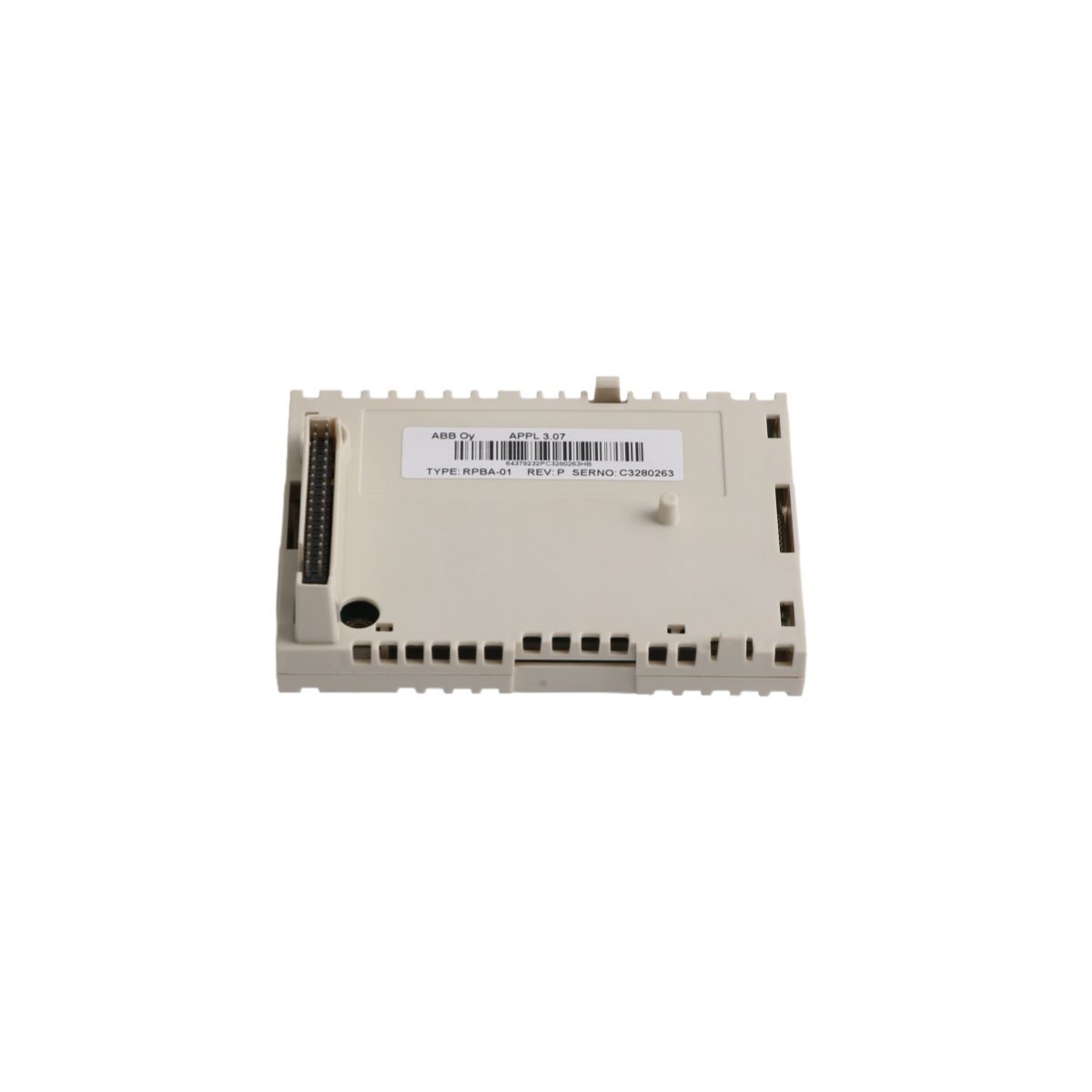

The ABB RPBA-01 serves as a high-performance communication interface for industrial automation environments. This module enables ABB drives and controllers to link directly with PROFIBUS DP networks. By establishing this connection, the adapter facilitates seamless data flow between master controllers and field instruments. Consequently, the unit allows for centralized monitoring of process variables and motor parameters. This hardware remains a fundamental building block for integrated factory automation and plant-wide control.

Data Throughput and Performance

This adapter handles demanding control tasks through efficient data management protocols. It supports a maximum data exchange capacity of 244 bytes for both input and output telegrams. This bandwidth provides ample room for complex diagnostic information and high-speed control commands. Furthermore, the onboard microprocessor manages signal processing independently to reduce the load on the main drive. These performance features ensure low-latency response times in time-critical manufacturing applications.

Physical Design and Protection

ABB designed the RPBA-01 with a focus on cabinet space optimization and durability. The module carries an IP20 protection rating, making it ideal for installation within clean electrical enclosures. Its lightweight construction minimizes mechanical stress on the drive interface connector. Moreover, the compact housing allows for high-density mounting in crowded control panels. The unit withstands typical industrial vibration and electrical noise to ensure consistent uptime.

Technical Specifications
