Description

Brief Product Description

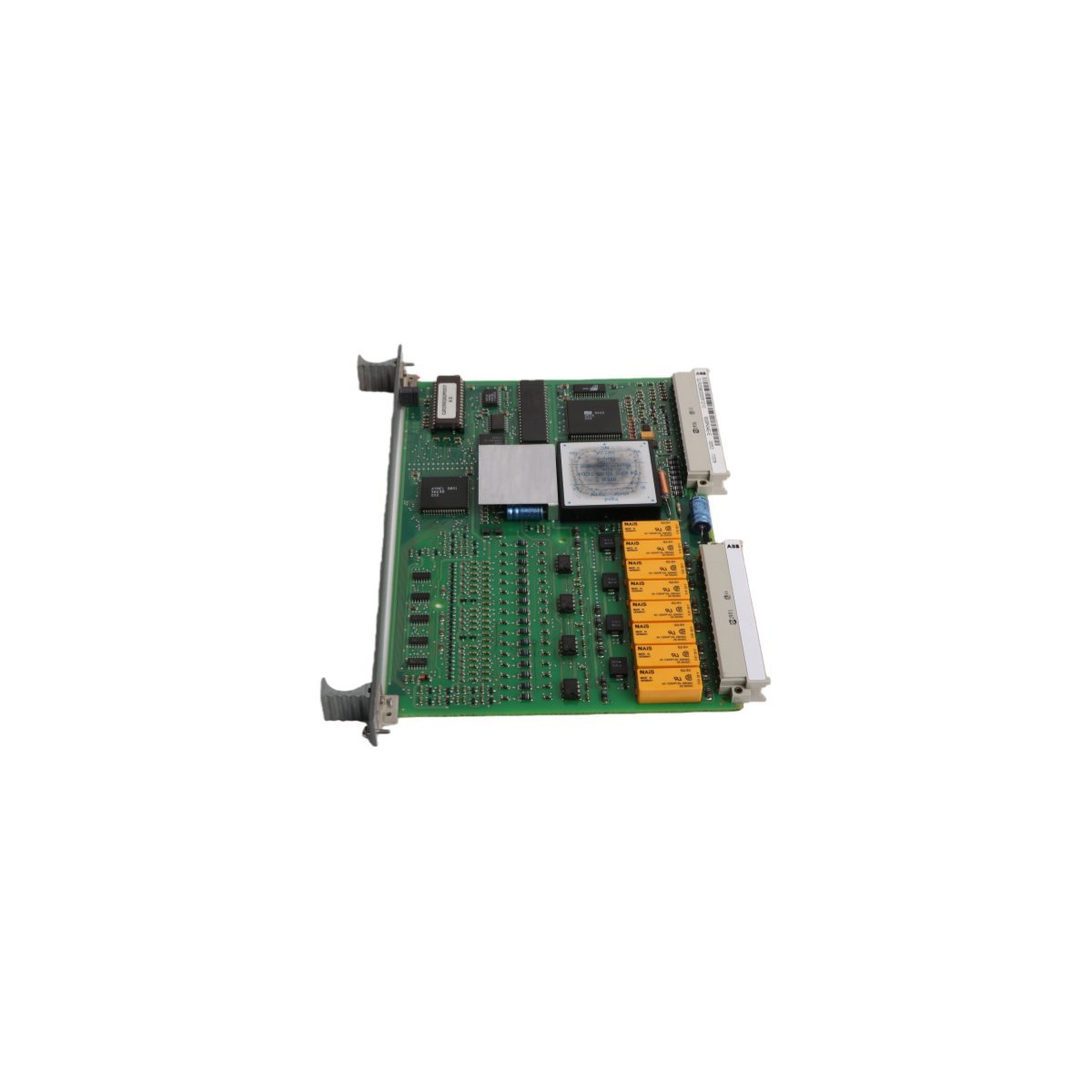

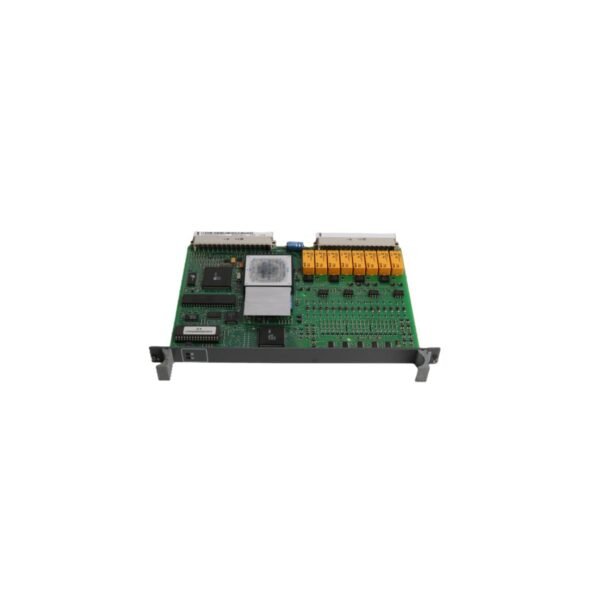

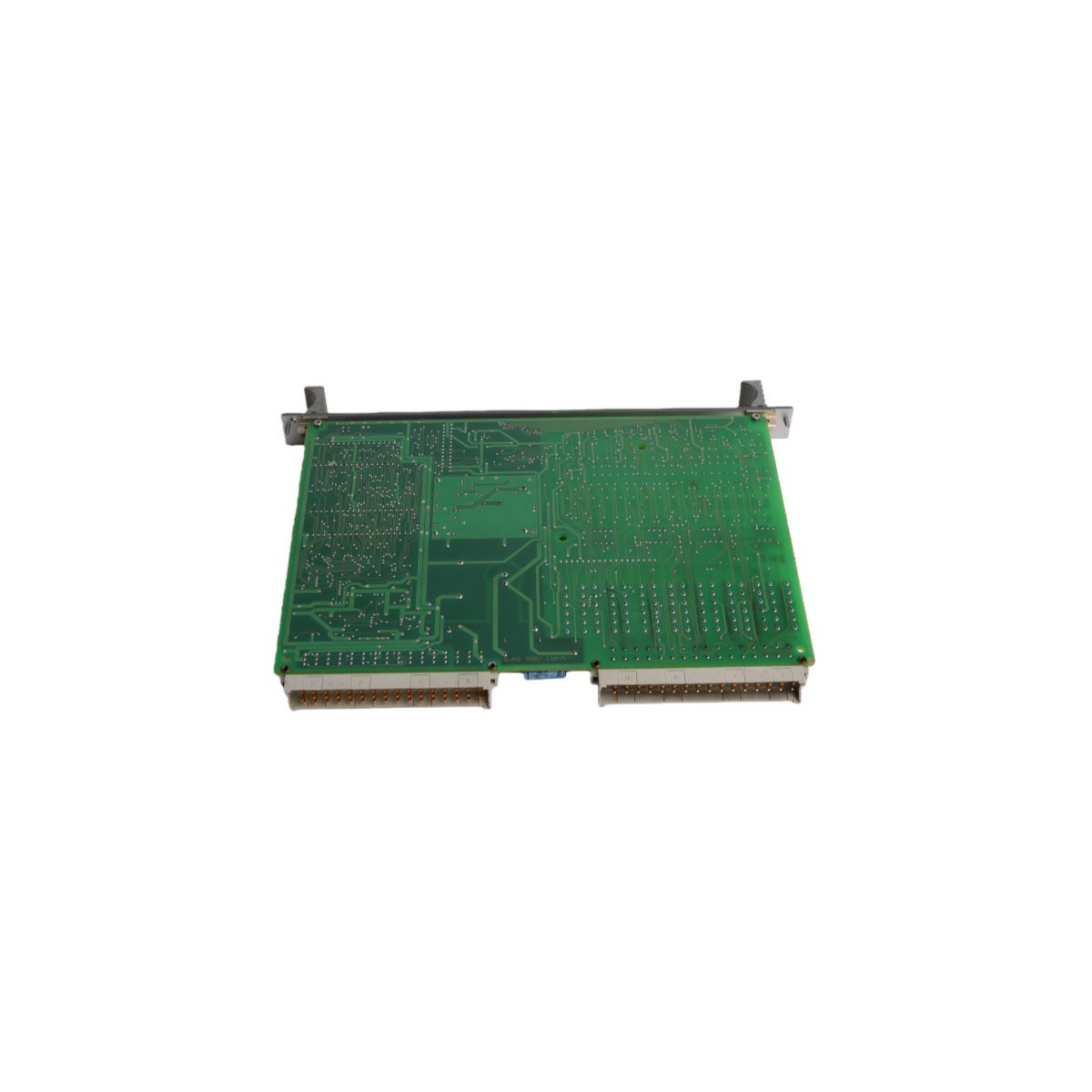

The ABB 83SR04E-E (GJR2390200R1310) is a specialized relay control module designed for the Procontrol P14 platform, facilitating precise actuation of valves, motors, and solenoids. It combines binary and analog control capabilities to ensure high-integrity boiler protection and process regulation in power generation facilities.

​Product Description

The 83SR04E-E, recognized by the order code GJR2390200R1310, functions as a high-reliability relay control unit within the ABB Procontrol P14 automation architecture. This platform has served the global power generation sector for over three decades, providing a stable foundation for instrumentation and critical boiler protection. The module specifically bridges the gap between digital logic and physical field actuators. By integrating this module into a DCS environment, operators achieve granular control over essential mechanical components, ensuring that plant operations remain within strict safety parameters even during complex startup or shutdown sequences.

Versatile Control and Actuation

This module distinguishes itself through a flexible I/O configuration that manages diverse hardware interfaces. The 83SR04E-E provides four dedicated binary control channels coupled with a variable range of one to four analog control channels. This hybrid approach allows a single unit to govern a variety of equipment, ranging from simple solenoid-driven on/off valves to sophisticated variable-speed motors. Consequently, this versatility simplifies the hardware layer of the Procontrol P14 system, reducing the variety of spare parts required and streamlining the overall control cabinet design.

Diagnostic Intelligence and Global Provenance

Operational transparency is central to the design of the GJR2390200R1310. The module supports advanced diagnostic functions that continuously monitor the health of the control loops and the integrity of the relay outputs. These features allow for real-time error detection and rapid troubleshooting, which directly contributes to increased plant availability. With hundreds of successful installations worldwide, this module demonstrates exceptional durability in high-demand environments. Its role in SIL 3 certified safety systems further underscores its reliability, making it a preferred choice for automation professionals managing mission-critical power distribution and generation networks.

Technical Specification Table
