Product Overview

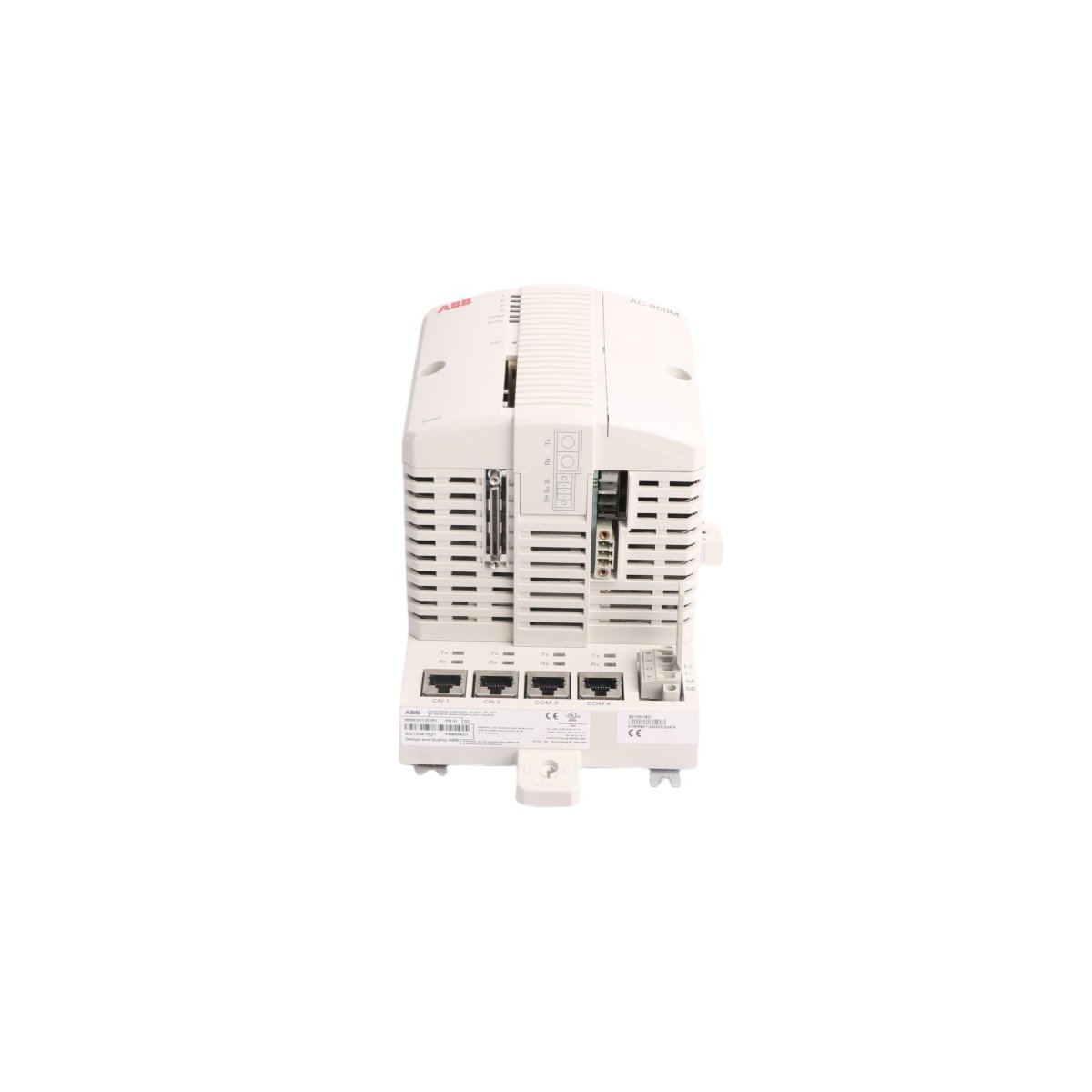

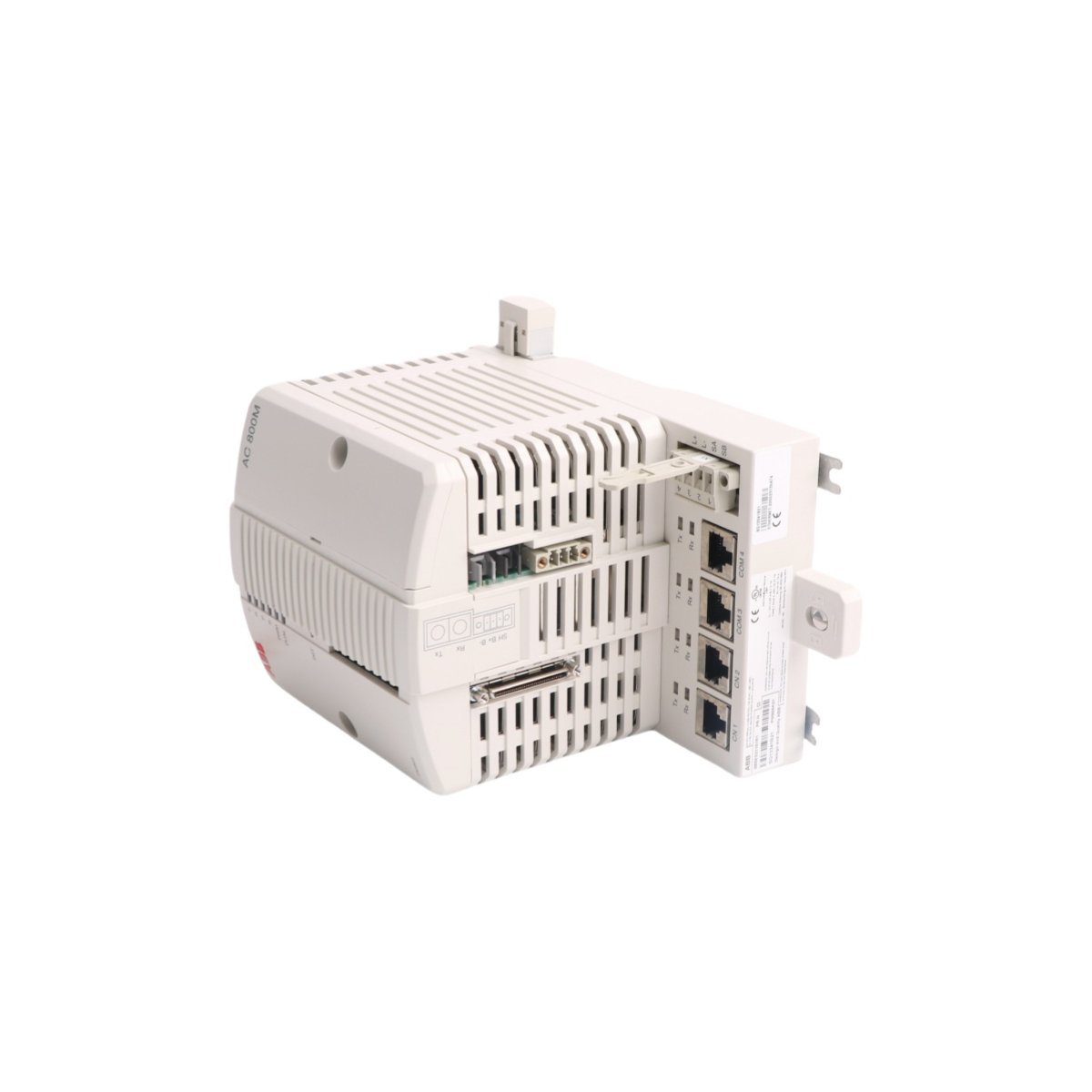

The ABB PM865K01 (3BSE031151R1) is a SIL3-rated High Integrity processor unit designed specifically for the AC800M controller platform. This safety-certified CPU provides a reliable foundation for emergency shutdown (ESD) and critical process control within the Advant 800xA ecosystem.

Advanced Safety Architecture and High-Integrity Control

The PM865K01 serves as a high-performance logic solver for mission-critical industrial automation. Operating at a 96MHz clock speed with 32MB of integrated memory, this processor executes complex safety logic with high precision and speed. Because it carries SIL3 certification, the module adheres to the most stringent international safety standards, ensuring that critical processes remain protected during hardware or software anomalies. Engineers typically deploy this unit in environments where process interruption or failure poses significant risks, utilizing its redundant capabilities to maximize system reliability and safety integrity.

Connectivity and Network Integration

This processor unit features dual 10/100 Mbps Ethernet ports, which facilitate high-speed communication within the control network. The PM865K01 supports a variety of industrial protocols, including Modbus (RTU and TCP), PROFIBUS DP through dedicated expansion modules, and OPC UA via firmware updates. These communication options allow the controller to interface seamlessly with a wide array of field devices and supervisory systems. Furthermore, the unit manages data flow efficiently, ensuring that real-time status updates and alarm signals reach the operator workstation without delay, which is vital for effective process monitoring.

Maintenance and Legacy System Support

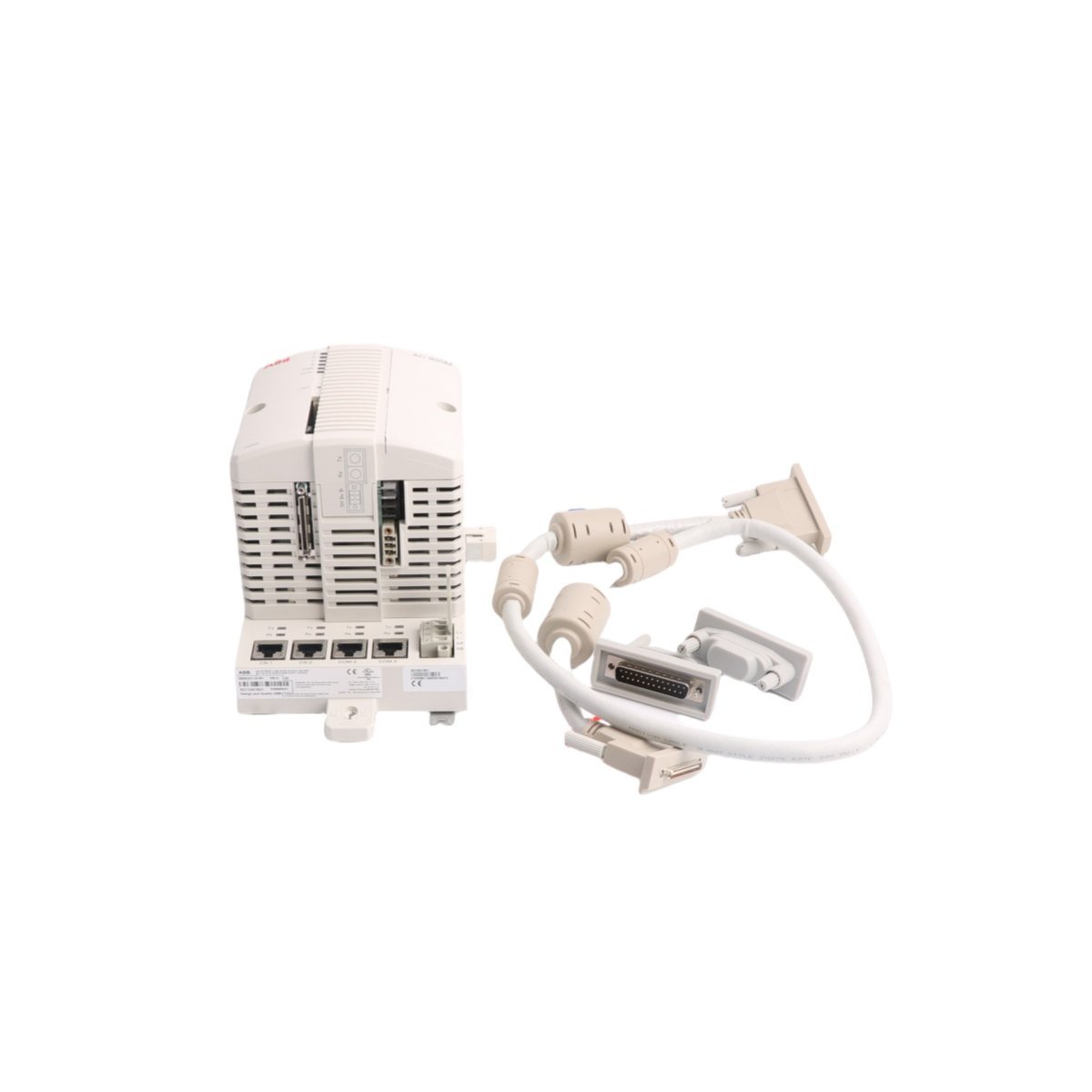

As a non-RoHS compliant component, the 3BSE031151R1 module primarily serves the maintenance and expansion needs of existing systems installed prior to July 2017. The complete kit includes the CPU module, the TP830 baseplate, and necessary termination hardware (TB850/TB807/TB852), along with a 4943013-6 backup battery to prevent data loss during power cycles. While newer installations often utilize the PM867K01, the PM865K01 remains a critical spare part for preserving the operational lifecycle of legacy 800xA High Integrity controllers. Its compact form factor and rugged design ensure it withstands harsh industrial temperatures ranging from 0°C to +60°C.
