Description

Product Overview

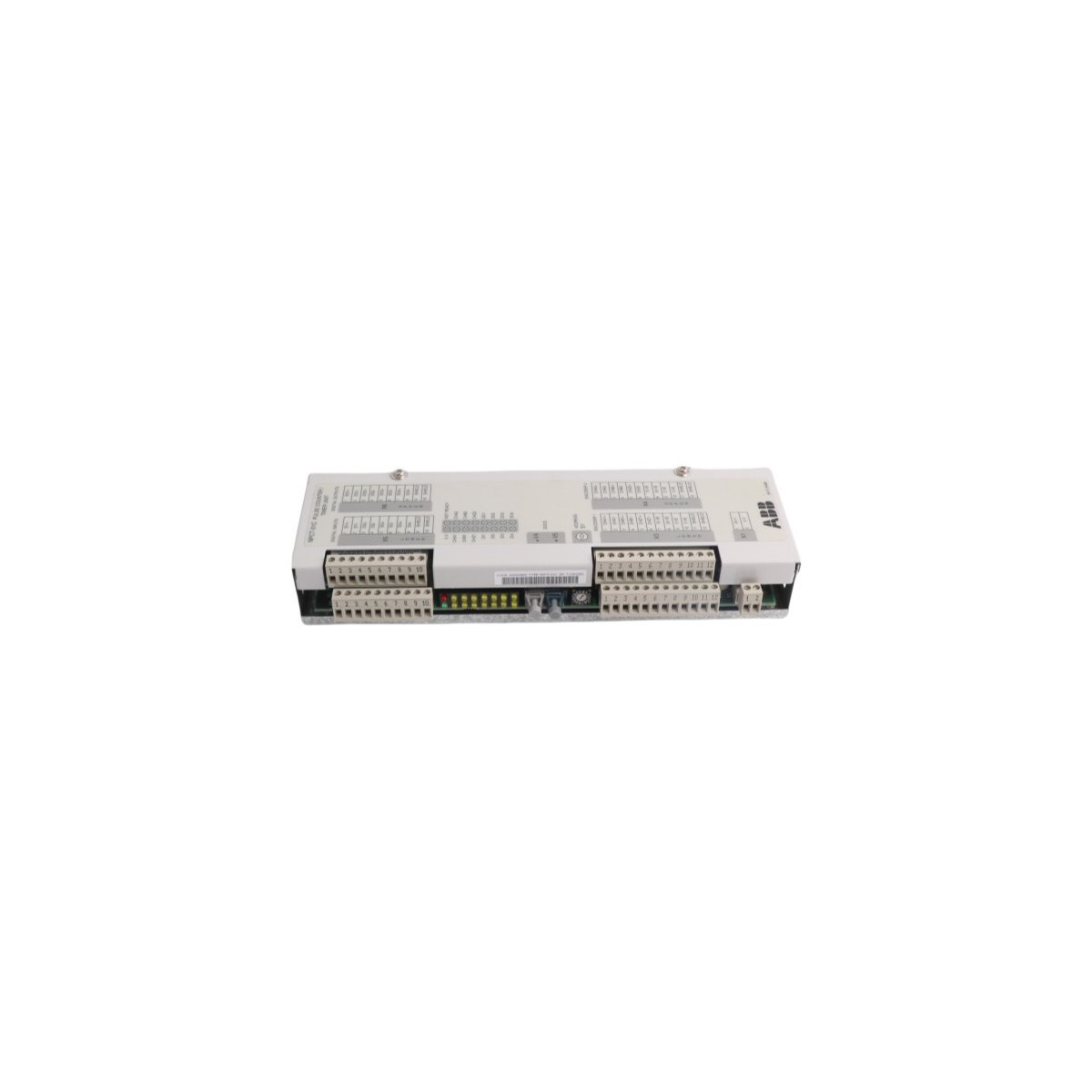

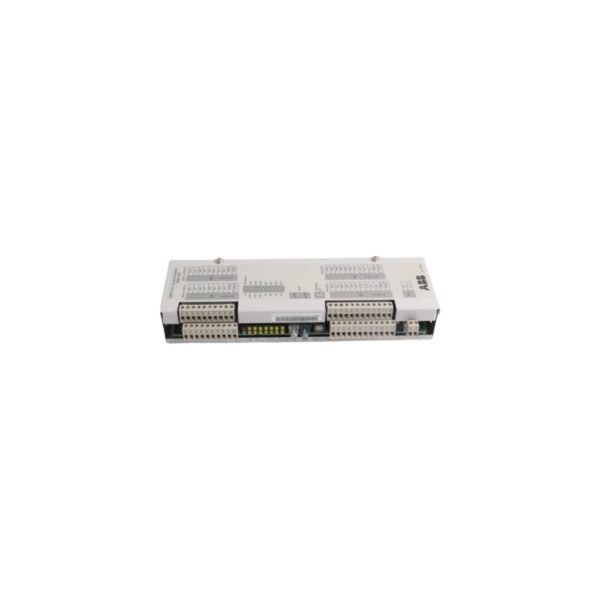

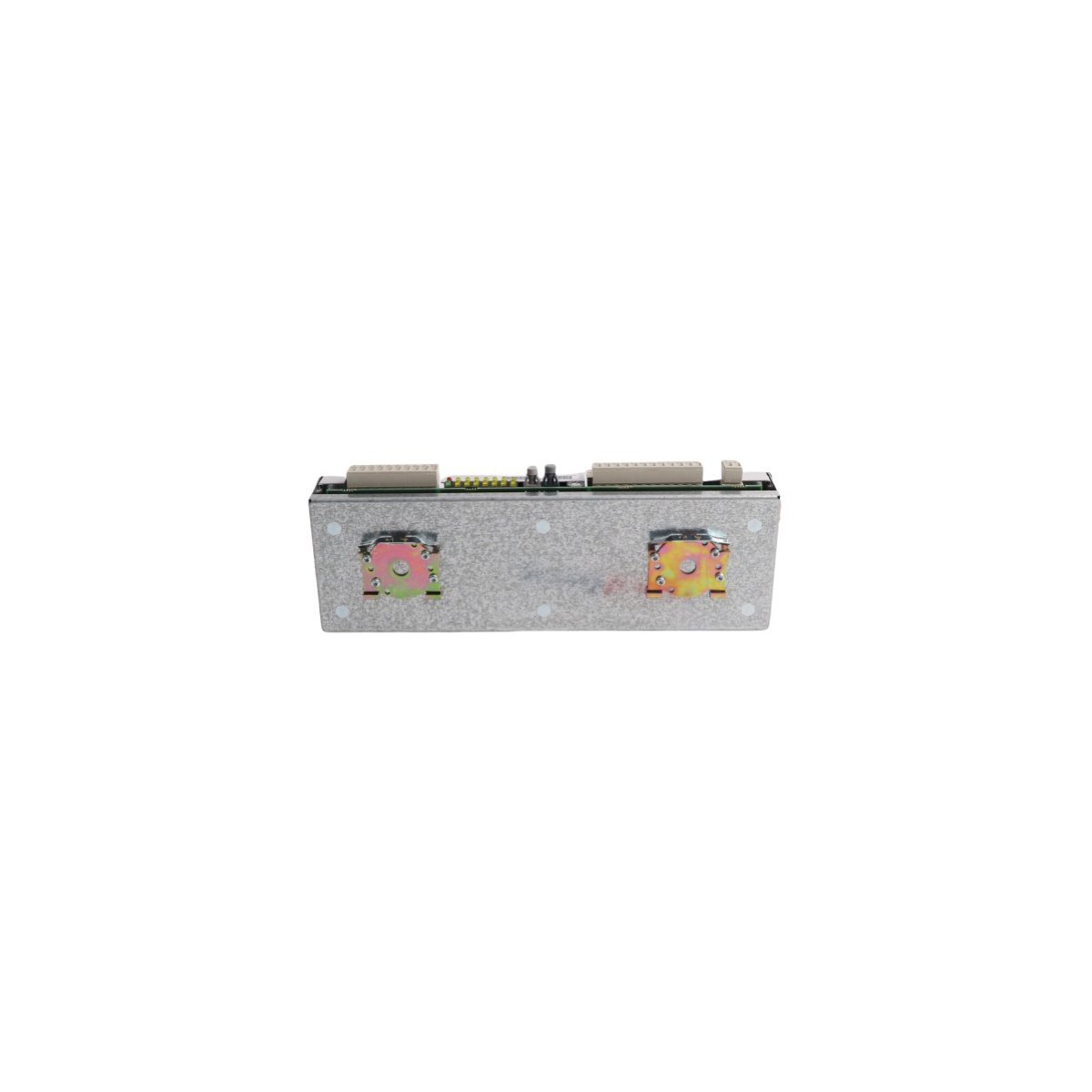

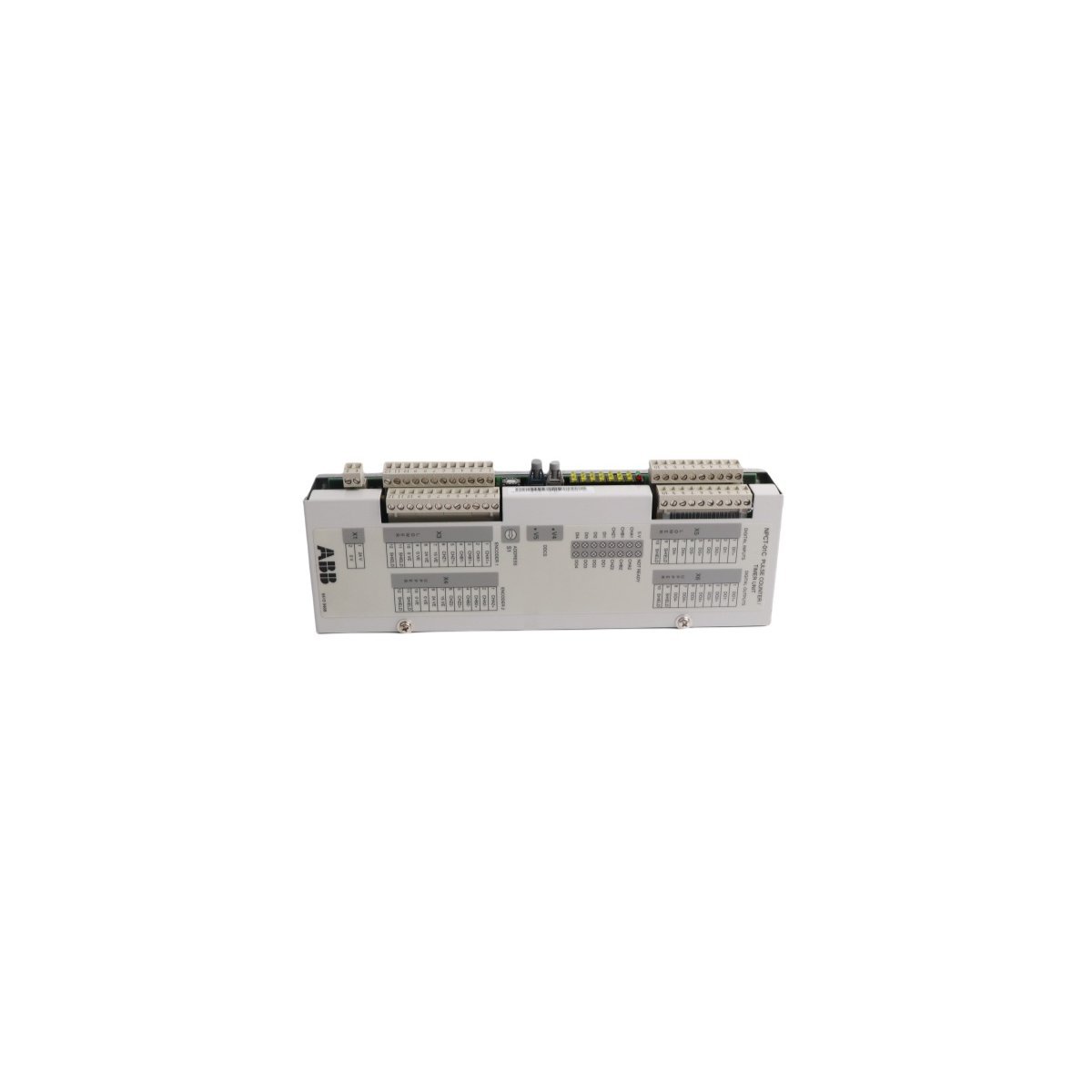

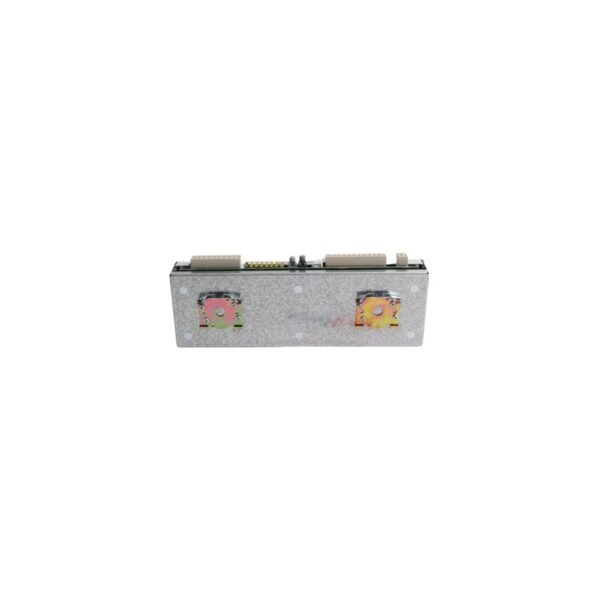

The ABB NPCT-01C 64009486D is a high-precision pulse counting and timing module designed for the Bailey Net 90 and Infi 90 Distributed Control Systems (DCS). This unit provides critical synchronization and frequency measurement capabilities for complex industrial automation processes.

High-Precision Counting and Timing Logic

The NPCT-01C 64009486D module functions as a specialized I/O interface that processes high-speed pulse inputs to determine frequency, totalization, and duration. By utilizing an adjustable timer range, engineers can customize the module to suit specific application requirements, such as flow meter totalization or motor speed monitoring. This flexibility ensures that the module delivers exact data to the DCS controller, supporting tighter process loops and improved system response.

Industrial Durability and Power Handling

ABB engineered this unit to withstand the rigorous electrical and environmental demands of power plants and chemical processing facilities. The module features integrated relay contacts designed to handle significant current ratings, which allows it to control actuators and pumps directly or via intermediate circuitry. Because the hardware adheres to strict Bailey Infi 90 specifications, it maintains signal integrity even in high-interference environments.

System Integration and Maintenance

The compact physical footprint of the 64009486D facilitates effortless installation into existing Bailey mounting rows. Furthermore, the unit maintains full compatibility with ABB’s legacy and modern automation hardware, simplifying the migration and upgrade paths for aging control systems. This seamless integration effectively reduces commissioning time and lowers long-term maintenance costs for facility operators.

Technical Specifications
