Description

Brief Product Description

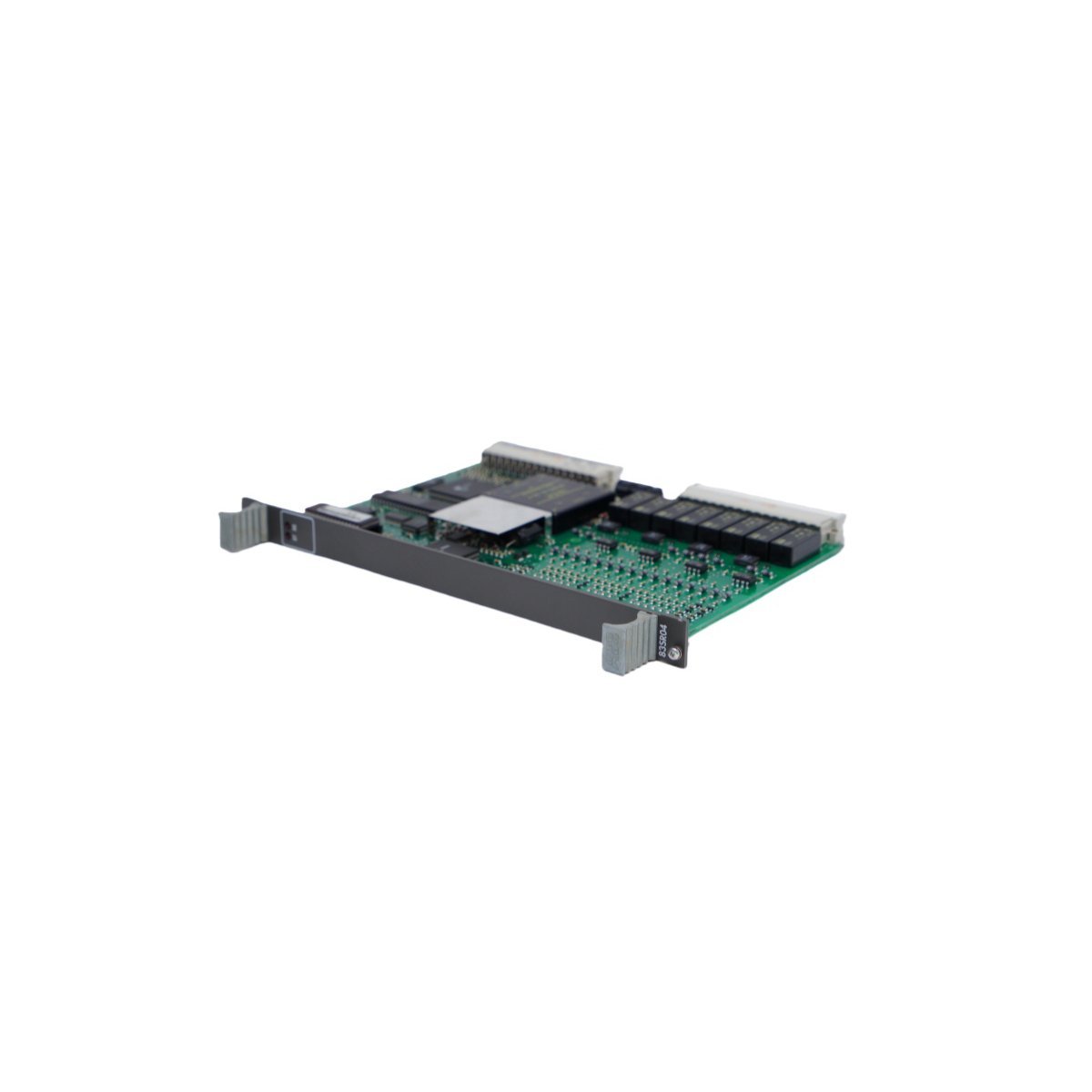

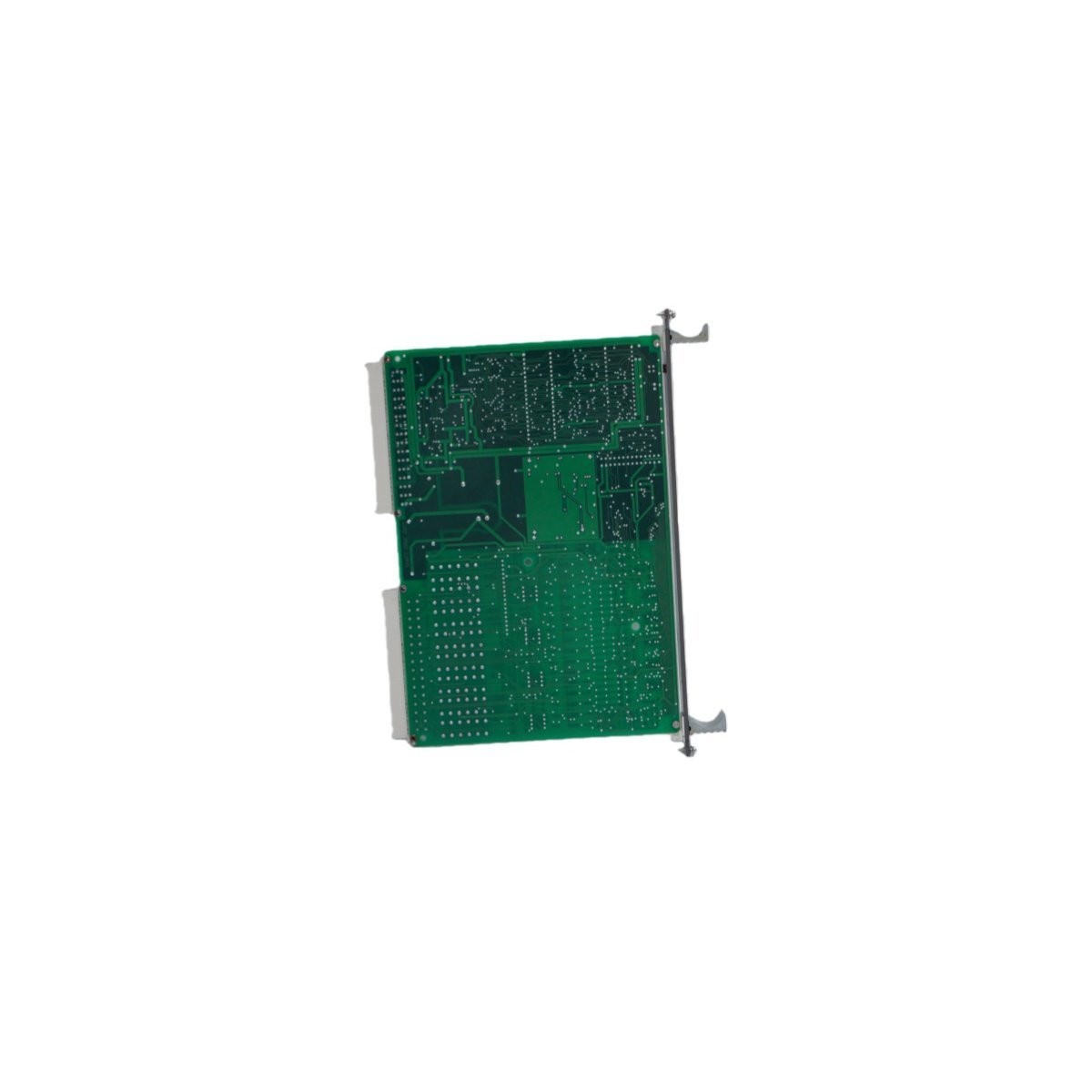

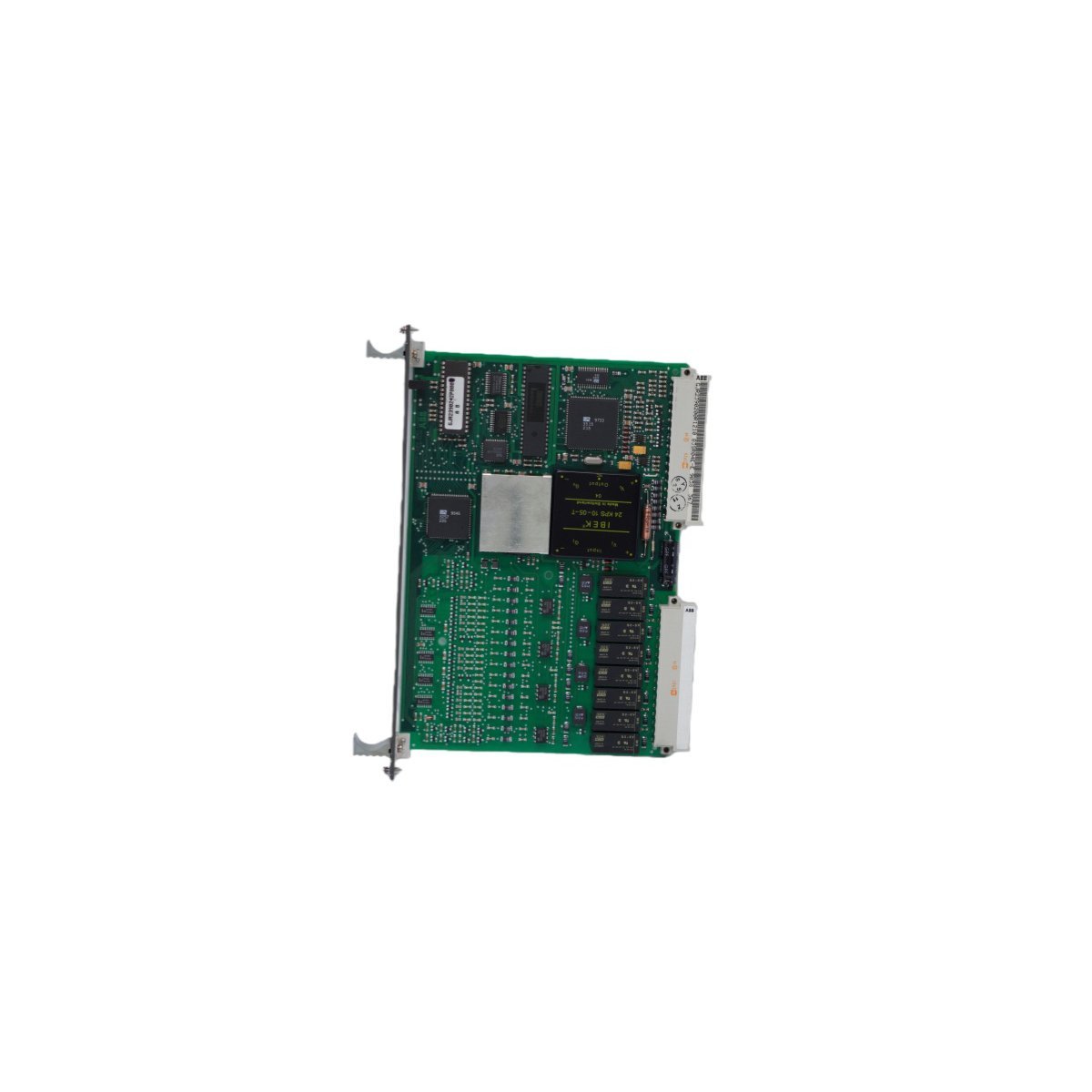

The ABB GJR2390200R1210 83SR04D-B is a multi-functional control processor designed for the Procontrol P14 system, capable of managing complex analog and binary control loops. It provides the high-speed processing required for driving electrohydraulic, pneumatic, and electric actuators in power generation and heavy industrial applications.

Product Description

Versatile Control Architecture for Procontrol P14

The ABB GJR2390200R1210 83SR04D-B functions as a high-performance processing unit within the Procontrol P14 ecosystem. This control card manages diverse operational requirements by supporting both binary control with variable cycles and analog control with fixed execution intervals. Because it operates across drive, group, and unit control levels, engineers frequently deploy this module to synchronize complex machinery sequences. The card effectively handles various actuator technologies, ensuring precise movement and positioning for electric motor-driven, electropneumatic, and electrohydraulic systems.

Multi-Loop Processing and Signal Conditioning

A primary advantage of the 83SR04D-B control module lies in its ability to execute up to four independent control loops or functional groups simultaneously. This parallel processing capability reduces the hardware footprint in control cabinets while maintaining high-speed responsiveness. For analog regulation, the module achieves a precise 100ms cycle time for single-actuator tasks and 200ms for dual-actuator setups. Furthermore, the onboard signal conditioning logic cleanses field data, providing a stable foundation for three-step regulation and advanced automation strategies.

Diagnostic Monitoring and System Reliability

ABB engineered the GJR2390200R1210 to maximize system uptime through integrated disturbance monitoring and comprehensive self-diagnostics. The motherboard continuously evaluates the health of the control loops and the integrity of the communication link with multipurpose processing stations. If the module detects a fault, it provides detailed diagnostic data to the operator interface, facilitating rapid troubleshooting. This proactive monitoring, combined with a rugged Swedish-built design, ensures that the control unit maintains stable performance in demanding industrial environments where continuous process availability is paramount.
