Description

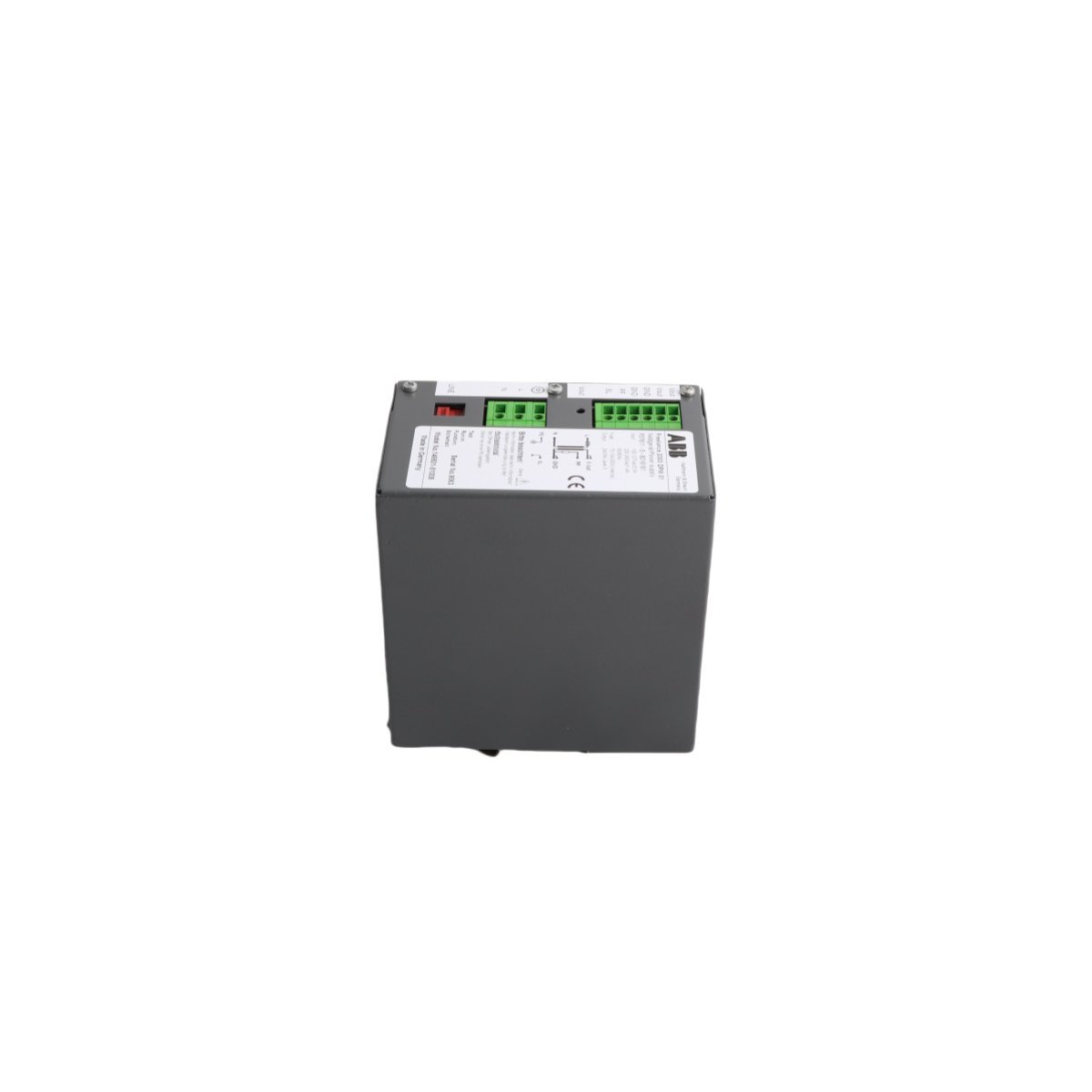

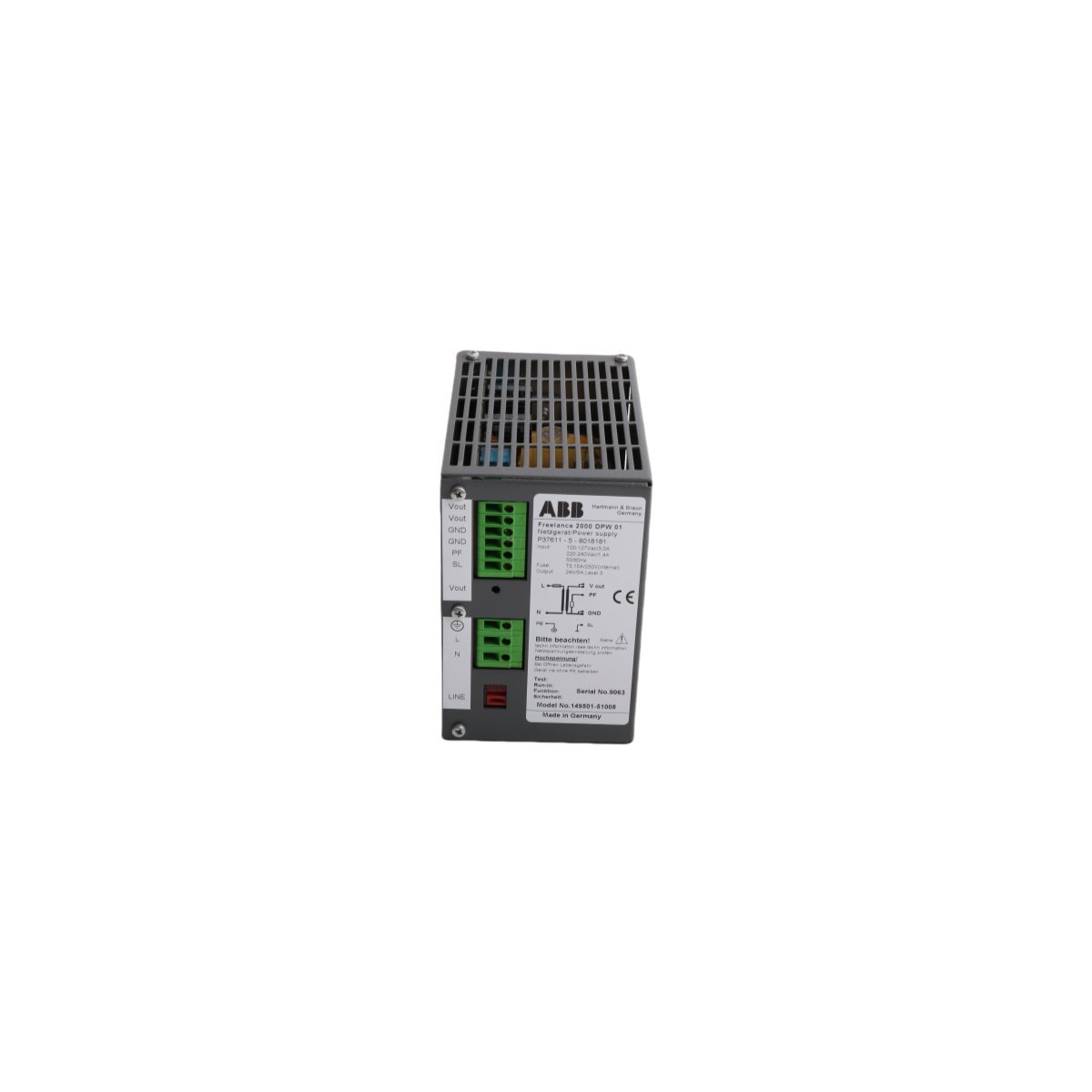

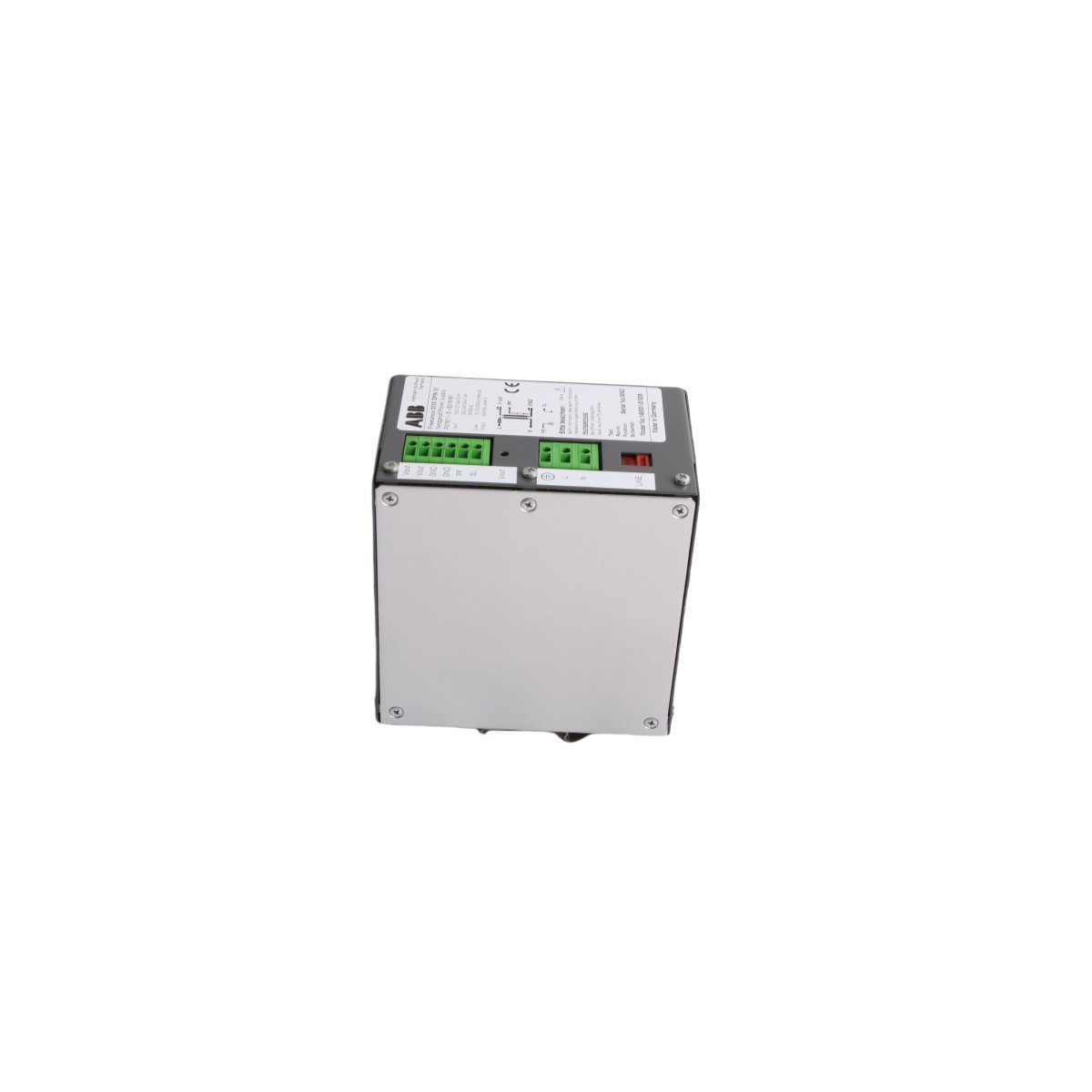

The ABB DPW01 is a dedicated power conversion module designed for the Freelance Distributed Control System (DCS). This unit provides the essential DC voltage required for processor modules and communication interfaces. By utilizing advanced regulation technology, the DPW01 maintains a consistent energy flow to critical automation hardware. It serves as a reliable backbone for process control strategies in diverse industrial sectors. Consequently, the module ensures that control logic remains active during varying load conditions.

Core Technical Specifications

Operational Efficiency and System Stability

The DPW01 module features a high-efficiency design that minimizes heat dissipation within the control cabinet. This thermal optimization extends the lifespan of adjacent electronic components in the rack. Furthermore, the wide input tolerance allows the unit to operate effectively on unstable power grids. It effectively filters electrical noise and prevents interference with sensitive analog signals. Because the module prioritizes energy conservation, it reduces overall operational costs for large-scale facilities.

Integrated Hardware Protection

Safety and reliability remain central to the DPW01 architecture. The unit includes comprehensive internal shielding against overcurrent and thermal overload conditions. If a short circuit occurs, the module self-protects to prevent damage to the central processing unit. Moreover, the hardware complies with international safety certifications for global industrial deployment. These protective layers significantly reduce unplanned downtime in 24/7 manufacturing environments.

Key industrial applications include:

• Oil and gas upstream and downstream processing.
• Chemical batch management and reactor control.
• Water treatment and distribution infrastructure.
• Food and beverage automated production lines.

Installation and Rack Integration

The compact footprint of the DPW01 allows for high-density mounting in standard industrial enclosures. It snaps securely onto the system rail to ensure stable mechanical connectivity. Maintenance teams can monitor the power status through front-facing LED indicators for rapid troubleshooting. Additionally, the clearly marked terminals simplify the initial wiring process during system commissioning. This user-friendly design supports fast hardware swaps to maintain high system availability.
