Description

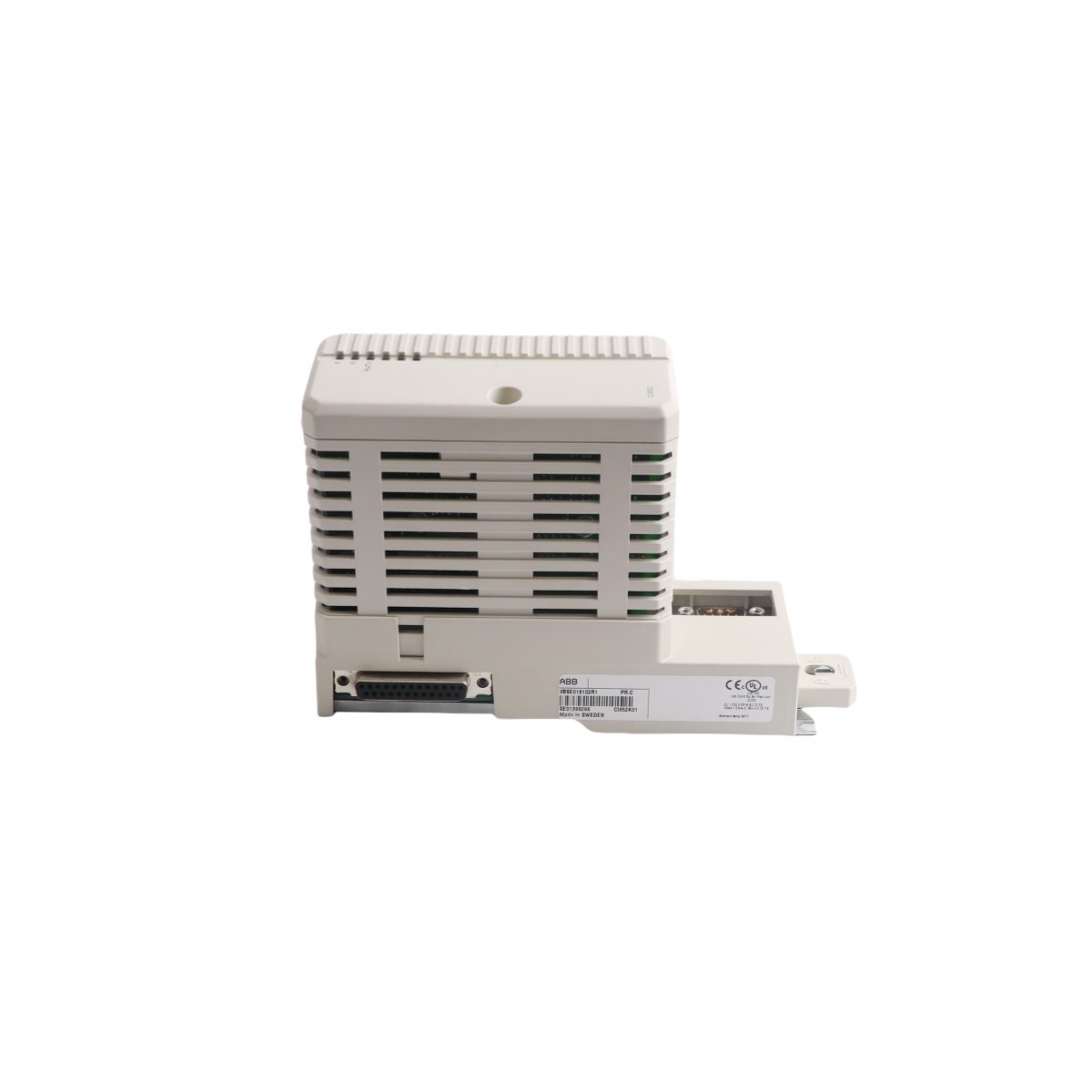

The ABB CI852K01 3BSE018102R1 functions as a high-speed communication link for the AC 800M controller series. This module enables the integration of Foundation Fieldbus H1 networks into the 800xA control system. It manages bidirectional data traffic between the supervisory controller and intelligent field instruments. Consequently, the unit provides a transparent bridge for process variables and diagnostic data. This interface is essential for plants requiring digital instrument integration and advanced asset management.

Protocol Support and Network Capacity

This interface kit supports the Foundation Fieldbus H1 standard for digital device networking. It allows the connection of multiple smart transmitters and actuators on a single segment. By utilizing digital signaling, the module eliminates the limitations of traditional analog wiring. Furthermore, it supports the integration of third-party FF devices within the ABB ecosystem. This open compatibility ensures that engineers can select the best instruments for their specific process needs.

Intelligent Diagnostics and System Reliability

The CI852K01 includes comprehensive onboard diagnostics to monitor network health in real-time. These features detect communication errors and cable faults before they disrupt the process. The module also supports redundant configurations to ensure maximum system availability. If a primary unit fails, the backup module takes control without losing data. Therefore, this hardware is ideal for mission-critical applications in the power and chemical sectors.

Technical Specifications
