Description

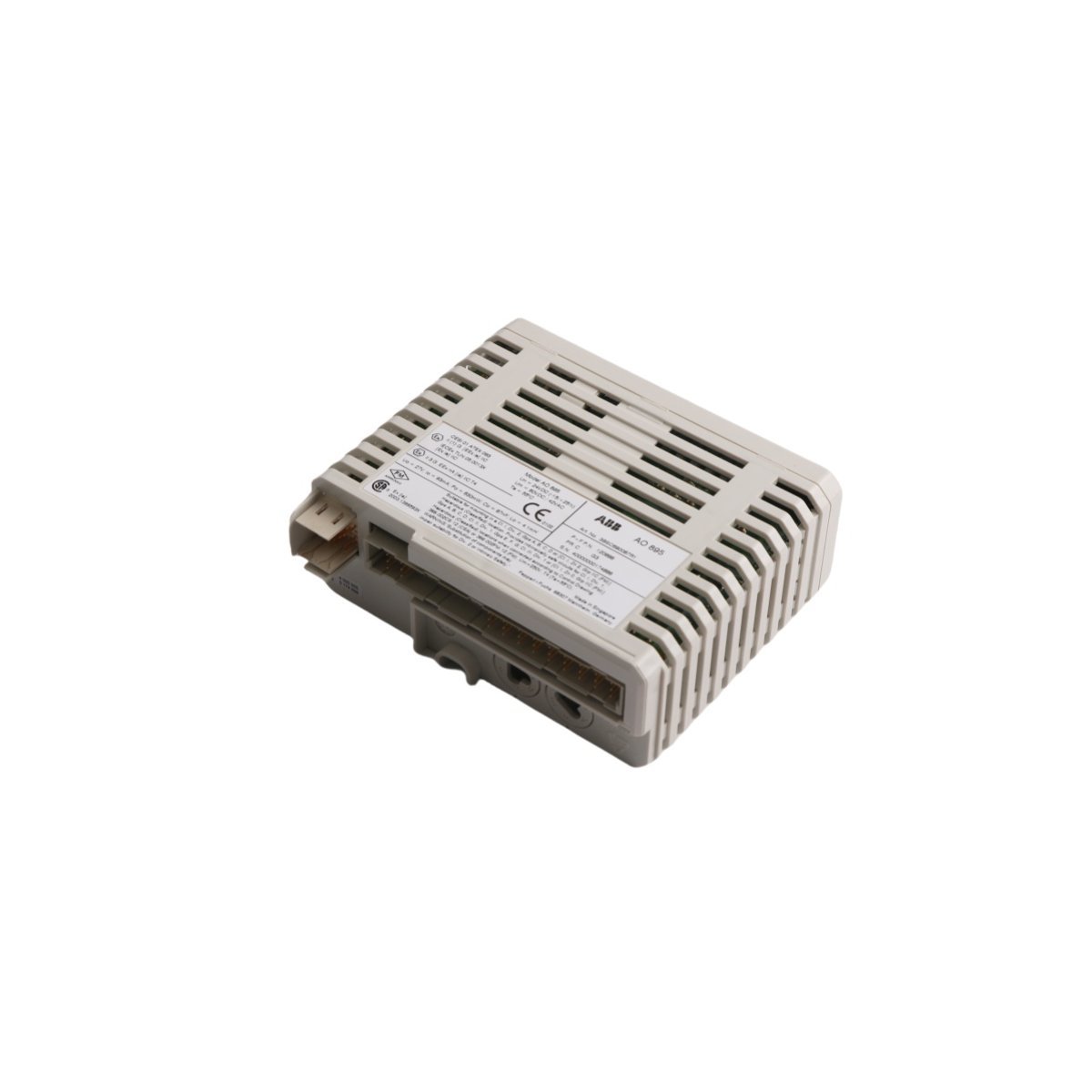

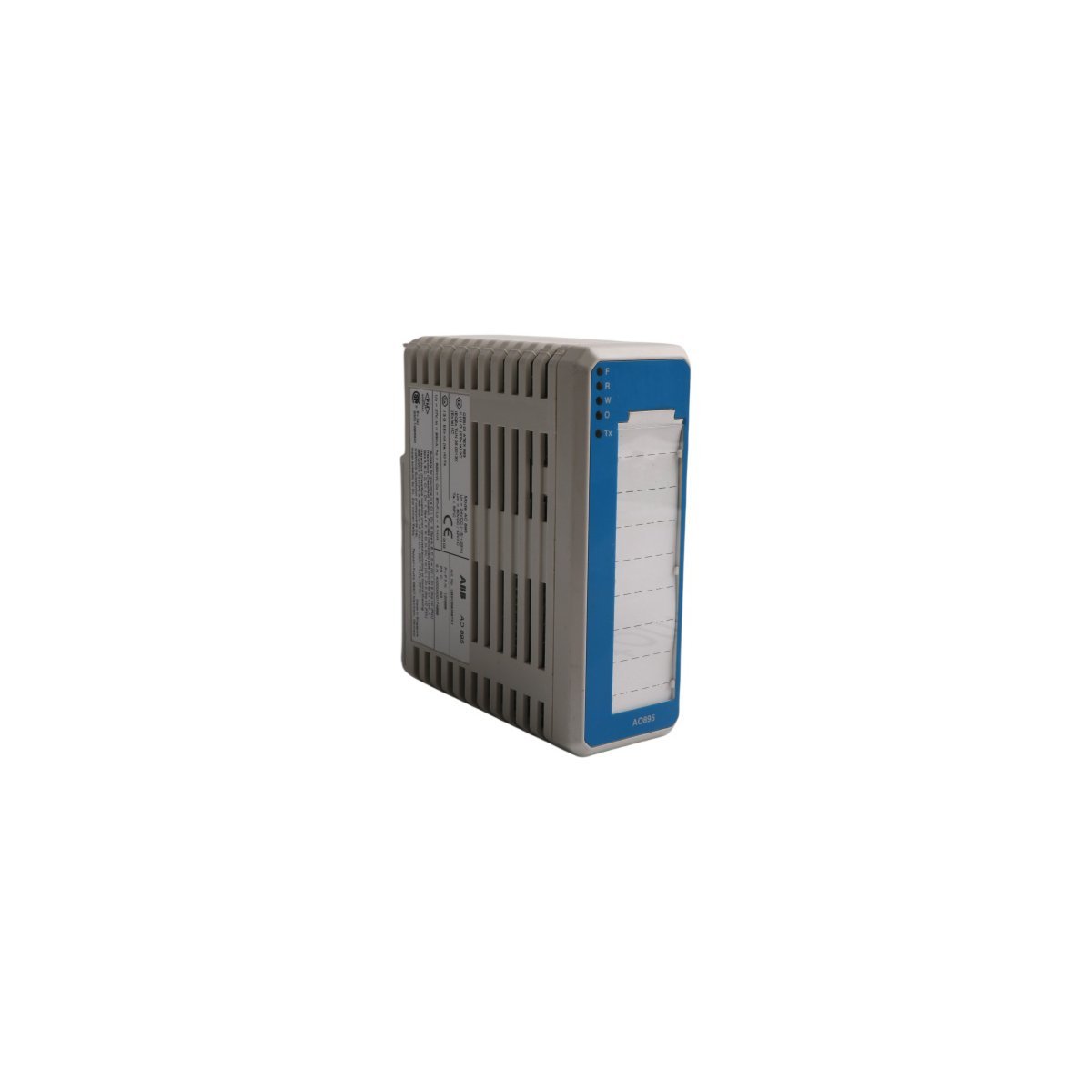

The ABB AO895 3BSC690087R1 acts as a high-density output interface for the S800 Remote I/O system. This module delivers eight channels of current output specifically designed for intrinsically safe applications. It integrates HART pass-through capabilities to facilitate bidirectional communication with intelligent field instruments. Consequently, engineers can perform remote configuration and diagnostics without additional hardware. This module serves as a bridge between the 800xA control system and actuators located in hazardous zones. Its precision ensures stable process control across various industrial sectors.

Technical Specifications and Data

Hardware Integrity and Safety Features

This module features a rugged build to withstand extreme industrial climates. It incorporates galvanic isolation to shield internal electronics from field-side interference. Furthermore, the AO895 includes specialized circuitry to prevent energy discharge in explosive atmospheres. The compact design allows for high-density mounting on standard DIN rails. Moreover, the unit provides real-time monitoring of channel health and loop integrity. This proactive diagnostic approach helps technicians identify wiring faults or instrument failures immediately. Such features significantly reduce manual inspection time and overall maintenance costs.

Industrial Applications and Integration

Engineers typically install the AO895 3BSC690087R1 in chemical plants, refineries, and offshore platforms. It effectively manages control valves, positioners, and other current-driven actuators. Because the module supports hot-swapping, maintenance teams can replace units without stopping the process. It integrates seamlessly into the ABB 800xA architecture via ModuleBus or PROFIBUS communication. The hardware complies with international safety certifications like ATEX and IECEx. Its low power consumption improves the energy efficiency of the entire I/O station. Therefore, it remains a dependable choice for modernizing safety-critical automation systems.
