Description

Product Overview

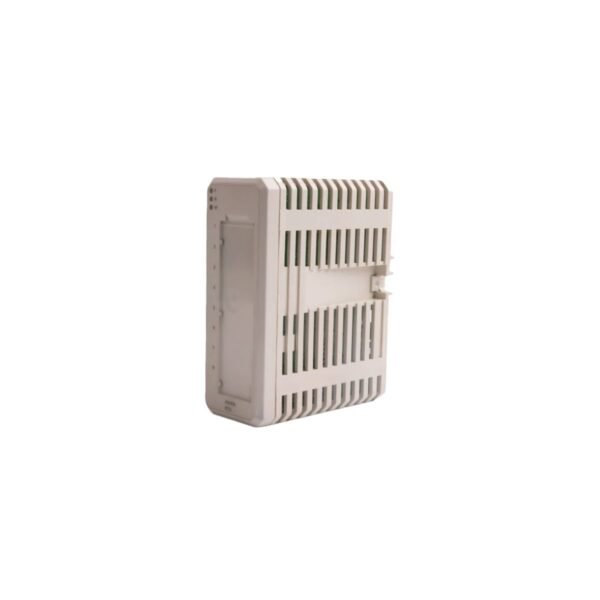

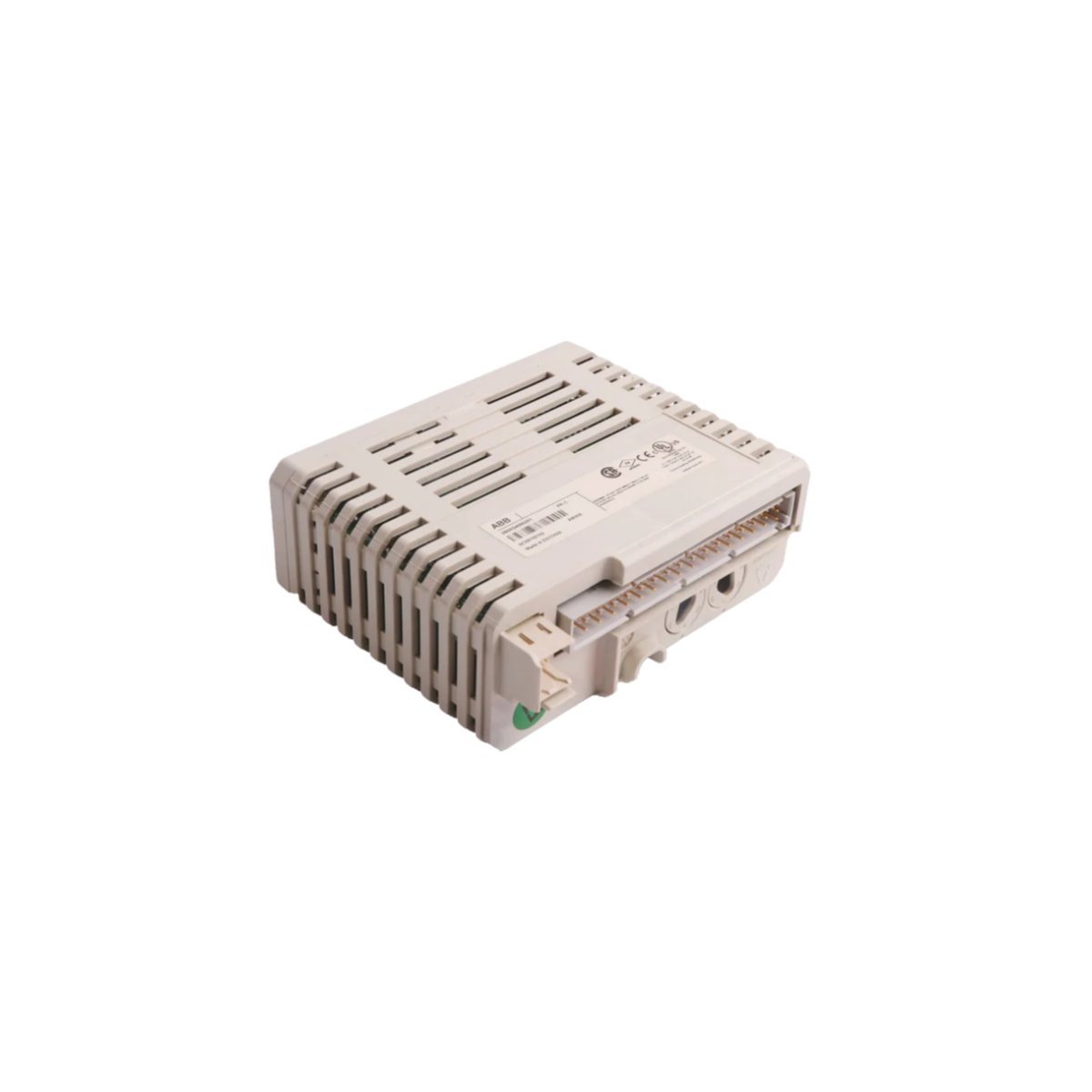

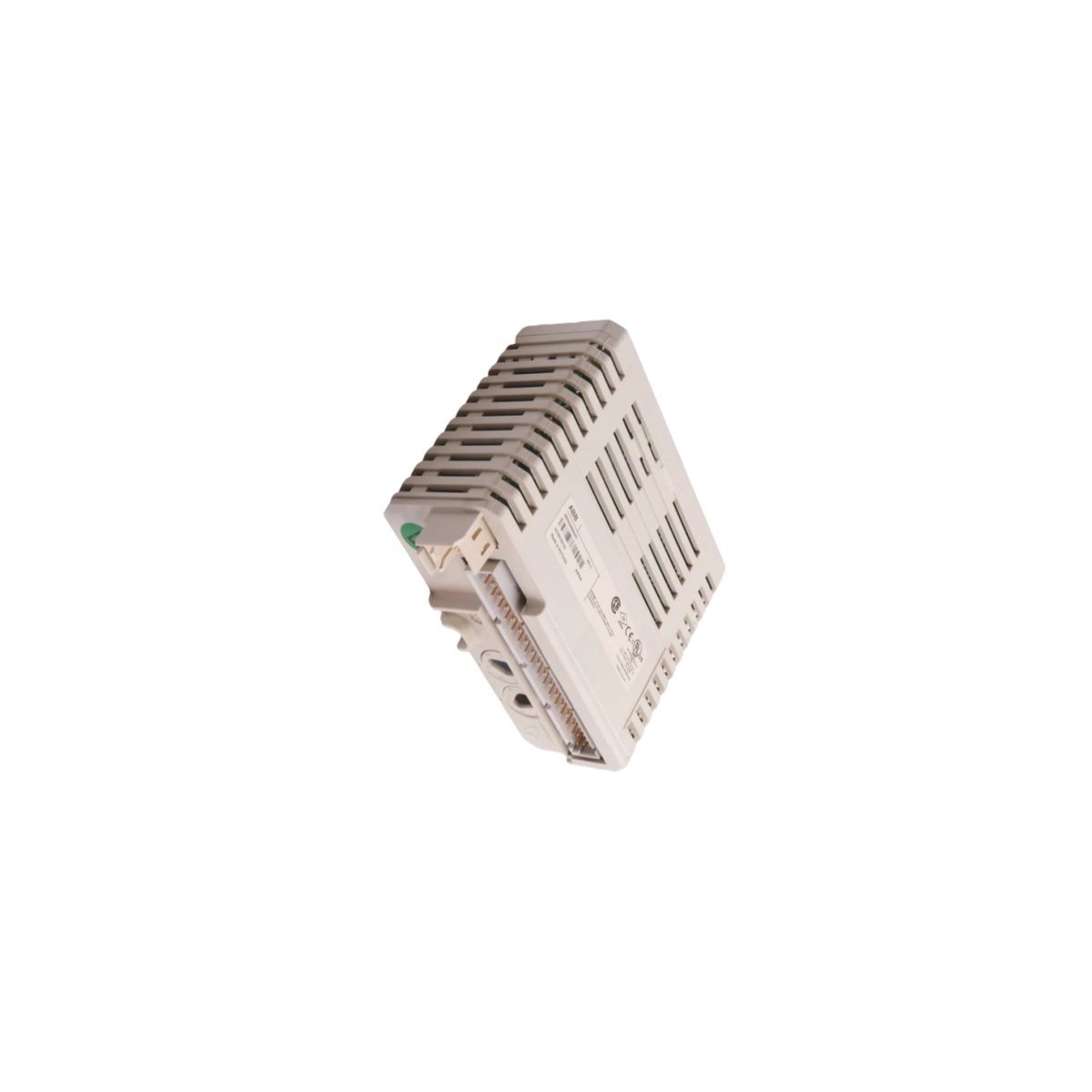

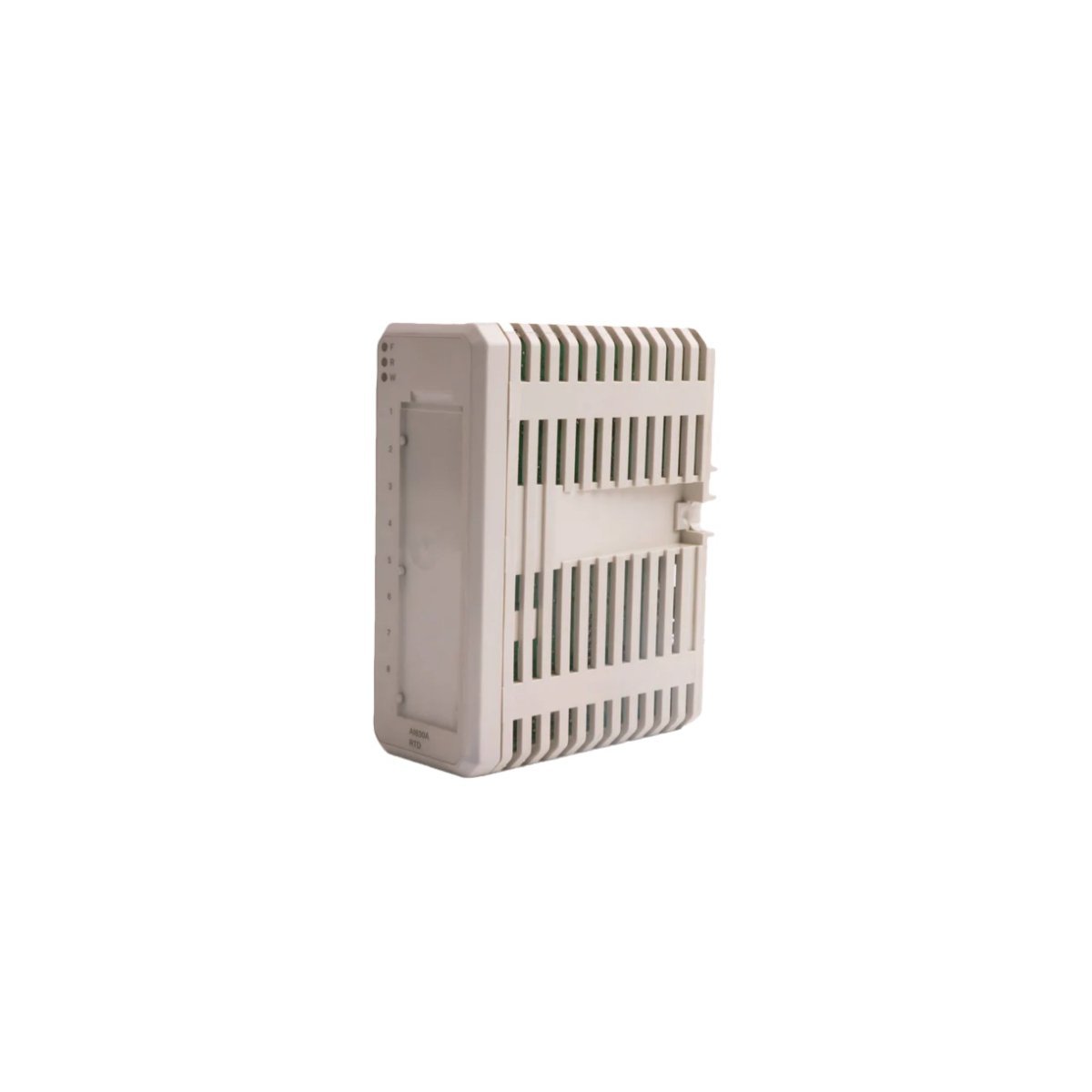

The ABB AO845 (3BSE023676R1) is a high-precision 8-channel analog output module designed for the S800 I/O system within Advant OCS and System 800xA architectures. This unit functions as a sophisticated current amplifier circuit, delivering reliable 4-20mA signals to field devices while supporting full redundancy for mission-critical processes.

High-Integrity Analog Control

The AO845 module provides eight independent unipolar analog output channels, specifically engineered to drive control valves, actuators, and other current-loop instruments. By integrating 4-20mA HART communication capabilities, the module allows for transparent data exchange between the control system and intelligent field devices. Engineers often deploy this module in redundant configurations to eliminate single points of failure, as the hardware supports seamless switchover between primary and secondary units. The circuit maintains a high 12-bit resolution and a 0.1% accuracy rating, ensuring that process variables remain strictly within defined limits.

Advanced Diagnostics and System Safety

Safety and uptime drive the design of the 3BSE023676R1, which features extensive internal self-monitoring and cyclical diagnostic routines. The module automatically detects external faults, such as open circuits or low process power supply voltage, and triggers an alarm if the output current deviates by more than 1mA from the setpoint. Furthermore, the unit monitors the health of its output transistors and performs continuous checksum verification of its internal memory. Because the AO845 can transition to a predefined “error state” upon detecting a critical failure or loss of communication with the ModuleBus master, it prevents unpredictable field device behavior during system upsets.

Flexible Integration and Rugged Construction

This current amplifier circuit facilitates effortless integration into existing DCS environments through compatibility with a wide array of Module Termination Units (MTUs), including the TU810, TU812, TU842, and TU843. The robust mechanical design handles the thermal and electrical stresses of modern industrial cabinets, featuring a rated isolation of 50V to protect the system backplane. With a weight of 1.22 kg and standardized dimensions, the AO845 offers a durable hardware solution for power plants, oil refineries, and chemical processing facilities that demand long-term operational stability in Sweden-engineered hardware.
