Description

Brief Product Description

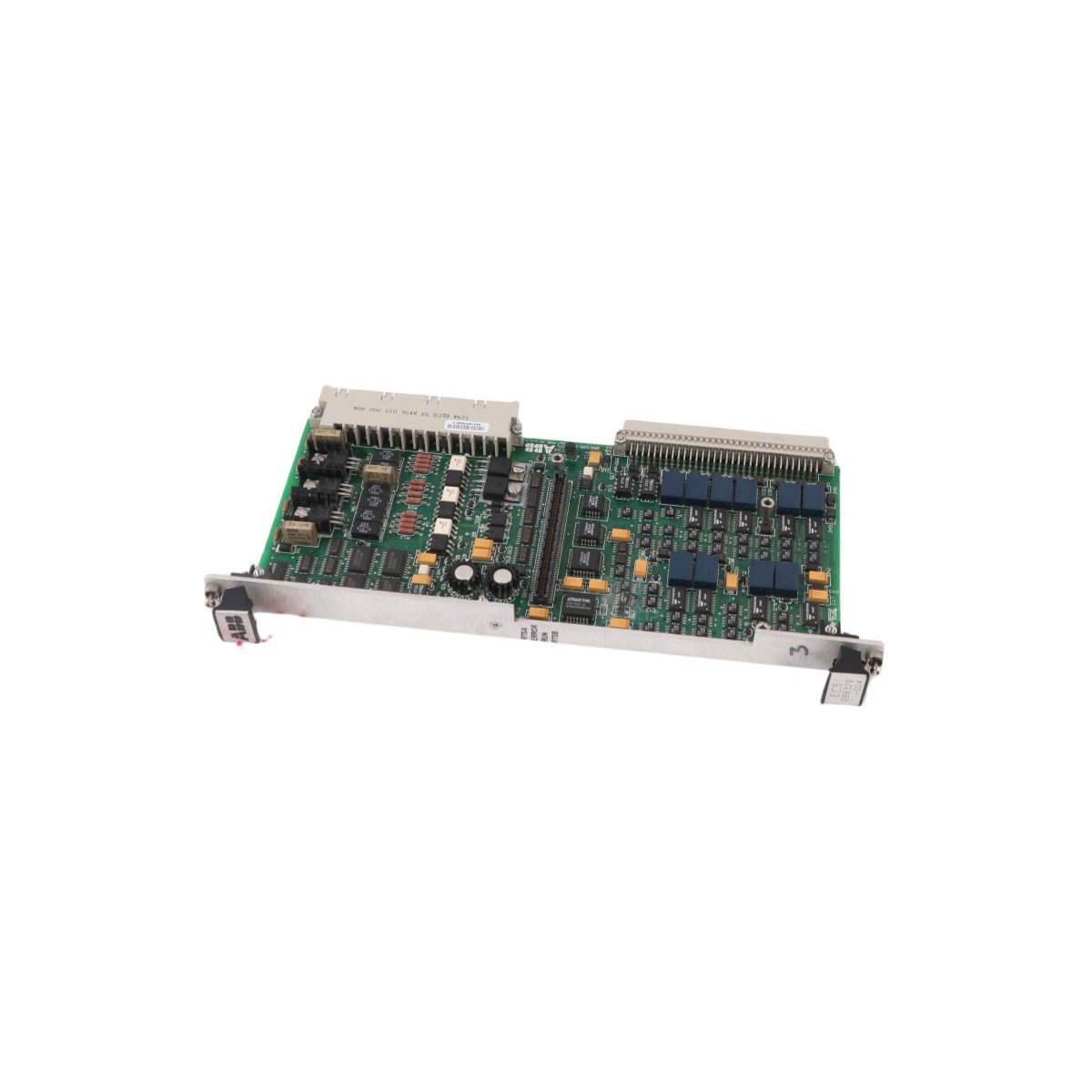

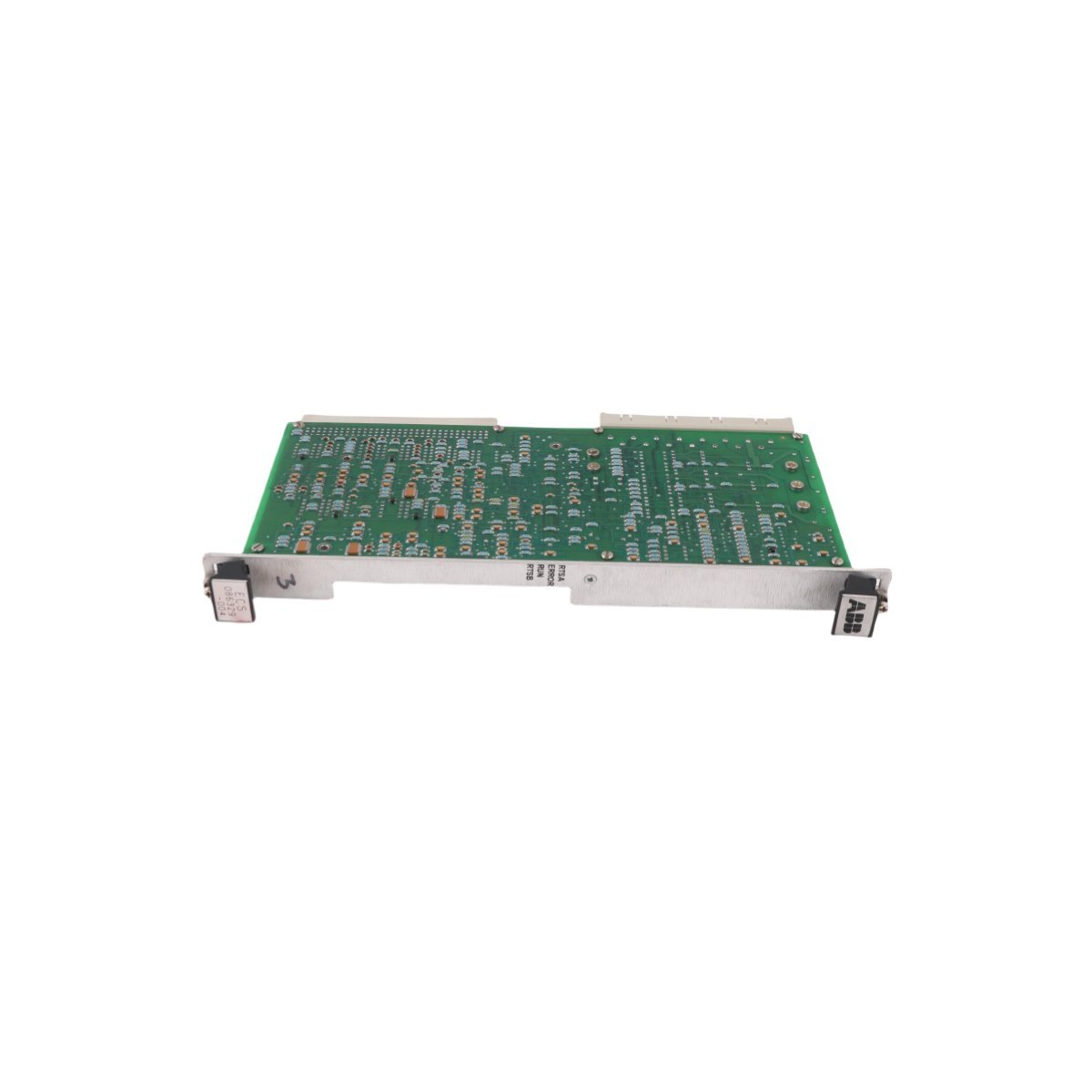

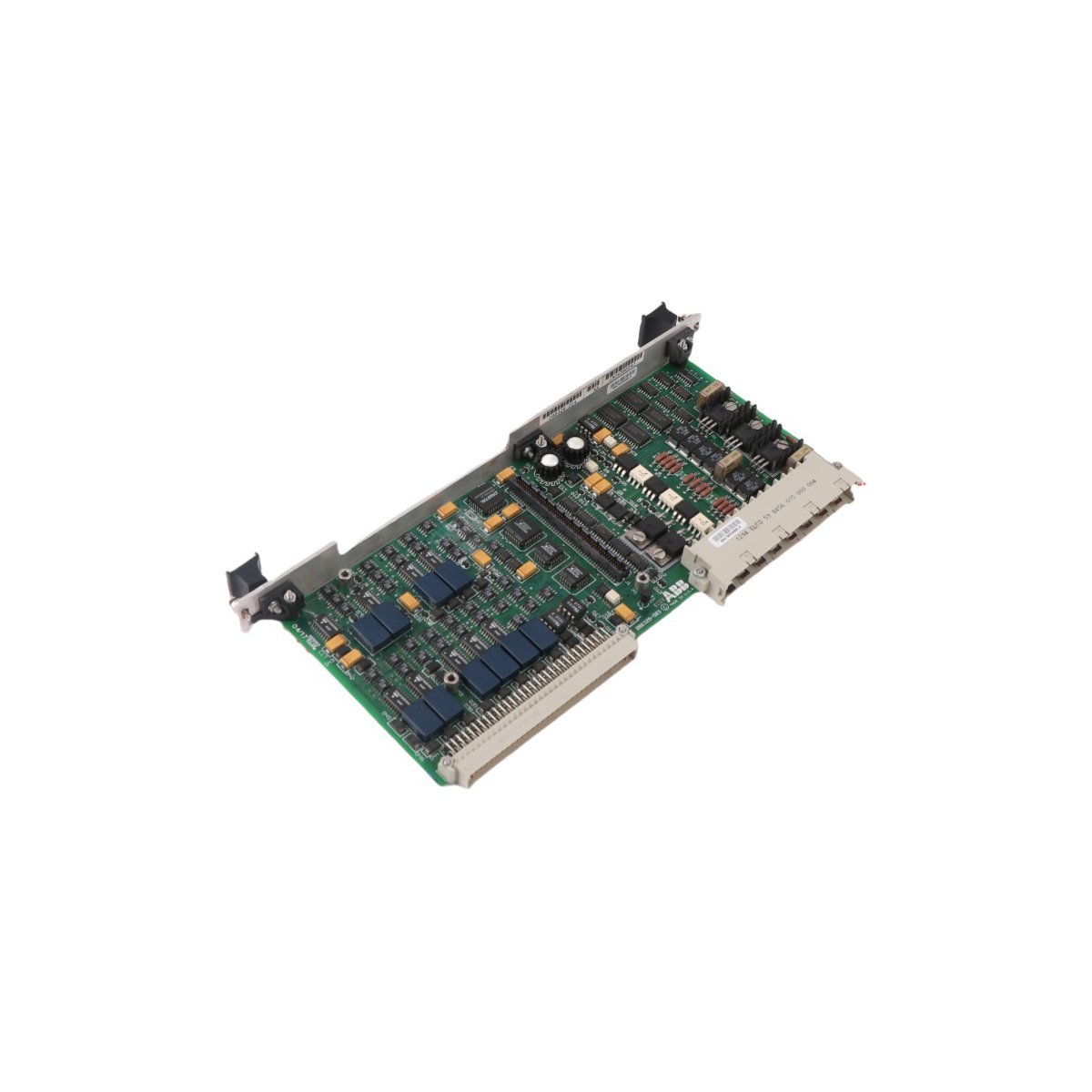

The ABB 086329-004 is a high-performance 32-bit industrial control card engineered for mission-critical automation and energy system regulation. It combines a PowerPC architecture with redundant power capabilities to ensure stable processing in extreme temperature environments.

Product Description

High-Performance Computational Architecture

The ABB 086329-004 serves as a specialized processing hub designed to execute complex logic for distributed control systems. At its core, the board utilizes a 32-bit PowerPC 603e (or Freescale Coldfire) processor, providing the high-speed calculation capacity required for real-time automation. To support data-intensive applications, the module features 128MB of user memory paired with 16MB of high-speed flash storage. This architecture allows the controller to manage sophisticated process variables simultaneously, making it an ideal choice for facilities transitioning toward high-density data analytics and IIoT integration.

Power Redundancy and Electrical Safety

Reliability remains a cornerstone of the 086329-004 control module. The card operates on a versatile 24V DC input with a wide tolerance range of 9V to 36V, allowing it to remain stable despite fluctuations in the primary power source. Furthermore, ABB integrated dual power redundancy and 1500V DC isolation to protect the internal circuitry against electrical surges and ground loops. With a power consumption profile of less than 4W and built-in reverse polarity protection, this board maintains high energy efficiency while safeguarding the broader control network from cascading electrical failures.

Ruggedized Construction for Harsh Environments

Engineered for longevity, the 086329-004 Printed Circuit Board thrives where standard electronics fail. It maintains full operational integrity across an expansive temperature gradient from -40°C to +85°C. The hardware is housed in a reinforced IP30-rated aluminum casing, which provides essential shielding against dust, electromagnetic interference, and mechanical stress. These physical safeguards, combined with the module’s ability to handle up to 90% non-condensing humidity, make it a preferred solution for demanding sectors such as metallurgical processing, offshore oil and gas, and nuclear power regulation.

Technical Specifications
