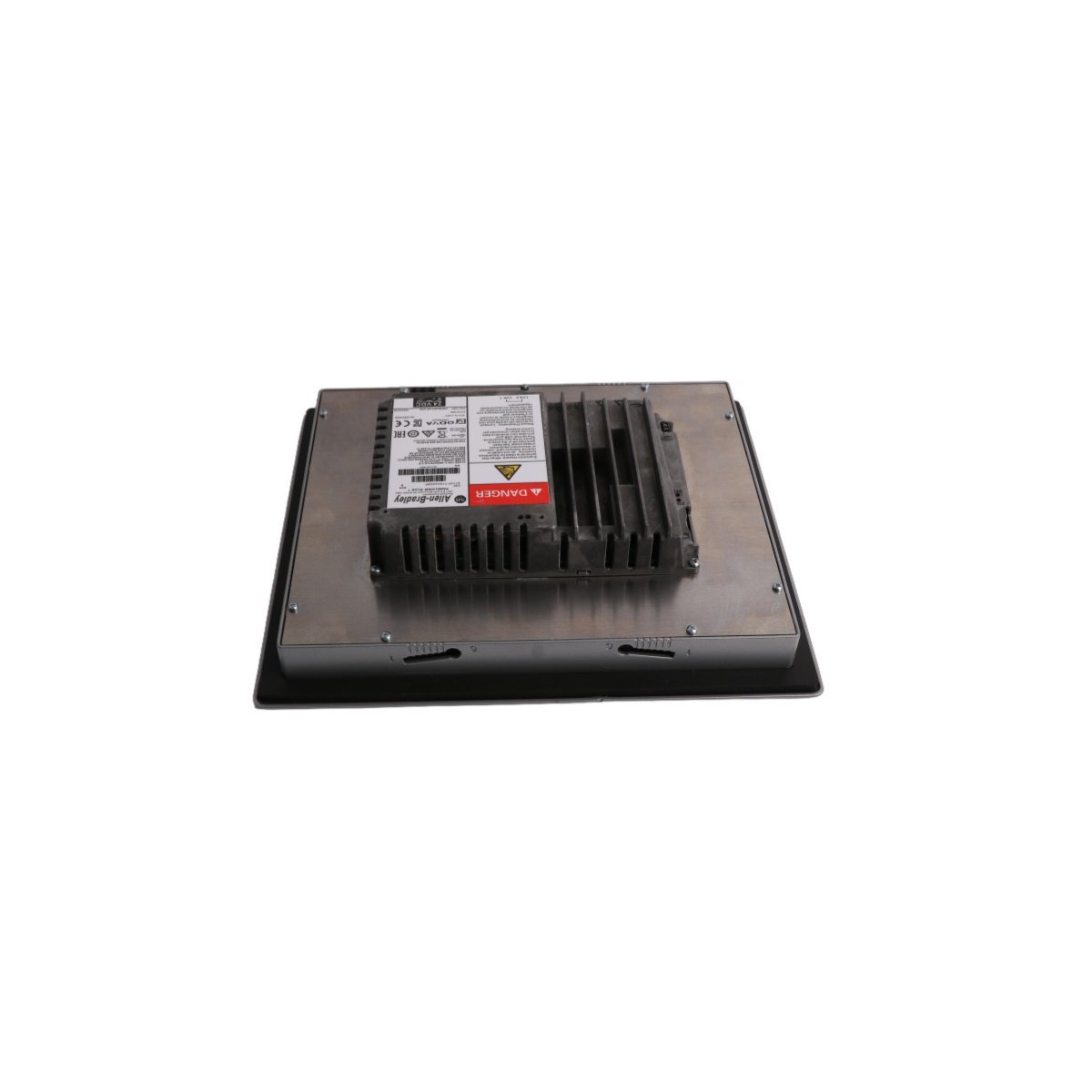

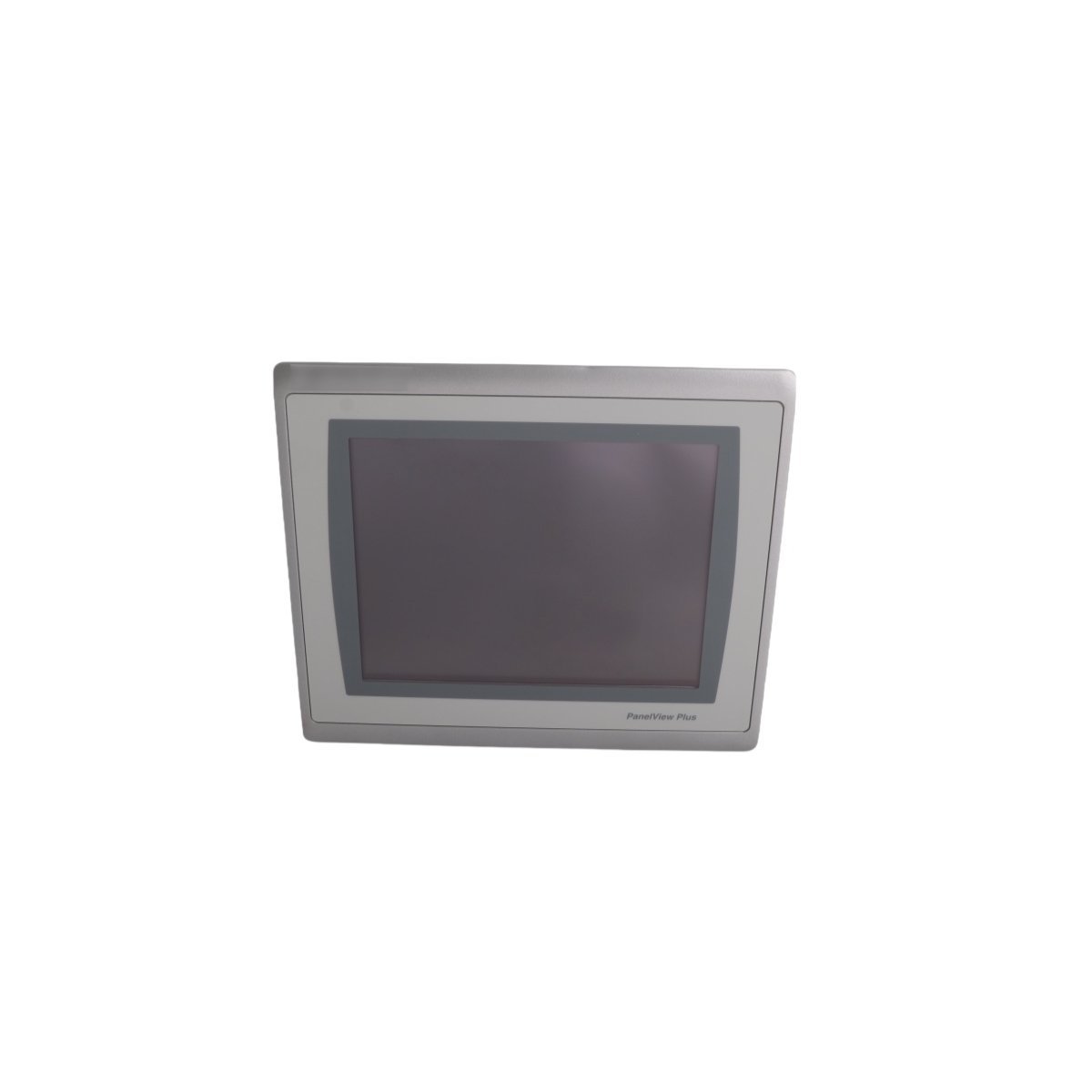

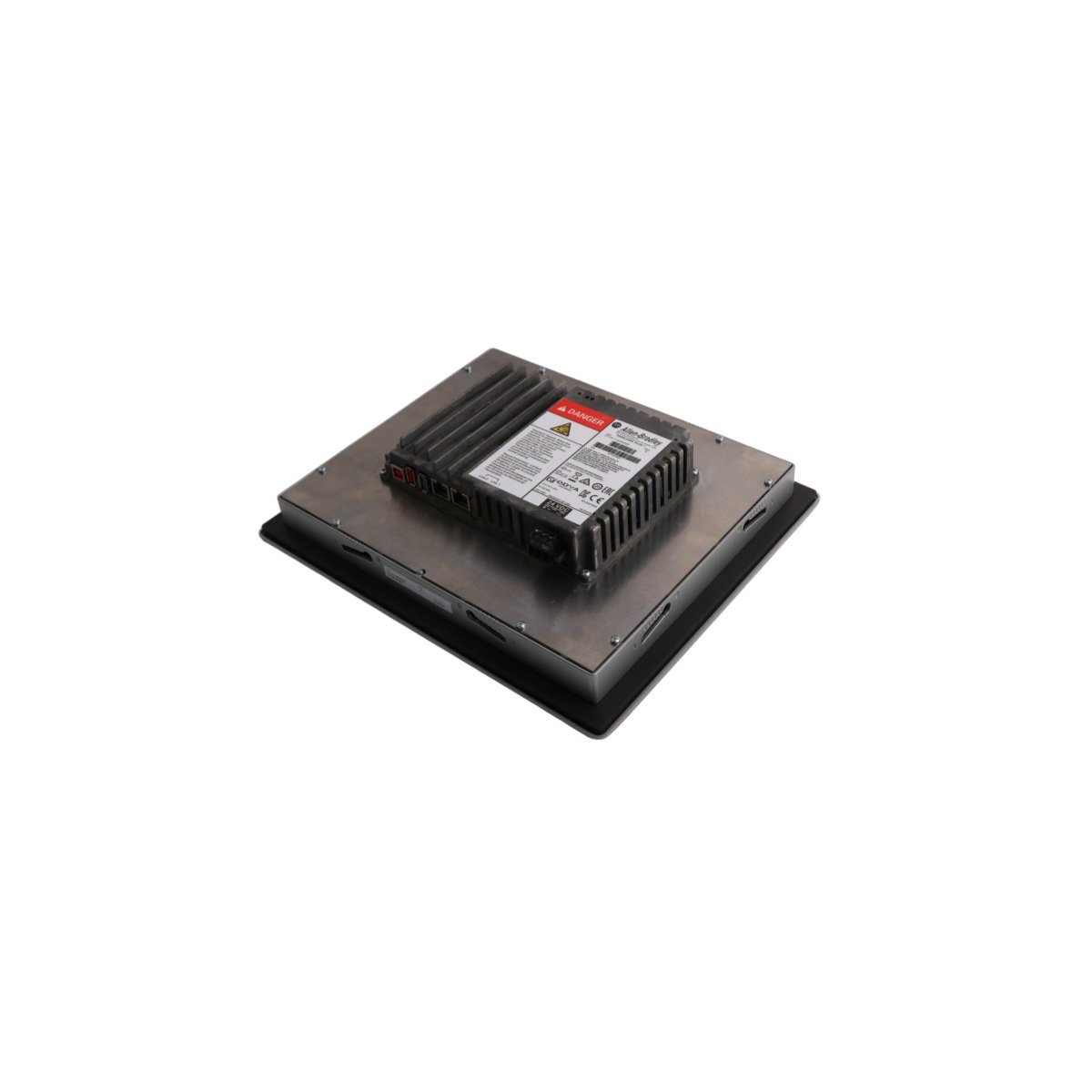

The Allen-Bradley 2711P-T10C22D9P is a 10.4-inch high-resolution HMI terminal featuring a color TFT touchscreen and dual Ethernet ports for seamless industrial network integration. This PanelView Plus 7 Standard unit delivers vibrant SVGA visualization and robust data management for modern factory automation systems.¹

Product Description

High-Resolution Visualization and Interface

The Allen-Bradley 2711P-T10C22D9P serves as a sophisticated human-machine interface (HMI) designed to streamline operator interaction with complex industrial machinery.² It features a bright 10.4-inch color TFT display that supports an 800 x 600 SVGA resolution, ensuring that process data and graphical alerts remain sharp and legible. To ensure long-term reliability in constant-use environments, the terminal employs a solid-state LED backlight with a service life exceeding 50,000 hours.³ This high-performance display allows operators to monitor real-time variables and adjust system parameters with precision.

Advanced Connectivity and Data Handling

Rockwell Automation equipped the 2711P-T10C22D9P with versatile networking capabilities to support modern industrial topologies.⁴ The terminal includes dual 10/100 Base-T Ethernet ports that facilitate Device Level Ring (DLR), linear, and star configurations, providing high network resiliency.⁵ Furthermore, the hardware features integrated USB ports for peripheral device connection and a dedicated SD card slot for expanded external storage.⁶ With 512MB of system RAM and approximately 80MB of non-volatile user memory, this HMI efficiently manages demanding application files and alarm logs without performance degradation.

Rugged Design for Challenging Environments

The 2711P-T10C22D9P HMI maintains operational integrity in harsh industrial climates by adhering to strict electrical and safety standards. The unit operates on a standard 24V DC power supply and complies with PELV/SELV requirements to ensure safe electrical isolation. In addition to its robust physical housing, the terminal holds ATEX Zone 2/22 and CE certifications, confirming its suitability for hazardous or volatile environments.⁷ This combination of durable construction and advanced software compatibility makes the PanelView Plus 7 an essential component for high-uptime manufacturing and process control applications.
