​Product Description

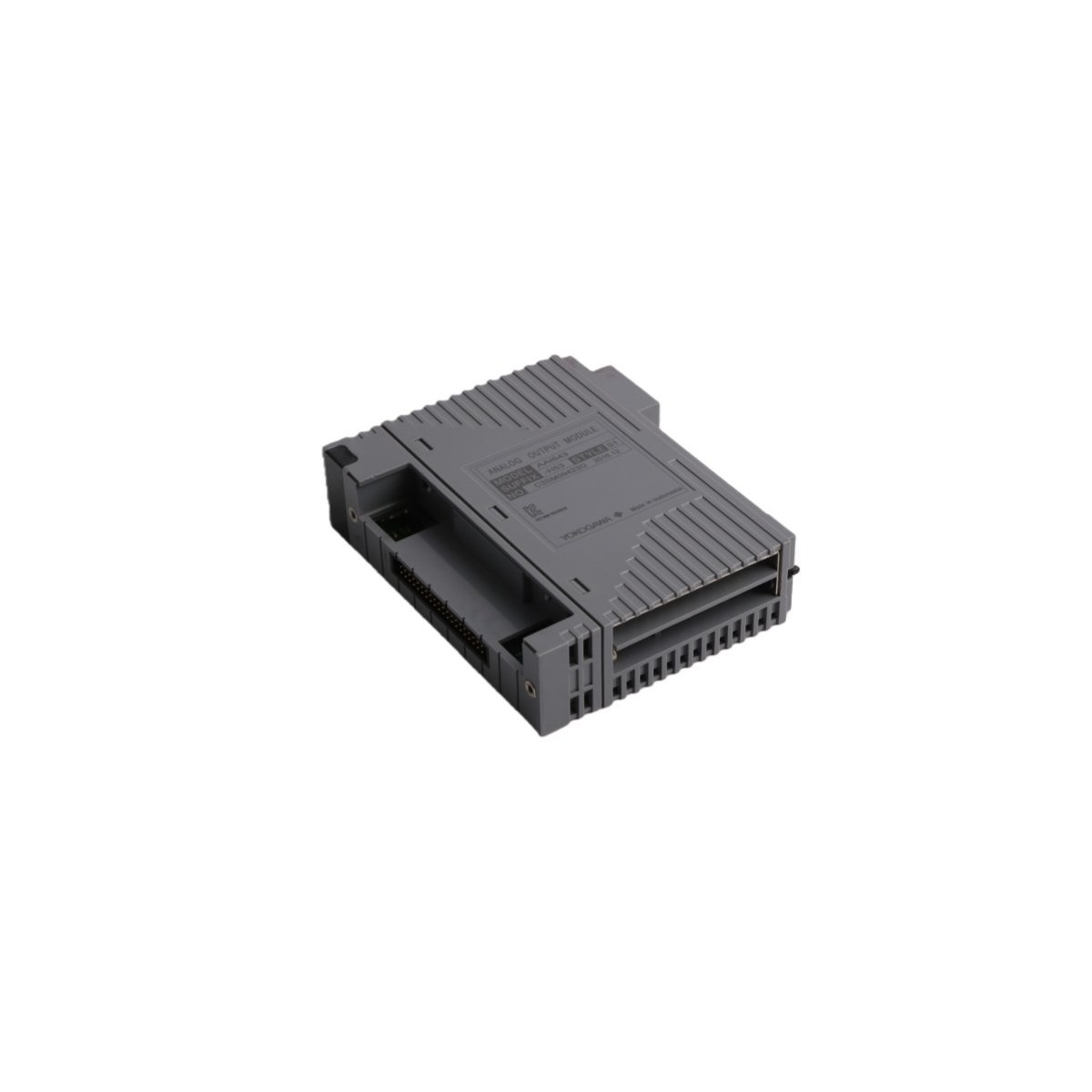

The Yokogawa AAI543-H53 is a high-precision, 16-channel analog output module designed for the Centum VP and CS 3000 Distributed Control Systems.² It provides accurate 4-20 mA current signals to field devices with full electrical isolation and rapid data refresh rates.³

High-Precision Signal Control for DCS Platforms

The Yokogawa AAI543-H53 serves as a vital link between digital control logic and analog field instrumentation.⁴ This module features 16 independent channels that deliver precise 4-20 mA current signals, ensuring that valves, actuators, and other regulators receive exact commands.⁵ With a signal accuracy of ±48 µA, the unit provides the tight tolerances necessary for sensitive chemical reactions and refinery operations.⁶ Furthermore, the module facilitates real-time process adjustments through a 10 ms data update cycle.⁷ By maintaining high-speed responsiveness, the AAI543-H53 allows plant operators to manage dynamic process changes without compromising stability or product quality.

Robust Electrical Isolation and Reliability

Safety and signal integrity remain paramount in industrial environments, which is why the AAI543-H53 incorporates superior galvanic isolation. The module withstands up to 1500V AC between the output circuits and the system ground, effectively shielding the DCS backplane from field-side electrical surges and noise.⁸ Additionally, the unit exhibits excellent thermal stability, limiting signal drift to just ±16 μA per 10°C of temperature fluctuation.⁹ Because the module supports load resistances up to 750 Ω, it offers extensive compatibility with various long-distance field wiring configurations.¹⁰ These protective features ensure that the control system remains operational even in the presence of severe electromagnetic interference or volatile environmental conditions.

Advanced Diagnostics and Maintenance Efficiency

To minimize unplanned downtime, the AAI543-H53 includes intelligent diagnostic functions such as circuit-open detection.¹¹ The module automatically triggers a fault alert if the output current drops below 0.65 mA, allowing technicians to identify broken wires or failed field devices immediately.¹² Moreover, the hardware supports hot-swapping, enabling maintenance personnel to replace modules while the system remains powered and active.¹³ This capability is essential for continuous process industries where even a brief shutdown can result in significant financial loss. The compact and lightweight design further simplifies installation within high-density control cabinets, providing a scalable and easy-to-maintain solution for modern automation architectures.¹⁴

Key Technical Characteristics

• 16-Channel Current Output: Provides sixteen independent 4-20 mA signals for comprehensive field device control.¹⁵
• High-Speed Refresh Rate: Updates data every 10 ms to support rapid real-time control loops.¹⁶
• Superior Isolation: Protects system logic with 1500V AC electrical isolation between channels and ground.
• Open-Circuit Monitoring: Integrated diagnostics detect and report signal loop failures instantly.
• Hot-Swappable Design: Allows for module replacement without interrupting DCS station operation.¹⁷
• Broad Load Compatibility: Drives field loads ranging from 0 to 750 Ω for versatile installation options.¹⁸
