Description

Brief Product Description

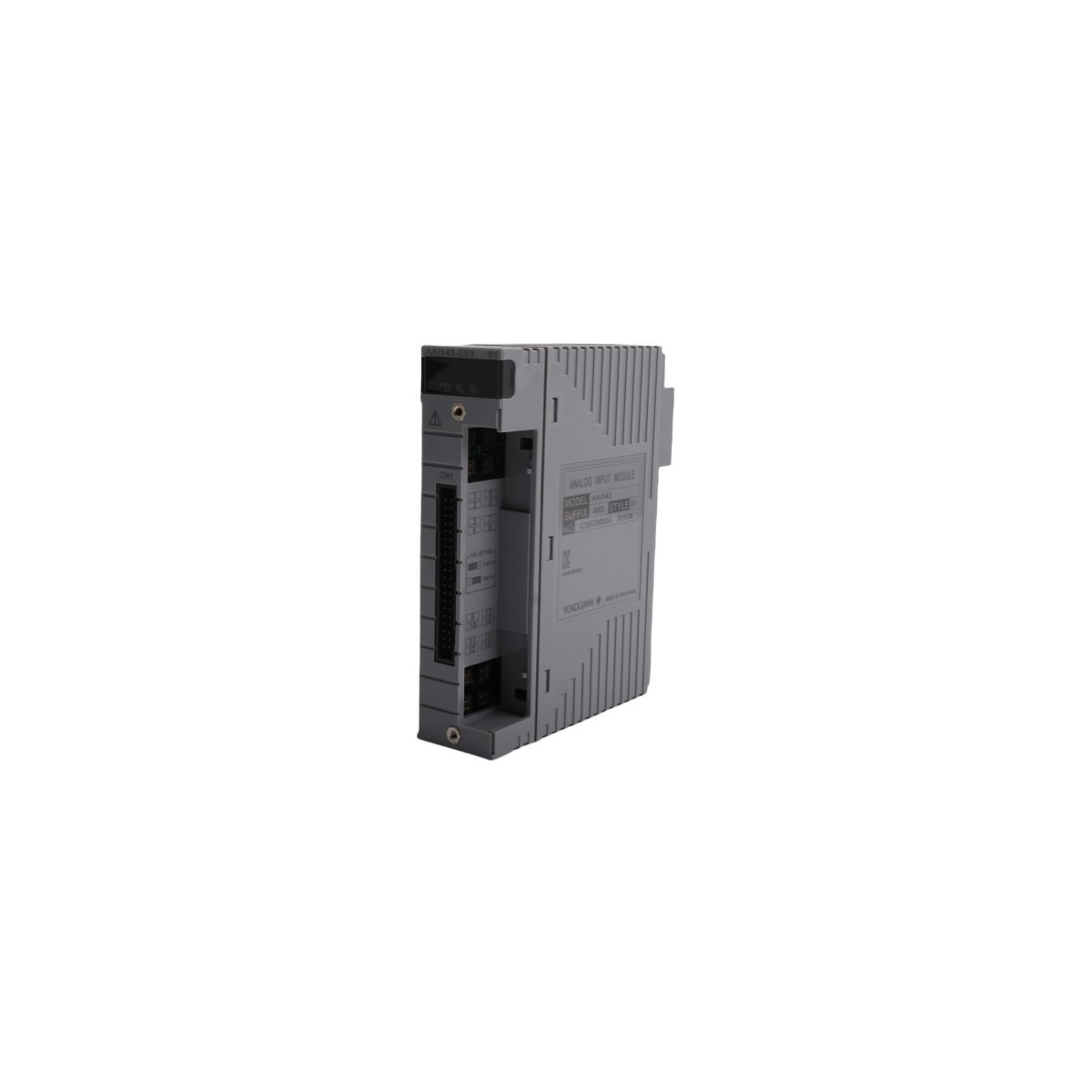

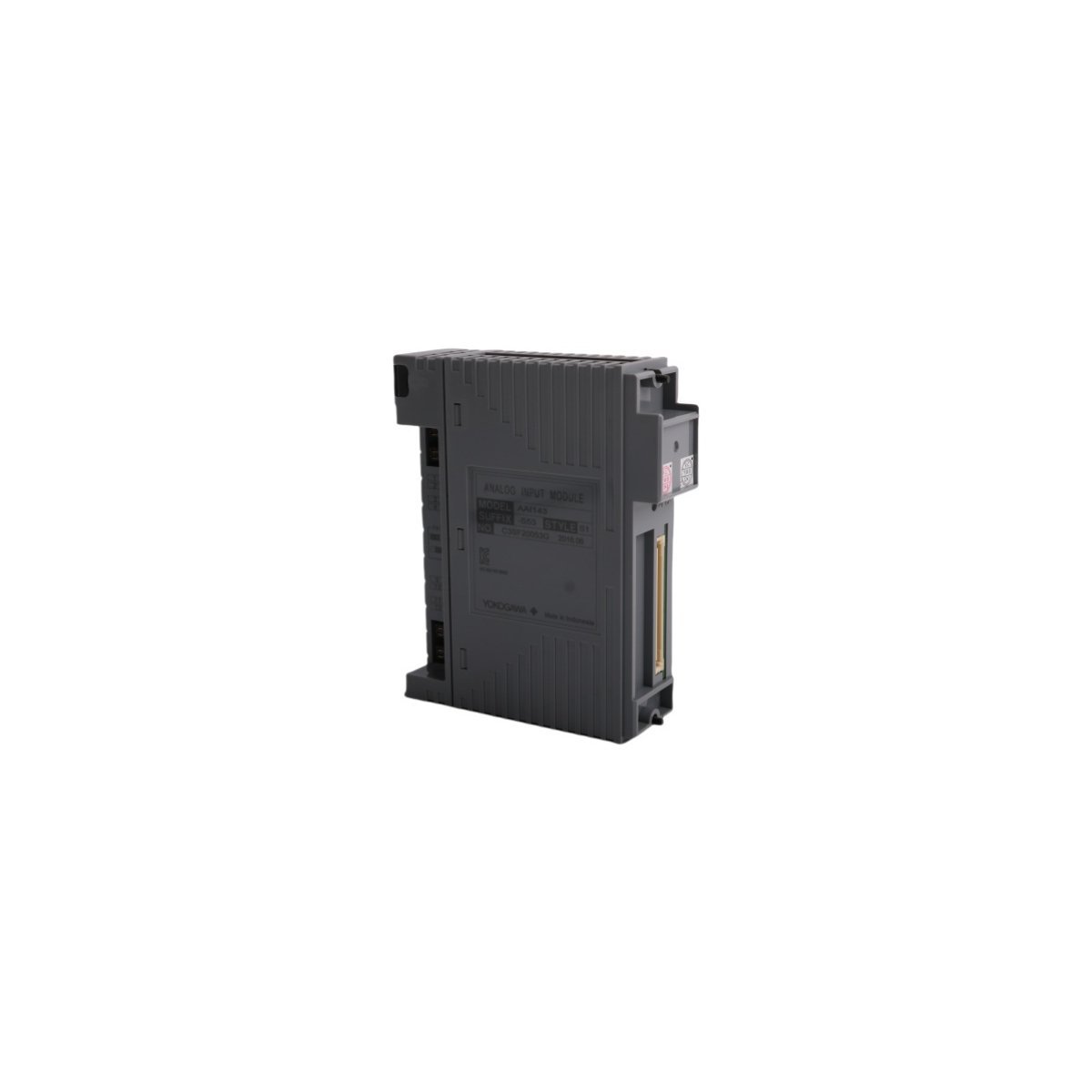

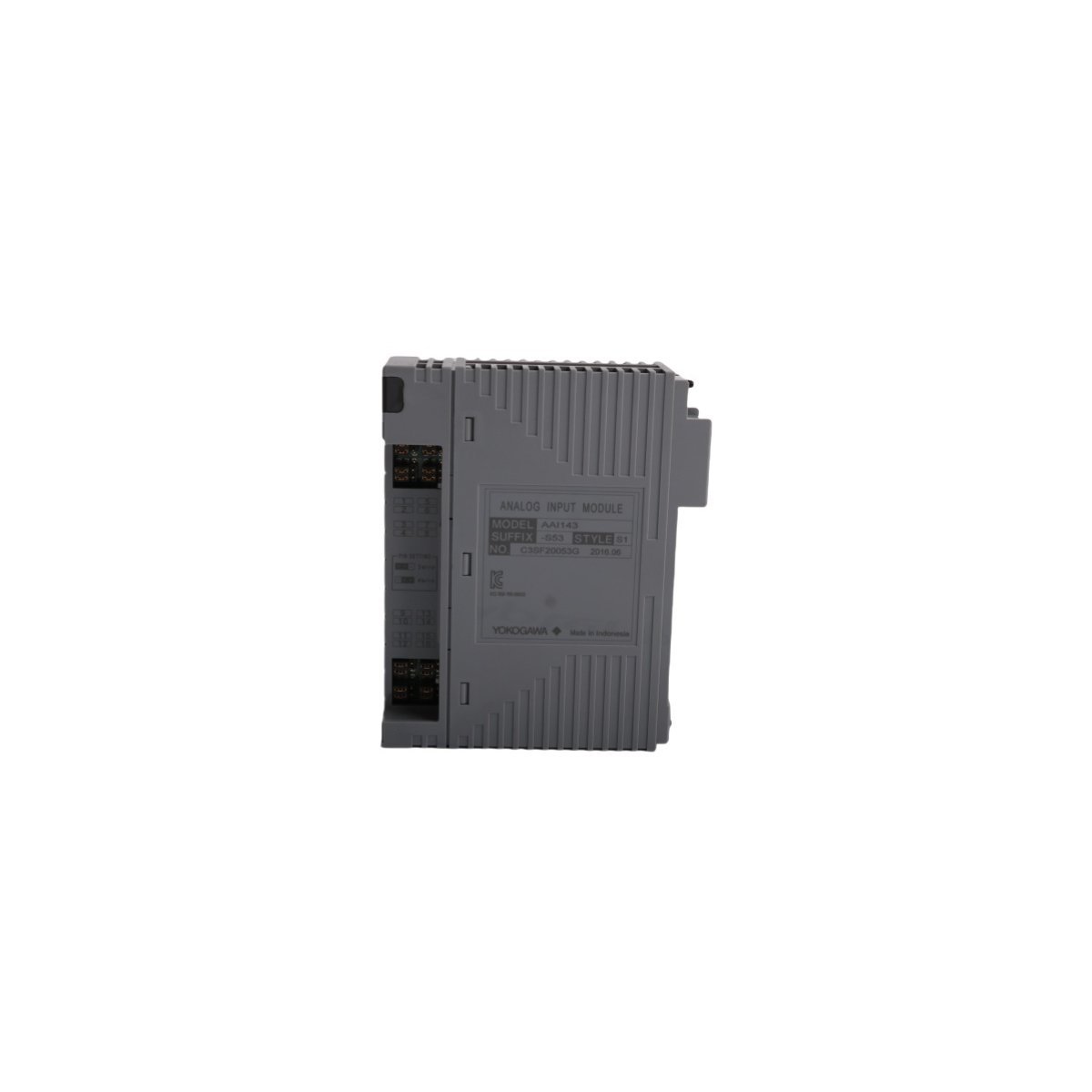

The Yokogawa AAI143-S53 S1 is a high-performance 16-channel analog input module designed for the FIO system, supporting 4 to 20 mA current signals with individual channel isolation. This module ensures precise data acquisition and robust signal integrity for complex distributed control system (DCS) architectures.

High-Integrity Data Acquisition for FIO Systems

The Yokogawa AAI143-S53 S1 serves as a critical interface for analog signal processing within the Field Interface I/O (FIO) architecture. By supporting 16 isolated channels, this module effectively captures 4 to 20 mA current inputs from field transmitters and sensors. The hardware employs sophisticated galvanic isolation to prevent ground loops and minimize electromagnetic interference across channels, which significantly enhances the safety and accuracy of the control loop. Consequently, this module provides the stable data foundation required for real-time process monitoring in high-stakes industrial environments.

Advanced Signal Processing and Regional Versatility

Engineers utilize the AAI143-S53 S1 to achieve rapid data refresh rates, as the module features advanced internal circuitry capable of high-speed analog-to-digital conversion. This technology allows the DCS to respond dynamically to process fluctuations, ensuring that the control logic remains synchronized with physical field conditions. Furthermore, the module is engineered for global deployment, maintaining stable operation across various regional power standards. This adaptability, combined with its 50 kHz internal processing capabilities, ensures that high-precision measurements remain consistent regardless of the installation site or application complexity.

Rugged Mechanical Design and Lifecycle Efficiency

Yokogawa prioritizes long-term operational reliability through the robust construction of the AAI143-S53 S1. The module features a compact, hardened exterior that protects sensitive internal electronics from the vibration and thermal stressors typical of industrial control rooms. Because the design minimizes heat dissipation, it reduces the thermal load on the I/O rack, thereby extending the service life of adjacent components. Although this specific model reached its official discontinuation date in late 2018, its established track record for durability continues to make it a preferred choice for maintaining and expanding legacy CENTUM systems.

Key Technical Characteristics

• Channel Capacity: 16 channels of isolated analog inputs.
• Input Signal Range: Standard 4 to 20 mA current loop.
• Isolation Architecture: Individual channel isolation to ensure superior noise rejection.
• High-Speed Conversion: Advanced A/D converters facilitate precise real-time data transfer.
• System Compatibility: Native integration with Yokogawa FIO and CENTUM VP/CS 3000 systems.
• Environmental Resilience: Built to Japan’s rigorous ISO quality standards for industrial electronics.

Technical Specifications
