Description

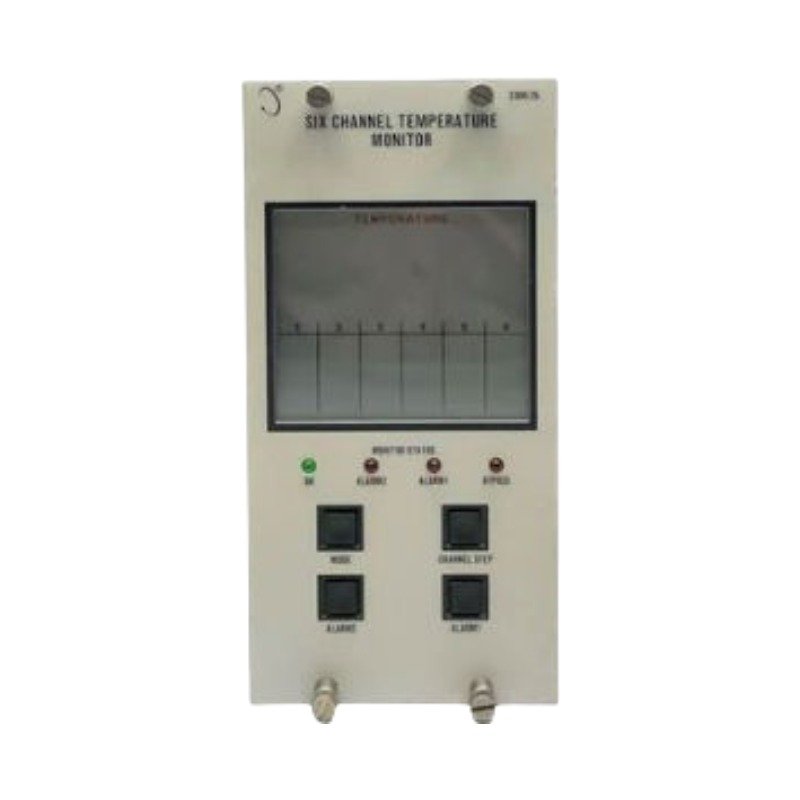

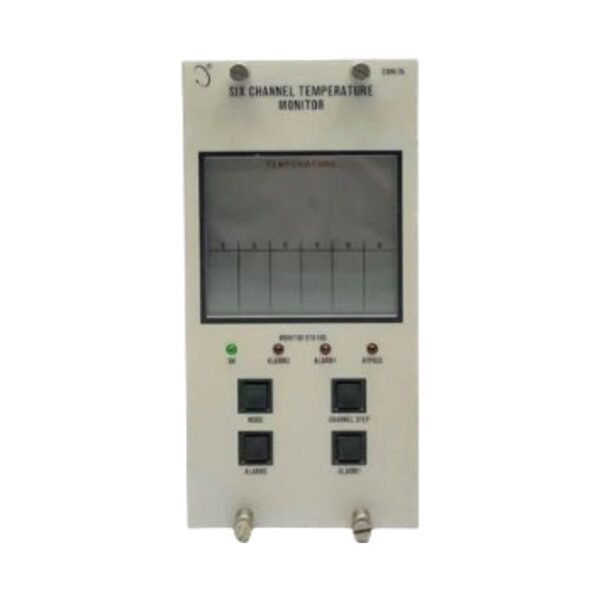

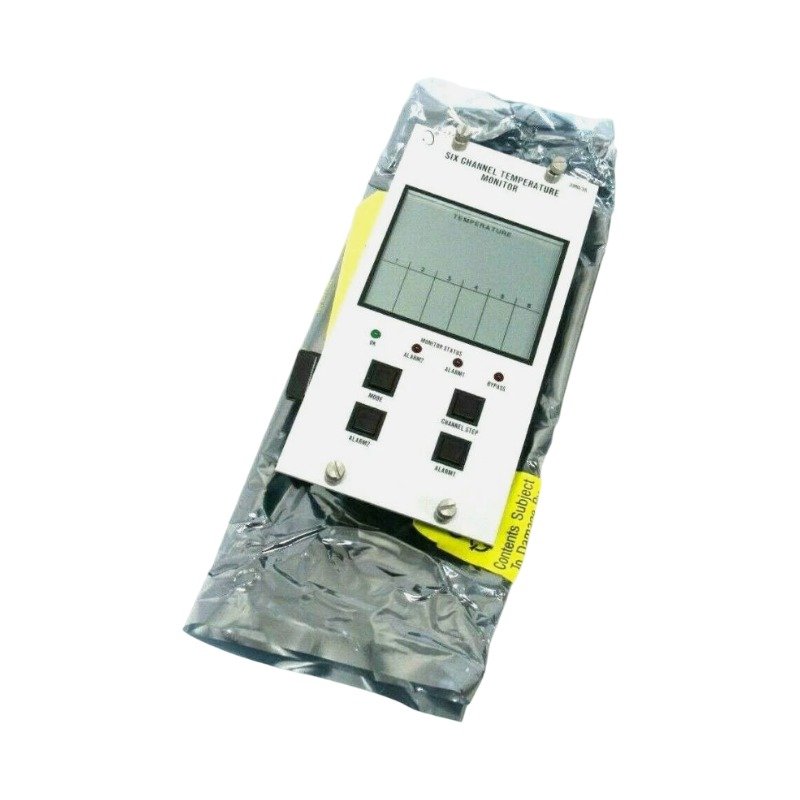

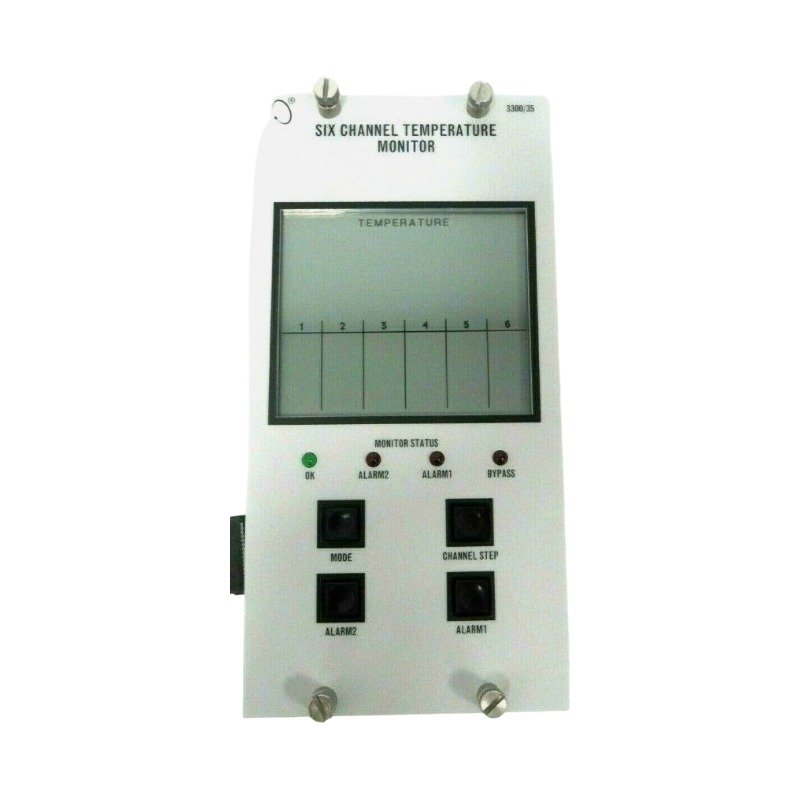

The Bently Nevada 84933-02 serves as the primary 84933-02 Temperature Monitor Module utilized to execute multi-channel thermal processing across Bently Nevada 3300/30 and 3300/35 machinery protection platforms.

Hardware Specifications

Eddy-Current Probe Scaling and Cross-Talk Suppression

While this module processes thermal parameters rather than eddy-current probe scaling, it directly links to the core chassis network monitoring high-speed rotor dynamics. Specifically, internal filtering circuitry enforces structural cross-talk suppression between neighboring slots to prevent high-frequency vibration signals from inducing electrical noise into the millivolt thermal input loops. Technicians maintain overall rack safety metrics by evaluating the system reference framework during routine gap voltage validation (-10 VDC targets). Consequently, isolating these static temperature data lines from the dynamic displacement fields preserves the measurement integrity of the total machinery protection installation.

Frequently Asked Questions

Q: Can the 84933-02 module accept mixed inputs from both thermocouples and RTDs simultaneously?

A: No. The internal signal conditioning architecture restricts the module to a single transducer class per card assembly. Therefore, technicians must configure all six available channels exclusively for either RTD or Thermocouple sensor configurations to ensure accurate data conversion.

Q: How does the 84933-02 monitor communicate channel fault conditions to the central rack controller?

A: The module executes continuous internal diagnostic loops to identify open circuits or shorted transducer lines. Consequently, when a sensor line breaks, the card instantly switches its output buffer to a high-scale error state and triggers the corresponding channel alert relay.

Field Installation Guidelines

• Enforce Shield Grounding Routing Rules: Terminate all sensor extension cable shields at the dedicated chassis ground bar. Specifically, do not ground the shield at both ends to eliminate the formation of ground loops.
• Observe Minimum Bending Radii: Secure all input signal wiring bundles while maintaining a minimum physical bend radius of 50.8 mm (2.0 inches) inside the enclosure tracking paths.
• Tighten Terminal Block Links: Secure the field wire conductors into the terminal blocks using calibrated terminal screwdrivers. Apply exactly 0.5 Nm (4.4 in-lbs) of torque to prevent loosening from industrial machine vibrations.
