Technical Overview

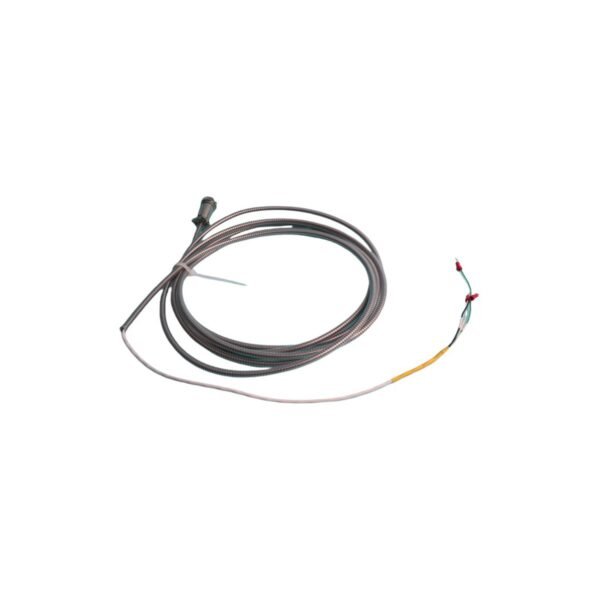

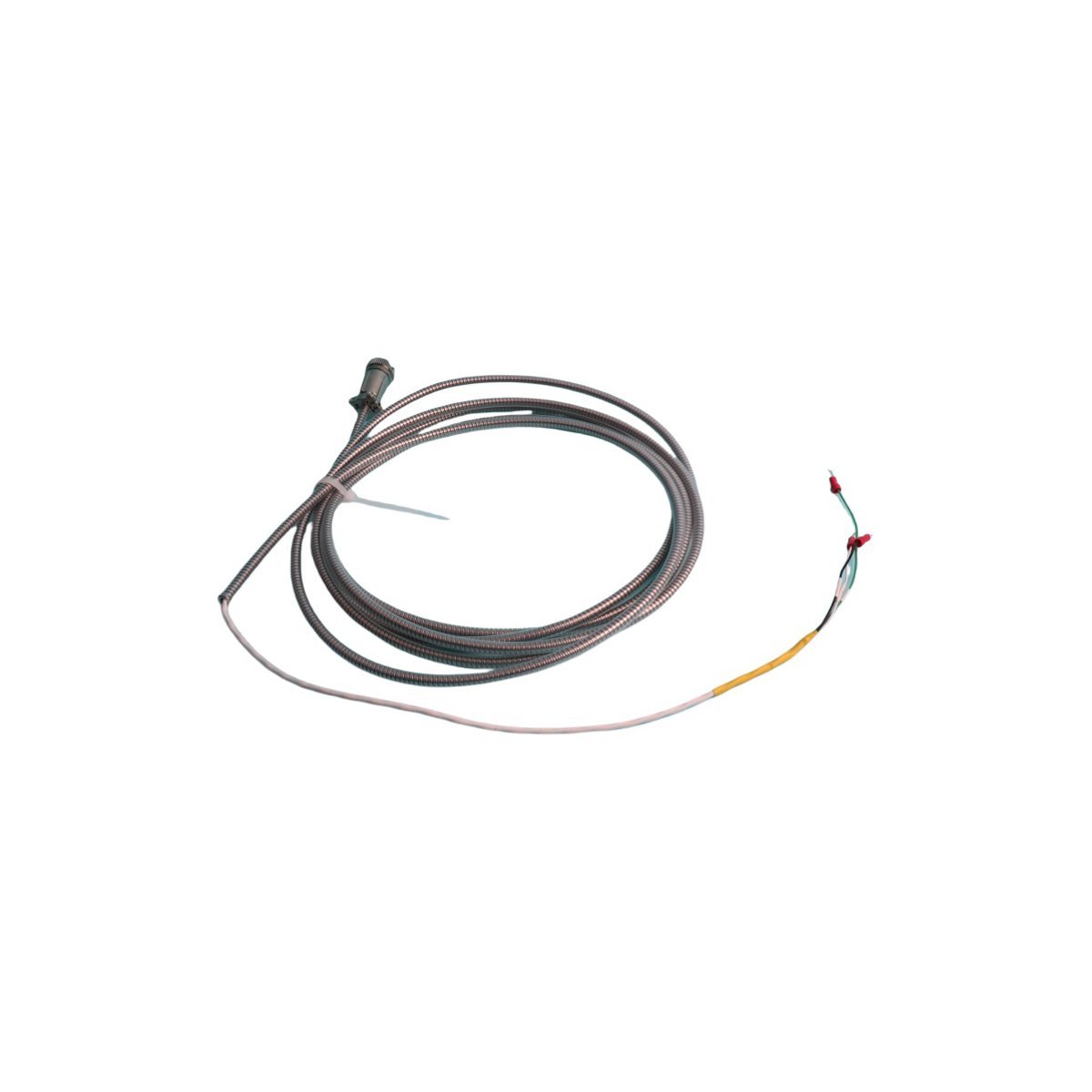

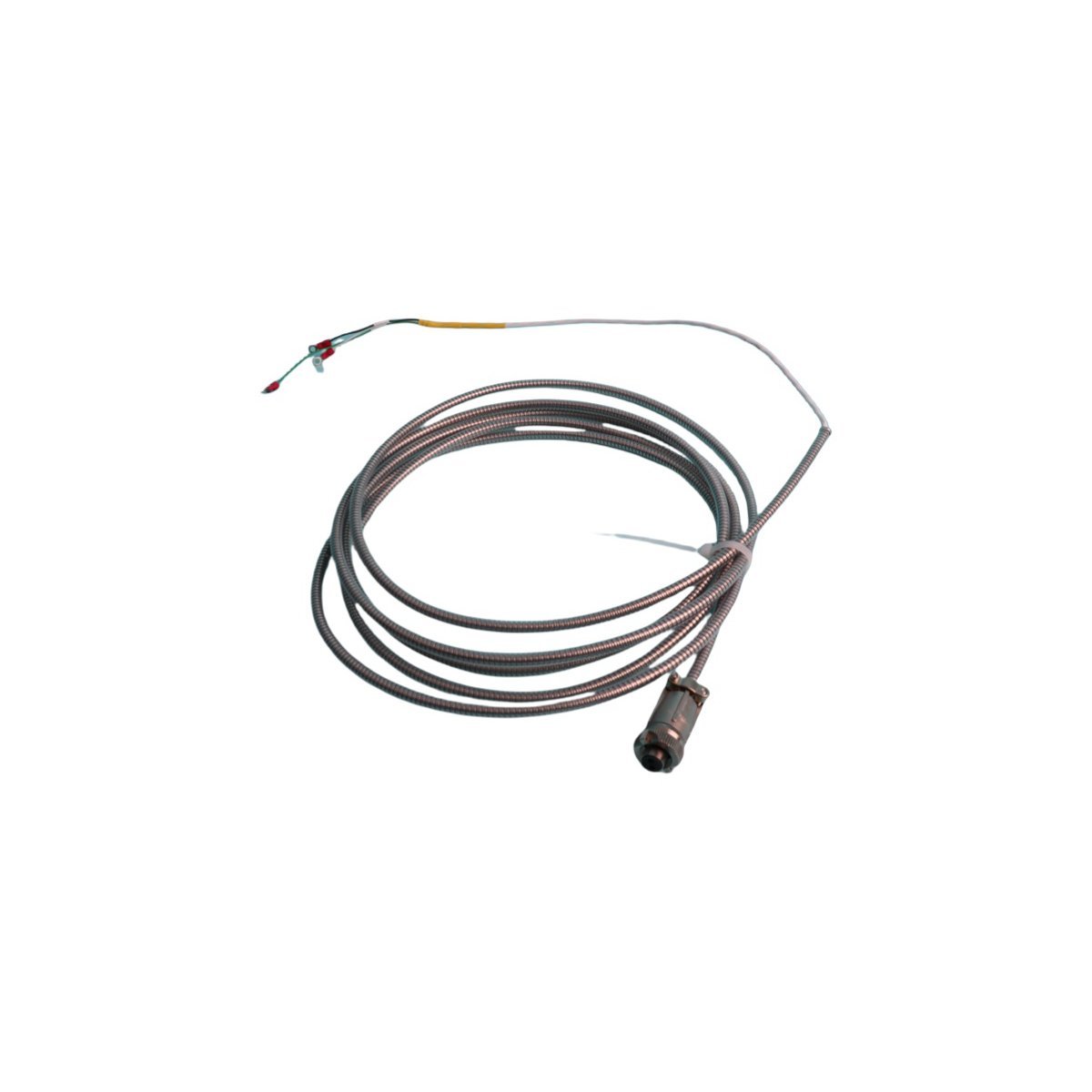

The Bently Nevada 84661-15 Interconnect Cable is a precision-engineered signal integrity solution designed for mission-critical machinery protection and condition monitoring systems. Engineered to meet the rigorous demands of industrial environments—including power generation, oil & gas, and heavy manufacturing—the cable ensures reliable, low-noise transmission between proximity probe sensors, monitor modules, and data acquisition units within the Bently Nevada 3500/4000 series ecosystem. Its optimized impedance-matched construction minimizes signal reflection and electromagnetic interference (EMI), preserving waveform fidelity essential for accurate vibration, position, and speed measurements.

Manufactured to stringent OEM specifications, the 84661-15 features robust shielding—comprising dual-layer aluminum foil and tinned copper braid—to withstand high-noise plant floors and variable temperature gradients (-40°C to +85°C operating range). The cable’s integral strain relief and molded overmolded connectors (M12 x 1 female to M12 x 1 male) ensure mechanical durability during repeated installation, maintenance cycles, and equipment reconfiguration. Compatibility is guaranteed with Bently Nevada 3500 rack-mounted monitors, 3300 XL probes, and legacy 3300 NSV systems—enabling seamless integration into both new deployments and retrofits without signal conditioning compromises.

Key Features

• OEM-Certified Design: Fully compliant with Bently Nevada mechanical, electrical, and environmental specifications—ensuring plug-and-play interoperability and system certification integrity.
• EMI-Resistant Shielding: Dual-layer shielding (aluminum foil + 85% tinned copper braid) provides superior noise rejection in high-interference industrial settings.
• Durable Connector Assembly: Molded M12 connectors with nickel-plated brass housings and IP67-rated sealing for dust/water resistance and long-term mating reliability.
• Signal Integrity Optimized: 50 Ω characteristic impedance, low capacitance (<65 pF/m), and controlled propagation delay support high-fidelity analog sensor signal transmission up to 10 kHz bandwidth.
• Industrial-Grade Jacketing: Halogen-free, flame-retardant (IEC 60332-1) PVC jacket rated for continuous flexing, abrasion resistance, and oil exposure per UL AWM 20276 standards.

Specifications

• Part Number: 84661-15
• Manufacturer: Bently Nevada (a Baker Hughes business)
• Type: Shielded Analog Interconnect Cable — M12 Female to M12 Male, 15 m length
• Warranty: 24-month limited warranty covering material defects and workmanship under normal industrial use

Contact us for bulk pricing and availability
