Description

Brief Product Description

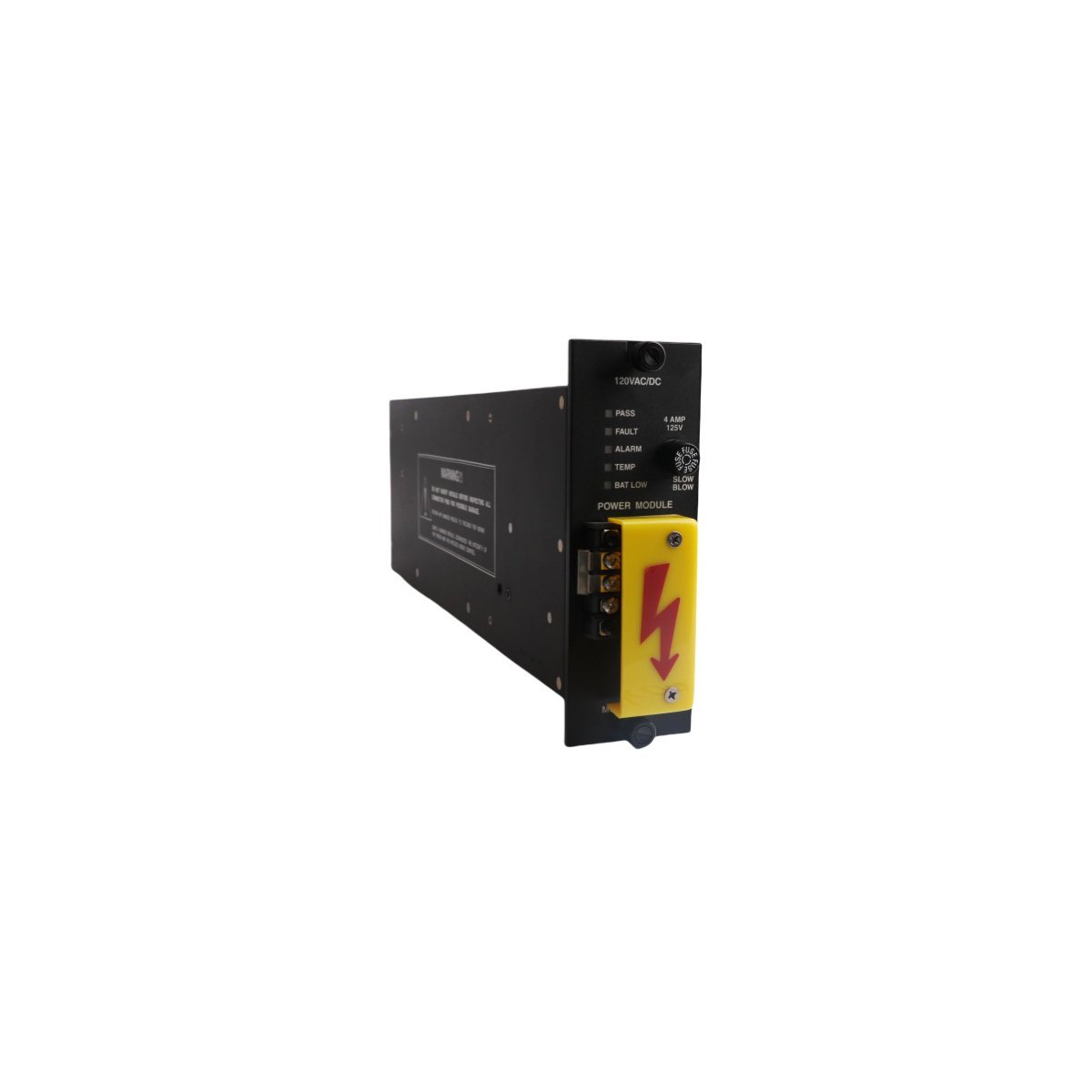

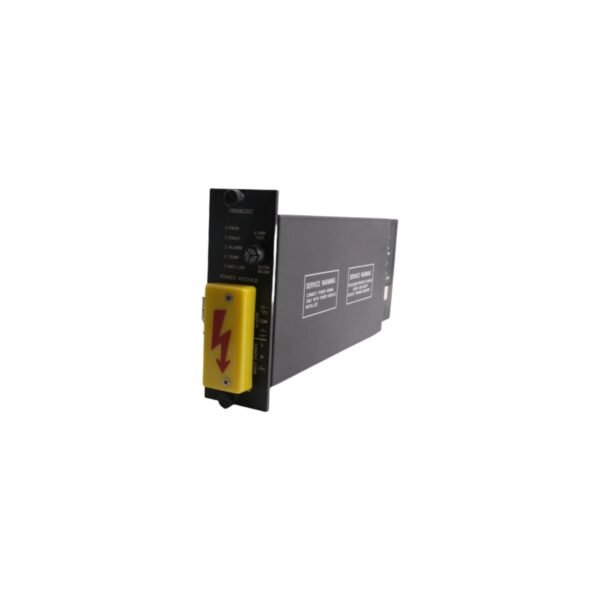

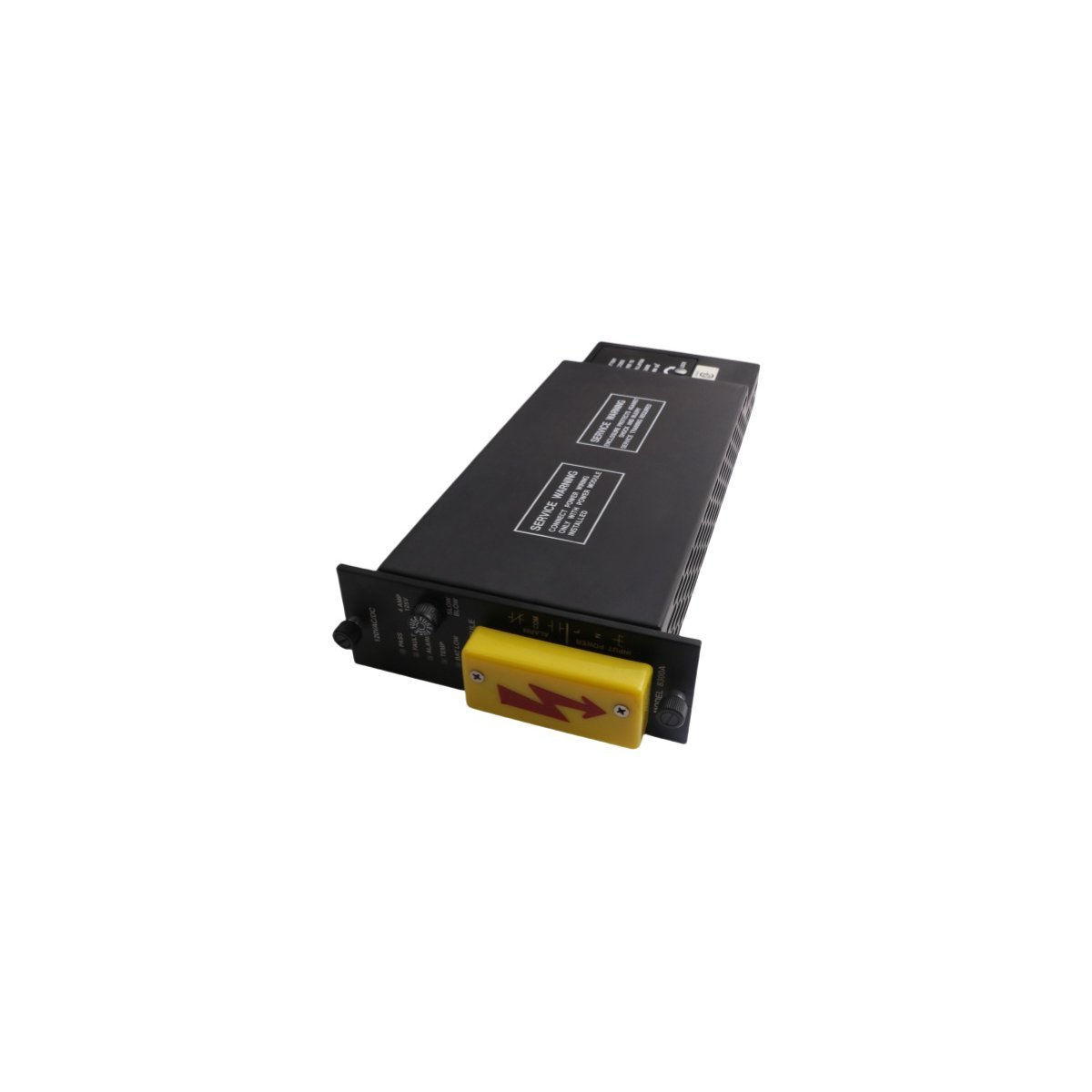

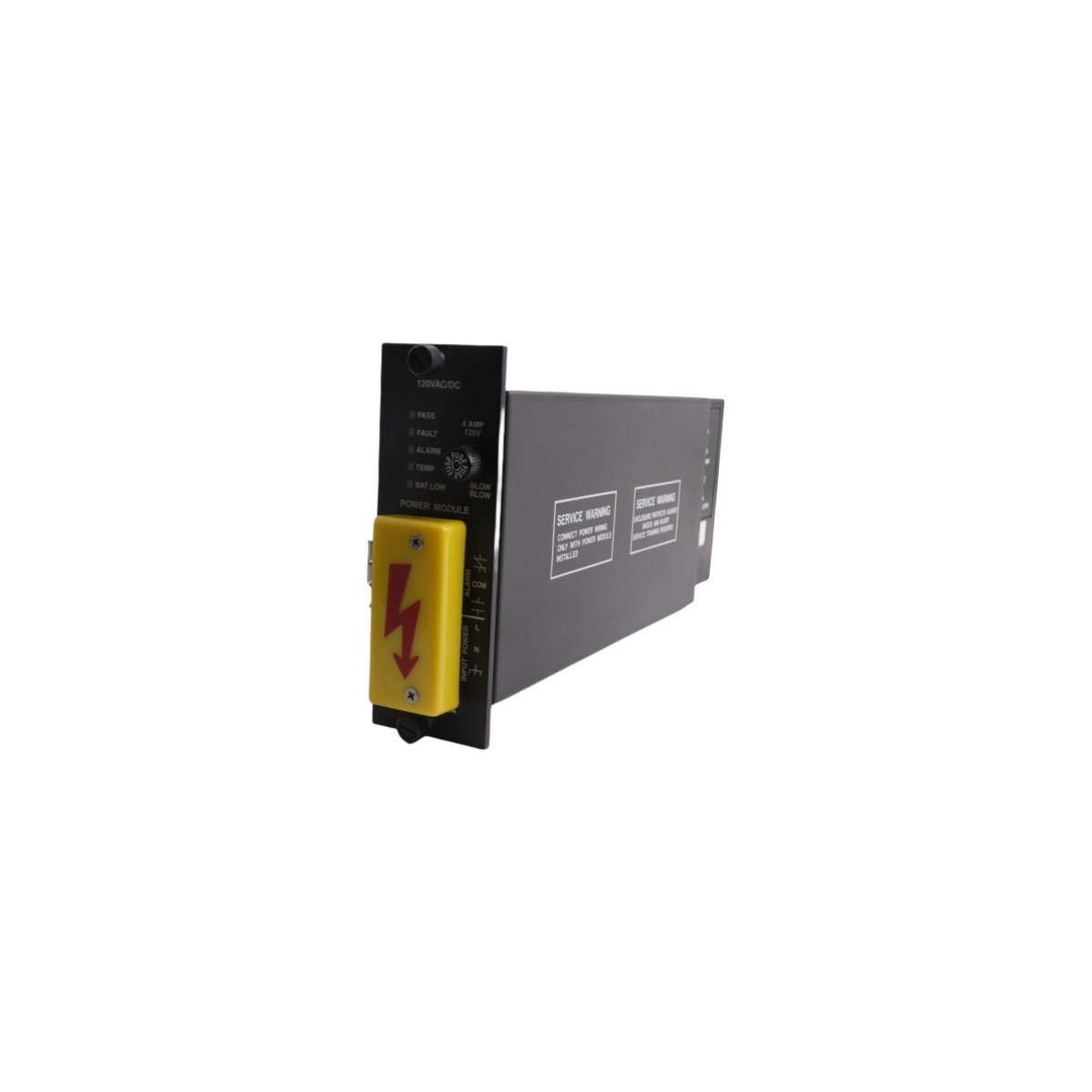

The Triconex 8300A is a high-performance main power module designed to provide stable, filtered DC power to the Tricon controller backplane.¹ It ensures continuous system operation through high-efficiency conversion and extreme temperature resilience in safety-critical industrial environments.²

Robust Energy Management for Safety Systems

The Triconex 8300A Main Power Module functions as the primary energy source for the Tricon safety instrumented system, converting external line power into the precise DC voltages required by the backplane.³ Engineers designed this module specifically to maintain consistent performance within Triple Modular Redundant (TMR) architectures. Because the 8300A prioritizes reliability, it features high-efficiency power conversion that reduces heat dissipation and extends the lifespan of adjacent electronic components.⁴ Consequently, this module serves as a critical safeguard against electrical fluctuations that could otherwise cause system downtime or compromise safety logic.

Resilient Performance in Extreme Environments

Industrial facilities often expose hardware to severe conditions, yet the Triconex 8300A thrives across a broad operational spectrum. The unit maintains full functional integrity within a wide temperature range of -40°C to +70°C, making it suitable for unconditioned remote instrument enclosures and harsh manufacturing floors alike. Furthermore, the module’s durable chassis protects internal circuitry from mechanical vibrations and electromagnetic interference. By utilizing premium-grade materials and a compact form factor, the 8300A optimizes cabinet space while delivering the ruggedness required for continuous, 24/7 industrial operations.⁵

Simplified System Integration and Maintenance

Integrating the 8300A into existing Tricon racks is straightforward due to its compatibility with standard industrial interfaces. The module supports seamless connectivity with the Tricon backplane, which significantly reduces the time required for installation and commissioning. Additionally, the power supply is designed for easy monitoring; it provides clear status feedback to help technicians quickly verify health or diagnose power-related issues. This ease of use, combined with the module’s ability to handle fluctuating input sources, ensures that global industrial plants can maintain high safety standards without the need for complex, custom-engineered power solutions.

Key Technical Characteristics

• Stable Power Delivery: Ensures ripple-free DC power to the Tricon controller and I/O modules.⁶
• TMR Compatibility: Designed for parallel operation to support the fault-tolerant nature of Triconex systems.⁷
• Wide Operational Range: Performance remains consistent from -40°C up to +70°C.⁸
• High Efficiency: Minimizes thermal load within the enclosure, enhancing overall system reliability.
• Industrial Ruggedness: Built to withstand the physical and electrical stresses of heavy-duty industrial sites.⁹
• Plug-and-Play Setup: Features standard connectors for rapid deployment and minimal site customization.¹⁰

Technical Specifications
