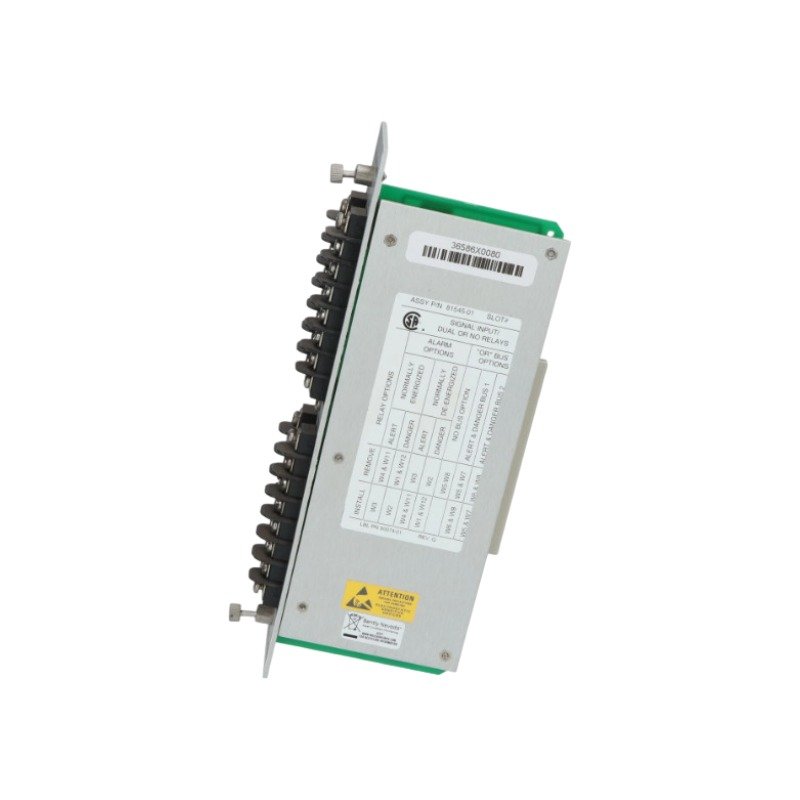

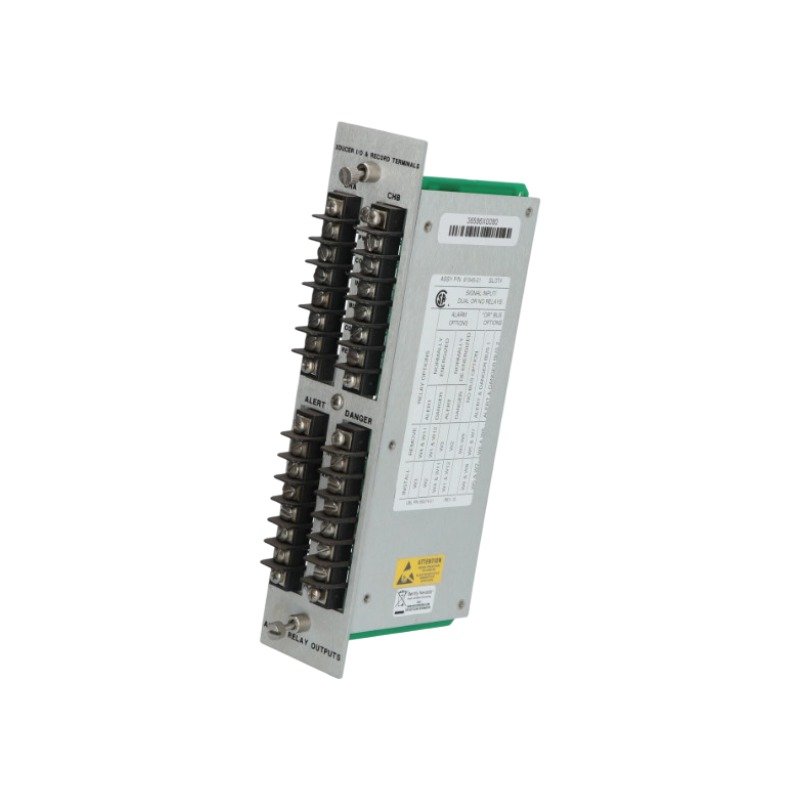

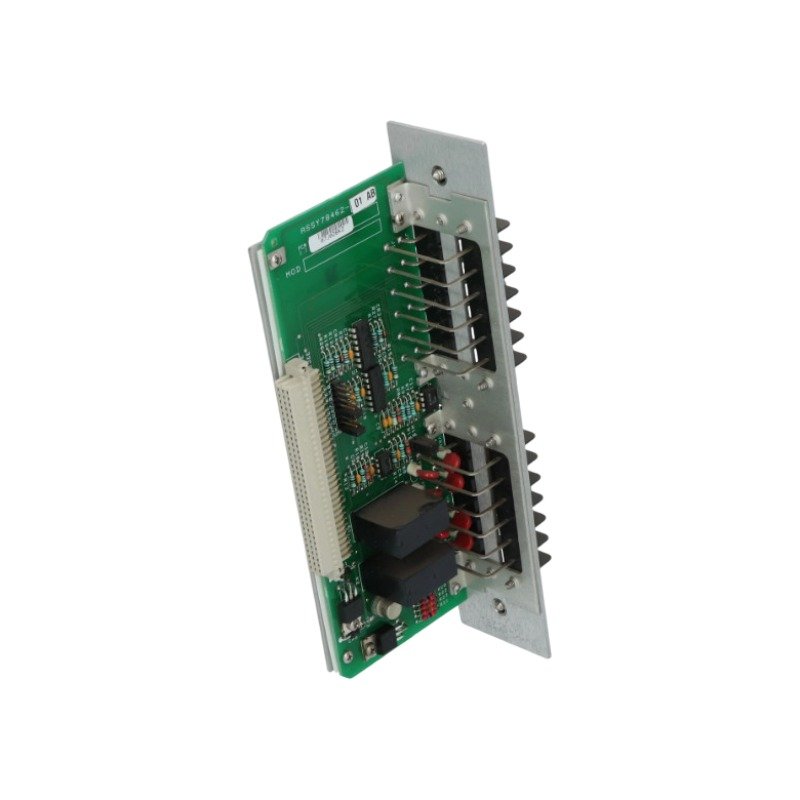

Bently Nevada 81545-01 3300 Series Transducer I/O and Dual Relay Module
Bently Nevada 81545-01 is a transducer I/O terminal module featuring dual epoxy-sealed relays for the 3300/20 system. Brand New, Original Stock with Global Shipping.
Description
The Bently Nevada 81545-01, also cataloged as the 81545 Transducer I/O and Dual Relay Module, operates as a dedicated hardware component for processing sensor feedback and executing protective alarm states within Bently Nevada 3300/20 Dual Thrust Position Monitor platforms. Consequently, this interface terminal block conditions analog field signals and routes discrete alarm logic to dedicated plant shutdown systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 81545-01 |
| Brand | Bently Nevada |
| Origin | United States |
| Weight | 0.40 kg |
| Dimensions | 100 mm x 230 mm x 50 mm |
| Operating Temp | -20 to +70 deg C |
| Power Consumption | Passive passive terminal backplane layout |
| Relay Channels | Dual independent epoxy-sealed relays |
| Relay Form Factor | SPDT dry contacts |
| Recorder Terminals | Dual 4-20 mA analog recording loop connections |
| Transducer Inputs | 2 independent axial position proximity probe ports |
Transducer Interface & Mechanical Monitoring Characteristics
This interface module connects directly to external proximity probe circuitry, thereby preserving calibrated eddy-current probe scaling for dual-channel thrust monitoring paths. The hardware loops deliver unattenuated analog potentials to ensure precise gap voltage validation (-10 VDC targets) during static rotor centering processes. Furthermore, the specialized trace configuration drives robust cross-talk suppression between adjacent sensor terminations, completely isolating low-voltage signal pathways tracking high-speed rotor dynamics from exterior electromagnetic noise.
Frequently Asked Questions
Q: With which specific 3300 Series main processing monitors does this I/O card pair?
A: This component functions exclusively as the rear termination block for the 3300/20 Dual Thrust Position Monitor. Therefore, it links the external field wiring directly to the primary analog processing electronics within the main rack chassis slot.
Q: What safety advantages do the epoxy-sealed dual relays offer over standard open contacts?
A: The epoxy encapsulation prevents the entry of ambient moisture, conductive dust particles, and corrosive gases. As a result, this design eliminates spark risks in hazardous areas and protects the long-term integrity of Alert and Danger emergency machinery trip execution.
Field Installation Guidelines
- Isolate the main 3300 chassis from the primary electrical grid before sliding the I/O module onto the matching rear backplane connectors.
- Fasten the integrated mounting screws into the back framework of the chassis to prevent contact fretting caused by heavy machinery structural vibration.
- Clamp external 4-20 mA recorder and transducer shield wires to the dedicated instrument ground bus bar, keeping the shield isolated at the field sensor side to block ground loop currents.
- Verify the integrity of the compression screw connections on the barrier strip, maintaining a maximum conductor engagement profile to prevent intermittent signal dropouts.
Additional information
| Weight | 0.56 kg |
|---|---|
| Dimensions | 15 × 20 × 30 mm |
