Description

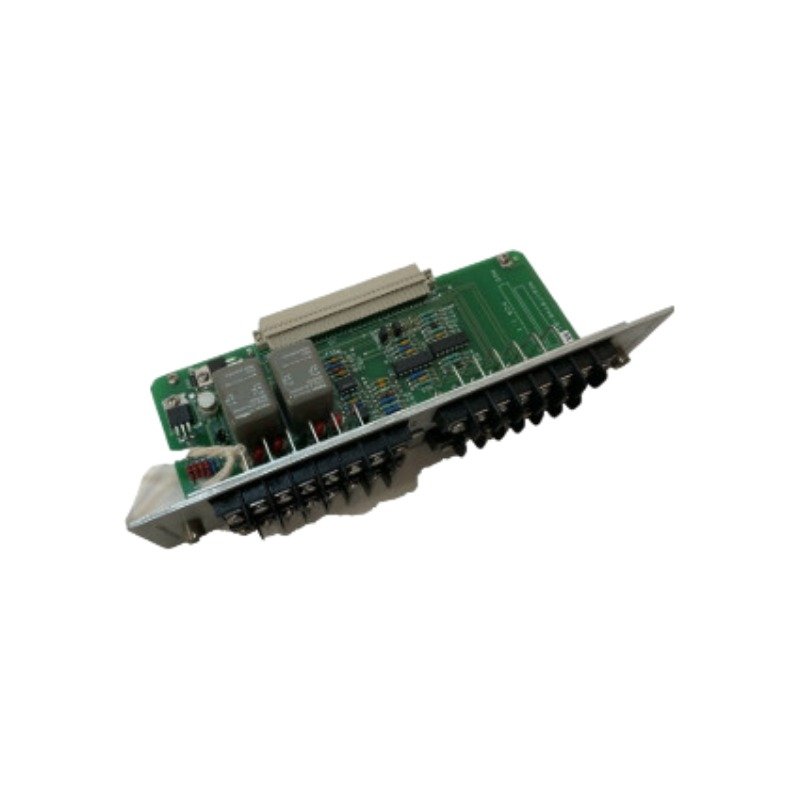

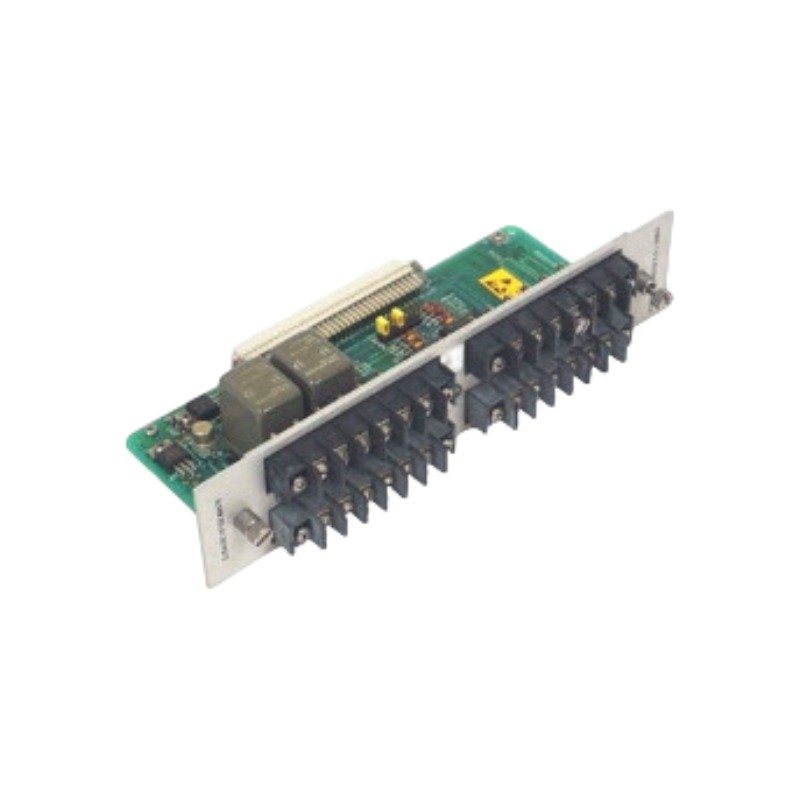

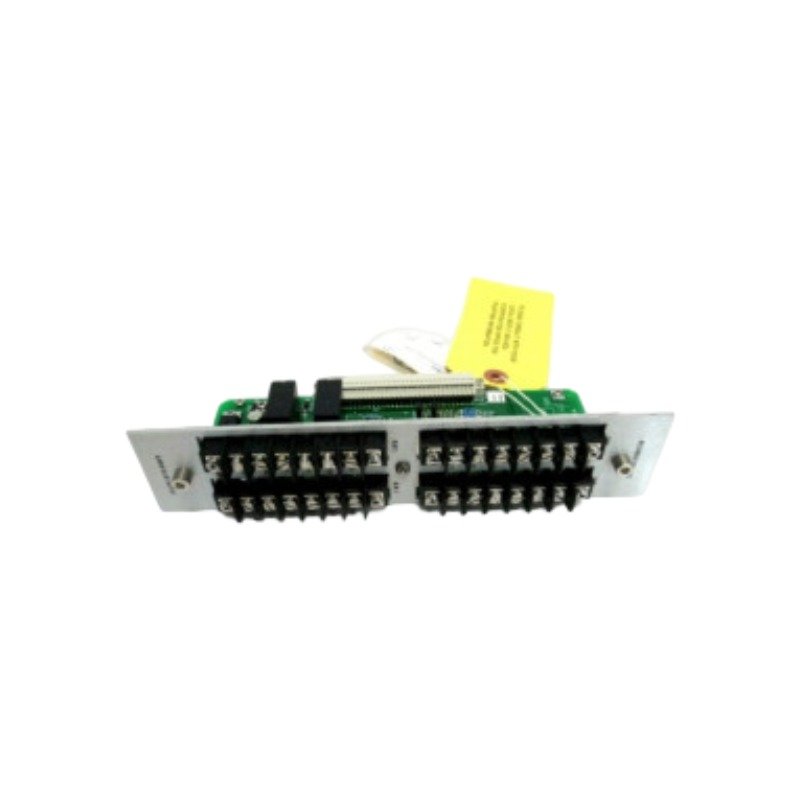

The Bently Nevada 80074-01, also cataloged as the Bently Nevada 80074-01 XDCR I/O and Record Terminal Module, operates as a dedicated hardware component for field sensor termination and signal routing within legacy Bently Nevada monitoring platforms. Specifically, this module interfaces field-mounted proximity probes or seismic transducers directly with upstream rack processing units. Consequently, the hardware establishes separate terminal points for steady-state recording instruments and raw signal output ports without compromising monitoring loop integrity.

Hardware Specifications

Proximity Probe Scaling and Gap Voltage Validation

The card layout uses dedicated, low-impedance traces to preserve native eddy-current probe scaling metrics when routing raw transducer signals. Furthermore, the 80074-01 provides fixed test points for executing gap voltage validation (-10 VDC targets) during initial sensor calibration procedures. Heavy trace separation across the physical circuit card ensures robust cross-talk suppression between parallel channels and external recording equipment links. As a result, the terminal layout blocks external noise injection, outputting accurate dynamic representations of complex rotor dynamics directly to connected internal safety monitors.

Frequently Asked Questions

Q: Can the 80074-01 module execute onboard alarm voting logic if an input channel exceeds preset thresholds?

A: No. The hardware utilizes a fully passive termination design. Therefore, it serves exclusively to route and split field wiring signals, while the main processing monitor card inside the chassis handles all diagnostic threshold evaluation.

Q: How do the separate record terminals interface with localized plant data acquisition networks?

A: The record terminals output a filtered, steady-state DC voltage or current value that correlates to absolute displacement or velocity measurements. Consequently, technicians wire these ports directly into external chart recorders or distributed control system (DCS) data logging paths.

Field Installation Guidelines

• Mount the terminal card securely into the assigned slot layout on the chassis backplane, verifying that all multi-pin guide headers line up exactly before applying locking pressure.
• Strip field transducer wiring insulation to a precise length of 6 mm to ensure complete copper insertion into the compression cage clamps without exposing bare conductor arcs.
• Connect the outer braided shield of the transducer field cabling directly to the designated chassis frame terminal ground point to block electromagnetic interference.
• Avoid routing parallel field input loops inside the same wire tray as high-current AC motor supply lines to minimize cross-talk suppression degradation from inductive charging fields.
