Product Overview

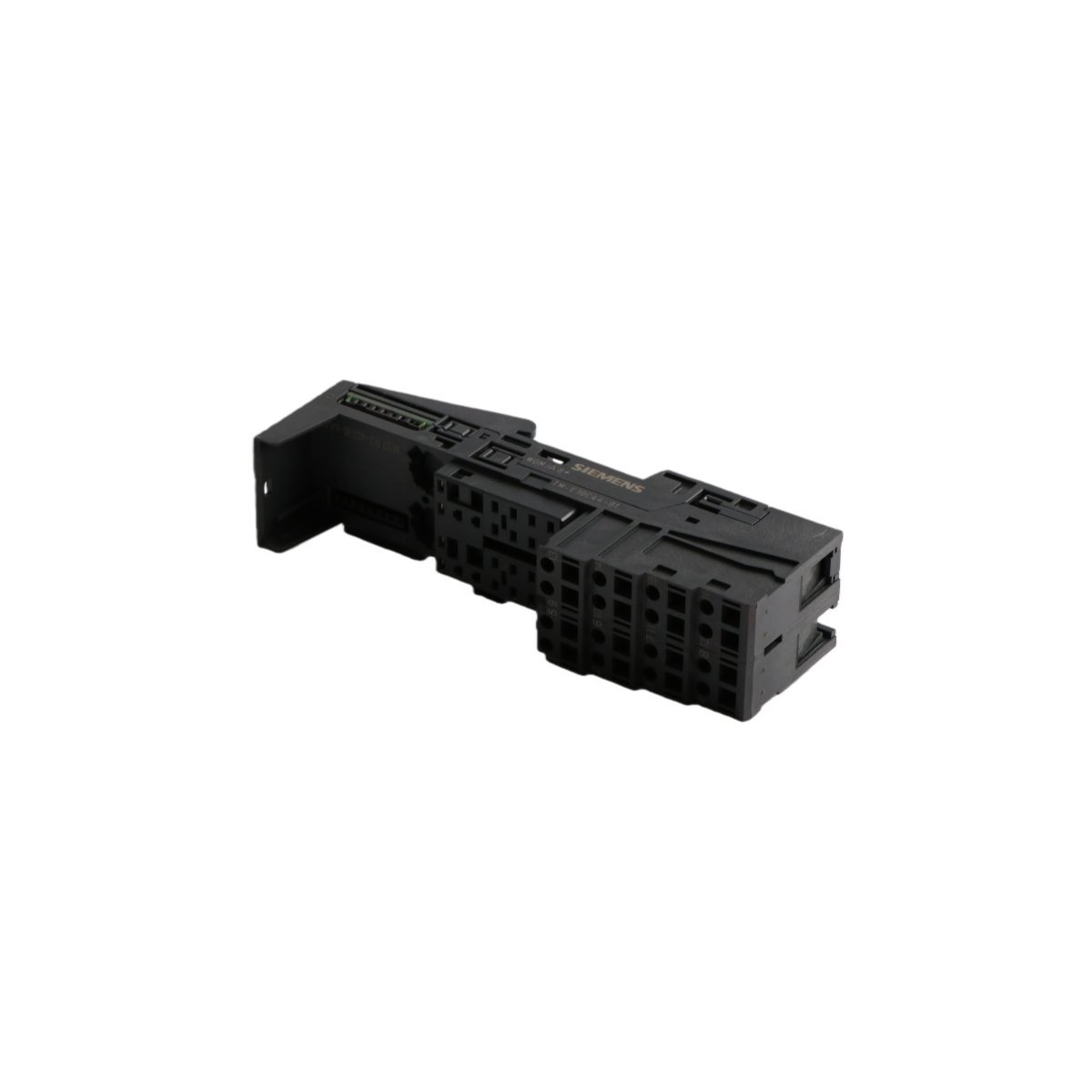

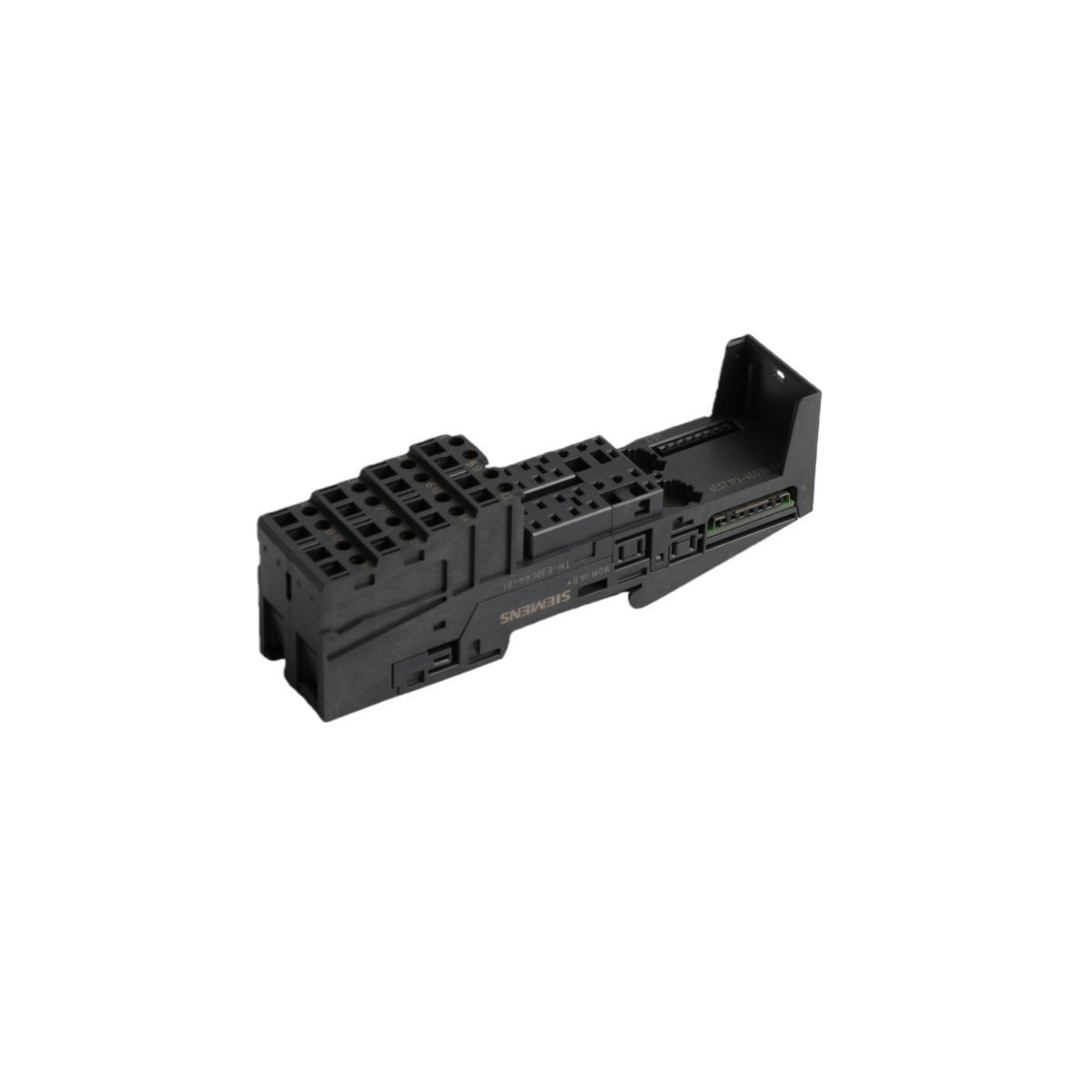

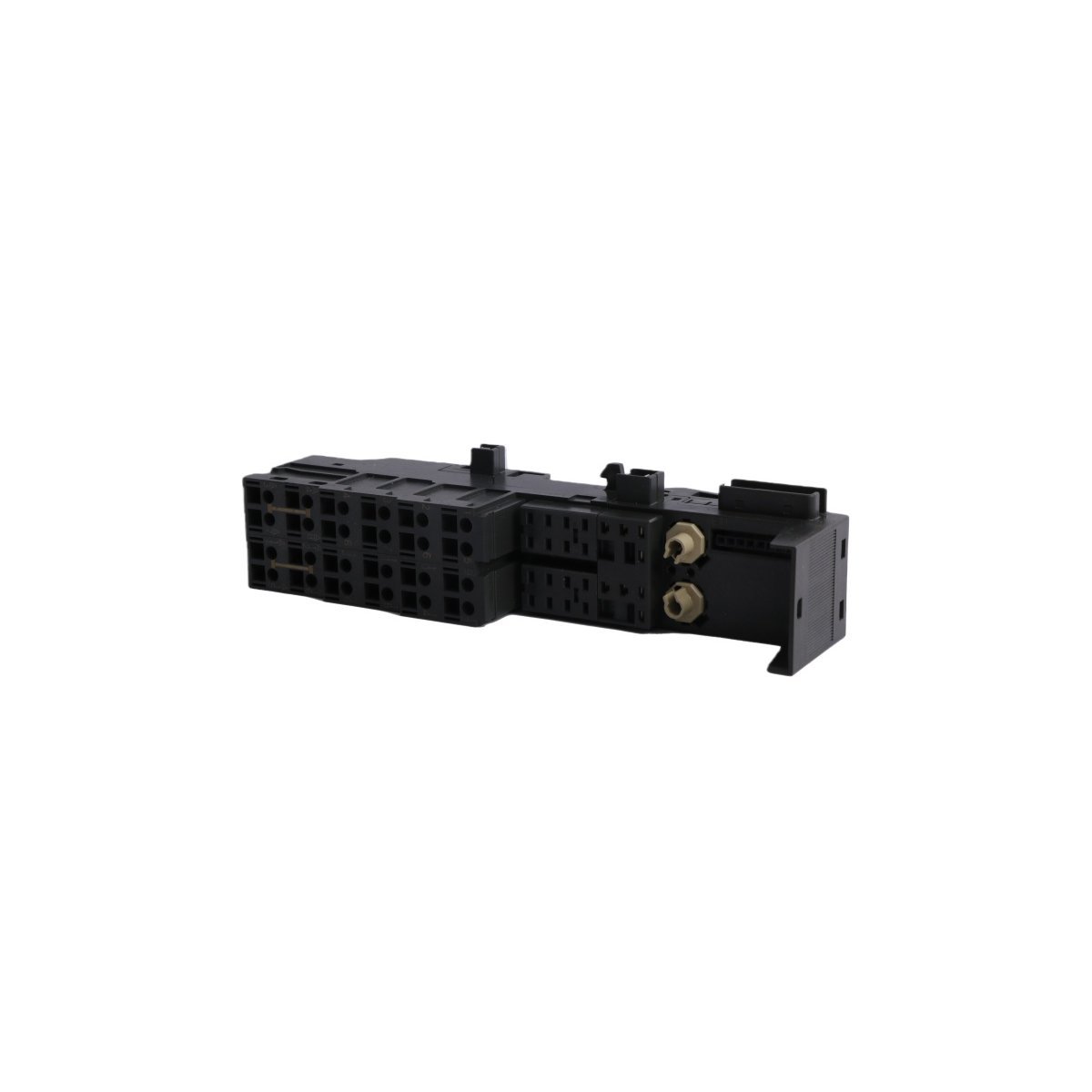

The Siemens 6ES7193-4CA20-0AA0 is a specialized TM-E terminal module designed for the SIMATIC ET 200S distributed I/O system, facilitating secure mechanical and electrical connections for 15mm electronic modules.² This component acts as the foundational interface, enabling seamless wiring for digital and analog signals while optimizing cabinet space through its high-density architecture.

Enhanced Wiring with Screw-Type Connectivity

This terminal module features a 2×4 terminal arrangement utilizing robust screw-type technology to ensure permanent, vibration-resistant connections.³ Siemens engineered this specific unit to support narrow-profile modules, allowing engineers to consolidate more I/O points within a smaller footprint. By providing direct access to the AUX1 auxiliary bus, the 6ES7193-4CA20-0AA0 simplifies the distribution of common potentials.⁴ This internal bus access significantly reduces the need for external bridging and complex terminal strips, thereby accelerating the assembly of control panels and minimizing the likelihood of wiring faults during commissioning.

Industrial Reliability and System Integration

The 6ES7193-4CA20-0AA0 serves as a critical link in the SIMATIC ET 200S ecosystem, providing a stable platform for hot-swappable electronic components. Because the wiring remains fixed to the terminal module, maintenance personnel can replace electronic modules without disturbing the field cables, which drastically reduces mean time to repair (MTTR). The unit’s construction adheres to stringent German engineering standards, ensuring reliable performance in heavy-industrial environments prone to electrical noise and thermal cycling. Furthermore, the inclusion of the AUX1 bus allows for flexible grounding or power supply daisy-chaining across multiple modules, enhancing the overall scalability of the distributed I/O station.
