The GE 531X179PLMAKG1 is a specialized power line monitoring board engineered for the EX2000 excitation and Multilin turbine control systems. It actively regulates energy storage and monitors line stability using an array of integrated circuits and adjustable precision resistors.¹

Product Description

High-Precision Power Regulation and Storage

The GE 531X179PLMAKG1 operates as a critical diagnostic and regulation hub within the General Electric EX2000 excitation series. This Power Line Monitor utilizes an extensive array of capacitors to store and stabilize electrical energy, ensuring that the circuit maintains peak performance even during minor voltage fluctuations.² Furthermore, the board integrates eight high-performance integrated circuits (ICs) that process real-time data to track power line health.³ By managing current flow through strategically placed diodes and transistors, the module prevents backflow and ensures consistent energy delivery to downstream turbine control components.

Manual Calibration and Interface Controls

To facilitate site-specific tuning, the 531X179PLMAKG1 features four blue variable resistors that allow technicians to fine-tune energy thresholds and signal sensitivity.⁴ In addition to these analog adjustments, the board incorporates two specialized input modules equipped with five-position DIP switches. These switches, clearly labeled for manual “OFF” positioning, empower operators to configure internal logic or bypass specific monitoring routines. This combination of manual control and automated processing makes the board a versatile tool for legacy system maintenance.

Visual Diagnostics and Physical Connectivity

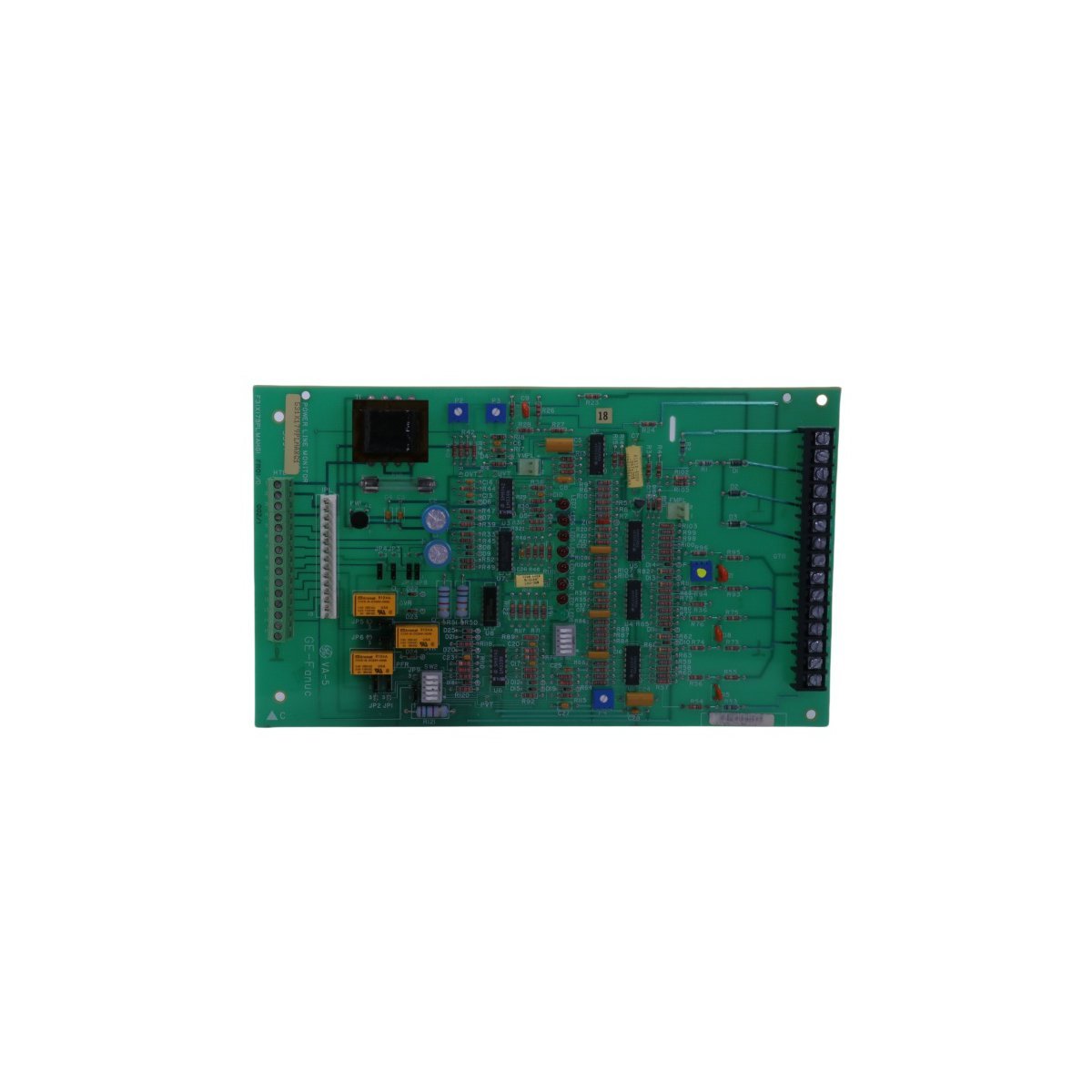

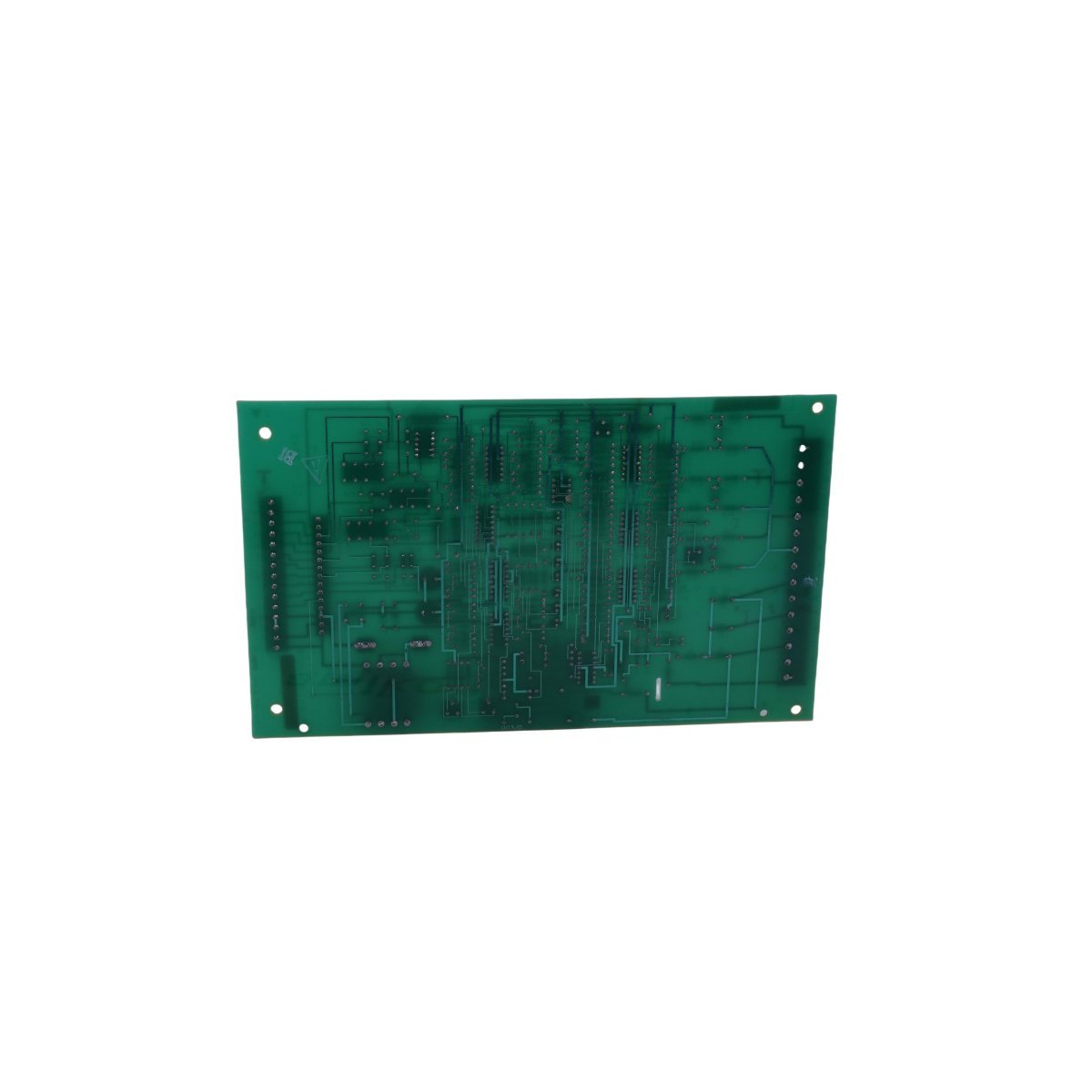

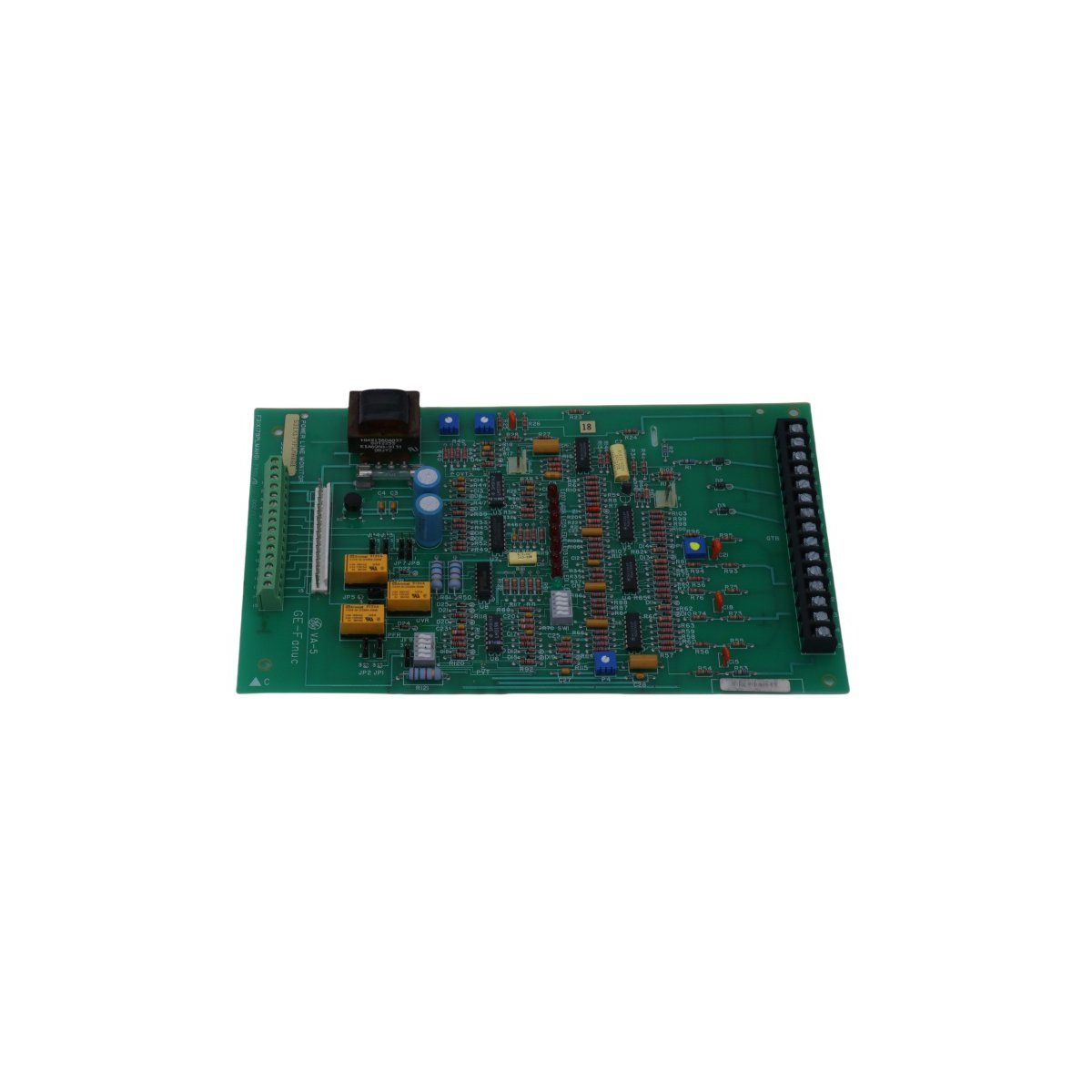

Maintenance personnel can determine system status at a glance via the board’s centralized LED array.⁵ This visual interface consists of seven red indicators and one green LED, which together provide immediate feedback regarding power presence and fault conditions.⁶ Moreover, the board emphasizes long-term durability with its integrated fuse protection and robust thermal management provided by its transistor layout. The hardware establishes secure connections to the DCS through a variety of male and female terminal headers, ensuring high-integrity signal transmission in demanding industrial environments.
