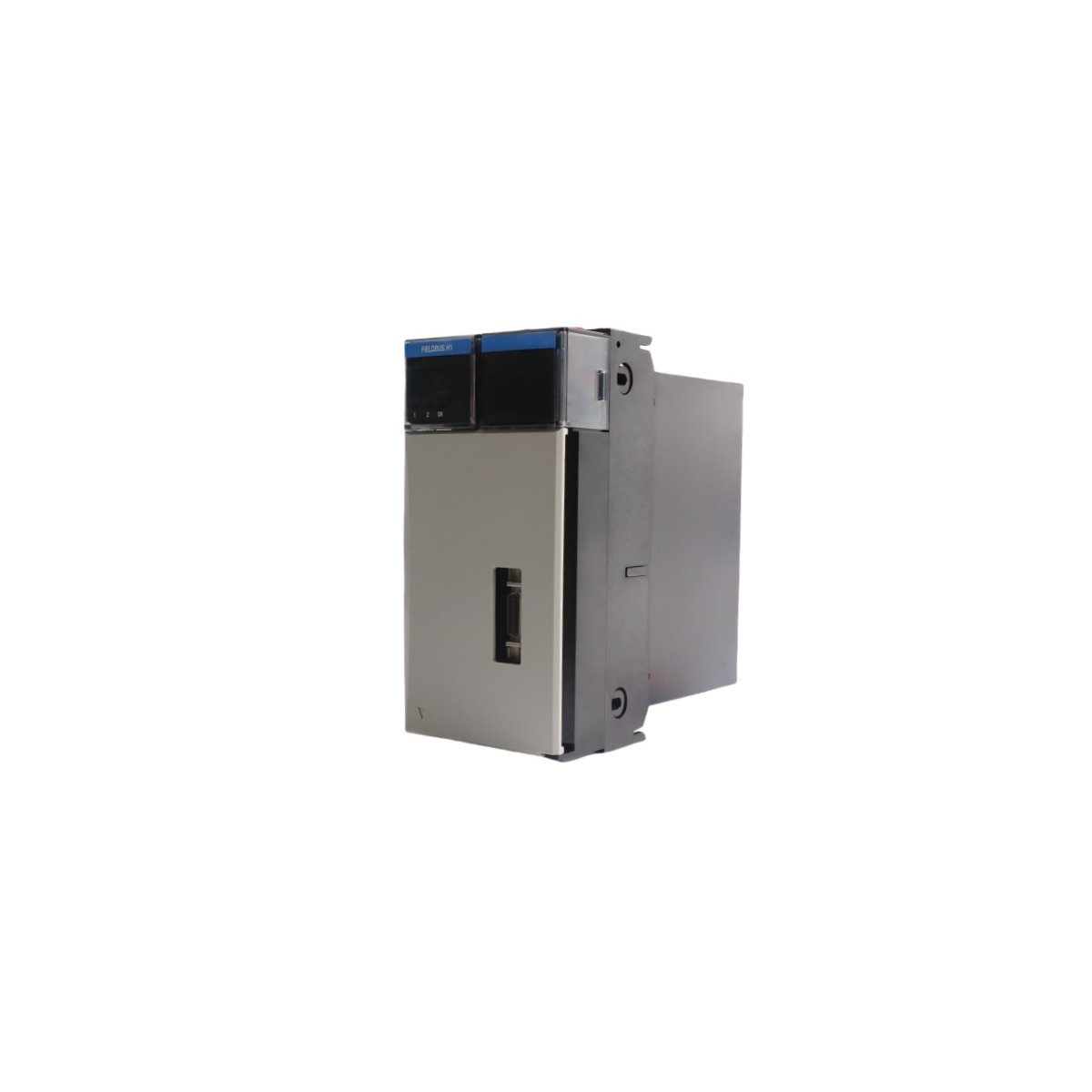

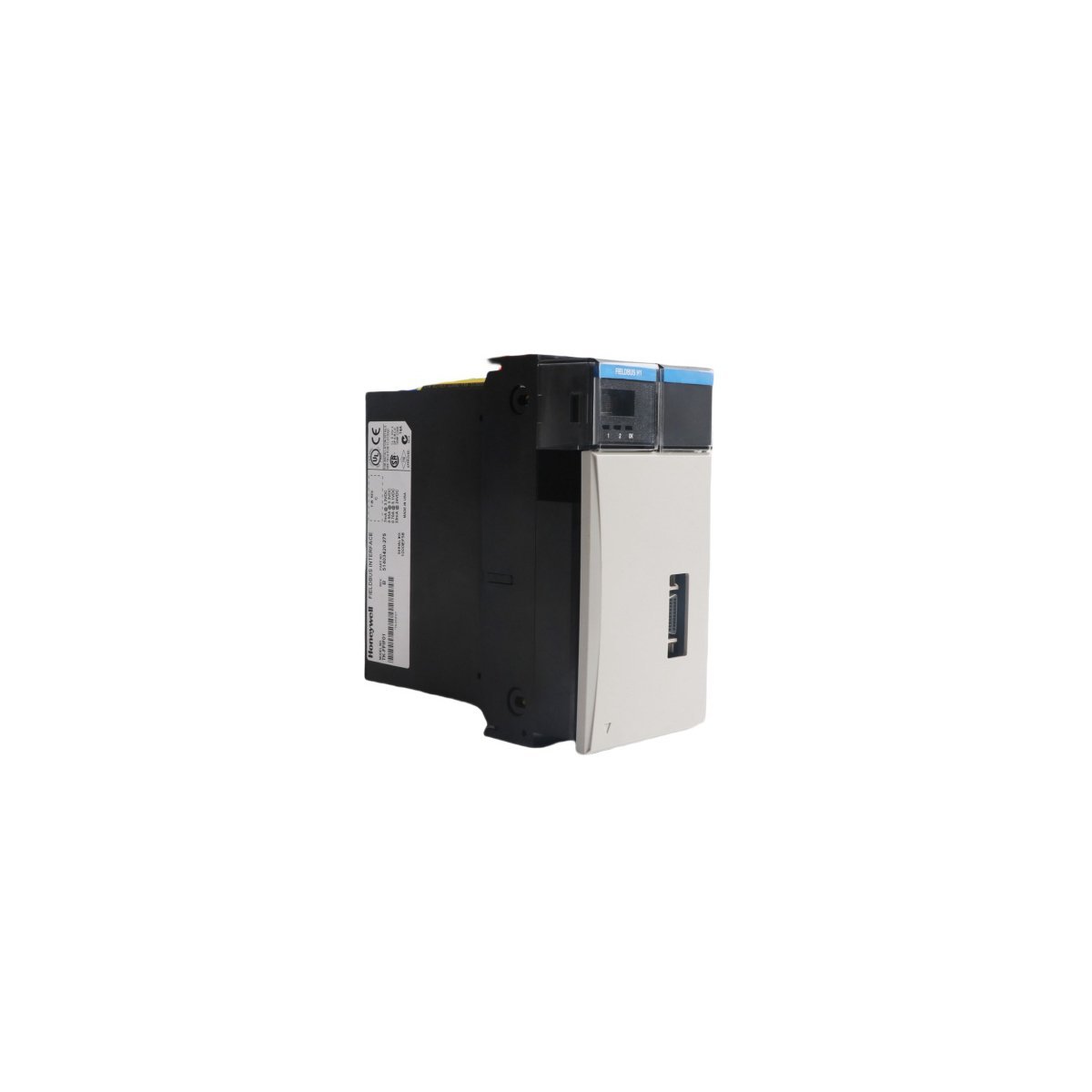

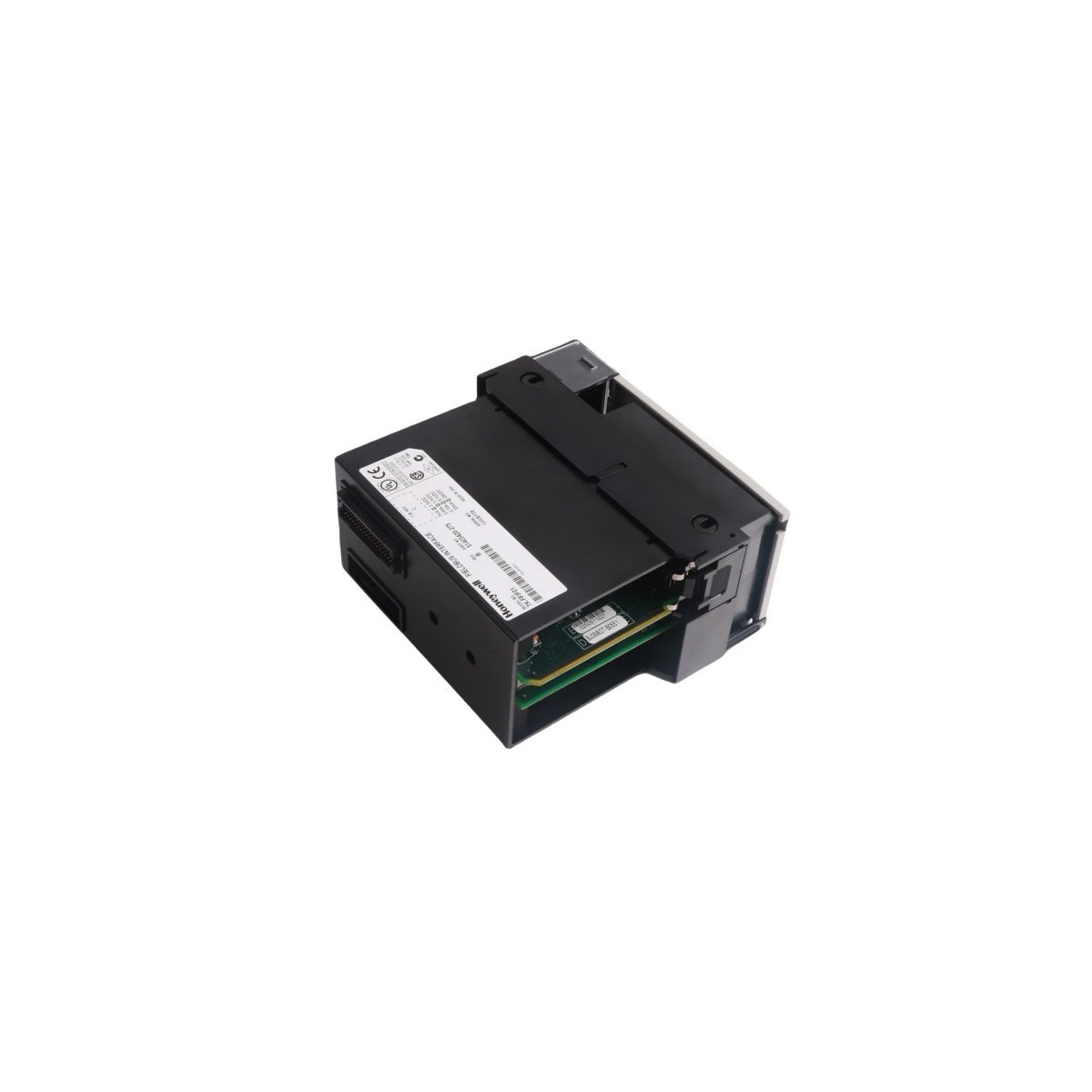

The Honeywell TK-FFIF01 (51403420-275) is a high-performance FOUNDATION Fieldbus H1 interface module designed for the Experion LS control platform. It serves as the primary communication link between intelligent field instrumentation and the DCS, ensuring high-speed data integration and advanced device diagnostics.

​Product Description

High-Speed Field Device Integration

The Honeywell TK-FFIF01 functions as a sophisticated bridge between the Experion LS control environment and FOUNDATION Fieldbus (FF) H1 field networks. This module facilitates the bidirectional exchange of digital data, allowing the control system to access not only primary process variables but also secondary instrument data and valve positions. By utilizing this digital communication standard, the TK-FFIF01 enables a “Control in the Field” (CIF) architecture, which decentralizes logic execution and enhances overall system responsiveness. This integration effectively replaces traditional 4-20mA analog loops with a robust, multi-drop digital bus.

Advanced Diagnostics and System Reliability

Beyond basic data transmission, the 51403420-275 module provides comprehensive status monitoring for every connected device on the segment.¹ The interface actively tracks signal quality and device health, delivering real-time alerts to the operator console whenever it detects a potential fault. This proactive diagnostic capability allows maintenance teams to identify and resolve issues before they escalate into process failures. Furthermore, the module’s rugged construction ensures stable operation within industrial control cabinets, supporting the high uptime requirements of modern processing plants.

Optimized Maintenance and Scalability

Incorporating the TK-FFIF01 into an automation strategy significantly reduces physical wiring complexity and installation costs. Because a single fieldbus segment supports multiple devices, the module minimizes the need for extensive cable runs and termination points. For facility upgrades or expansions, this interface provides a scalable foundation that accommodates the addition of new smart sensors and actuators without requiring major infrastructure changes. The module also supports fieldbus power conditioning and termination, simplifying the physical layer setup for network engineers and ensuring clean signal transmission across the bus.
