Brief Product Description

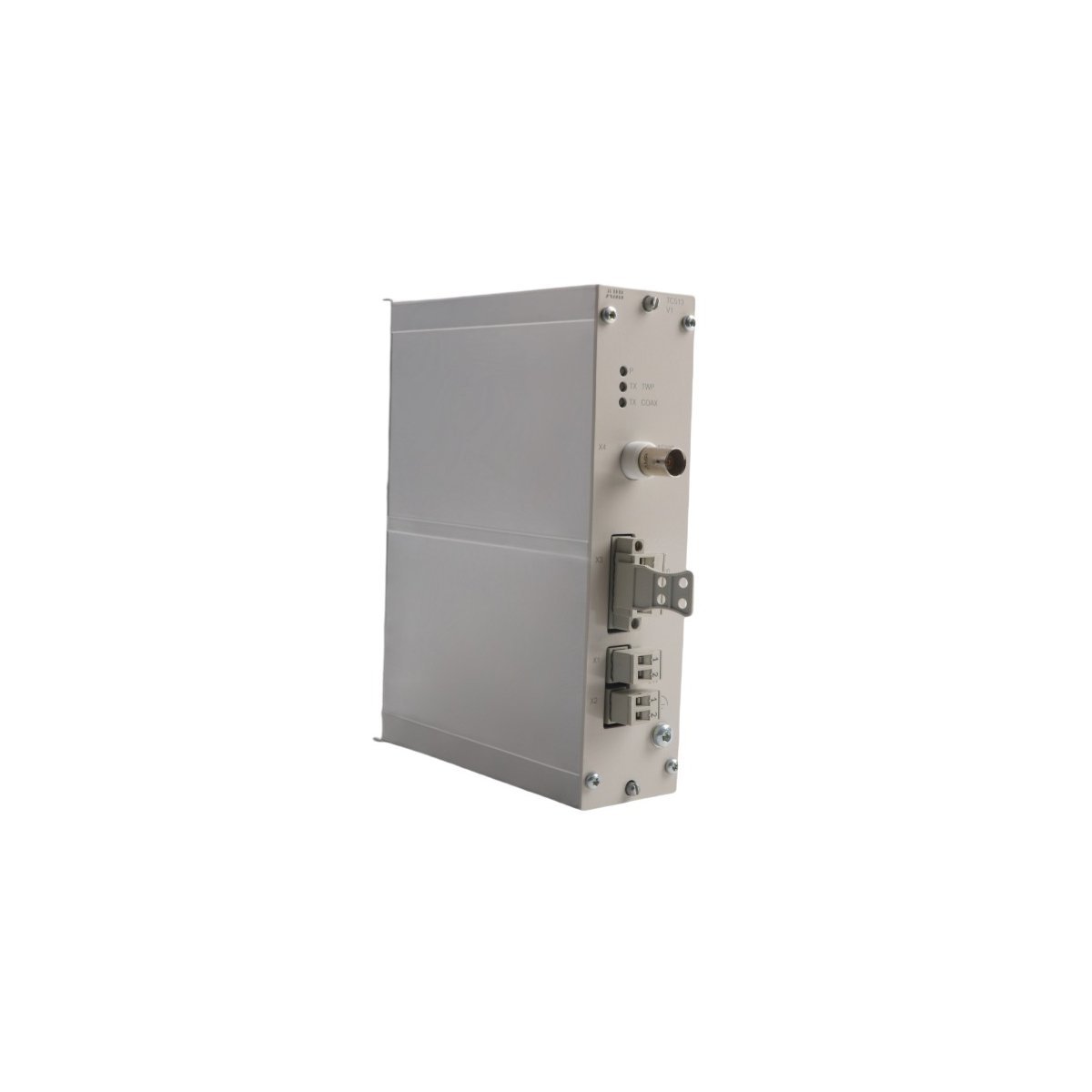

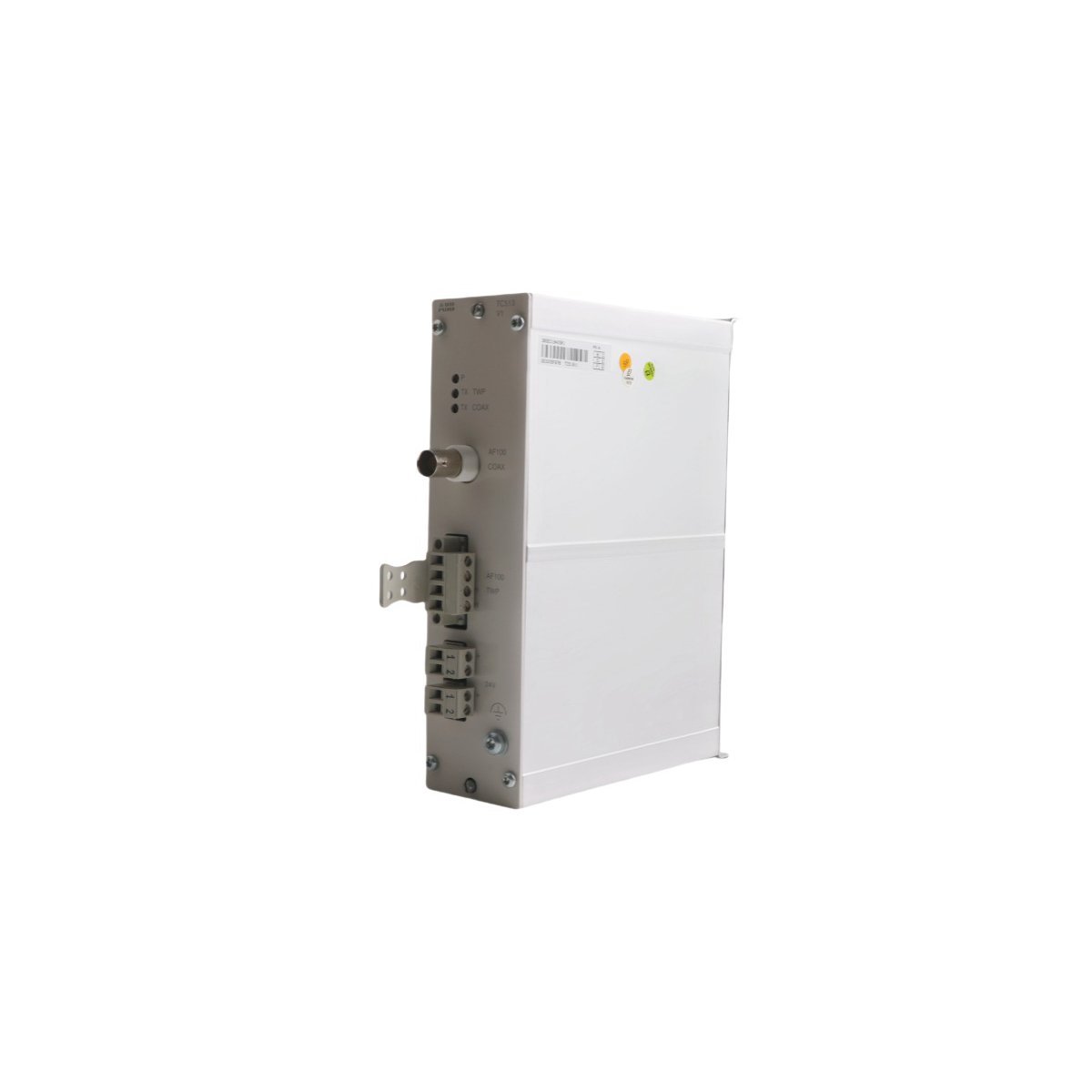

The ABB TC513V1 3BSE018405R1 is a high-performance communication modem designed for the Advant Fieldbus 100 (AF100) network.² It facilitates reliable data exchange between twisted pair and coaxial cabling within ABB Advant and 800M DCS environments.³

​Product Description

The ABB TC513V1 3BSE018405R1 functions as a specialized communication interface for the Advant Fieldbus 100 system.⁴ This modem provides a critical bridge that allows industrial networks to transition between twisted pair media and 75 Ω coaxial cables.⁵ By supporting these dual media types, the module offers engineers significant flexibility when designing or expanding distributed control system (DCS) layouts. The device operates on a standard 24V DC power supply and maintains signal integrity through high-grade galvanic isolation, which effectively protects the network from ground loops and electrical transients common in heavy industrial zones.⁶

Robust Performance in Demanding Environments

Reliability remains a cornerstone of the TC513V1 design, especially when deployed in electrically noisy settings. The modem supports high-speed data transmission rates of up to 1.5 Mbps, ensuring that real-time process data reaches the controller without latency. Furthermore, it manages twisted pair cable segments reaching up to 500 meters, which simplifies the wiring of large-scale manufacturing plants. Because the module incorporates advanced electromagnetic compatibility (EMC) protection, it delivers consistent uptime even when positioned near high-voltage equipment or frequency converters.

Seamless Integration and Global Standards

The TC513V1 3BSE018405R1 integrates directly into ABB’s Advant Controller 800M and legacy AC400 series infrastructure. Its compact form factor allows for high-density mounting in standard control cabinets, maximizing available space. Beyond its mechanical advantages, the module aligns with modern environmental and safety regulations, including RoHS compliance and SCIP database registration.⁷ This adherence to international standards confirms its suitability for global process automation projects. Consequently, the modem serves as a dependable solution for facilities looking to maintain or modernize their fieldbus communication backbone.
