Description

Brief Product Description

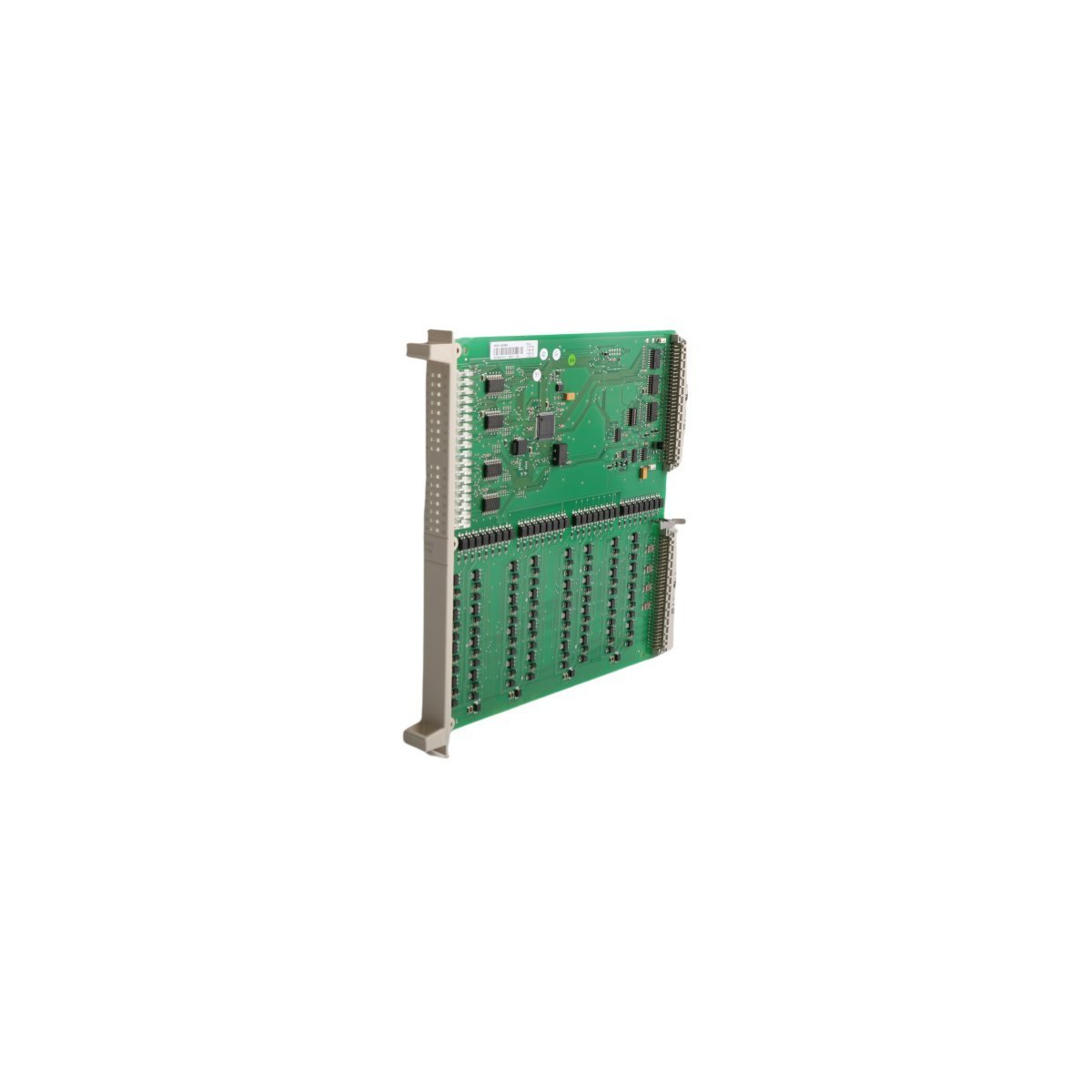

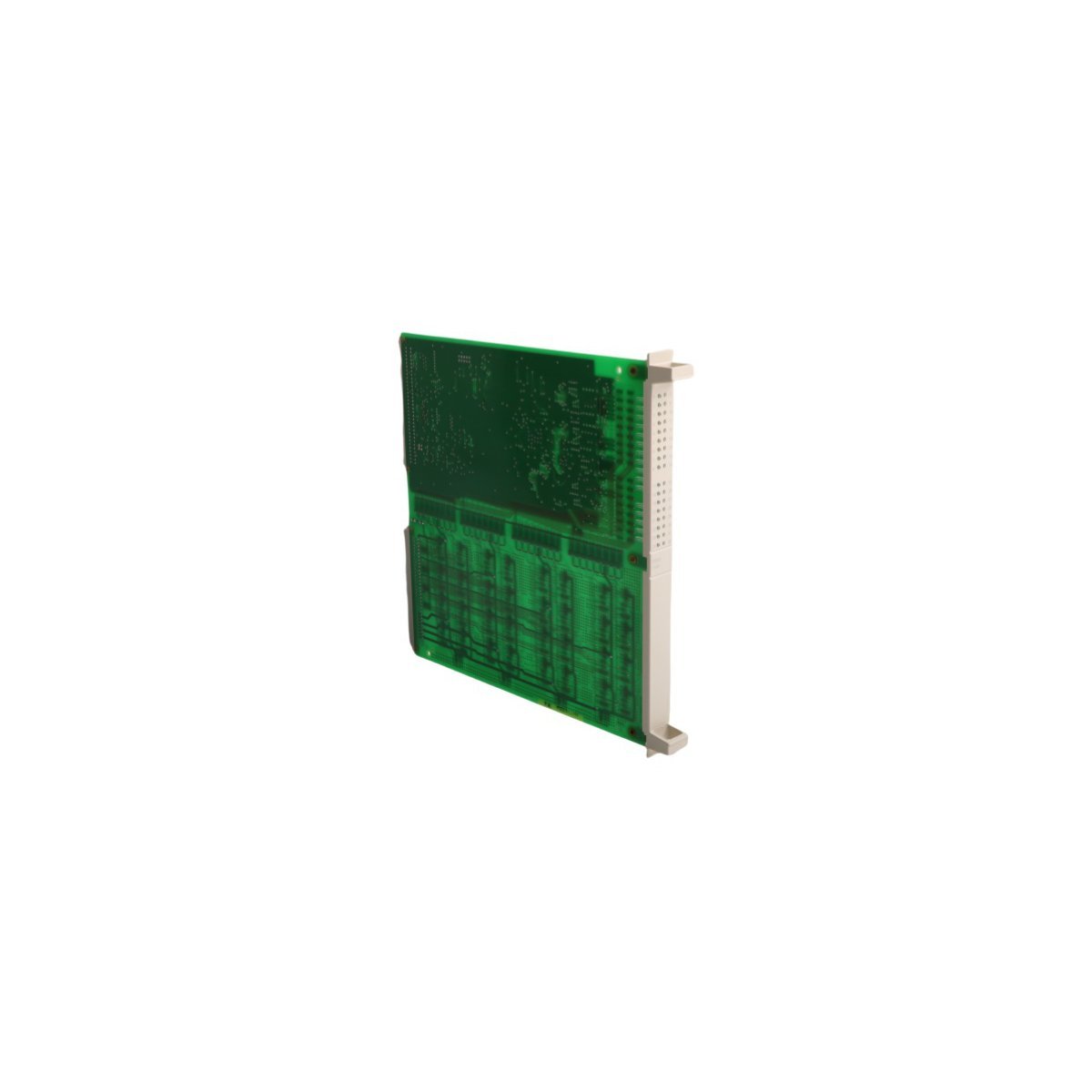

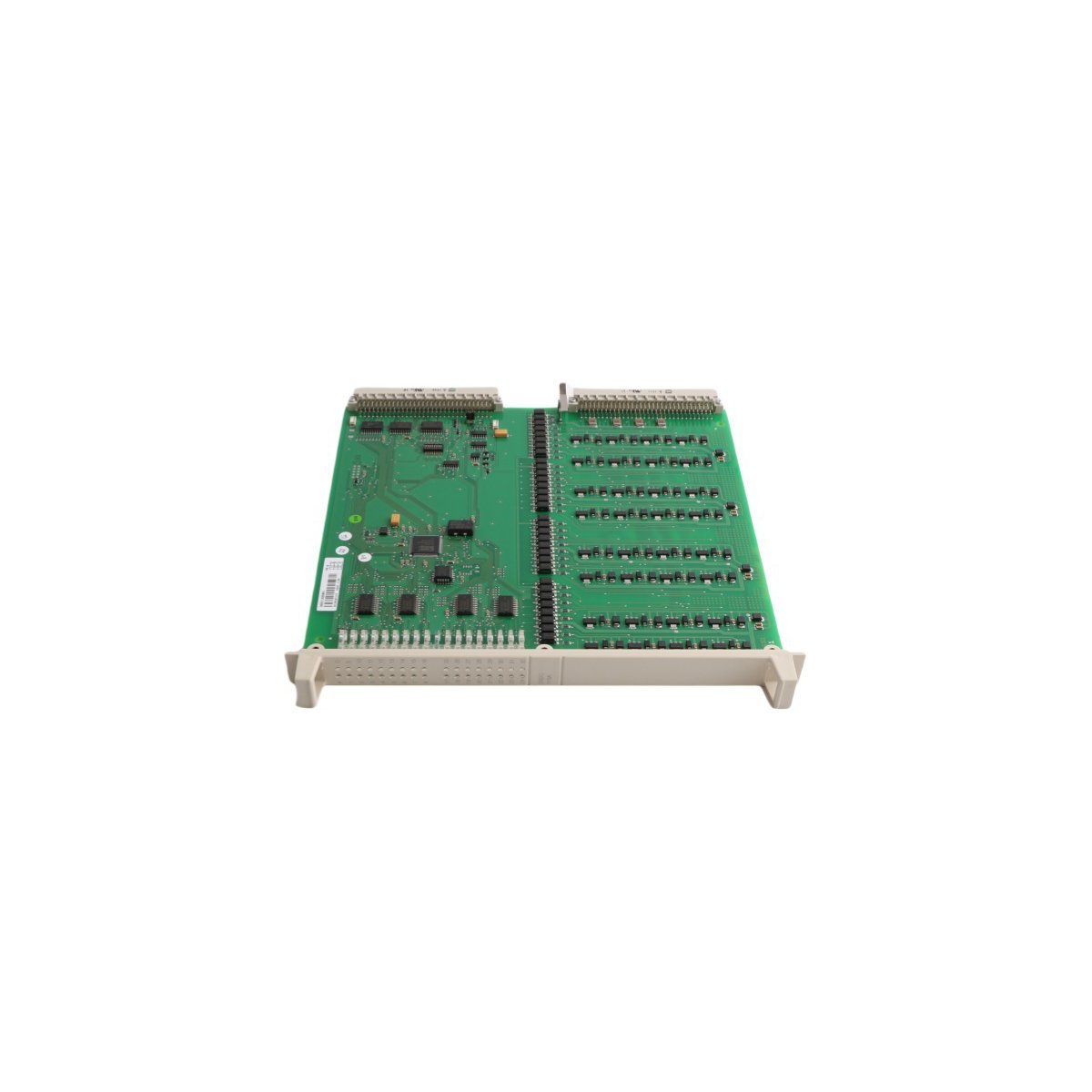

The ABB DSDO115A (3BSE018298R1) is a high-density S100 I/O interface board featuring 32 isolated digital output channels. It provides robust 2A switching capacity per channel for demanding Advant OCS and MasterPiece automation environments.

High-Capacity Output Control for Advant Systems

The ABB DSDO115A, identified by part number 3BSE018298R1, functions as a high-density interface within the S100 I/O hardware family. This board manages 32 independent digital output signals, making it an essential component for large-scale Advant OCS installations. By consolidating 32 points into a single board footprint, the DSDO115A significantly reduces the required cabinet space and simplifies the complex wiring architectures often found in power generation and heavy processing industries. It communicates directly with the controller via the S100 I/O bus, ensuring deterministic signal execution and high-speed logic response.

Robust Electrical Design and Field Flexibility

Industrial reliability remains a core feature of the DSDO115A. Each of the 32 channels features galvanic isolation, which effectively shields the internal system logic from electrical noise and voltage spikes on the field side. While many standard modules offer limited current, the DSDO115A supports a robust 2A load capacity per channel. This higher rating allows the board to drive power-heavy devices such as large solenoids, motor starters, and hydraulic valves without requiring external interposing relays. Furthermore, the board supports both sinking and sourcing configurations, providing engineers with the flexibility to adapt to various field device wiring standards.

Enhanced Diagnostics and System Availability

Maintenance efficiency drives the design of the 3BSE018298R1. The board incorporates individual diagnostic LEDs for every channel, allowing technicians to verify output status and troubleshoot field faults at a glance. To meet the requirements of mission-critical applications, the DSDO115A supports optional redundant configurations. By pairing two boards, the system maintains continuous operation even if a hardware failure occurs, thereby maximizing plant uptime. This Swedish-engineered module adheres to strict quality standards, ensuring long-term stability in unconditioned industrial environments where vibration and thermal fluctuations are common.

Key Technical Characteristics

• 32 Isolated Channels: Provides maximum point density for controlling extensive arrays of industrial field devices.
• 2A Current Rating: Delivers high power capacity per output to eliminate the need for external relays in most applications.
• Universal Configuration: Flexible channel logic supports both sinking and sourcing field connections.
• Real-Time Monitoring: Onboard LED indicators for every channel facilitate rapid status verification and fault isolation.
• Redundancy Support: Compatible with dual-board configurations for high-availability process control.
• S100 Bus Integration: Native compatibility with Advant OCS and MasterPiece 200 series controllers.

Technical Specifications
