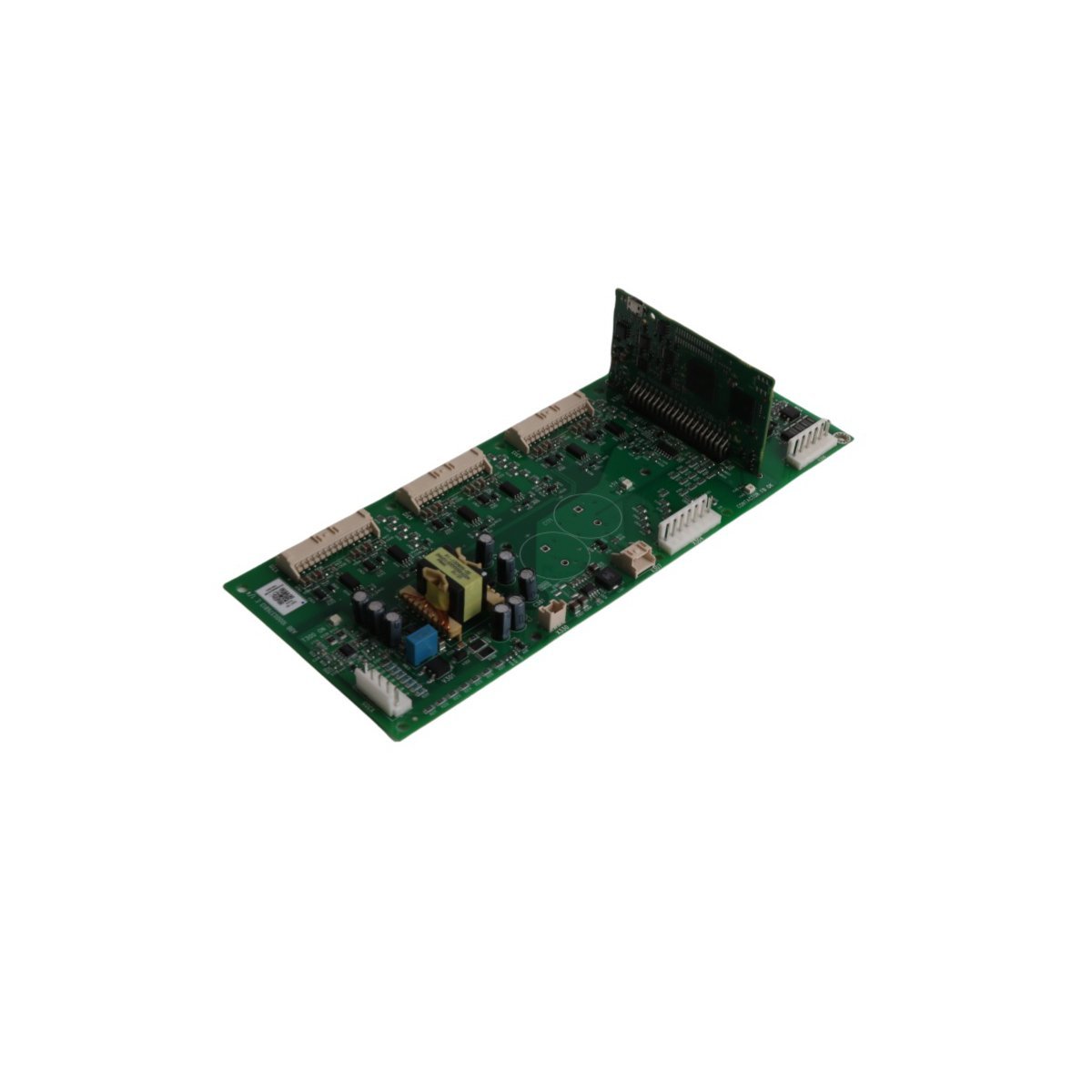

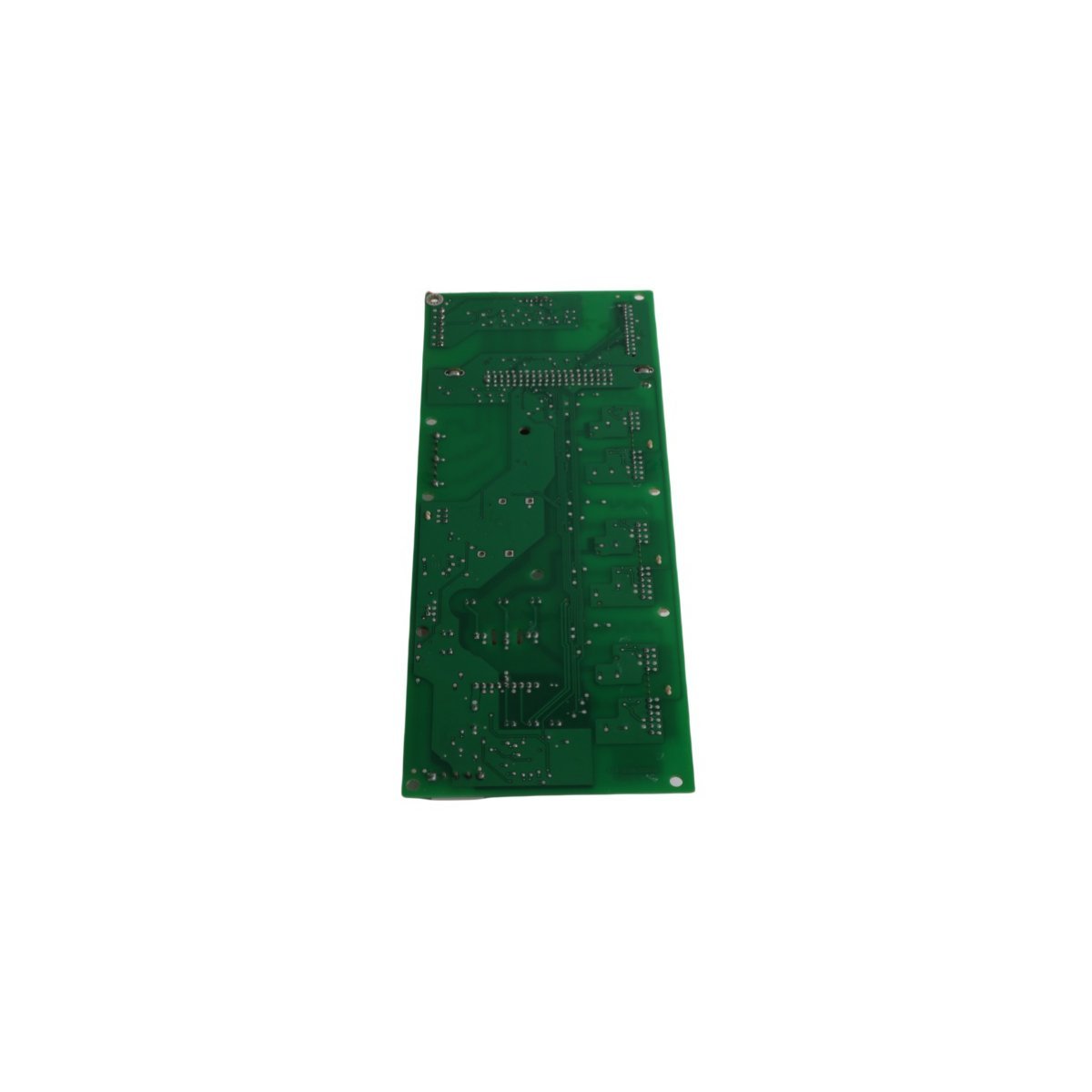

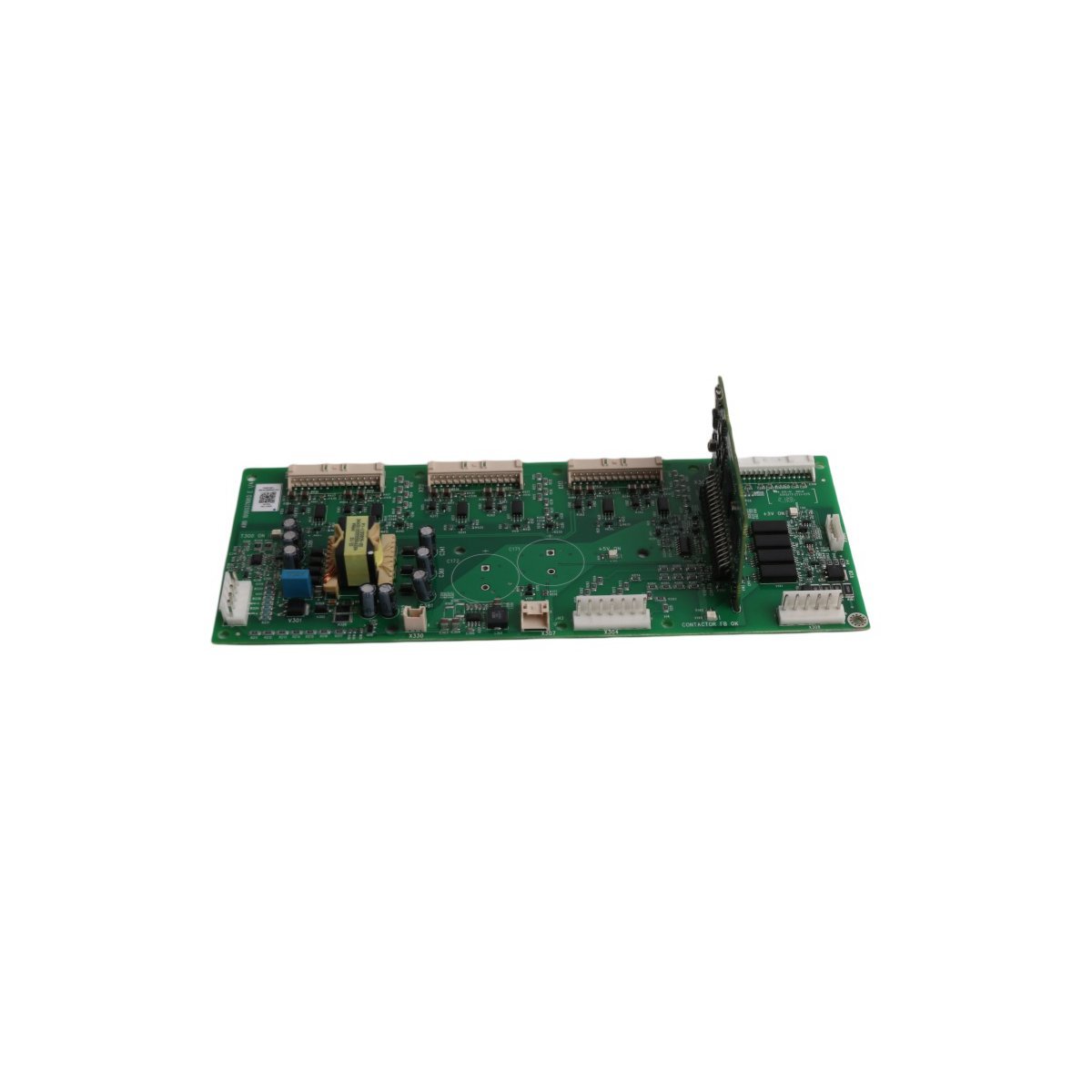

The ABB QINT-781 3AXD5000019758 is a high-capacity Inverter Rectifier Power Board designed for precision DC power management in heavy-duty industrial drive systems. This module coordinates high-current rectification and switching tasks, ensuring stable energy flow for large-scale power electronics and automated DCS environments.

Advanced Power Rectification and Conversion

The QINT-781 serves as a fundamental power-switching hub within ABB’s high-performance drive architecture. It efficiently manages a wide DC output range from 500V to 800V, providing the necessary voltage stability for demanding motor control applications. To handle heavy industrial loads, the board supports a continuous current rating of 150A, with the peak capacity reaching up to 200A depending on the specific system configuration. This robust current handling allows the module to maintain consistent power delivery even during high-torque startup phases or varying load cycles.

Superior Thermal Management and Signal Efficiency

Operating at a high switching frequency between 10 and 20 kHz, this board optimizes energy conversion while drastically reducing harmonic distortion and heat generation. Because industrial environments often present extreme conditions, ABB engineered the 3AXD5000019758 with specialized components that tolerate temperatures ranging from -10°C to +55°C. The board’s architecture prioritizes signal integrity through high-speed processing lanes, ensuring that the inverter and rectifier stages remain perfectly synchronized. Consequently, this precise timing minimizes energy losses and extends the operational lifespan of the entire drive assembly.

Global Manufacturing and Reliability

Manufactured in Sweden, the QINT-781 represents ABB’s commitment to premium build quality and long-term reliability. The board’s compact footprint allows for straightforward integration into existing DCS cabinets, while its lightweight 0.24kg design facilitates easy handling during field maintenance. This interface board undergoes rigorous factory testing to ensure it meets the strict safety and performance standards required for modern power electronics. By choosing this authentic ABB module, operators secure a durable solution for critical power infrastructure and automated process control.
