Description

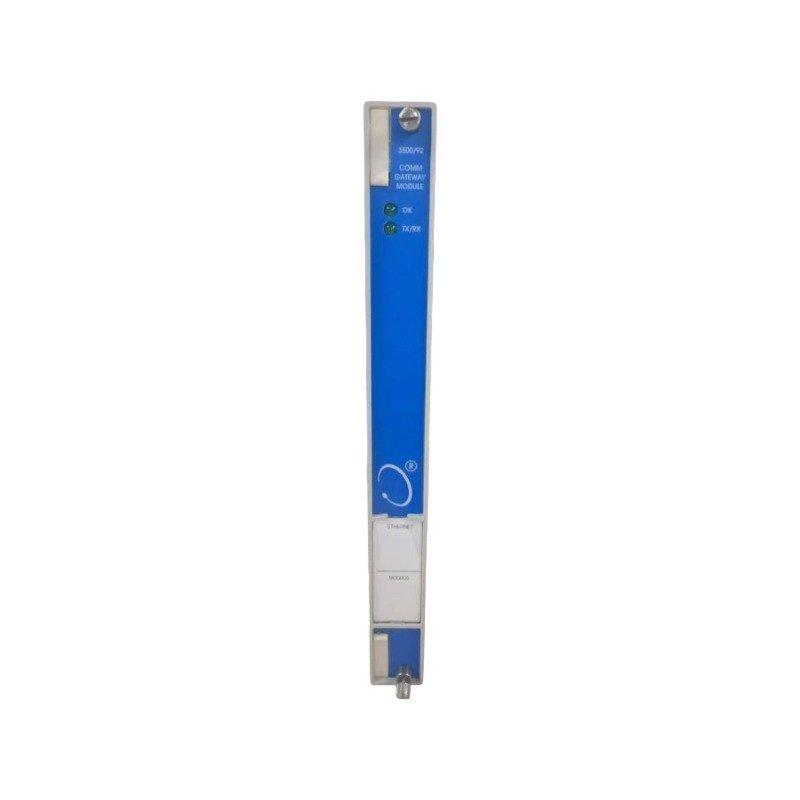

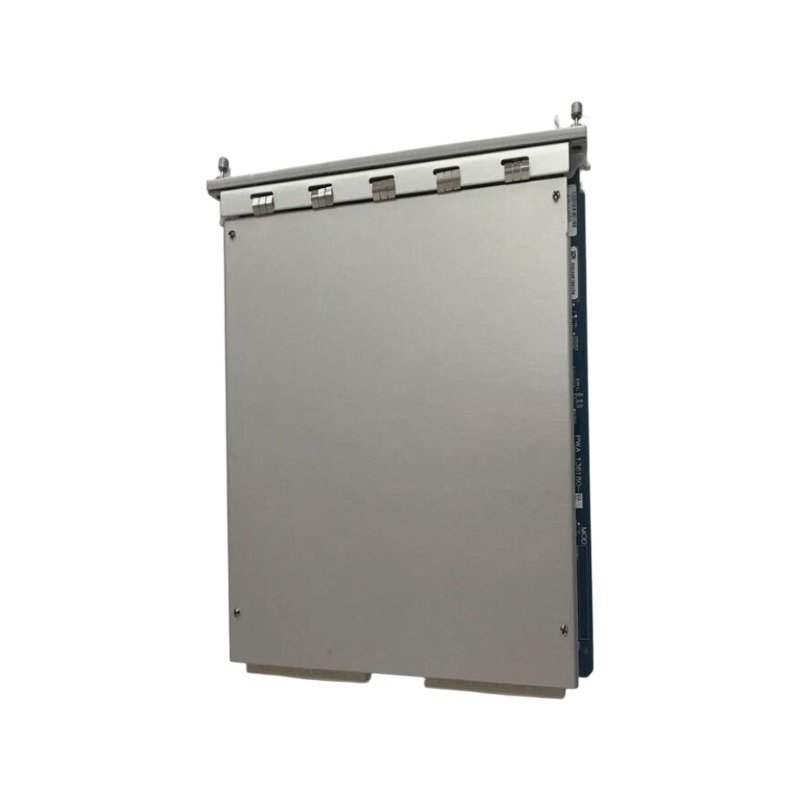

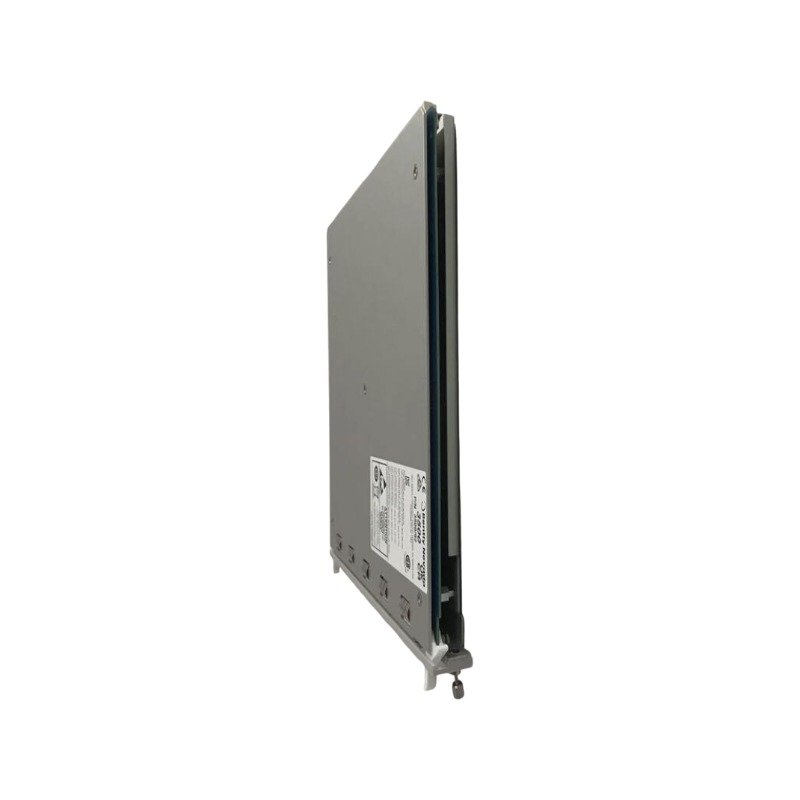

The Bently Nevada 3500/91-01-02-02, also cataloged as the 3500/91 Communication Gateway Module, operates as a dedicated hardware component for Ethernet Global Data protocol execution within 3500 rack-monitored framework networks.

Hardware Specifications

Rotor Dynamics and TSI Signal Integration

Engineers configure the module to interface directly with rack backplane data buses, thereby accelerating diagnostic data exchanges. Specifically, the internal architecture continuously monitors gap voltage validation (-10 VDC targets) across channel cards to prevent signal corruption. In addition, dedicated cross-talk suppression circuitry minimizes electromagnetic interference during high-speed polling cycles. Consequently, rotor dynamics monitoring systems receive uncompromised buffered waveforms and static values while operators avoid measurable latency penalties.

Frequently Asked Questions

• Q: Does the 3500/91 module support online hot-swap operations in active racks?

  A: Yes, technicians can insert and remove the hardware under power within designated rack slots, provided that system configuration rules and backplane power limits remain respected.

• Q: What is the maximum network cable length that the onboard Ethernet interface supports?

  A: According to IEEE 802.3 standards, engineers restrict the maximum segment length for 10BASE-T and 100BASE-TX twisted pair cabling to 100 meters per link.

Field Installation Guidelines

• Step 1: Power down the target 3500 rack slot or verify that system redundancy allows live insertion before technicians slide the module along the chassis guides.
• Step 2: Secure the front panel captive screws to guarantee proper chassis grounding and backplane pin engagement.
• Step 3: Connect shielded twisted-pair cables to the RJ45 communication ports while ensuring the cable shield terminates properly to control electromagnetic noise in industrial environments.
