330908-00-36-05-02-05-05 | Bently Nevada | 3300 NSv Proximity Probes

### Product Description

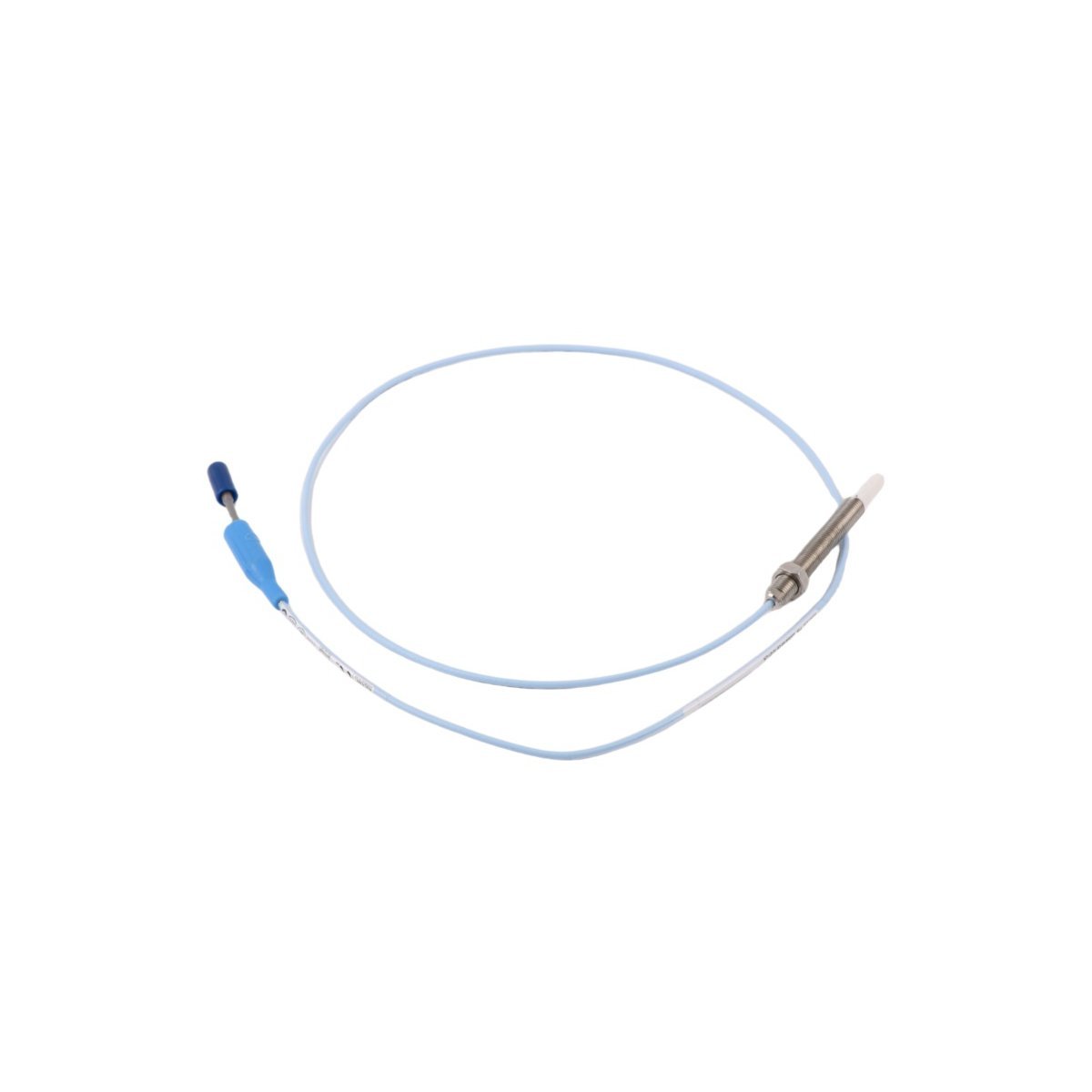

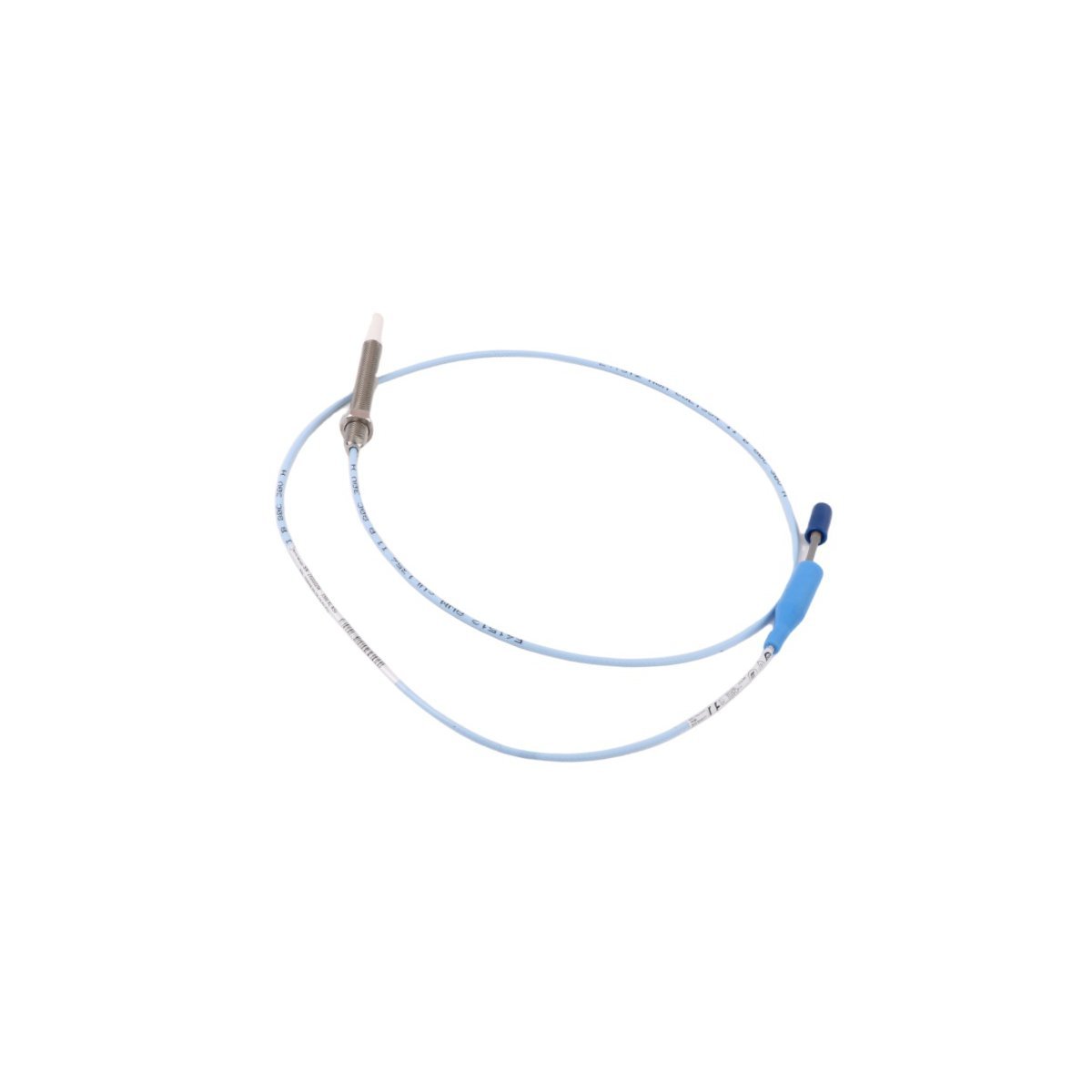

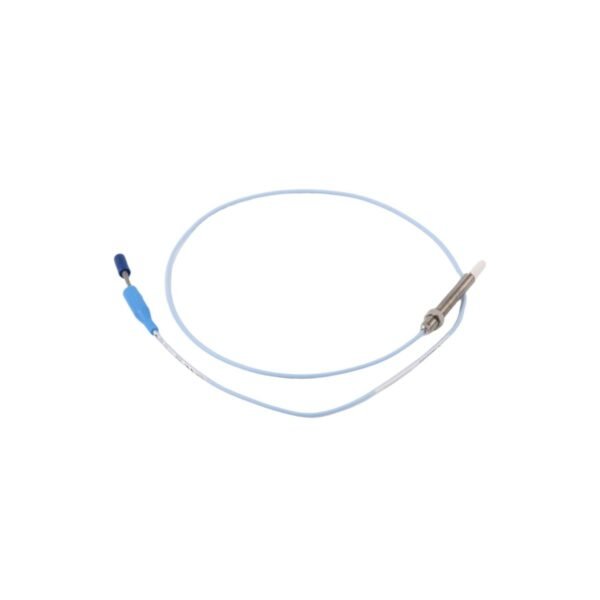

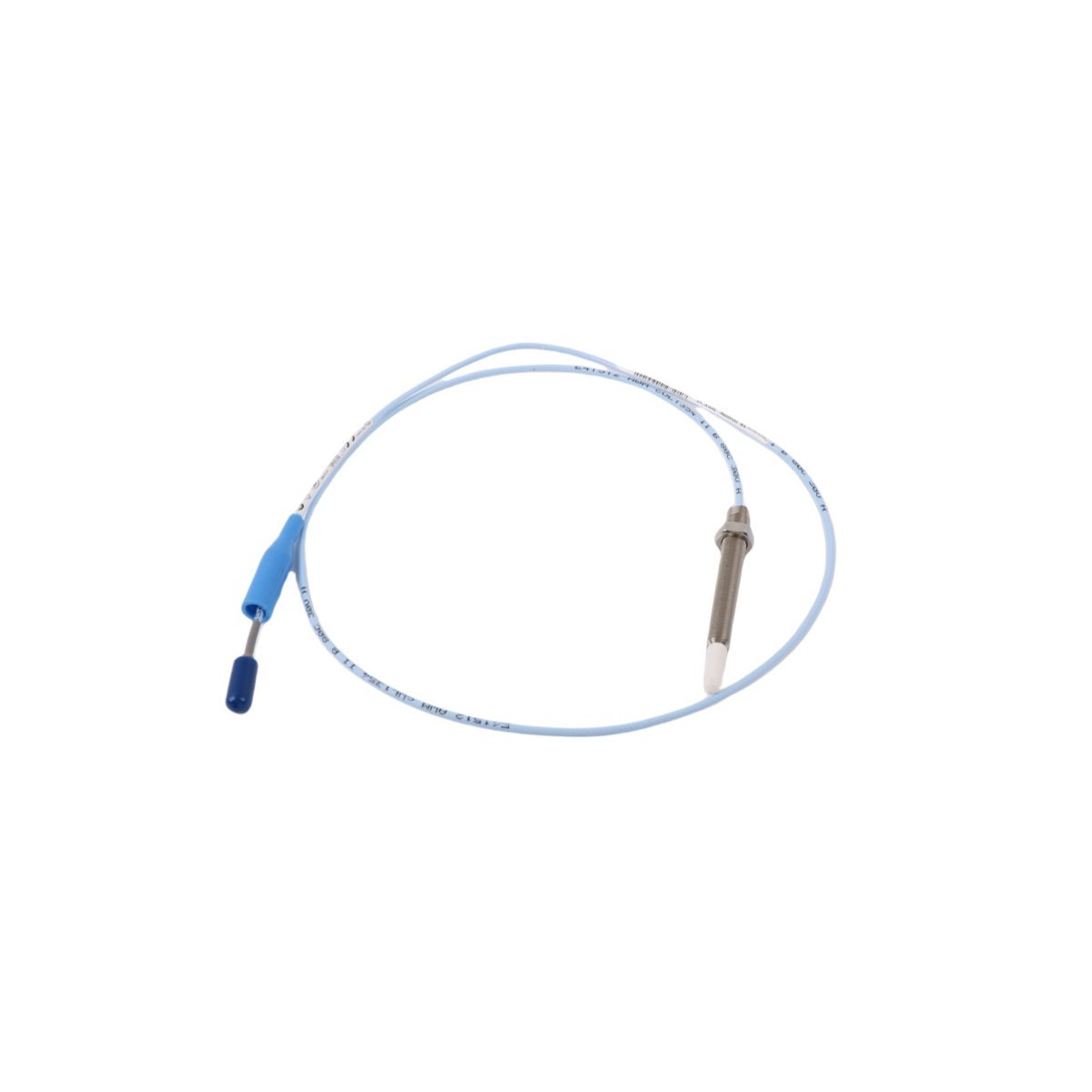

This is a non-contact eddy-current proximity probe designed for continuous displacement and vibration monitoring of rotating machinery.
Moreover, it delivers high-resolution shaft position and dynamic motion data for condition monitoring and protection systems.
Therefore, it is commonly installed on steam turbines, gas turbines, compressors, and large motors in critical process environments.

### Technical Specifications

### Typical Applications
– Shaft axial position monitoring in steam turbine thrust bearings
– Radial vibration measurement on compressor driver motors
– Differential expansion sensing in combined-cycle power plant turbines
– Rotor eccentricity detection during startup and shutdown sequences

### FAQ
What is the standard output sensitivity for this probe?
The probe is calibrated to 7.87 V/mm (200 mV/mil) when used with a 3300 XL 50 mV/mm前置器.

Is this probe compatible with legacy 3300 series monitors?
Yes, it meets 3300 NSv specifications and operates with 3300/3300 XL monitor systems and compatible proximitor modules.

Does the probe require special mounting hardware?
It uses a standard M10 × 0.75 threaded mount; no proprietary hardware is required beyond standard locknuts and washers.
