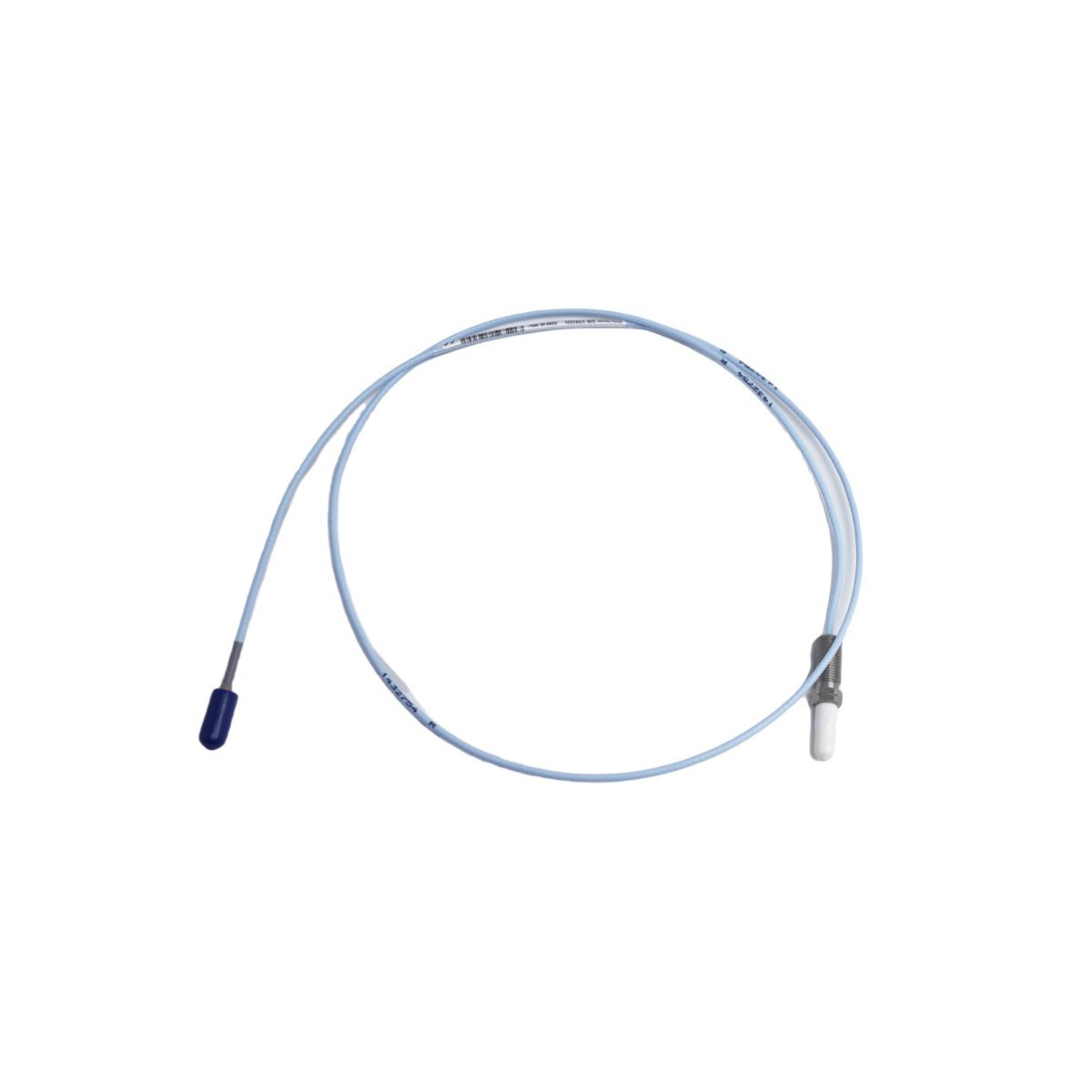

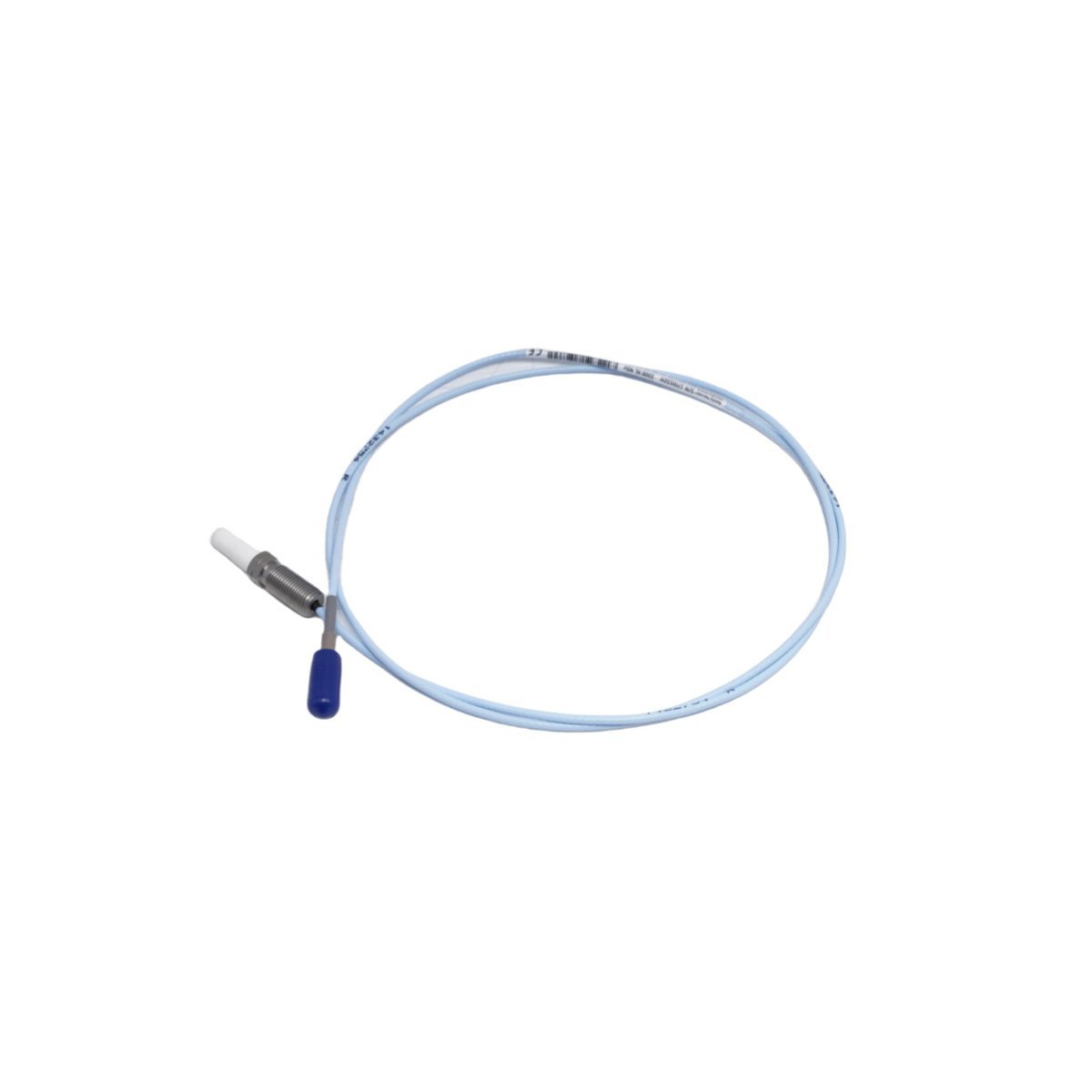

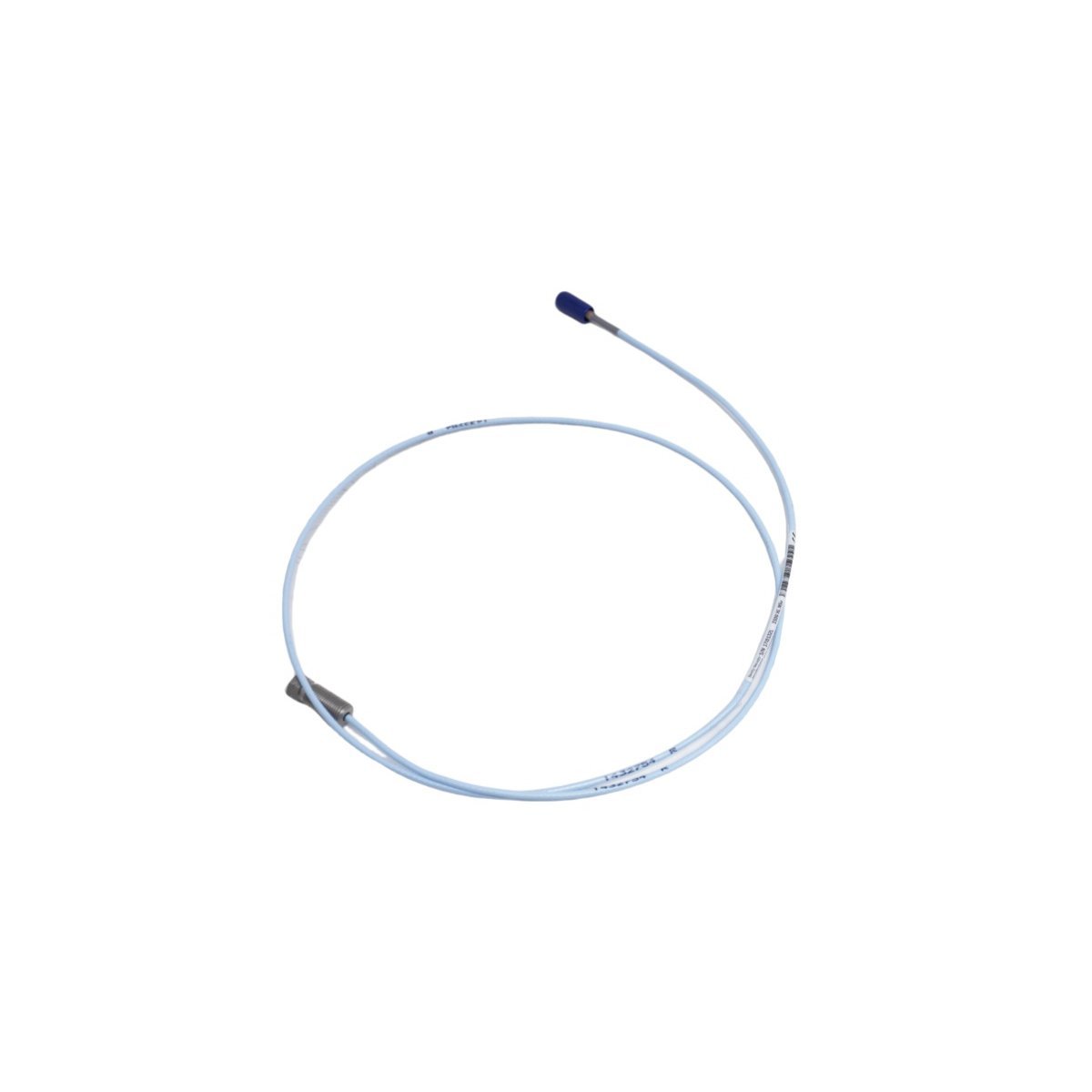

The Bently Nevada 330907-05-30-10-10-02-05 is a high-precision, reverse-mount proximity probe engineered for demanding industrial condition monitoring and machinery protection applications. Manufactured by Baker Hughes (formerly Bently Nevada), a global leader in asset reliability solutions, this probe is part of the industry-standard 3300 Next Generation (3300 NSv) sensor family—designed to deliver exceptional accuracy, long-term stability, and electromagnetic interference (EMI) immunity in harsh operating environments. As a reverse-mount configuration, the probe features an integrated mounting flange that allows installation from the rear of the target surface—ideal for space-constrained machinery where front-access mounting is impractical or mechanically infeasible. The unit is optimized for use with the 3300 NSv series monitors and preamplifiers, ensuring full compatibility with Bently Nevada’s comprehensive machinery health management ecosystem. Each probe undergoes rigorous factory calibration per ISO 10816 and API 670 standards, guaranteeing traceable performance across its entire linear range. Designed for continuous operation in extreme thermal, vibrational, and corrosive conditions, the 330907-05-30-10-10-02-05 supports predictive maintenance strategies by delivering real-time, high-fidelity displacement data critical for detecting early-stage shaft misalignment, bearing wear, rotor imbalance, and mechanical looseness.

Detailed Specifications

Key Features

• Reverse-Mount Flange Design: Integrated M10 mounting flange enables secure rear-side installation on housings, pedestals, or structural supports—eliminating the need for external brackets or modifications to rotating equipment.
• Enhanced Thermal Stability: Proprietary coil winding and temperature-compensated electronics maintain ±1% sensitivity drift over −40 °C to +125 °C, ensuring consistent output in turbine enclosures, compressor casings, and gearboxes.
• High-Fidelity Signal Integrity: Low-noise, EMI-hardened construction with double-shielded coaxial cabling delivers signal-to-noise ratios exceeding 80 dB, critical for low-amplitude vibration detection in high-speed machinery.
• OEM-Calibrated Traceability: Each probe ships with a NIST-traceable calibration certificate, including dynamic linearity plots, frequency response curves (DC to 10 kHz), and thermal hysteresis data.
• Ruggedized Industrial Enclosure: Hermetically sealed stainless steel housing with PTFE insulation resists oil, steam, solvents, and salt-laden atmospheres—validated per ASTM B117 salt-spray testing (>1,000 hours).
• Plug-and-Play Compatibility: Fully interoperable with all 3300 NSv monitors (e.g., 3300 XL, 3300 16/20), 3500 rack systems, and System 1™ software—enabling seamless integration into existing Bently Nevada infrastructure without firmware updates.
• Sustainability-Optimized Lifecycle: RoHS-compliant materials, recyclable metal housing, and extended service life (>15 years typical) reduce total cost of ownership and environmental impact.

Applications

• Gas & Steam Turbines: Monitoring thrust position, differential expansion, and casing relative movement in power generation assets compliant with ANSI/IEEE C50.13 and IEC 60034-27 standards.
• Centrifugal Compressors: Measuring shaft axial position and floating ring bearing clearance in petrochemical refineries and LNG facilities—supporting API 617 and ISO 10437 compliance.
• Aeroderivative Engines: Critical rotor position sensing in marine propulsion and auxiliary power units where compact packaging and thermal resilience are paramount.
• Large Electric Motors & Generators: Detecting end-winding vibration, core movement, and stator-rotor eccentricity in >5 MW industrial motors per IEEE 841 and IEC 60034-17 requirements.
• Reciprocating Machinery: Cylinder liner displacement monitoring and crosshead guidance tracking in high-pressure hydrogen compressors and syngas units.
• Condition Monitoring Systems (CMS): Serving as primary input sensors for cloud-connected predictive analytics platforms, enabling AI-driven failure mode classification and remaining useful life (RUL) estimation.
• Functional Safety Loops: Certified for use in SIL-2 applications per IEC 61508 when integrated with compatible Bently Nevada safety monitors (e.g., 3500/42M), supporting process shutdown integrity in hazardous areas.
