330904-05-14-05-02-00 | Bently Nevada | 3300 NSv Proximity Probes

### Product Description

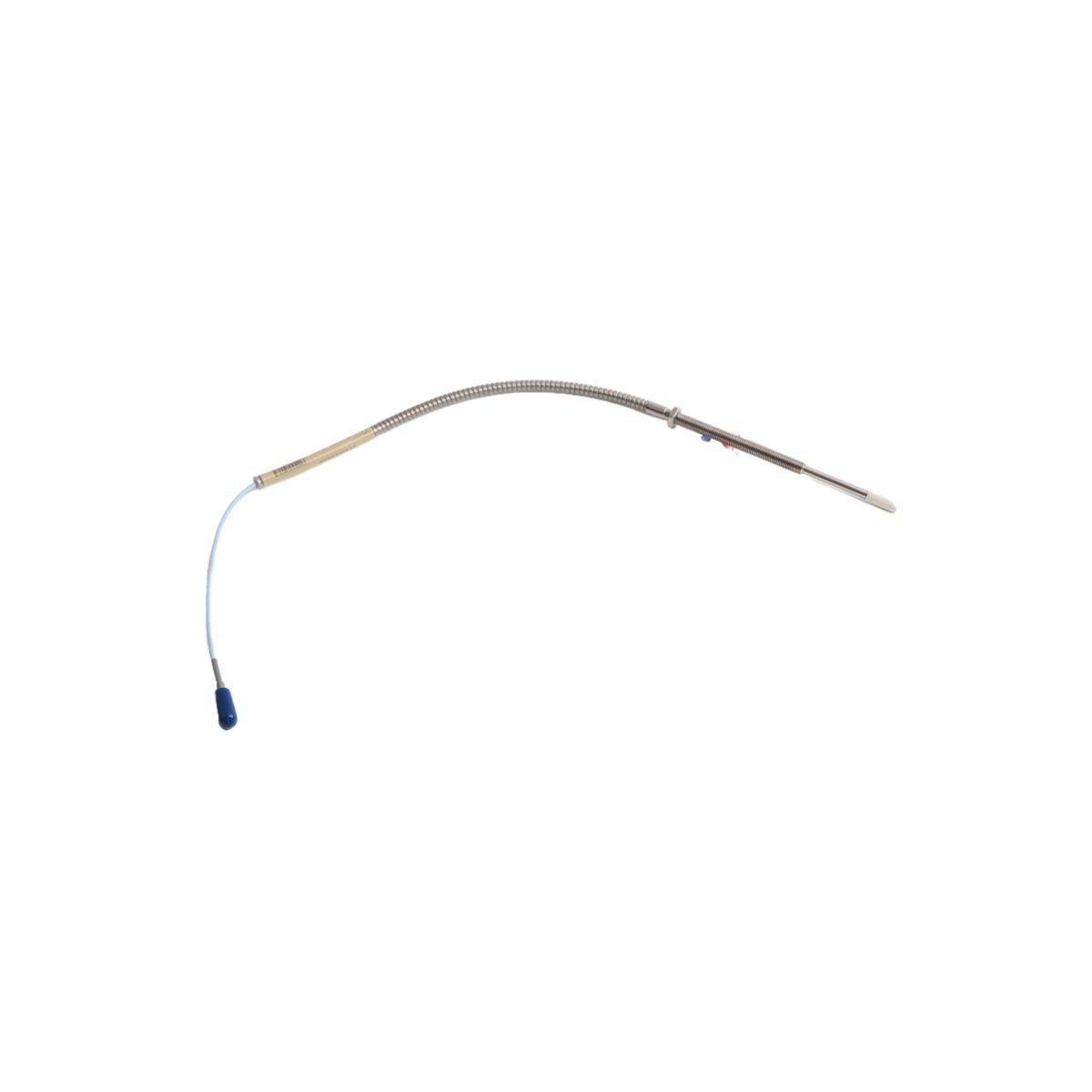

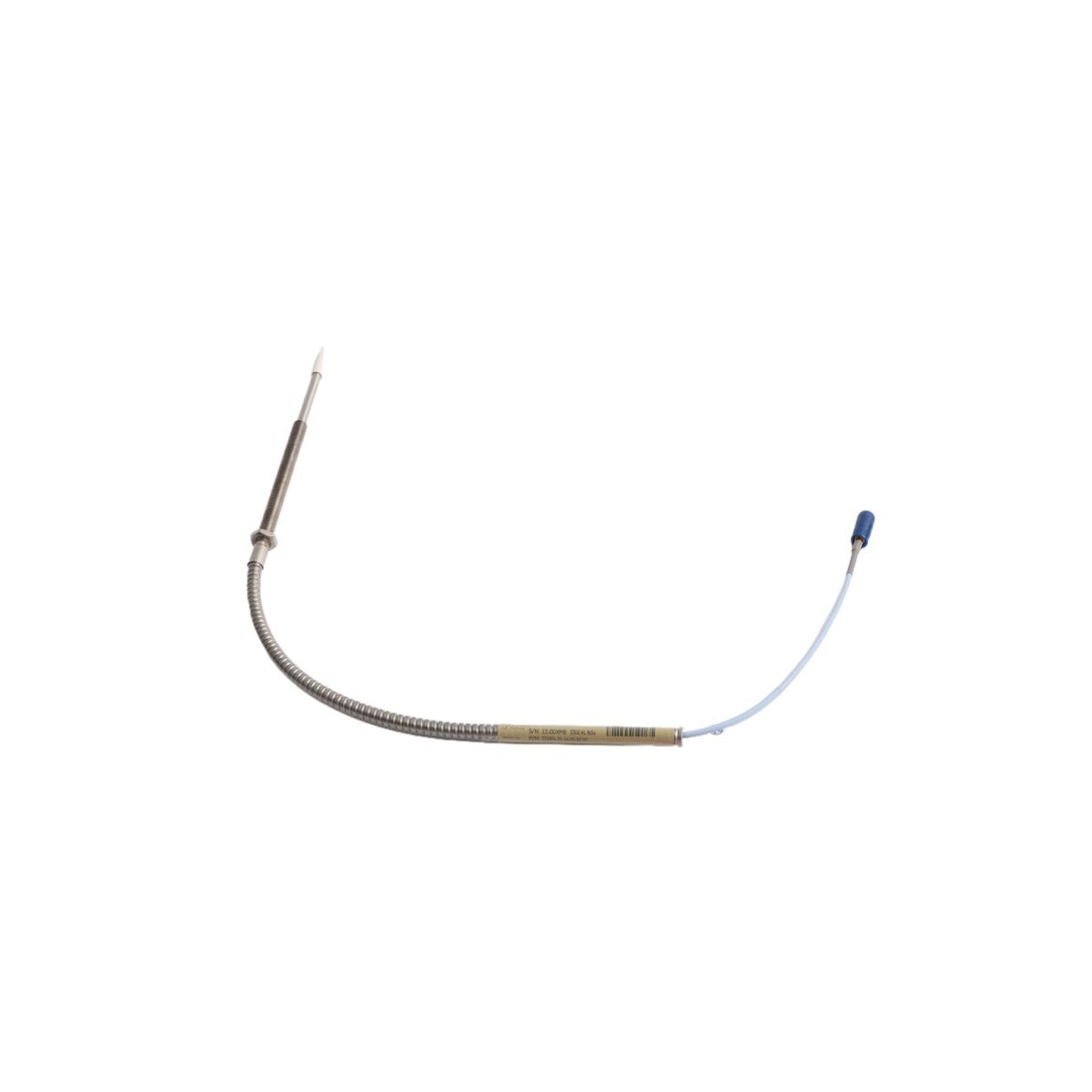

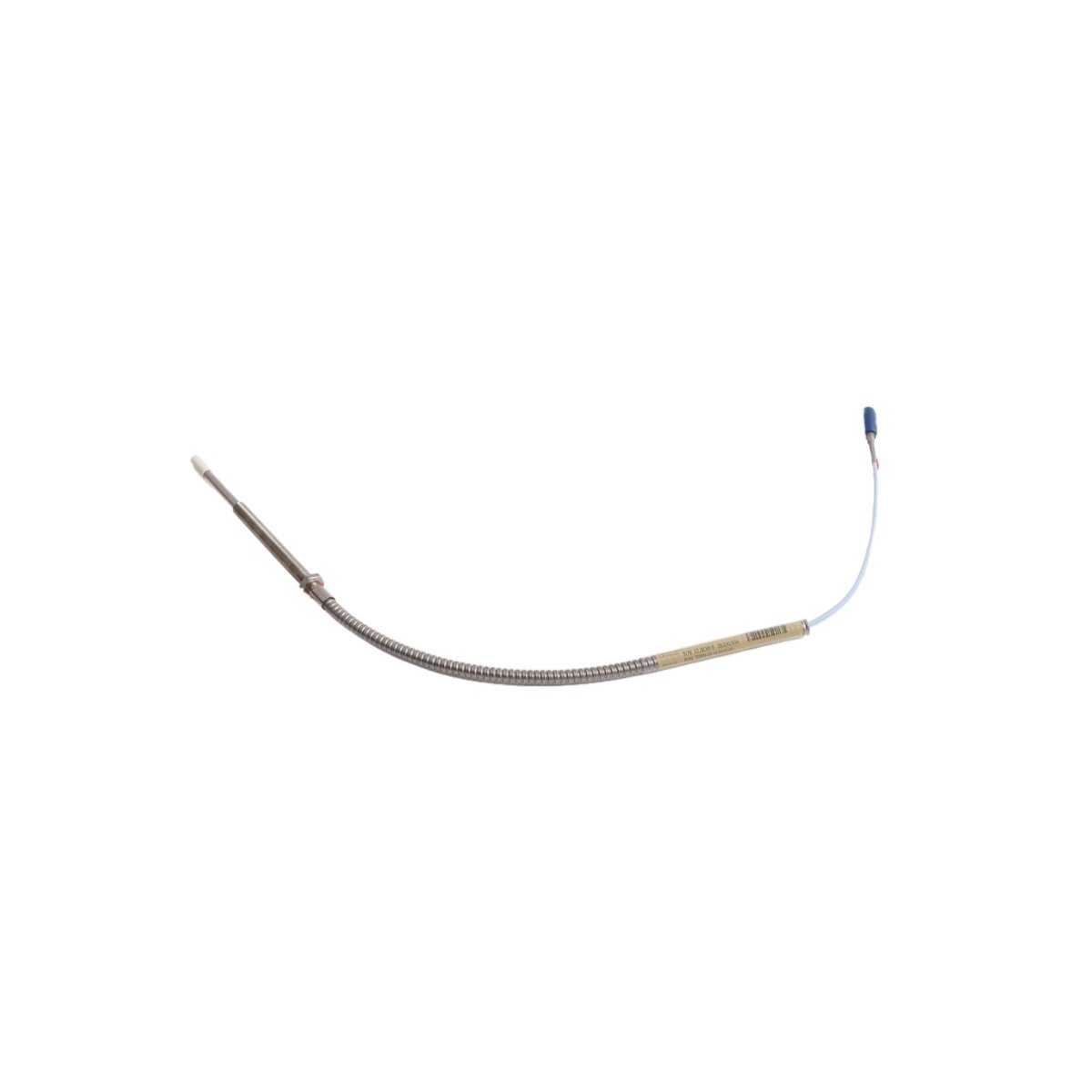

The 330904-05-14-05-02-00 is a non-contact eddy-current proximity probe engineered for continuous shaft vibration and position monitoring.
Moreover, it delivers high-resolution displacement measurements in harsh rotating machinery environments with stable thermal performance.
Therefore, it is routinely deployed with 3300 NSv monitor systems for real-time protection and diagnostics of critical turbomachinery assets.

### Technical Specifications

### Typical Applications
– Steam and gas turbine shaft vibration and axial position monitoring
– Centrifugal compressor radial and thrust bearing health assessment
– Large electric motor rotor eccentricity and dynamic clearance verification
– Critical pump train shaft orbit analysis in oil & gas and power generation

### FAQ
What is the standard probe gap voltage range?
The nominal output is –10 V DC at mid-gap, with a linear range of –2.0 to –18.0 V DC.

Is this probe compatible with legacy 3300 series monitors?
Yes, it is fully compatible with all 3300 series monitors, including 3300 XL and 3300 NSv systems.

Does the probe require a separate extension cable?
Yes, it must be used with a shielded coaxial extension cable rated for 3300 NSv systems (e.g., 330130-05-00-00).

What is the maximum operating temperature for continuous service?
The probe is rated for continuous operation up to +121 °C (250 °F) at the tip.

Can it be used in hazardous areas?
No—this probe is not intrinsically safe or explosion-proof; use only in non-hazardous locations unless paired with appropriate certified barriers.
