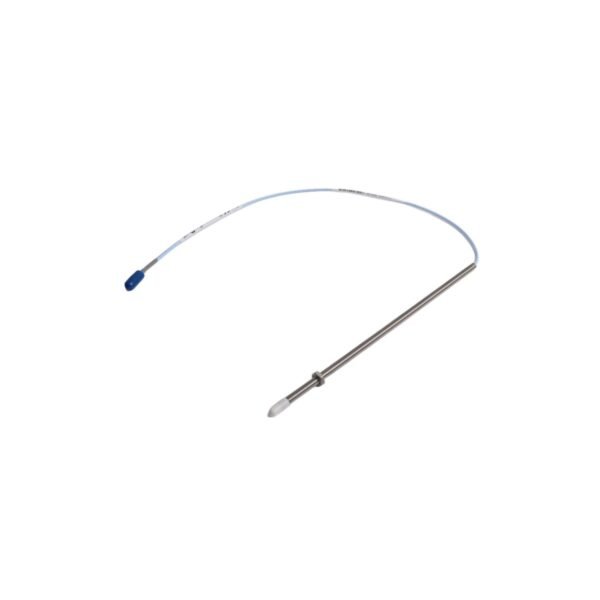

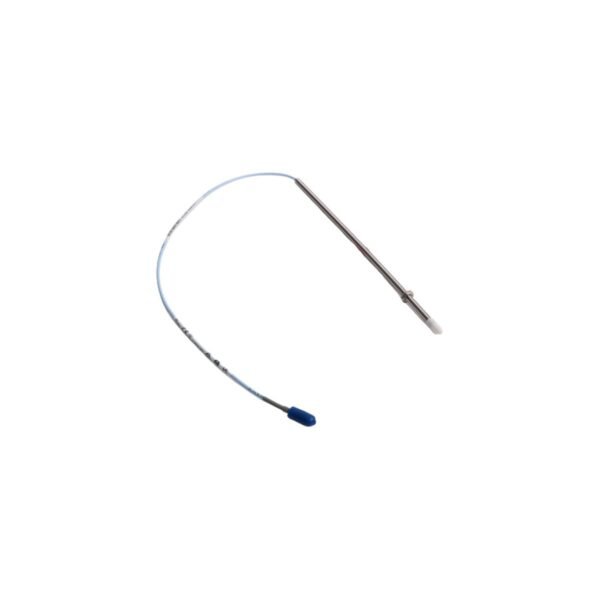

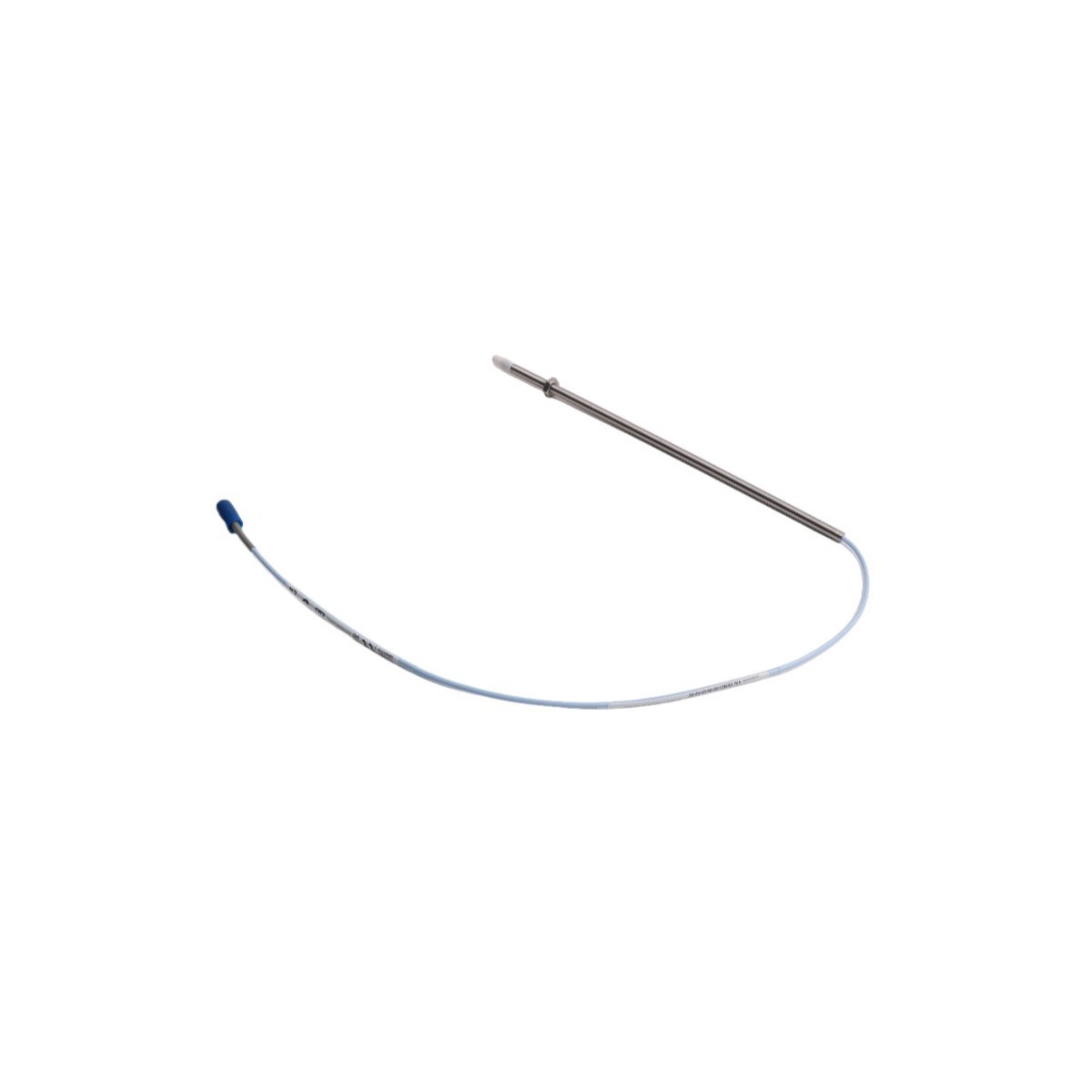

The Bently Nevada 330901-00-65-05-02-05 3300 NSv Proximity Probe is a high-precision, industrial-grade eddy-current sensor engineered for continuous, non-contact displacement and vibration monitoring of rotating machinery. Manufactured by Baker Hughes (formerly Bently Nevada), a globally recognized leader in asset condition monitoring and predictive maintenance solutions, this probe forms a critical component of the industry-standard 3300 Series Monitoring System. Designed to operate within the rigorous demands of power generation, oil & gas, petrochemical, and heavy industrial environments, the 330901-00-65-05-02-05 delivers exceptional linearity, thermal stability, and electromagnetic interference (EMI) immunity. Its NSv (Non-Switching, voltage-output) configuration provides a robust analog DC voltage output proportional to target gap—enabling seamless integration with 3300 series monitors, data acquisition systems, PLCs, and DCS platforms. The probe utilizes a precision-machined stainless steel housing with a ceramic insulator and high-purity copper coil optimized for consistent sensitivity across its calibrated range. Each unit undergoes rigorous factory calibration against NIST-traceable standards and is supplied with full calibration documentation—including sensitivity (mV/mil), linearity error, and temperature coefficient. This probe is supplied new, factory-fresh, and certified as 100% compliant with API RP 670 (4th Edition) and IEEE Std 1127–2020 for machinery protection systems.

Detailed Specifications

Key Features

• Precision NIST-Traceable Calibration: Each probe ships with individual calibration certificate verifying sensitivity, linearity, thermal drift, and frequency response—ensuring measurement integrity from day one.
• NSv Voltage-Output Architecture: Delivers stable, low-impedance DC voltage output (0–10 VDC) compatible with all 3300 series monitors and third-party analog input systems—eliminating need for external signal conditioners.
• Hermetically Sealed Ceramic Insulation: Provides superior dielectric strength (>10 kV), moisture resistance, and long-term reliability in humid, corrosive, or high-vibration environments.
• High-Frequency Response: Bandwidth extends to 10 kHz (–3 dB), enabling accurate capture of high-speed shaft vibrations, blade pass frequencies, and transient events.
• EMI/RFI Immunity: Integral double-shielded coaxial cable and optimized coil design meet stringent industrial EMC requirements—minimizing noise in electrically noisy turbine halls and compressor stations.
• Thermally Stable Construction: Low-temperature-coefficient materials and compensated coil geometry ensure <1% zero-shift over full operating range—critical for differential expansion monitoring.
• Plug-and-Play Integration: Fully compatible with 3300/50, 3300 XL, 3500, and System 1 platforms; supports automatic probe recognition and setup via Asset Manager software.
• Robust Mechanical Design: Stainless steel 17-4 PH housing rated IP67 when properly installed; resistant to mechanical shock (50 g peak) and continuous vibration (20 g RMS).

Applications

• Rotating Machinery Protection: Shaft vibration, axial position, and differential expansion monitoring on steam/gas turbines, centrifugal compressors, and large electric motors per API 670 mandates.
• Power Generation Monitoring: Critical measurement of rotor dynamics in nuclear, fossil-fuel, and hydroelectric generating units—including thrust bearing wear detection and journal bearing instability analysis.
• Oil & Gas Infrastructure: Real-time surveillance of turboexpanders, pipeline compressors, and subsea pump shafts—supporting SIL-2 capable shutdown logic when integrated with 3500 systems.
• Predictive Maintenance Programs: High-fidelity data acquisition for spectral analysis, orbit plotting, and envelope demodulation to identify incipient faults such as misalignment, imbalance, and bearing degradation.
• Research & Development Testing: Laboratory-grade displacement sensing for modal analysis, bearing characterization, and prototype validation under controlled thermal and dynamic loads.
• Marine Propulsion Systems: Shaft runout, gear mesh monitoring, and thrust collar position tracking aboard naval vessels and commercial LNG carriers where space, weight, and reliability are paramount.
