Product Overview

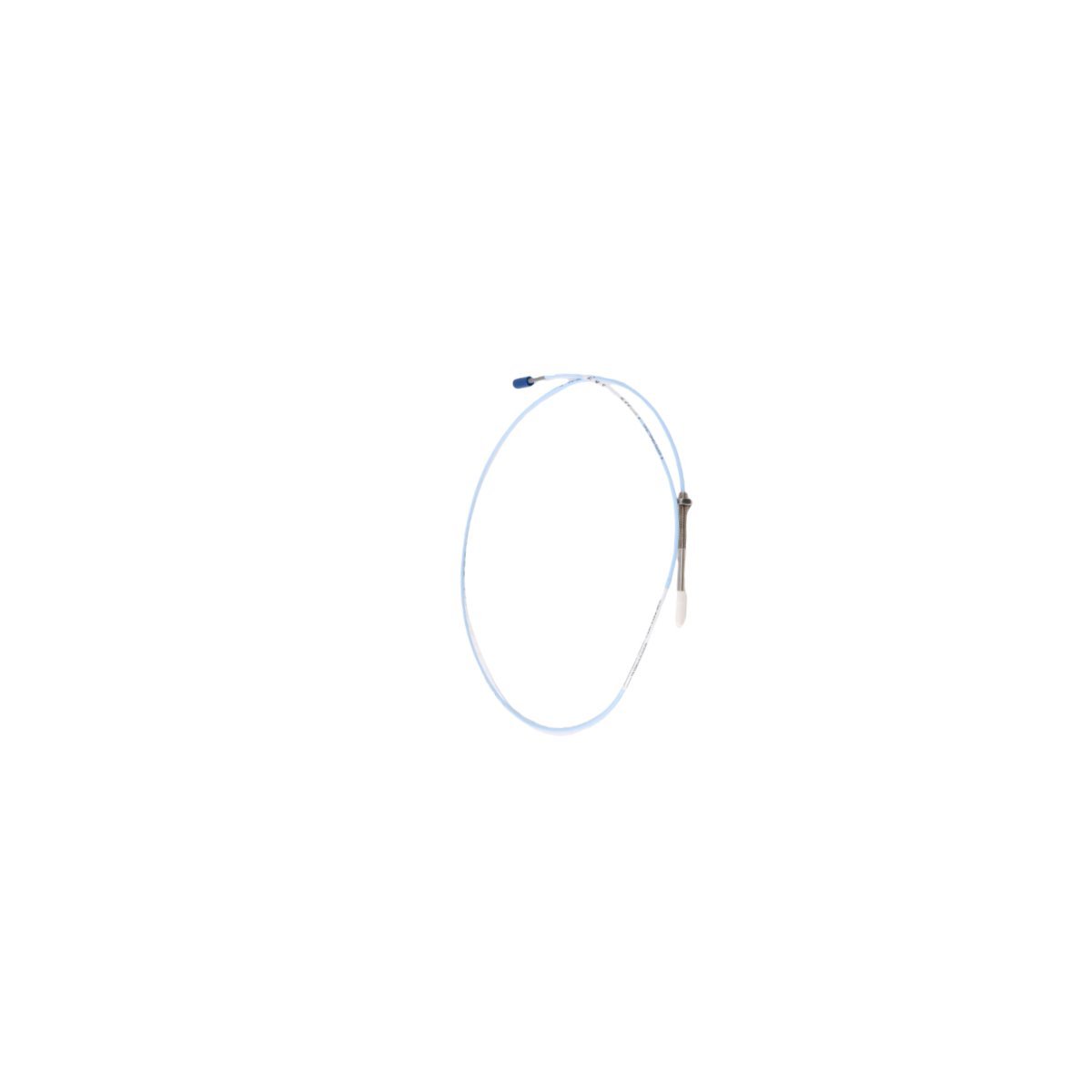

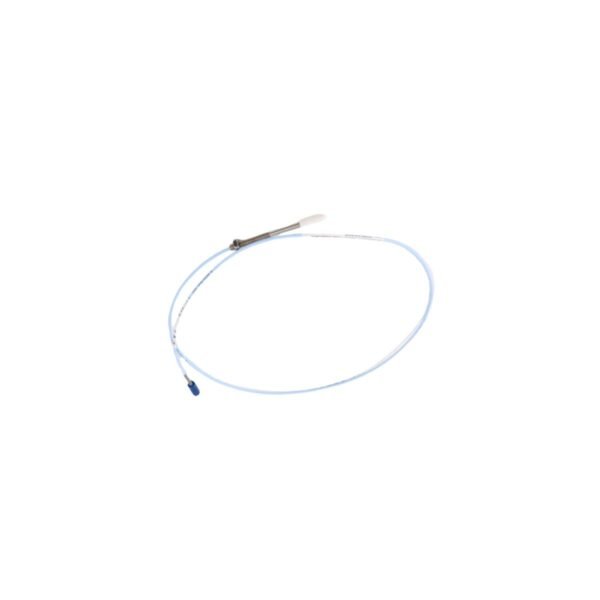

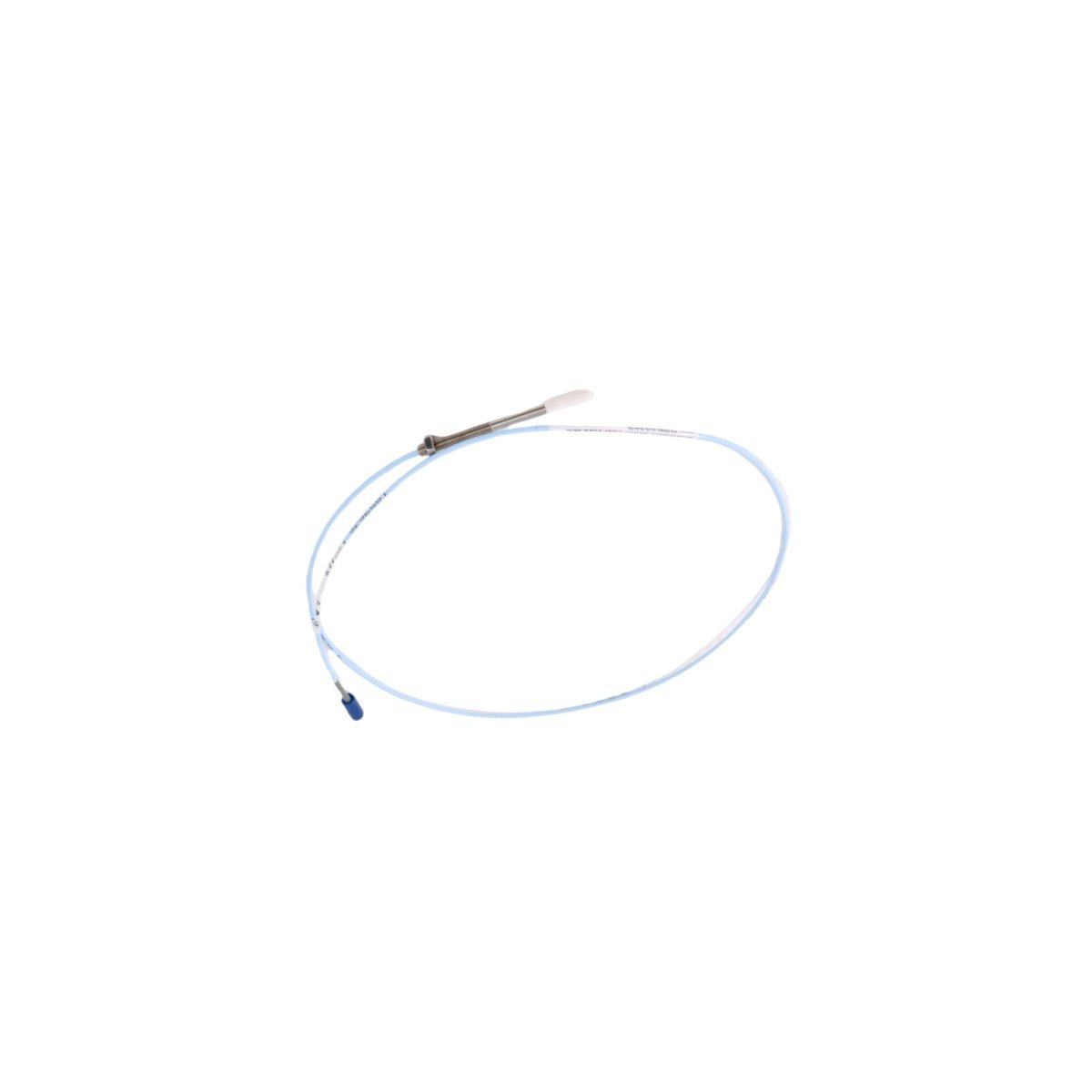

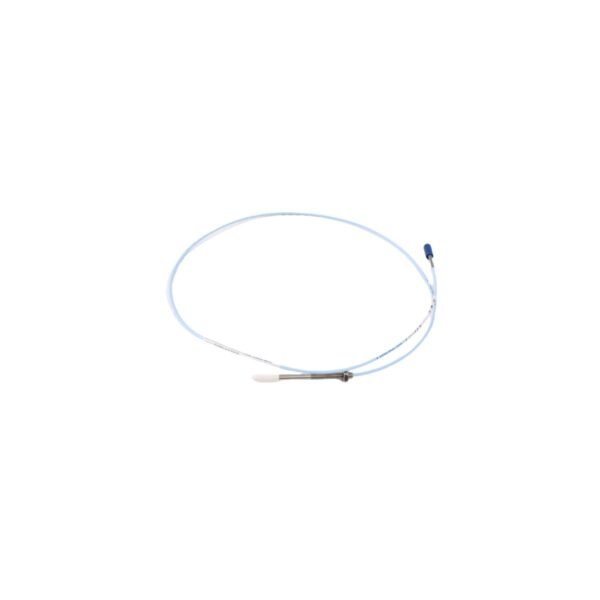

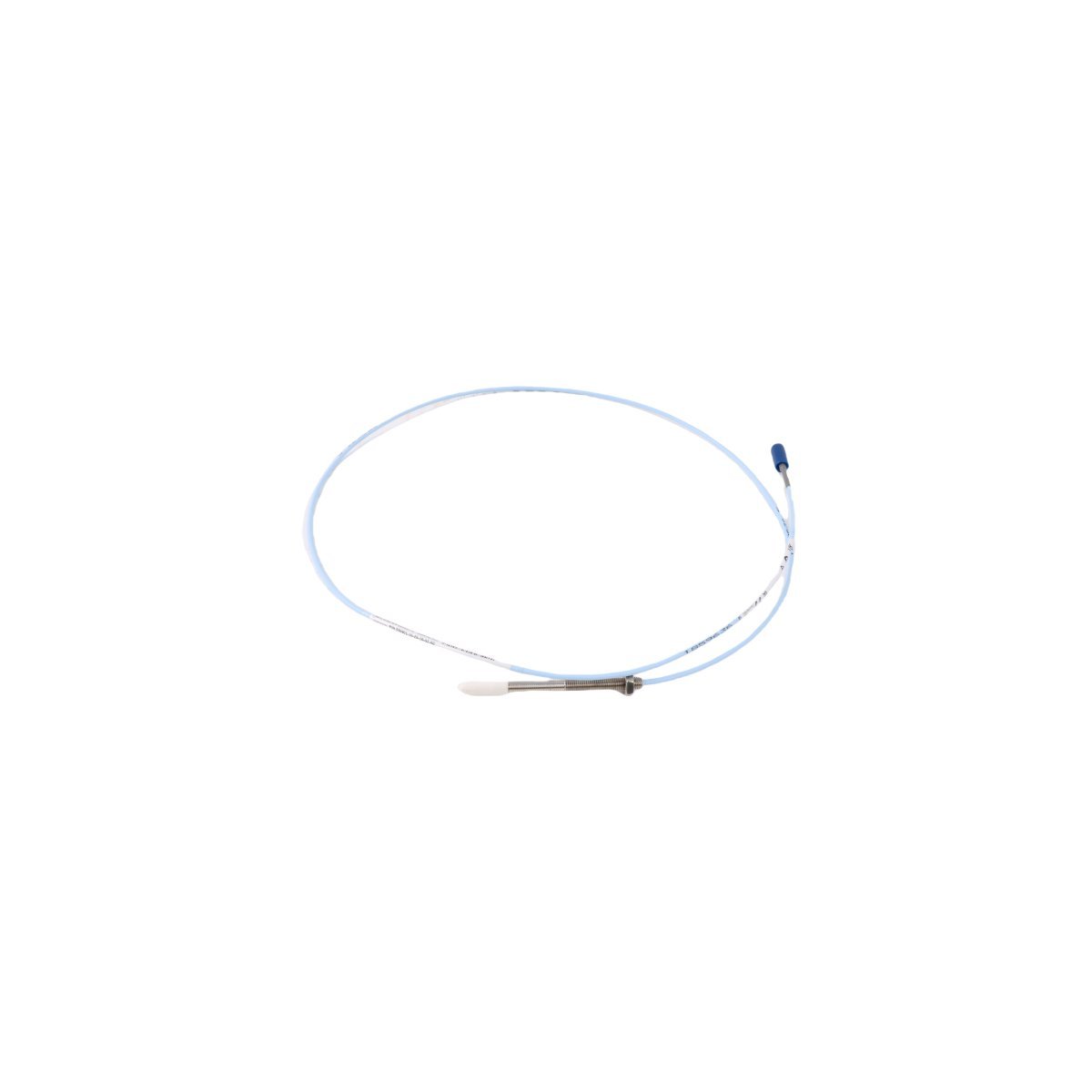

The Bently Nevada 330901-00-09-10-02-05 is a specialized Narrow Side View (NSv) proximity probe designed for precision vibration and displacement sensing in confined machinery environments. This eddy-current sensor provides high-resolution data for industrial assets where standard probe installations are restricted by spatial limitations.

High-Resolution Narrow Side View Technology

The 330901-00-09-10-02-05 belongs to the 3300 XL NSv lineage, engineered specifically to mitigate the “side-view” interference that occurs when sensors are mounted in tight housing boreholes. By focusing the electromagnetic field, this probe maintains high linearity even when surrounded by metallic counter-bores. This capability allows the transducer system to monitor radial shaft vibration and axial position with extreme accuracy. Consequently, industrial operators can implement more effective predictive maintenance strategies, as the probe identifies subtle mechanical shifts—such as rotor imbalance or bearing degradation—well before they escalate into system failures.

Durable Performance in Severe Environments

Bently Nevada utilizes high-grade materials to ensure the 330901-00-09-10-02-05 thrives in volatile industrial conditions. The probe tip is constructed from polyphenylene sulfide (PPS), a high-performance thermoplastic that resists chemical erosion and high-pressure steam. Because the sensor employs non-contact eddy-current technology, it experiences zero mechanical wear during operation, which guarantees long-term calibration stability. This robustness proves essential for monitoring critical assets like centrifugal compressors and small steam turbines, where thermal cycling and oily atmospheres are common.

Integration and System Scalability

This proximity probe features a 1.0-meter integrated cable and 3/8-24 UNF threading for standardized mounting. It integrates seamlessly with the 3300 XL NSv Proximitor® Sensor, which converts the probe’s impedance changes into a linear voltage signal. This output is compatible with Bently Nevada 3500 Series racks and various Distributed Control Systems (DCS), facilitating real-time data visualization. Furthermore, the compact physical profile of the NSv series allows for the retrofitting of legacy machines, providing modern monitoring capabilities to older equipment without requiring extensive housing modifications.
