Description

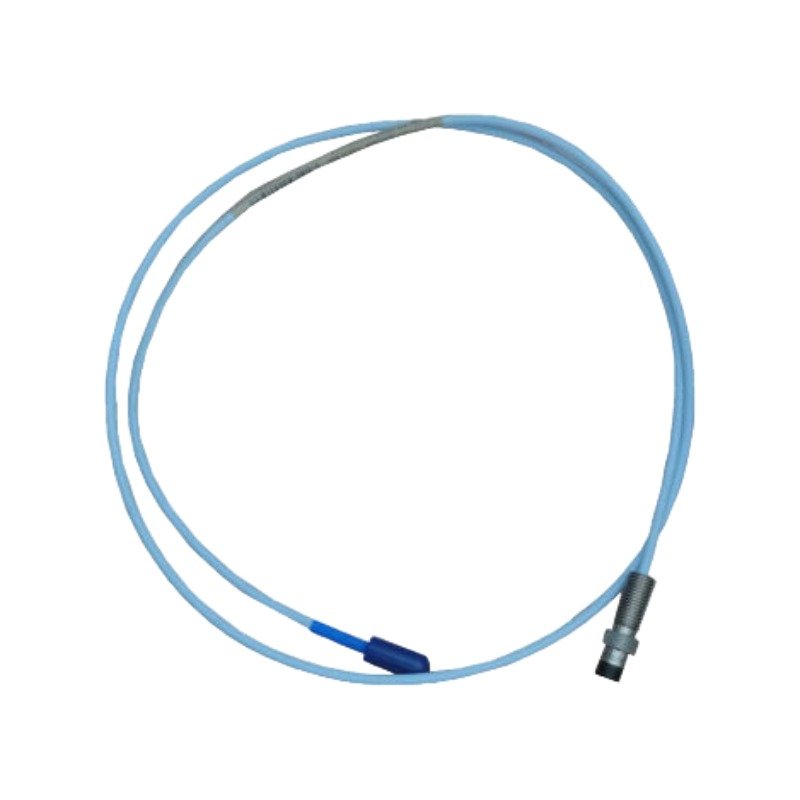

Configured for continuous machinery protection and vibration monitoring in pressurized machines, the Bently Nevada 330162-01-45-45-07-07-94-01-02 (330162 Dual Triaxial High-Pressure Feedthrough) provides direct physical/electrical execution. This specialized component routes proximity sensor lines across differential pressure boundaries inside the 3300 Monitoring System framework.

Suffix Breakdown & Model Matrix

• 330162: Core product identifier for the Dual Triaxial High-Pressure Feedthrough.
• 01: Armor option designating the assembly is supplied without external armor.
• 45: Dimension 1 length specifying a 4.5 meter cable length on the high-pressure side.
• 45: Dimension 2 length specifying a 4.5 meter cable length on the high-pressure side.
• 07: Dimension 3 length specifying a 0.7 meter cable length on the low-pressure side.
• 07: Dimension 4 length specifying a 0.7 meter cable length on the low-pressure side.
• 94: Fluorocarbon O-ring material engineered for exposure to butane, fuel oil, natural gas, petroleum, and turbine oil.
• 01: High-pressure end connector configuration equipped with a female miniature coaxial connector.
• 02: Low-pressure end connector configuration equipped with a male miniature coaxial connector.

Hardware Specifications

Rotor Dynamics and Signal Conditioning

Consequently, the 330162-01-45-45-07-07-94-01-02 hardware executes uninterrupted low-loss RF transmission while maintaining a physical seal up to 2.76 MPa. During dynamic machine operation, the matched-impedance triaxial lines route raw eddy-current probe scaling data across the casing boundary without shifting the calibration curve. Meanwhile, the specialized fluorocarbon O-ring elements preserve high-pressure isolation against turbine oil mist, thereby stabilizing the loop background parameters near nominal -10 VDC targets. Furthermore, the dual-channel configuration enforces strict physical separation, maintaining maximum cross-talk suppression between parallel vibration data paths during critical rotor dynamics monitoring.

Frequently Asked Questions

Q: How does liquid or water exposure affect the electrical execution of this feedthrough?

A: Because this high-pressure feedthrough cannot seal liquid water away from its internal cable leads, moisture exposure creates a high-resistance electrical short circuit. Consequently, this moisture migration alters system impedance and significantly reduces the voltage output of the proximity transducer loop.

Q: Why must field engineers match specific cable dimensions on both sides of the feedthrough?

A: Because eddy-current monitoring systems rely on precise electrical resonance tuning, the total combined length of the probe, feedthrough, and extension cable must equal exactly 5.0, 7.0, or 9.0 meters. Selecting unmatched lengths shifts the system calibration, distorting the linear scale factor.

Field Installation Guidelines

• Mechanical Threading: First, clean the casing mounting port threads thoroughly to remove old compounds. Next, inspect the fluorocarbon O-rings for surface nicks, then thread the 303 stainless steel fitting assembly straight into the casing port using a calibrated torque wrench to establish the high-pressure boundary seal.
• Transducer Shielding: Terminate the triaxial outer shields exclusively at the Proximitor sensor housing ground terminal. Conversely, do not connect the shields to the machine casing or intermediate junctions, as single-point grounding eliminates circulating ground loops that inject electrical noise.
• Cable Routing: Route the 4.5 meter high-pressure and 0.7 meter low-pressure leads using the minimum recommended 25.4 mm bend radius. Furthermore, separate these measurement paths from high-power AC lines to suppress external electromagnetic interference.
