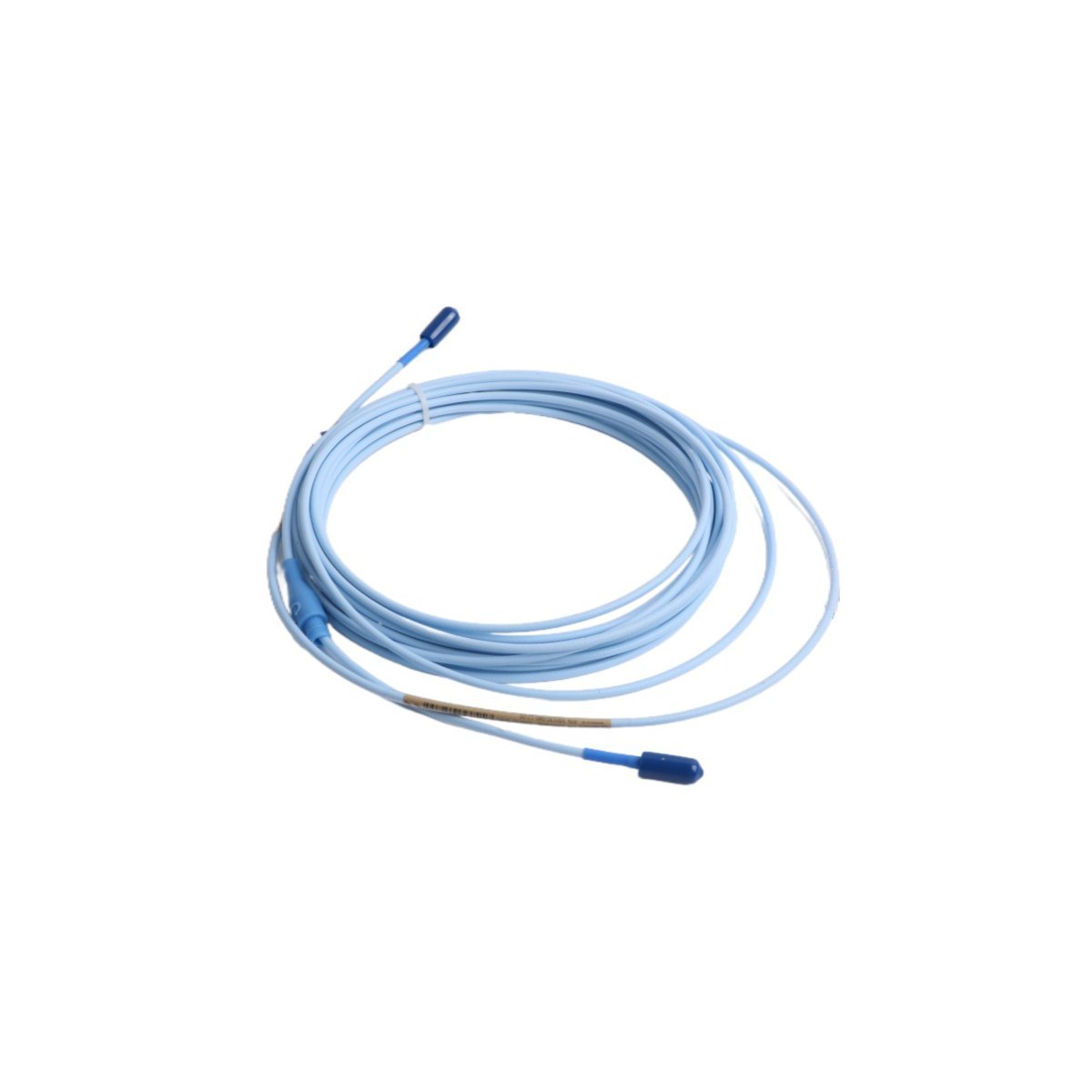

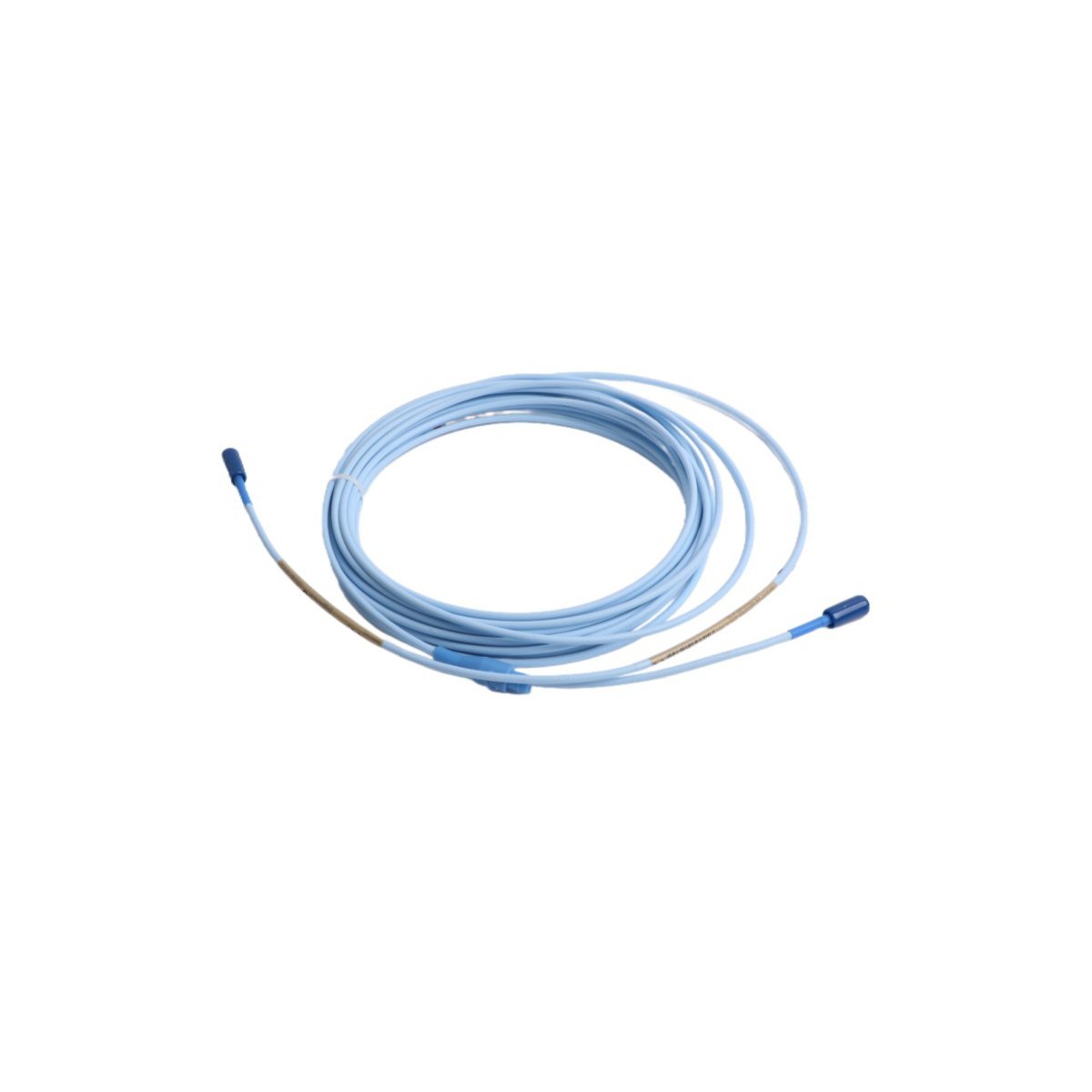

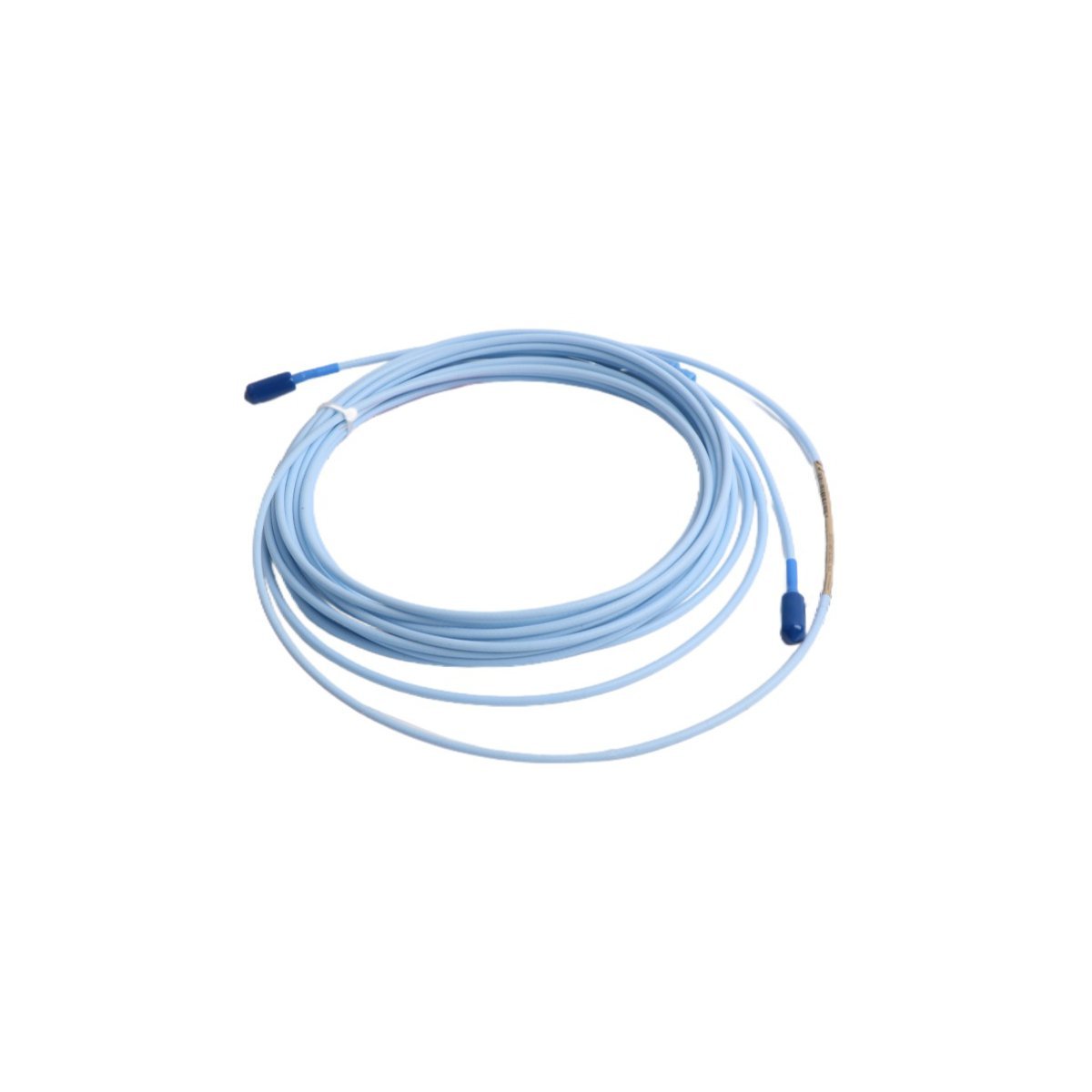

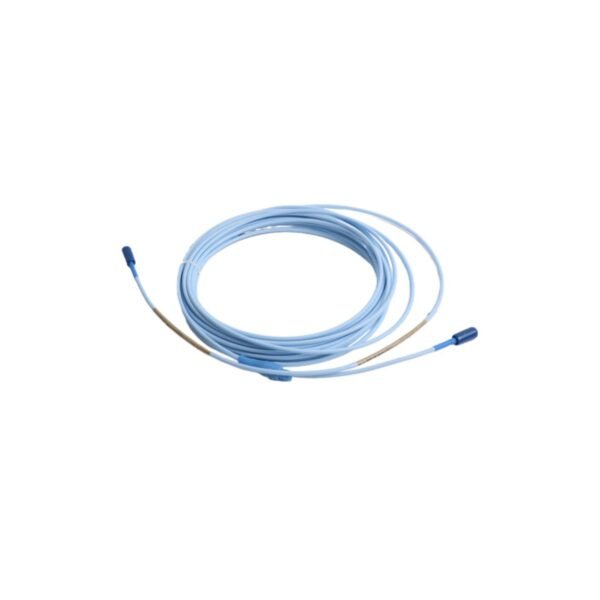

The Bently Nevada 330130-080-12-00 is a high-integrity, low-noise standard extension cable engineered exclusively for use within the 3300 XL family of proximity probe systems. Manufactured by Baker Hughes (under the Bently Nevada brand), this cable serves as a critical signal transmission link between the 3300 XL eddy-current proximity transducer and the 3300 XL monitor or system interface module. Designed to preserve signal fidelity over extended distances—up to 80 feet (24.4 meters)—the cable maintains strict impedance matching (50 Ω nominal), minimizes electromagnetic interference (EMI) susceptibility, and ensures phase-stable performance across industrial temperature gradients. Its construction integrates a precision-wound, silver-plated copper center conductor with dual-layer shielding (aluminum-polyester foil + tinned copper braid), enabling superior common-mode rejection and consistent dynamic response essential for vibration, position, and speed monitoring in mission-critical rotating machinery. The cable complies with IEEE 1127-1993, API RP 670 (5th Edition), and IEC 61000-6-2/6-4 standards for electromagnetic compatibility and mechanical robustness. Each unit undergoes 100% factory calibration verification and end-to-end signal integrity testing—including time-domain reflectometry (TDR) and broadband frequency response validation—to guarantee compliance with Bently Nevada’s stringent OEM specifications. As a genuine OEM component—not a third-party replica—the 330130-080-12-00 delivers guaranteed interoperability, long-term reliability, and full traceability through Bently Nevada’s global quality management system (ISO 9001:2015 certified). This extension cable is supplied new, unused, and factory-sealed in original packaging, with full documentation including Certificate of Conformance (CoC) and RoHS/REACH compliance statements.

Detailed Specifications

Key Features

• OEM-Validated Signal Integrity: Engineered to maintain ≤±0.25% gain error and ≤±1° phase shift from 0.5 Hz to 10 kHz—ensuring accurate shaft orbit analysis and high-frequency vibration detection.
• Dual-Layer EMI/RFI Shielding: Combines aluminum-polyester foil (100% coverage) and 95% tinned copper braid for industry-leading noise immunity in high-interference environments such as power generation switchyards and compressor stations.
• Thermally Stable Construction: ePTFE dielectric and FEP jacket provide minimal thermal expansion coefficient (2.5 × 10⁻⁵ /°C), preventing impedance drift during rapid ambient temperature cycling.
• Mechanical Durability: Reinforced strain relief boots and abrasion-resistant jacket withstand repeated flexing, hose whip, and incidental impact per IEC 60068-2-6 (vibration) and IEC 60068-2-27 (shock).
• Corrosion-Resistant Hardware: Stainless steel connector bodies and passivated 10-32 threads resist salt fog (ASTM B117), chemical exposure, and humidity up to 95% RH non-condensing.
• Traceable Calibration & Documentation: Each cable includes serialized CoC with lot traceability, TDR report, and spectral attenuation data—critical for ISO 55001 asset management and regulatory audits.
• Plug-and-Play Compatibility: Fully interoperable with all 3300 XL monitors (e.g., 3300 16, 3300 20, 3300 40), 3300 XL probes (330100–330180 series), and 3500/40M system interfaces without configuration changes.

Applications

• Turbomachinery Health Monitoring: Continuous radial vibration, axial position, and differential expansion measurement on steam/gas turbines, centrifugal compressors, and turboexpanders in oil & gas, power generation, and petrochemical facilities.
• API 670-Compliant Machinery Protection Systems (MPS): Integral component in redundant, SIL-2-capable protection schemes meeting American Petroleum Institute Recommended Practice 670 (5th Ed.) requirements for shutdown decision integrity.
• Rotordynamic Analysis: Enables high-fidelity shaft orbit capture for modal analysis, critical speed mapping, and active magnetic bearing (AMB) control loop feedback in research and advanced diagnostics applications.
• Harsh Environment Installations: Deployed in offshore platforms, desert-based LNG trains, and arctic refineries where extreme temperatures, corrosive atmospheres, and mechanical stress demand uncompromising cable reliability.
• Condition-Based Maintenance (CBM) Programs: Supports predictive analytics workflows by delivering stable, low-drift signals to vibration analyzers, DCS historians, and IIoT platforms (e.g., Azure IoT, AWS Industrial Analytics).
• Retrofit & Modernization Projects: Direct replacement for legacy 3300 series cabling during system upgrades, ensuring zero recalibration of existing probes and monitors while extending service life beyond 20 years.
