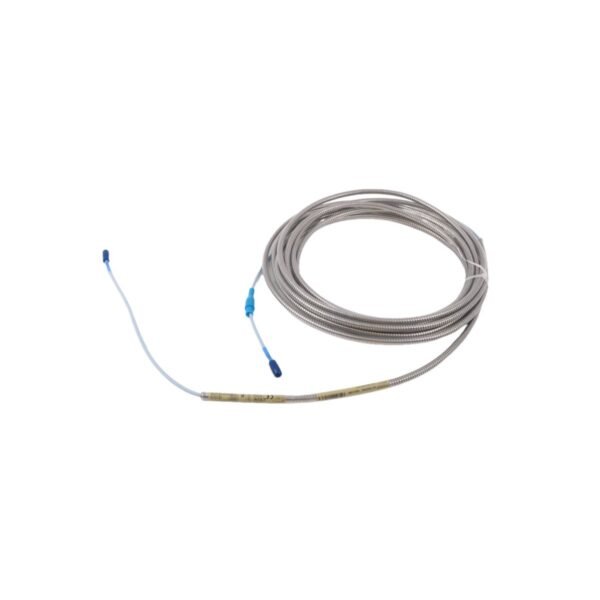

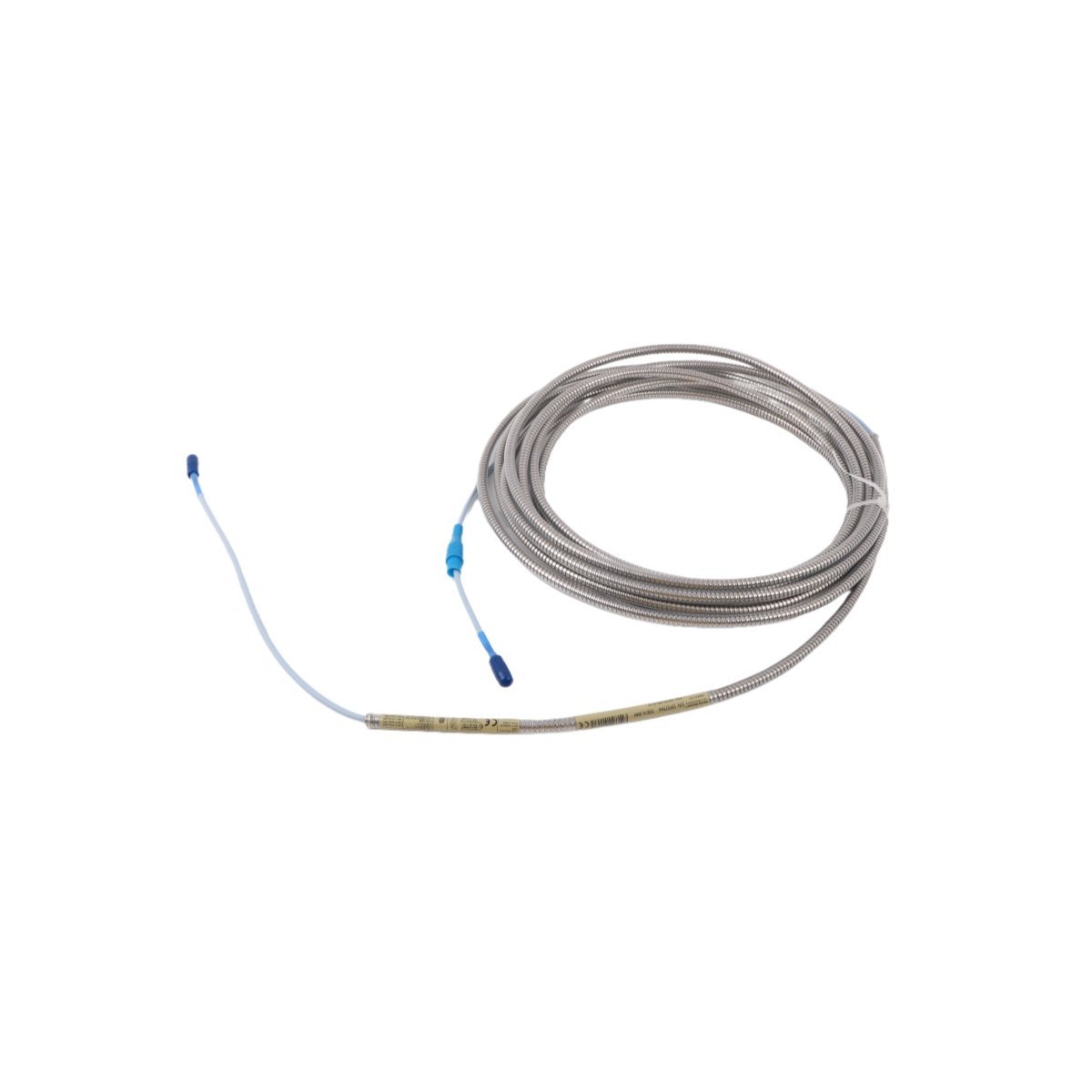

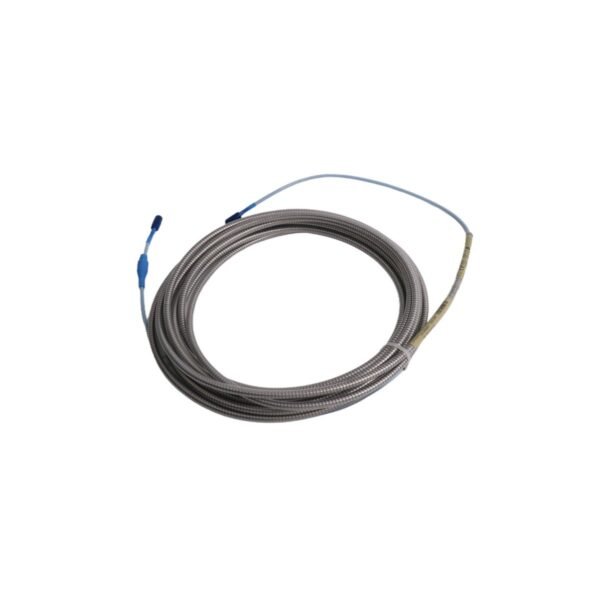

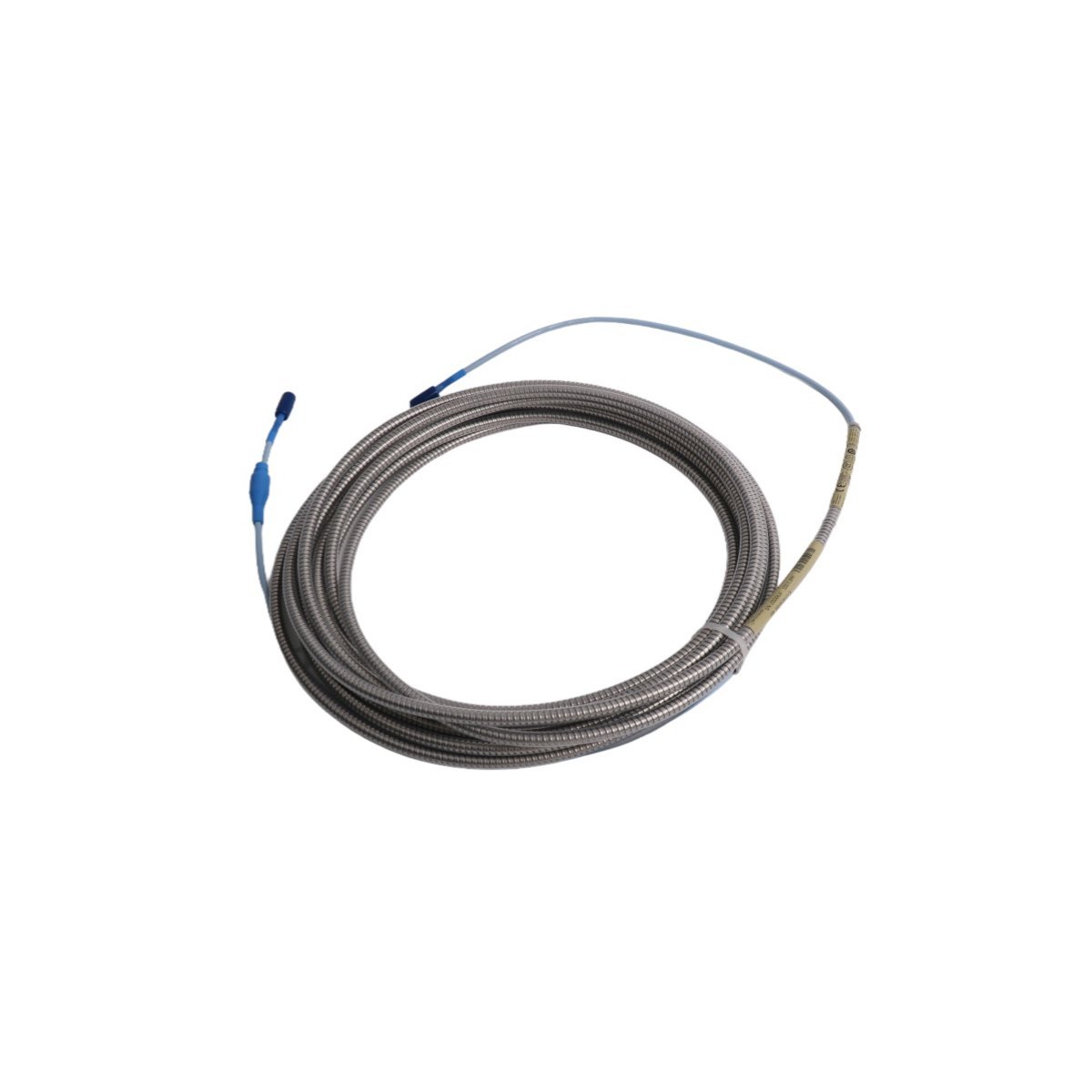

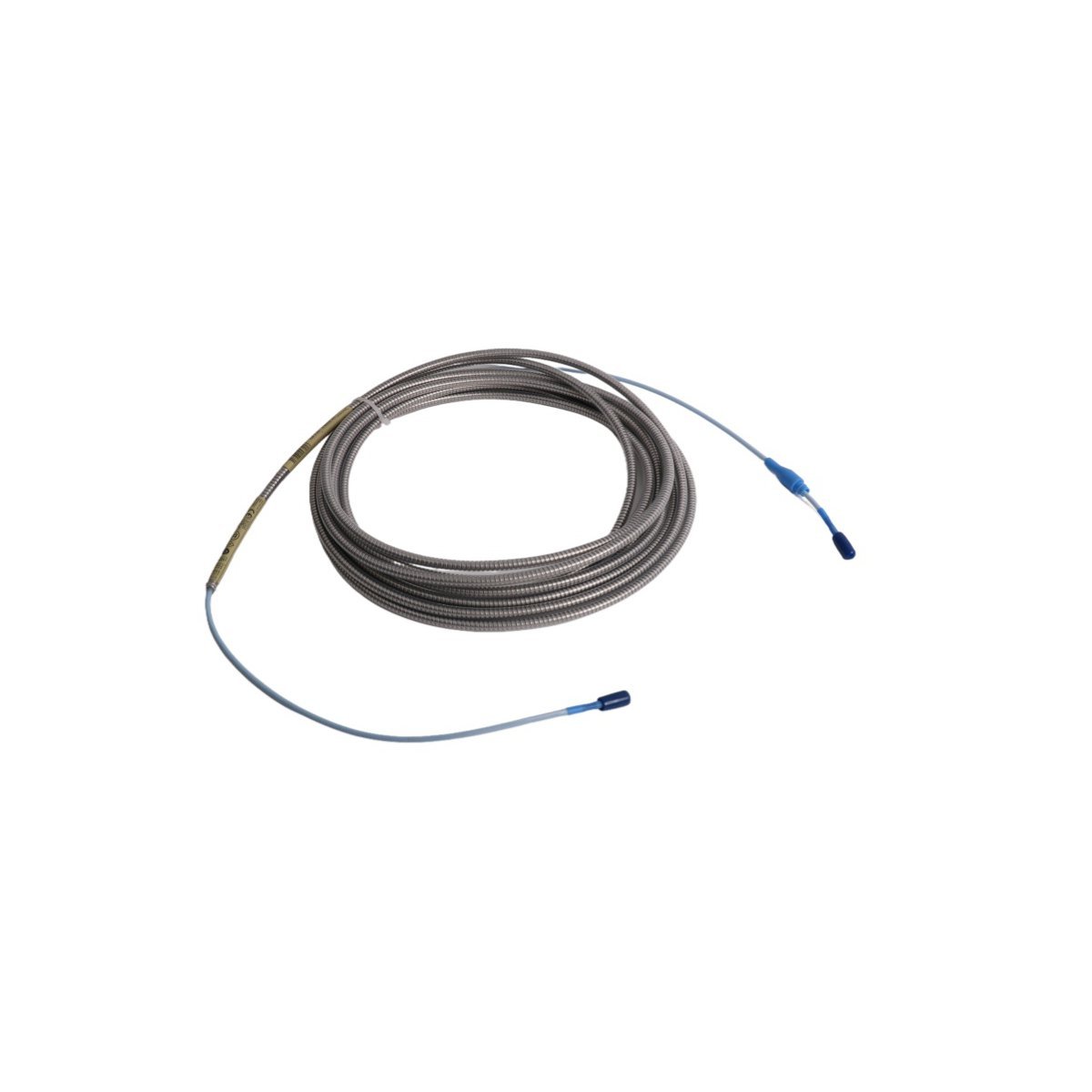

The Bently Nevada 330130-080-03-CN is a high-integrity, industrial-grade Standard Extension Cable engineered specifically for seamless integration within the 3300 XL series of proximity probe monitoring systems. Manufactured by Baker Hughes (operating under the Bently Nevada brand), this cable serves as a critical signal transmission link between the 3300 XL proximity probe and the corresponding 3300 XL monitor or preamplifier. Designed to maintain exceptional signal fidelity across demanding operational environments—including high-vibration, elevated-temperature, and electrically noisy industrial settings—the 330130-080-03-CN ensures minimal phase shift, low insertion loss, and superior electromagnetic interference (EMI) immunity. Its coaxial construction features precision-matched impedance (50 Ω nominal), optimized shielding architecture, and robust mechanical termination integrity—ensuring long-term reliability and compliance with API RP 670 (4th Edition) and ISO 10816 standards for machinery protection systems. This extension cable is supplied in new, factory-fresh condition, rigorously tested per Bently Nevada’s internal quality assurance protocols, and backed by a comprehensive 24-month limited warranty against defects in materials and workmanship. The cable is manufactured in the United States, reflecting stringent adherence to AS9100 and ISO 9001:2015 quality management systems. With an overall length of 8.0 meters (26.2 feet), it enables flexible sensor placement in large rotating equipment installations while preserving the calibrated sensitivity and dynamic response required for accurate shaft vibration, axial position, and differential expansion measurements.

Detailed Specifications

Key Features

• Precision Signal Integrity: Maintains consistent 50 Ω impedance and ultra-low phase distortion across full operational bandwidth (0–10 kHz), ensuring traceable calibration and measurement repeatability per ISO 20816-1.
• Triple-Layer Shielding: Combines 95% tinned copper braid with aluminized polyester foil to achieve >100 dB EMI/RFI attenuation—critical in VFD-rich environments and near high-current bus ducts.
• High-Temperature Resilience: LSZH jacket and silver-plated conductors support continuous operation up to 200°C, enabling safe deployment adjacent to turbine casings, compressors, and gearboxes.
• Mechanical Robustness: Reinforced strain relief at both ends (M12 x 1.0 metric threaded connectors) with IP67-rated sealing prevents connector pull-out, moisture ingress, and vibration-induced fretting fatigue.
• Interchangeability Guarantee: Fully compatible with all 3300 XL probes (e.g., 330100-, 330180-series) and 3300 XL monitors (3300/16, 3300/20, 3300/25) without recalibration—reducing commissioning time and lifecycle cost.
• Traceable Quality Assurance: Each cable bears a unique serial number linked to factory test reports including time-domain reflectometry (TDR), shield continuity, and impedance sweep validation data.
• Environmental Safety: Halogen-free, flame-retardant LSZH jacket meets IEC 60332-3C and IEEE 1202 standards for low toxicity and reduced corrosive gas emission during fire events.

Applications

• Turbomachinery Monitoring: Shaft vibration and position sensing on steam turbines, gas turbines, and centrifugal compressors in power generation, oil & gas, and petrochemical facilities.
• Rotor Dynamics Analysis: High-fidelity signal transmission for modal analysis, critical speed mapping, and balancing correction in large rotating assemblies.
• API 670-Compliant Machinery Protection Systems (MPS): Integral component in redundant 3-out-of-2 or 2-out-of-3 trip logic configurations for emergency shutdown systems.
• Condition Monitoring Programs: Enables permanent installation of proximity sensors for continuous health assessment of journal bearings, thrust collars, and seal assemblies.
• Refinery and Upstream Equipment: Deployment in harsh, high-humidity, and hydrocarbon-exposed areas—such as flare gas compressors, LNG train drivers, and offshore platform pumps—where chemical resistance and longevity are paramount.
• Research & Test Benches: Used in laboratory environments requiring metrologically sound signal paths for validating new bearing designs, lubrication regimes, or control algorithms.
• Legacy System Modernization: Direct replacement for aging 3300 non-XL cables in brownfield upgrades, supporting backward compatibility while delivering enhanced noise rejection and thermal margin.
