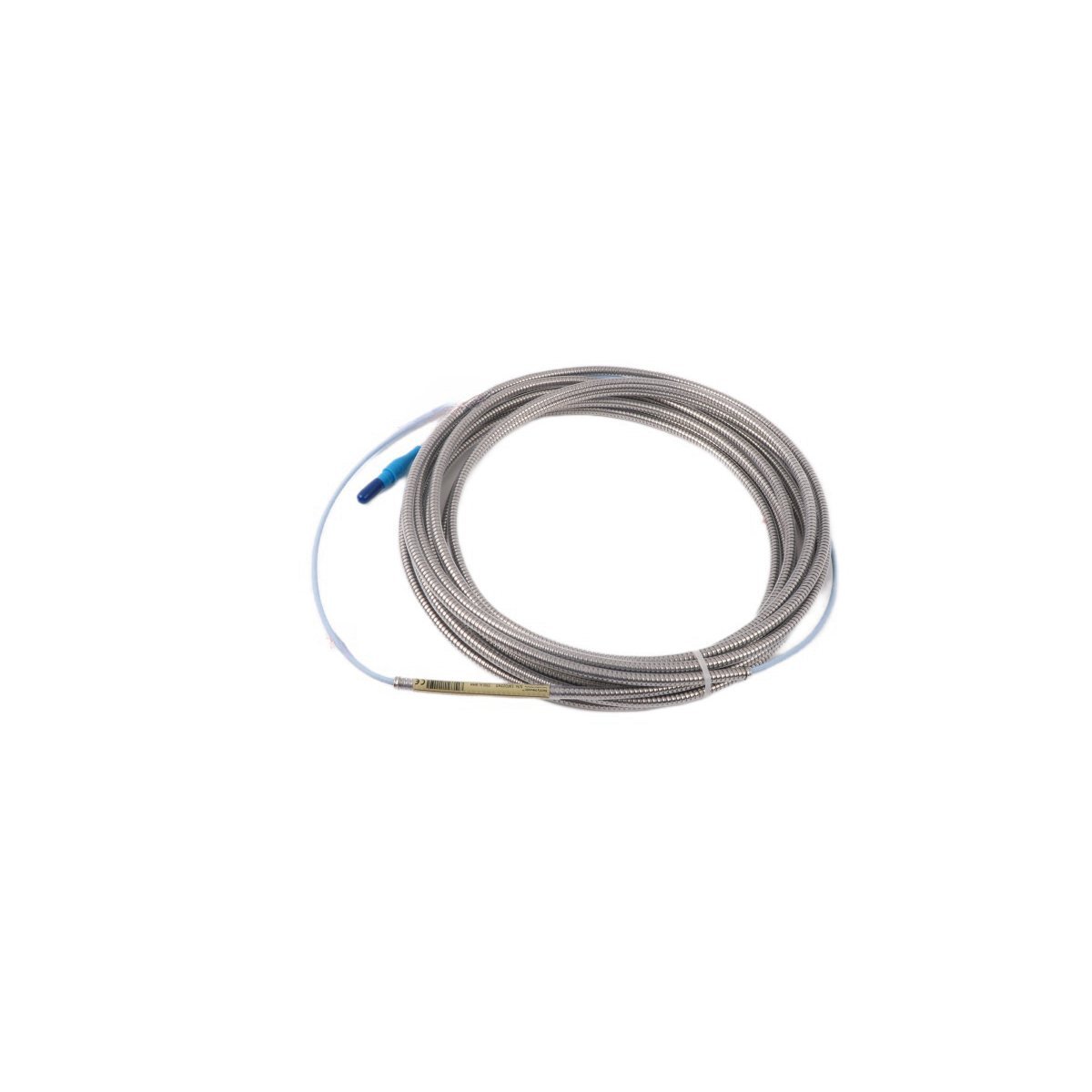

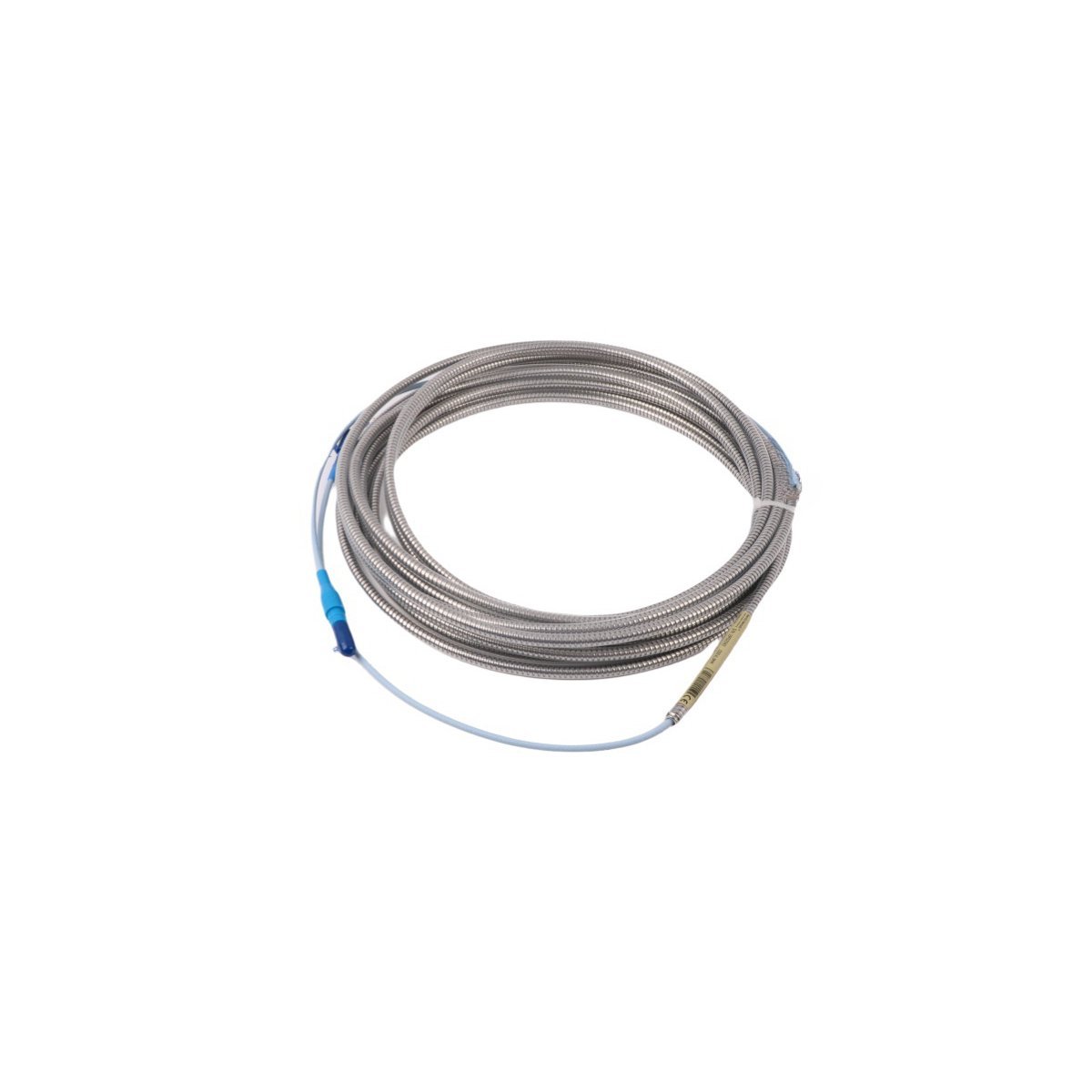

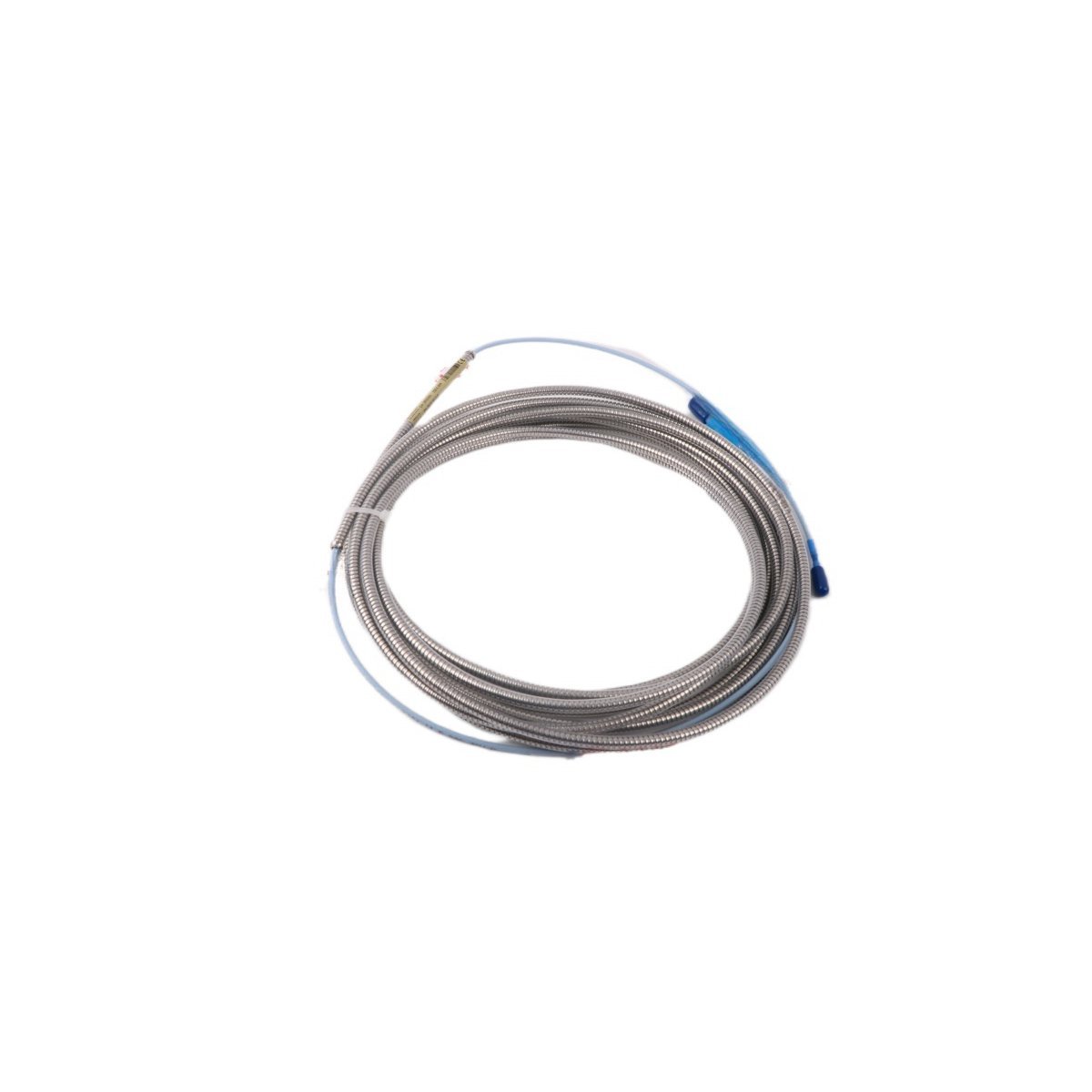

330130-080-03-00 | Bently Nevada 3300 XL 8mm Proximity Cable
The 330130-080-03-00 is a specialized 8.0-meter extension cable designed for the Bently Nevada 3300 XL 8mm Proximity Transducer System. It facilitates high-fidelity signal transmission between the proximity probe and the Proximitor sensor。
Description
WordPress Product Short Description
The 330130-080-03-00 is a specialized 8.0-meter extension cable designed for the Bently Nevada 3300 XL 8mm Proximity Transducer System. It facilitates high-fidelity signal transmission between the proximity probe and the Proximitor sensor, featuring advanced shielding to prevent EMI and a ClickLoc connector for secure, vibration-resistant linkages in heavy industrial environments.
Functional Overview
The 330130-080-03-00 (Order Number: 330130-080-03-00) serves as the critical link in a proximity transducer circuit, extending the reach of 8mm probes without compromising signal integrity. Maintenance professionals utilize this extension cable to bridge the gap between machinery-mounted probes and remote monitoring cabinets. The physical design prioritizes mechanical longevity, employing materials that resist degradation from exposure to synthetic lubricants and high-temperature turbine environments.
Technical Characteristics
- Total Length: 8.0 meters (approximately 26.2 feet)
- Cable Material: 75-ohm coaxial cable with FEP (Fluorinated Ethylene Propylene) jacket
- Connector Construction: Features gold-plated brass ClickLoc connectors designed to remain secure under high-frequency vibration
- Armoring Options: This specific configuration (03) includes stainless steel fluid-tight flexible armor for superior mechanical protection
- Shielding: High-coverage braided shield reduces signal susceptibility to electromagnetic interference (EMI)
- Operating Temperature: Rated for continuous operation from -51°C to +177°C (-60°F to +350°F)
Industrial Applications
The 330130-080-03-00 is an essential component for Turbine Supervisory Instrumentation (TSI) systems. It is widely applied across several sectors:
- Power Generation: Monitoring shaft vibration in steam and gas turbines.
- Oil & Gas: Ensuring the stability of centrifugal compressors and high-speed pumps.
- Manufacturing: Protecting large industrial fans and motors through continuous displacement monitoring.
Technical Specifications Table
| Feature | Detail |
| Manufacturer | Bently Nevada |
| Model Series | 3300 XL 8mm System |
| Part Number | 330130-080-03-00 |
| Cable Length | 8.0 Meters |
| Armor Option | Stainless Steel Fluid-Tight Armor |
| Connector Type | Miniature Coaxial ClickLoc |
| System Compatibility | 3300 XL 5m and 9m Systems |
Additional information
| Weight | 0.84 kg |
|---|---|
| Country of Origin | USA |
| Dimension | 30 x 30 x 3cm |
