Description

Brief Product Description

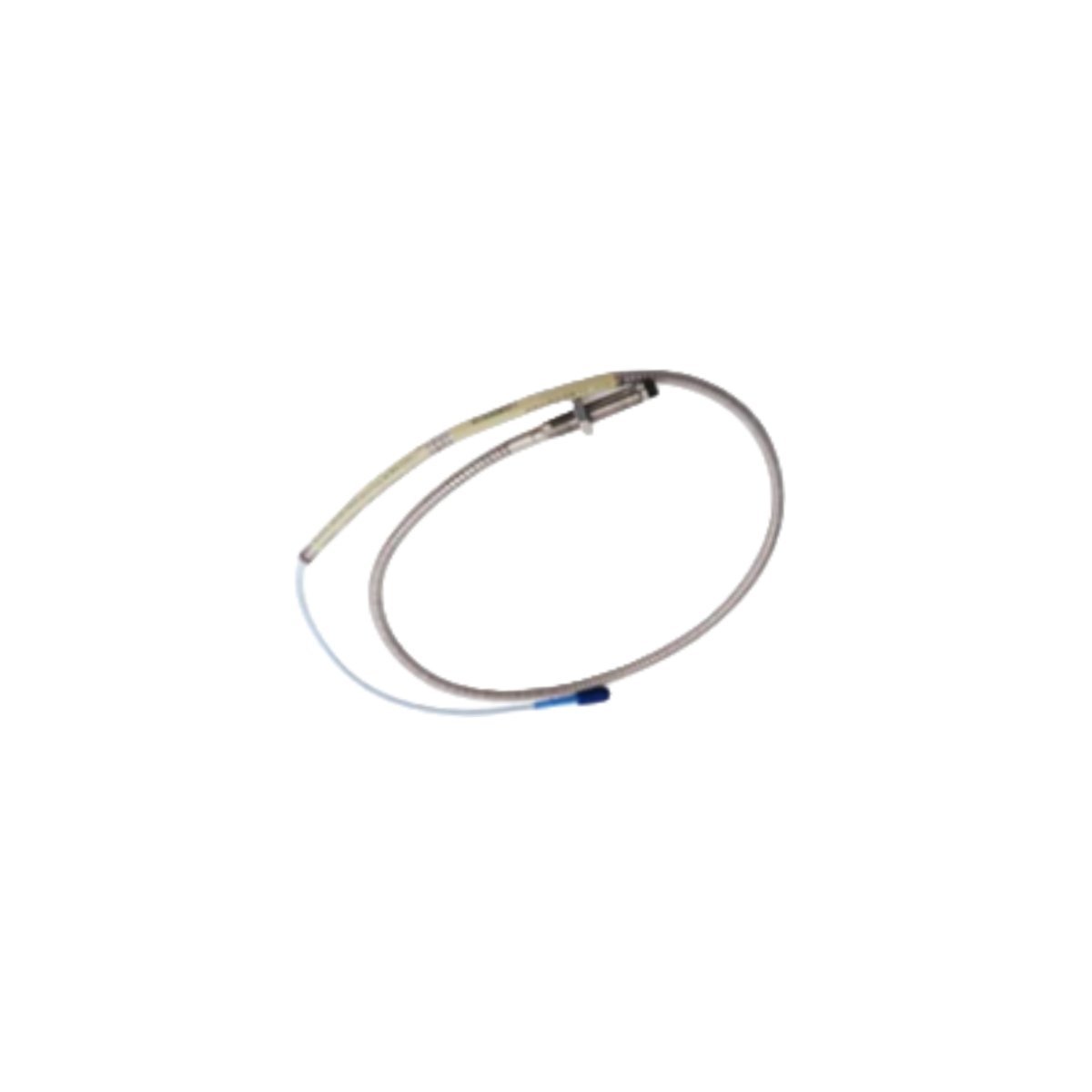

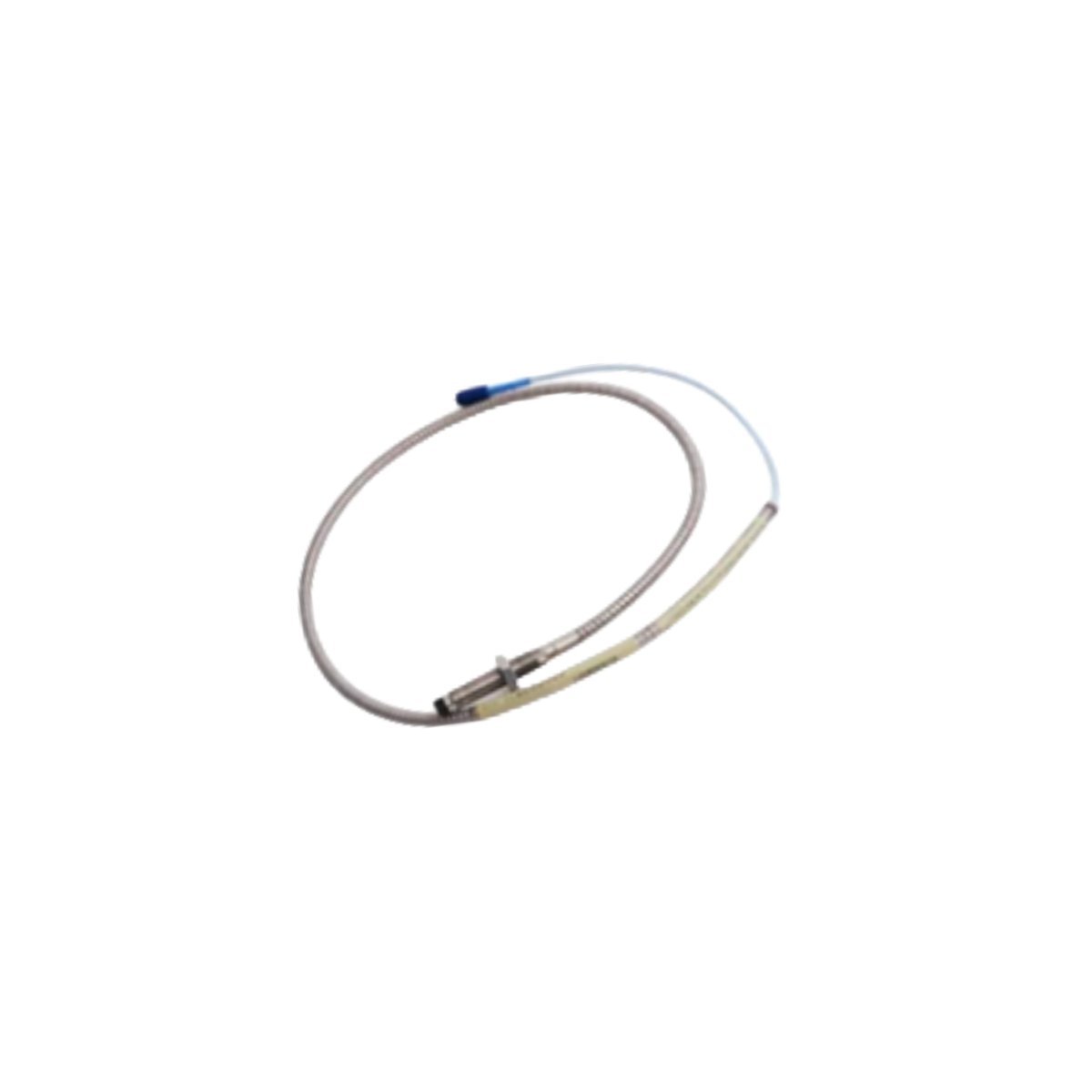

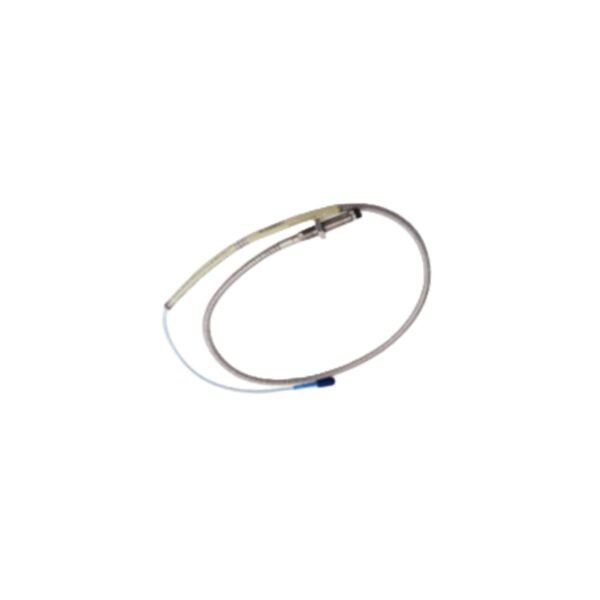

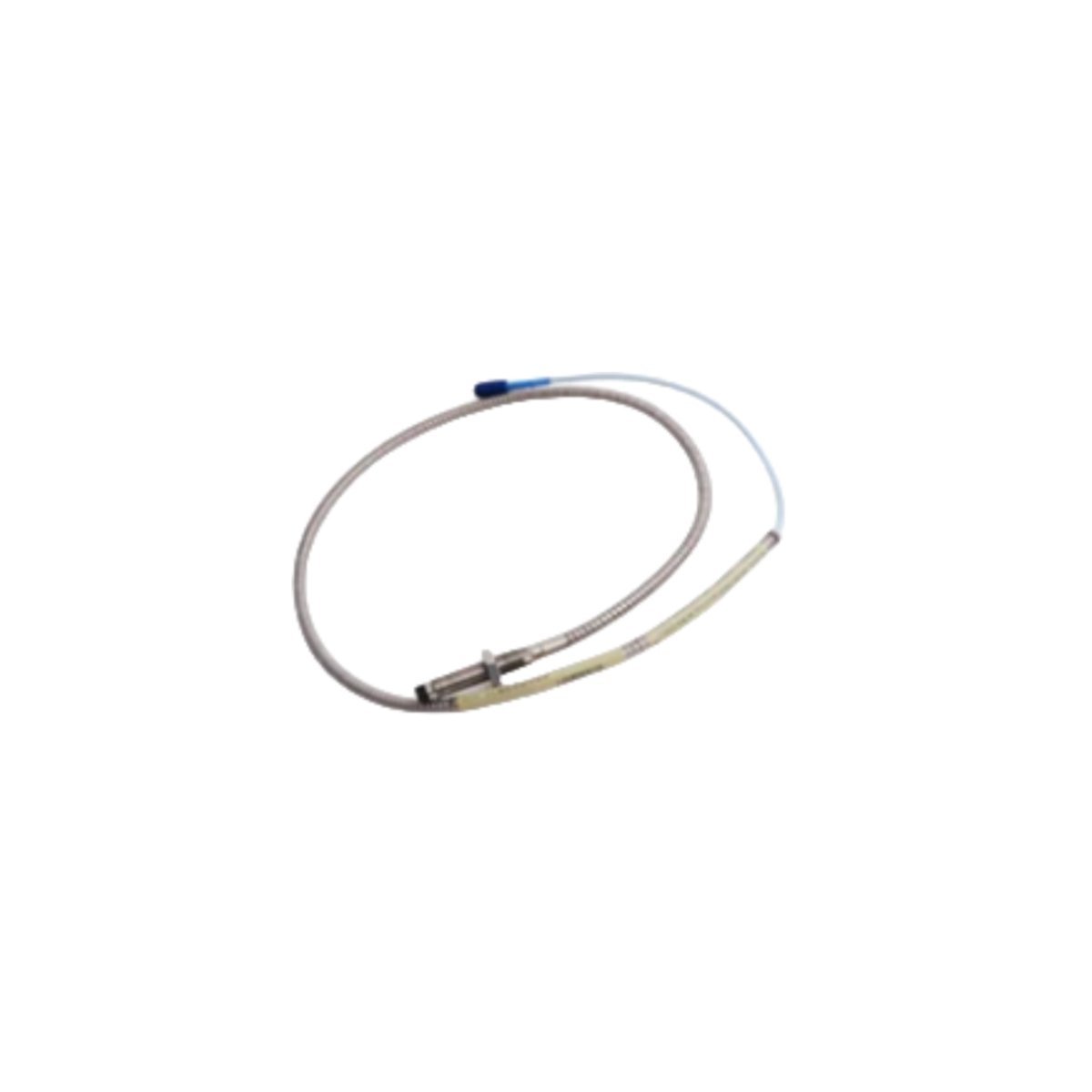

The Bently Nevada 330103-00-12-10-02-CN is a high-precision 8 mm eddy current proximity probe designed for non-contacting vibration and displacement measurements in rotating machinery. It provides critical data for condition monitoring systems, ensuring the mechanical integrity of turbines, compressors, and industrial motors.

Advanced Eddy Current Sensing Technology

The Bently Nevada 330103-00-12-10-02-CN serves as a fundamental sensor for Turbine Supervisory Instrumentation (TSI). By utilizing advanced eddy current technology, this proximity probe measures the distance between the probe tip and the rotating shaft without physical contact. This method allows for the precise detection of radial vibration, axial position, and eccentricity. Transitioning from basic monitoring to predictive maintenance becomes seamless with this transducer, as it captures microscopic changes in shaft behavior that indicate potential mechanical wear or misalignment.

Engineering for Harsh Industrial Environments

Rotating machinery often operates under extreme thermal and chemical stress; therefore, Bently Nevada constructed the 3300 XL series to withstand these rigorous conditions. The probe tip consists of high-performance polyphenylene sulfide (PPS) plastic, which resists moisture and chemical degradation. Additionally, the cable assembly features robust shielding to neutralize electromagnetic interference (EMI), ensuring signal purity in high-voltage environments. This durability guarantees that the 330103-00-12-10-02-CN maintains long-term calibration stability and measurement accuracy, even when submerged in lubricating oils or exposed to high-pressure steam.

Optimized Condition Monitoring and Integration

Integrating the 330103-00-12-10-02-CN into existing Bently Nevada 3500 or 3300 monitoring racks enhances the diagnostic depth of any condition-based maintenance program. The 3300 XL 8 mm system provides a wide linear range and a consistent scale factor, which simplifies system calibration and reduces the likelihood of false alarms. Furthermore, the modular design of the probe and extension cable allows for flexible routing through machinery housings and junction boxes. Because it delivers real-time data on shaft dynamics, plant operators can proactively manage machine health, thereby preventing catastrophic failures and optimizing the timing of scheduled maintenance outages.

Key Technical Characteristics

• Precise 8 mm Probe Tip: Optimized for a 2 mm (80 mil) linear measurement range with high sensitivity.
• Chemical and Oil Resistance: Specialized tip and cable materials prevent damage from industrial lubricants and contaminants.
• EMI/RFI Immunity: Advanced shielding protects the transducer signal from electrical noise in industrial plants.
• Wide Temperature Range: Operates reliably in varying thermal conditions typical of turbine decks and compressor halls.
• Industry Standard Compliance: Fully compatible with API 670 standards for vibration and position monitoring.
• Flexible Installation: The 3300 XL system supports various thread sizes and cable lengths for custom machinery requirements.
