Description

Brief Product Description

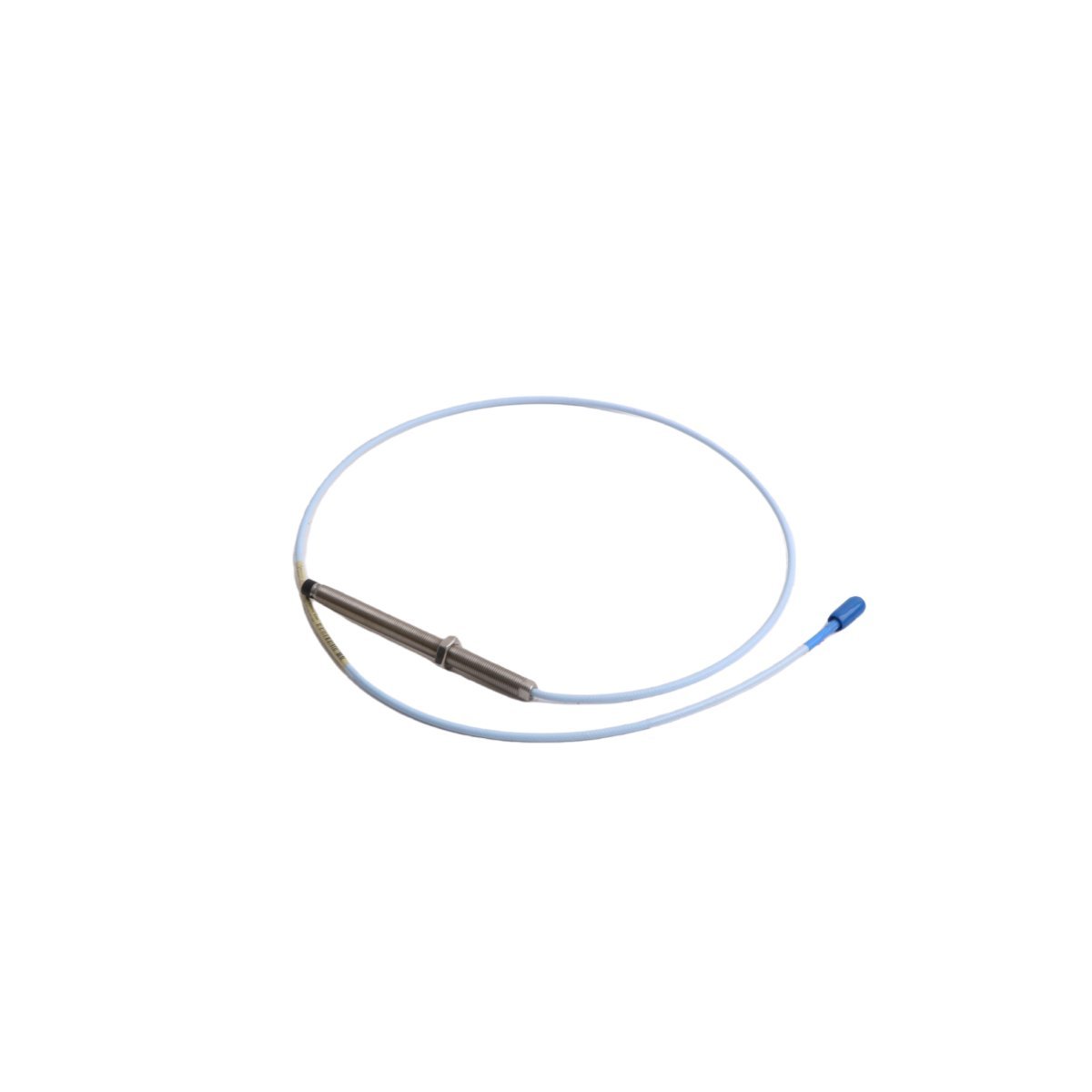

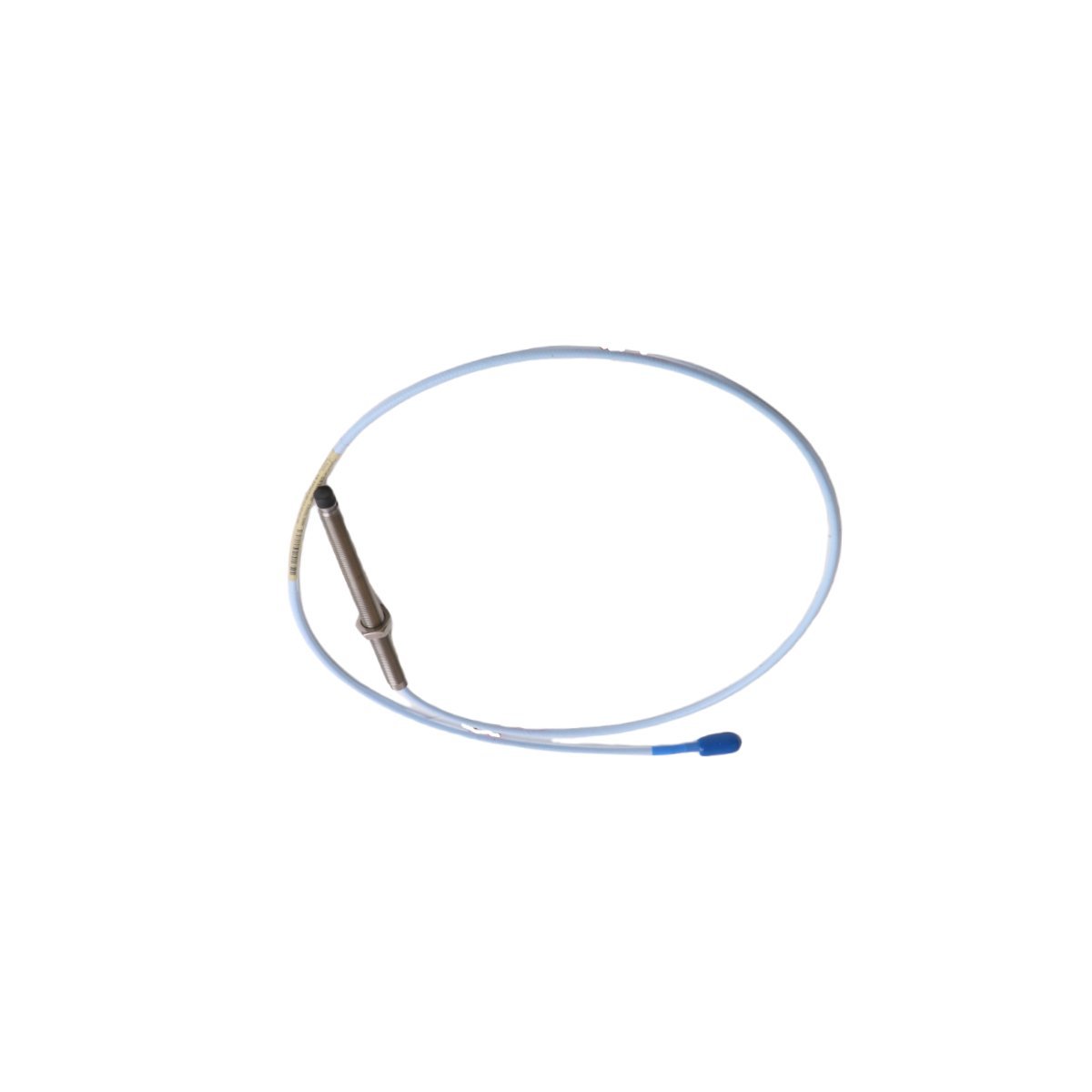

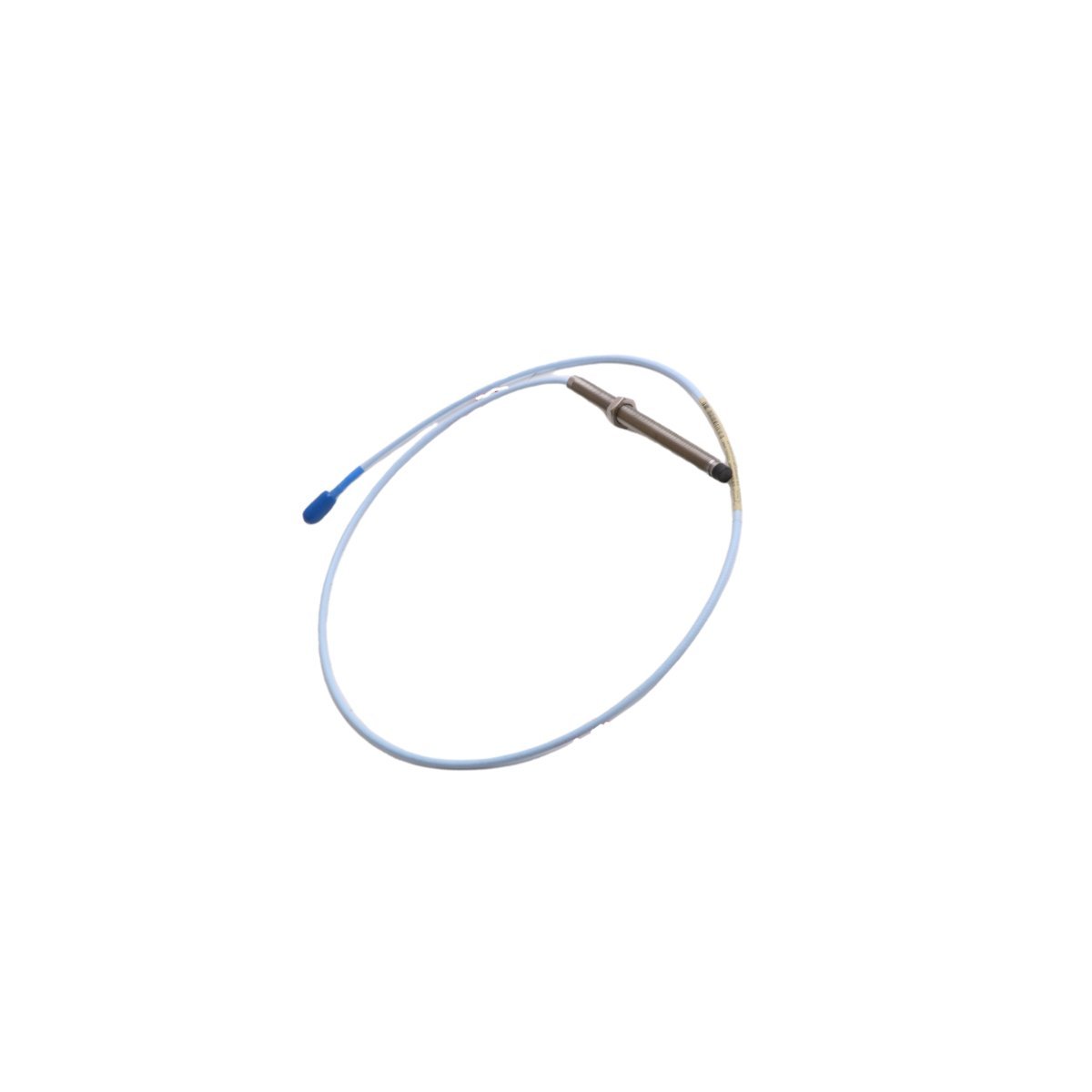

The Bently Nevada 330103-00-12-10-02-00 is a high-precision 3300 XL 8mm proximity probe designed for non-contacting displacement and vibration measurements. It provides critical telemetry for monitoring the health and stability of high-speed rotating machinery in industrial environments.

Advanced Non-Contacting Machinery Diagnostics

The 330103-00-12-10-02-00 serves as a primary sensing element within the 3300 XL 8mm Proximity Transducer System. This device utilizes eddy current technology to observe the gap between the probe tip and the target shaft surface with extreme accuracy. Consequently, it translates physical movement into electrical signals, allowing operators to monitor radial vibration and axial position in real time. By delivering high-fidelity data, this sensor facilitates the early identification of mechanical stressors such as rotor instability or bearing wear. These insights empower maintenance teams to act before minor irregularities escalate into catastrophic equipment failure.

Robust Construction for Severe Industrial Service

Bently Nevada engineered the 330103-00-12-10-02-00 to maintain exceptional signal integrity while operating in the most demanding conditions. The probe tip is constructed from high-performance polyphenylene sulfide (PPS), which provides a hermetic seal against moisture and oil penetration. Furthermore, the 3300 XL series design offers superior resistance to electromagnetic interference (EMI) and thermal drift. This ensures that the proximity probe delivers repeatable and stable readings even when installed near high-voltage equipment or in unconditioned turbine environments. The integrated cable and gold-plated connectors further enhance the system’s reliability by preventing terminal oxidation and signal degradation over long-term service.

Strategic Integration for Asset Optimization

The 330103-00-12-10-02-00 integrates natively with Bently Nevada 3500 series monitoring racks and Turbine Supervisory Instrumentation (TSI) systems. Because it follows standardized Bently Nevada calibration curves, it ensures seamless compatibility across various machinery types, including steam turbines, centrifugal compressors, and large-scale industrial motors. Transitioning to this proximity sensor allows facilities to implement more aggressive predictive maintenance strategies. Ultimately, the 330103-00-12-10-02-00 reduces the risk of unplanned downtime and optimizes the maintenance lifecycle, ensuring the safe and efficient operation of mission-critical industrial assets.

Key Technical Characteristics

• 8mm Sensor Tip: Optimized for standard linear range displacement and radial vibration monitoring.
• Non-Contacting Eddy Current Technology: Measures shaft motion without physical contact to prevent wear and tear.
• Advanced PPS Encapsulation: Resists chemical degradation from lubricants, solvents, and environmental moisture.
• Thermal Stability: Engineered to maintain measurement accuracy across a broad temperature spectrum.
• High-Conductivity Connectors: Features gold-plated terminals to ensure a low-resistance, corrosion-free signal path.
• Total System Compatibility: Designed for universal use with 3300 XL Proximitor sensors and extension cables.

Technical Specifications
