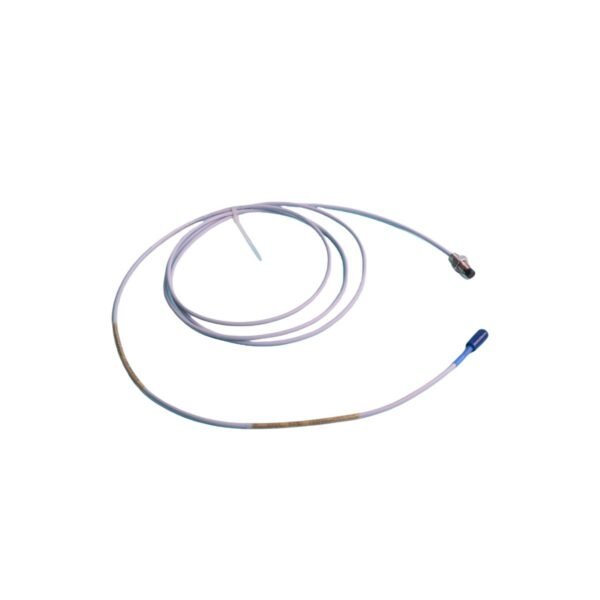

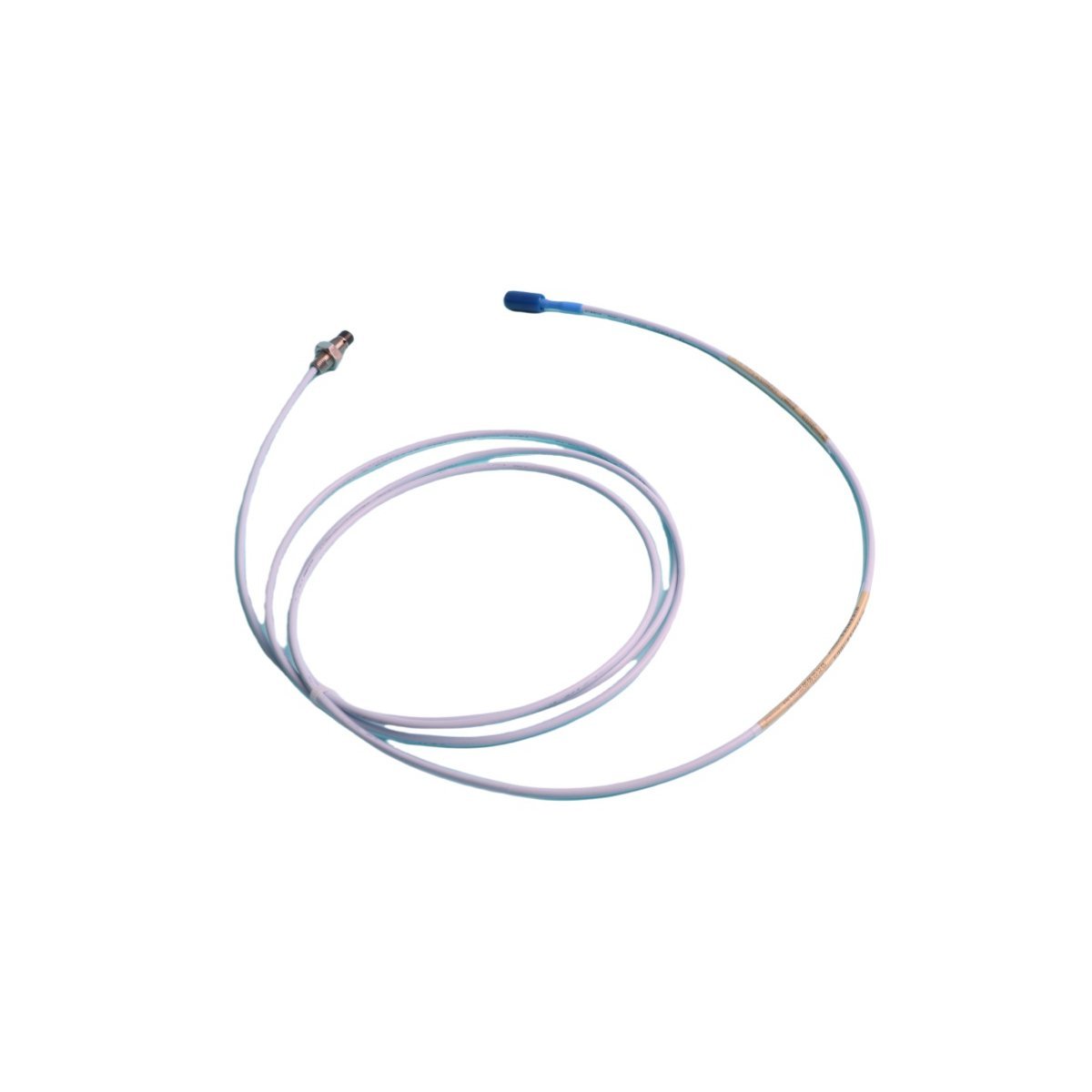

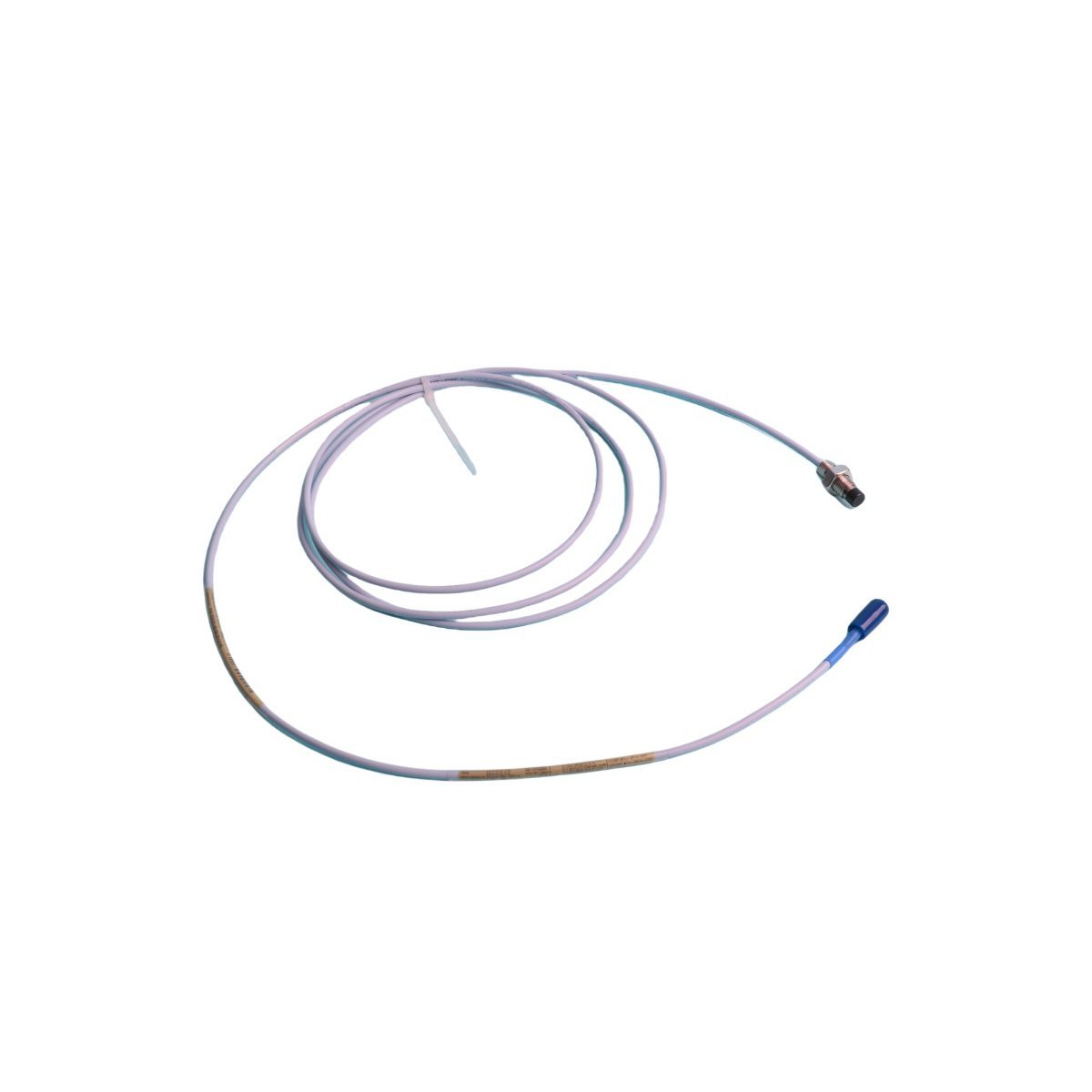

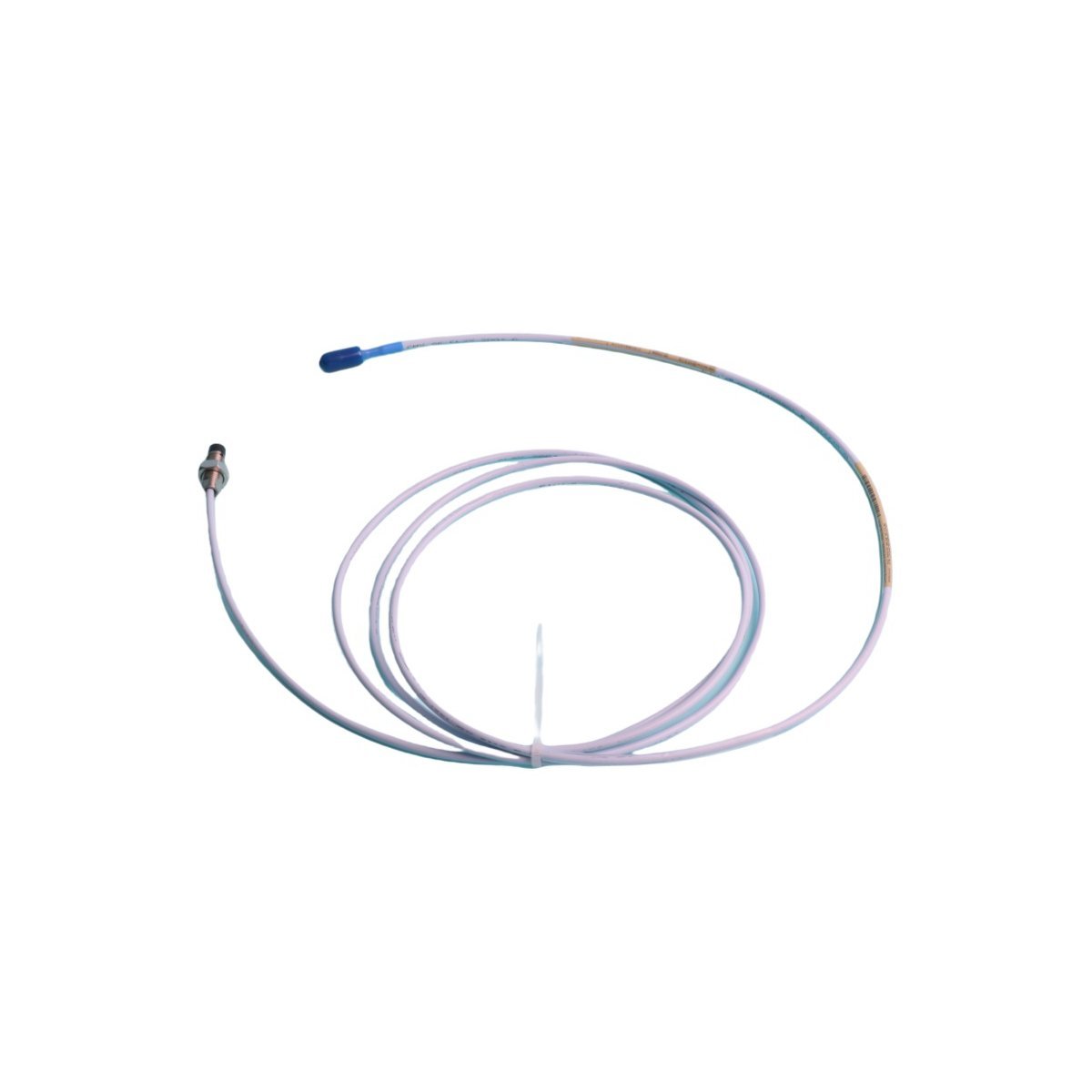

The Bently Nevada 330101-08-20-10-02-00 is a high-precision, industrial-grade proximity probe engineered for continuous, non-contact vibration and displacement monitoring in critical rotating machinery applications. Manufactured by Baker Hughes (under the Bently Nevada brand), this sensor forms an integral component of the renowned 3300 XL 8 mm eddy-current measurement system—widely recognized as an industry benchmark for reliability, accuracy, and long-term stability in harsh operational environments. Designed to operate seamlessly with 3300 XL series monitors and signal conditioners, the probe delivers linear, temperature-compensated output across its calibrated range, enabling precise shaft orbit analysis, radial vibration tracking, axial position monitoring, and differential expansion measurement. The 330101-08-20-10-02-00 adheres strictly to API 670 (4th Edition) and ISO 10816 standards for machinery protection systems, ensuring compliance in oil & gas, power generation, petrochemical, and heavy industrial facilities. Its robust stainless steel construction, hermetically sealed ceramic insulator, and optimized coil geometry provide exceptional immunity to electromagnetic interference (EMI), thermal drift, and mechanical shock. Each unit undergoes rigorous factory calibration using NIST-traceable equipment and is supplied with a certified calibration report documenting sensitivity, linearity error (< ±0.5% full scale), and frequency response (DC to 10 kHz). This probe is offered in new, factory-fresh condition—never refurbished or previously installed—and carries a comprehensive 24-month limited warranty covering material defects and workmanship. Originating from the United States, it is manufactured at Baker Hughes’ ISO 9001:2015–certified facility in Minden, Nevada, guaranteeing adherence to stringent quality control protocols throughout production, testing, and packaging.

Detailed Specifications

Key Features

• Precision Calibration Traceability: Each probe ships with a unique, NIST-traceable calibration certificate verifying sensitivity, linearity, thermal drift (< 0.02%/°C), and phase response—essential for predictive maintenance and regulatory audits.
• Enhanced Environmental Resilience: Hermetically sealed ceramic insulator and corrosion-resistant 316 stainless steel housing ensure reliable operation in high-humidity, chemically aggressive, and high-vibration settings typical of compressor stations and turbine enclosures.
• Optimized Electromagnetic Compatibility (EMC): Integrated RF filtering and dual-layer braided shielding minimize noise coupling, supporting accurate measurements even in proximity to VFDs, switchgear, and high-power motors.
• Plug-and-Play Integration: Fully compatible with all 3300 XL monitor racks (e.g., 3300/16, 3300/22), 3500 system interfaces, and legacy 3300 series infrastructure—reducing commissioning time and configuration errors.
• Long-Term Stability: Aged coil windings and stress-relieved mechanical design deliver ≤0.1% zero-shift per year under continuous operation, minimizing recalibration frequency and lifecycle cost of ownership.
• API 670 Compliance Ready: Pre-validated for use in Machinery Protection Systems (MPS) per API RP 670 requirements—including alarm setpoint repeatability, fault tolerance, and diagnostic capability (e.g., gap voltage monitoring).
• Global Support Ecosystem: Backed by Baker Hughes’ worldwide network of certified service centers, technical documentation (including IEC 61508 SIL2 suitability reports), and 24/7 engineering support for troubleshooting and system integration.

Applications

• Steam and Gas Turbines: Monitoring radial vibration, thrust position, and casing expansion in utility-scale and industrial turbines operating above 3,000 RPM.
• Centrifugal Compressors: Detecting imbalance, misalignment, and bearing wear in refinery, LNG, and pipeline compression trains subject to API 617 mandates.
• Large Electric Motors and Generators: Providing real-time shaft runout and air-gap monitoring for synchronous machines exceeding 5 MW capacity.
• Petrochemical Pumps and Gearboxes: Enabling early fault detection of cavitation, gear tooth damage, and coupling degradation via high-fidelity displacement waveforms.
• Nuclear Power Plant Auxiliary Systems: Supporting ASME OM Code-compliant surveillance of feedwater pumps, condensate extraction units, and emergency diesel generators.
• Wind Turbine Main Bearings: Deployed in nacelle-based condition monitoring systems for offshore and onshore installations requiring IP68-rated, low-maintenance sensing solutions.
• Research and Development Test Stands: Serving as a metrology-grade reference sensor in academic labs and OEM validation facilities for modal analysis, rotor dynamics modeling, and control algorithm development.
