Description

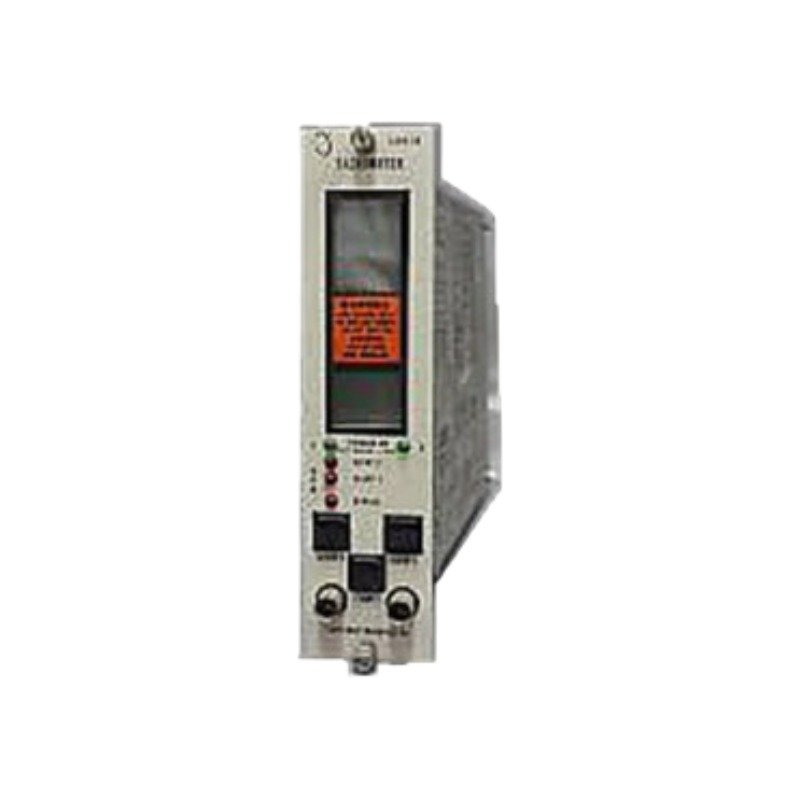

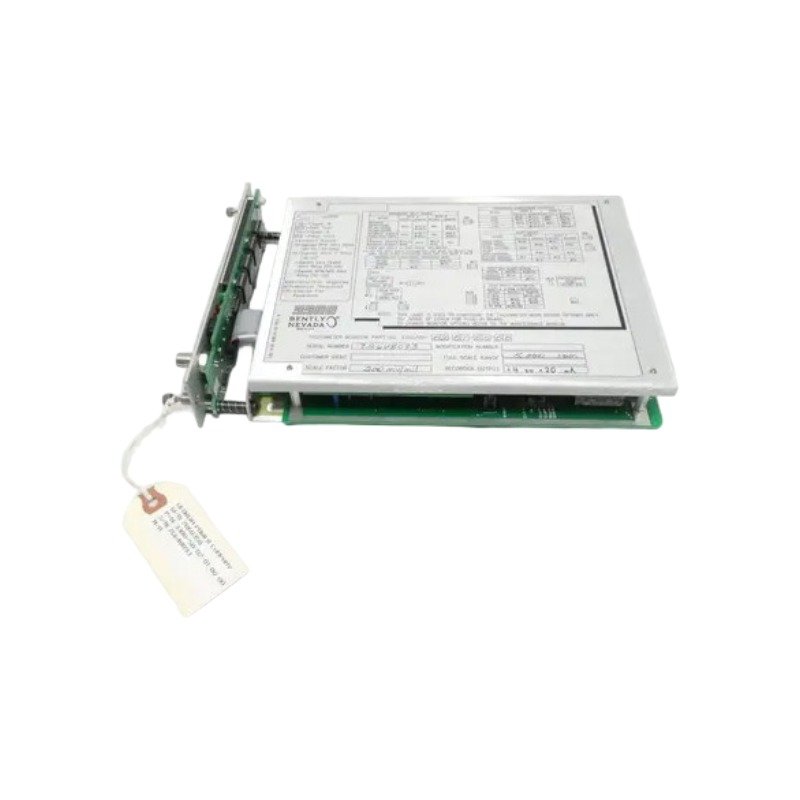

Configured for continuous speed monitoring, alarm, and peak speed indication in Bently Nevada 3300 Monitoring System platforms, the Bently Nevada 3300/50-01-01-00-00 (3300/50 Tachometer Monitor) provides direct physical/electrical execution.

Hardware Specifications

Rotor Dynamics and Transducer Validation

The 3300/50 monitor conditions high-frequency pulse inputs to resolve machine rotational velocity and zero-speed states critical for rotor dynamics analysis. During initial loop commissioning, eddy-current probe scaling must be precisely calibrated to register physical keyways or gear teeth. The monitor performs automated gap voltage validation (-10 VDC targets) for negative-voltage proximity probes to confirm sensor alignment within the linear linear range. Furthermore, internal cross-talk suppression filters attenuate parasitic electrical noise from nearby high-current chassis cards.

Frequently Asked Questions

Q: How is the Keyphasor or speed signal verified during operation without interrupting the protection loop?

A: The front panel is equipped with a dedicated coaxial buffered output terminal. This output provides an unisolated, raw voltage copy of the transducer input signal, allowing connection to oscilloscopes or digital tachometers for rotor dynamics evaluation.

Q: Does the 3300/50 monitor support hot-swapping under live rack conditions?

A: Yes, the module can be pulled or inserted while the 3300 rack is powered. However, pulling an active speed monitor instantly drops its discrete relay contacts to a de-energized state, requiring the operator to bypass external trip logic prior to extraction.

Field Installation Guidelines

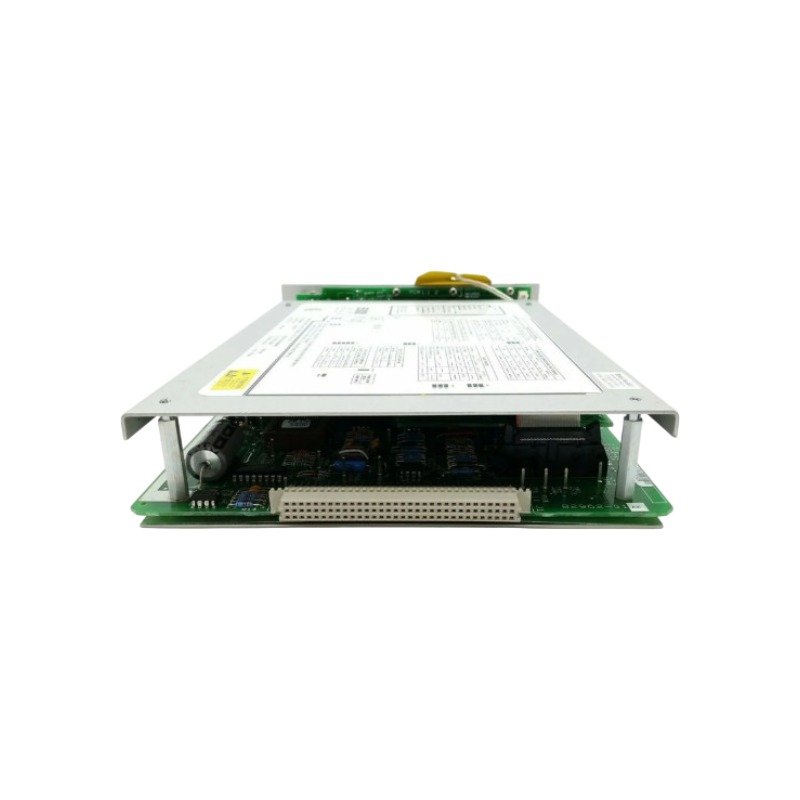

• Backplane Alignment: Slide the monitor module into the designated slot guides, checking that the rear edge-connectors interface squarely with the backplane. Secure the unit by tightening the upper and lower front-panel screws.
• Terminal Shielding: Field transducer cables must terminate with the outer shield connected exclusively to the chassis ground terminal on the rack. The shield must remain ungrounded at the sensor housing to prevent ground loop currents.
• Input Signal Separation: Route low-voltage tachometer probe field lines away from heavy AC motor power lines or variable frequency drive cables to suppress electromagnetic cross-talk.
