Description

Brief Product Description

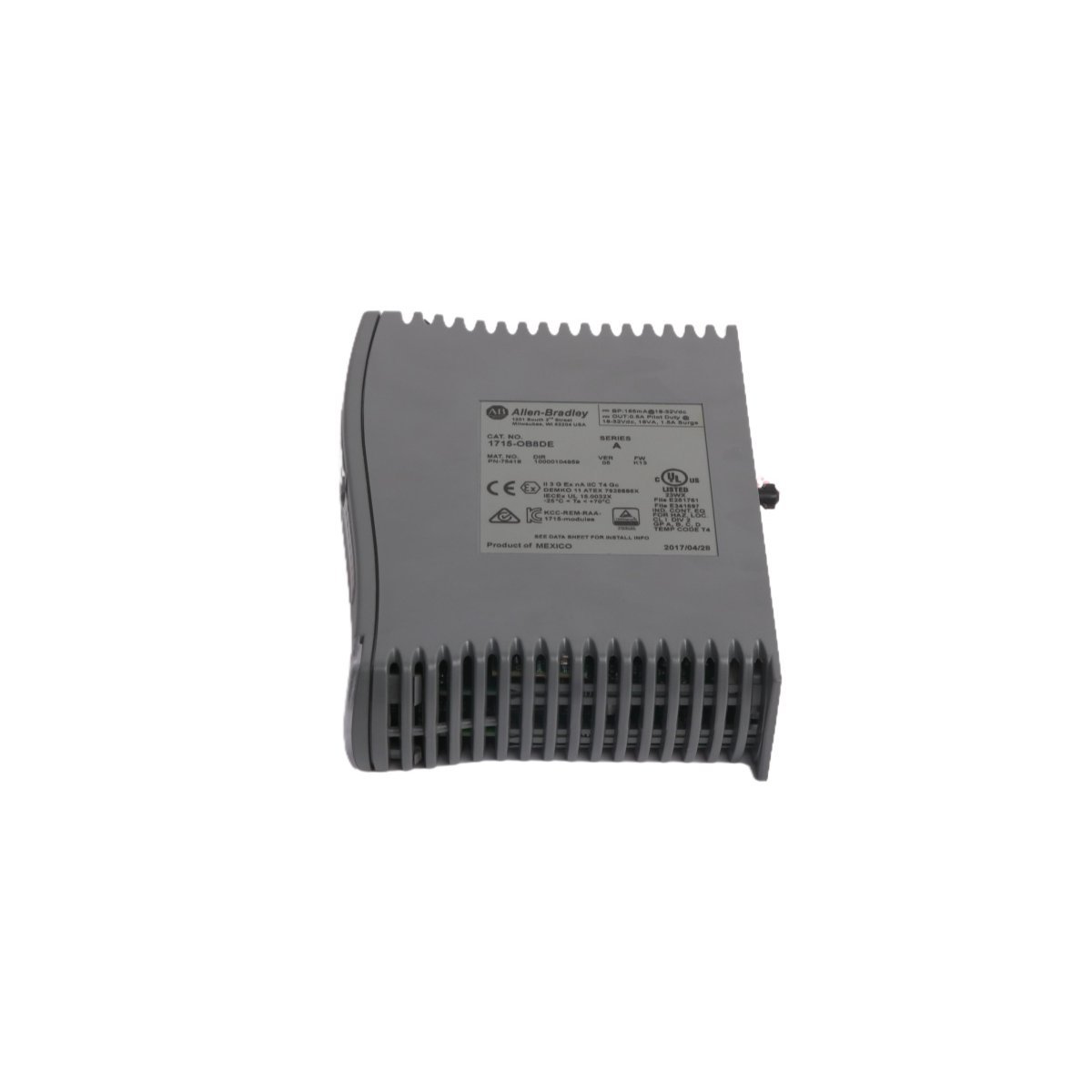

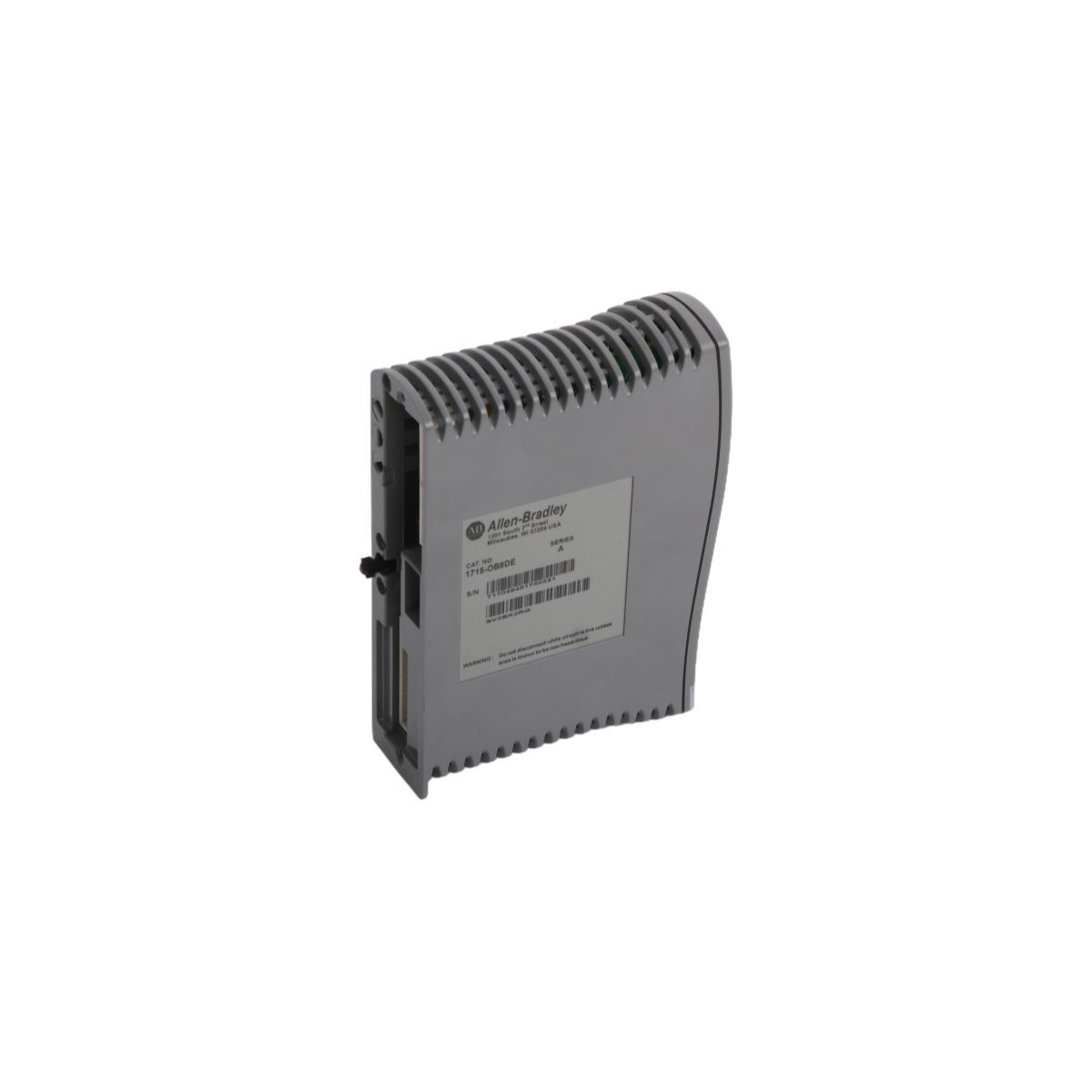

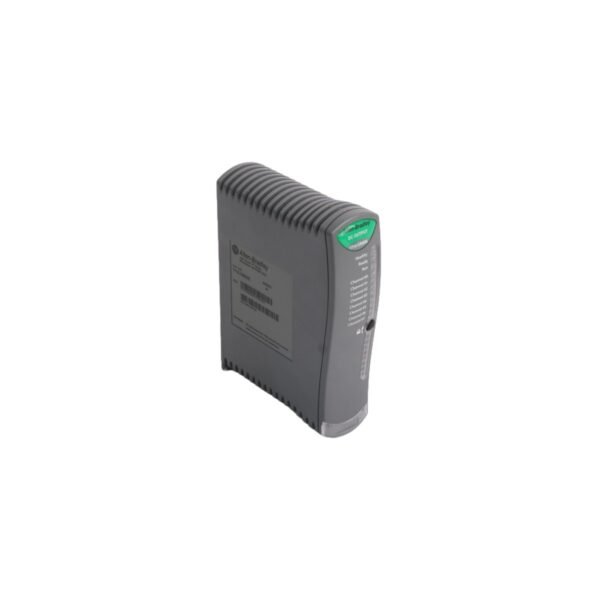

The Allen-Bradley 1715-OB8DE is a high-availability, 8-channel digital output module designed for redundant I/O configurations within the ControlLogix platform. This current-sourcing module provides 24V DC power to field devices while incorporating advanced diagnostics and fault-tolerant capabilities for mission-critical automation.

Product Description

Redundant Architecture and High Availability

The Allen-Bradley 1715-OB8DE excels in applications where system uptime is a non-negotiable requirement. By facilitating a redundant I/O structure, this module allows the control system to maintain operation even if a single component fails. It operates across a standard 18 to 32V DC range and provides current-sourcing outputs, delivering a robust 1 Amp per point. Consequently, this hardware is frequently utilized in safety-related and high-reliability industrial sectors, such as oil and gas or emergency shutdown systems, where deterministic control is essential.

Sophisticated Diagnostics and System Health

To simplify maintenance and reduce unplanned downtime, the 1715-OB8DE incorporates comprehensive diagnostic features. The module includes a dedicated health and status display that provides real-time feedback on channel integrity and field-side conditions. Moreover, it features built-in protection against surge transients and overcurrent scenarios, shielding the broader ControlLogix backplane from field-side electrical disturbances. These proactive monitoring tools enable technicians to identify and rectify wiring or load faults before they escalate into significant process interruptions.

Rugged Design for Extreme Environments

Rockwell Automation engineered the 1715-OB8DE module to perform reliably in demanding physical conditions. The unit is rated for an expansive temperature range of -25°C to +70°C, ensuring stable logic execution in both cold starts and high-heat environments. With a vibration resistance of 2g and a non-operating shock rating of 50g, the module maintains its structural and electrical integrity despite the mechanical stresses common in heavy manufacturing. Furthermore, its compact IP20-rated enclosure supports high-density DIN rail mounting, optimizing cabinet space without compromising thermal management.

Technical Specifications
