Description

Brief Product Description

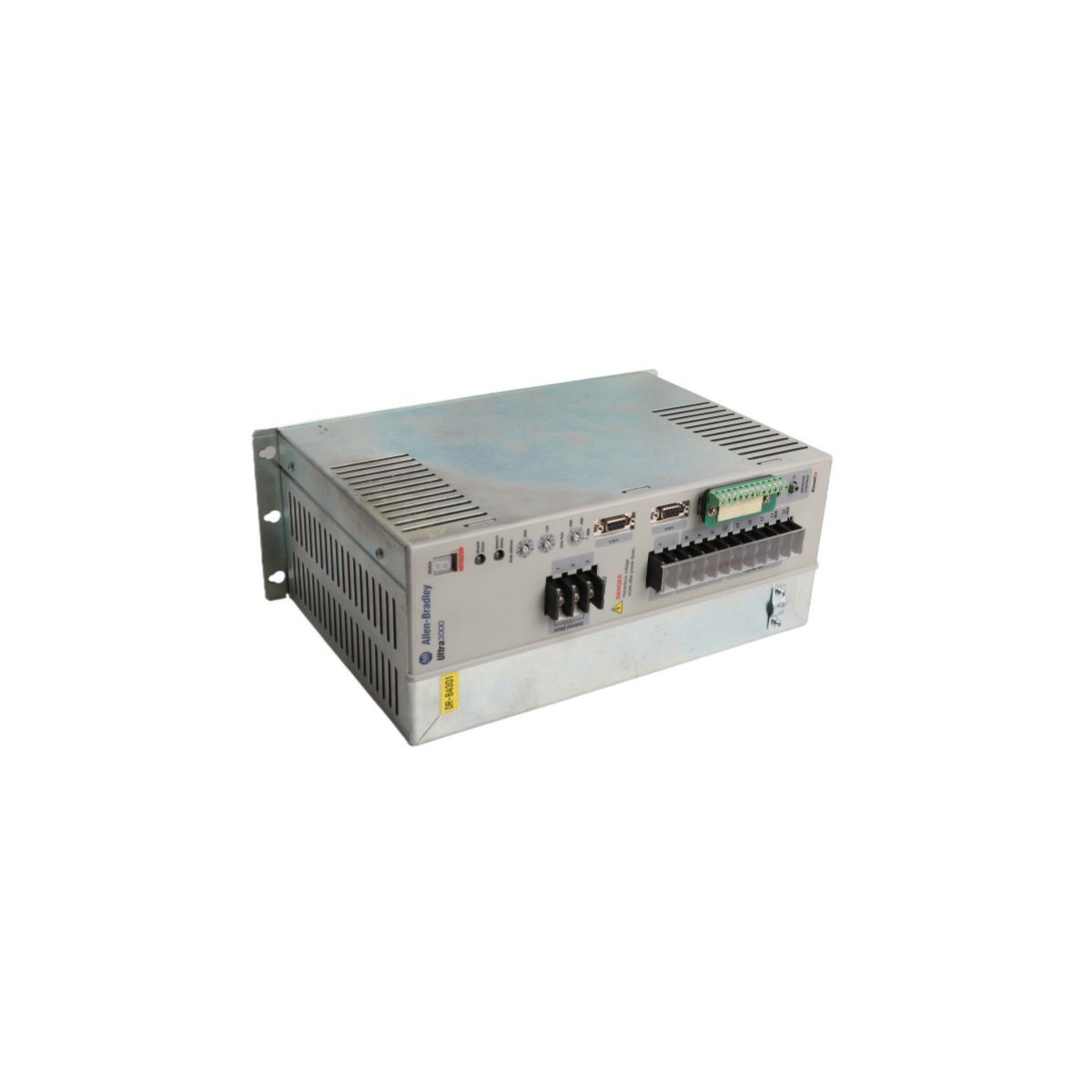

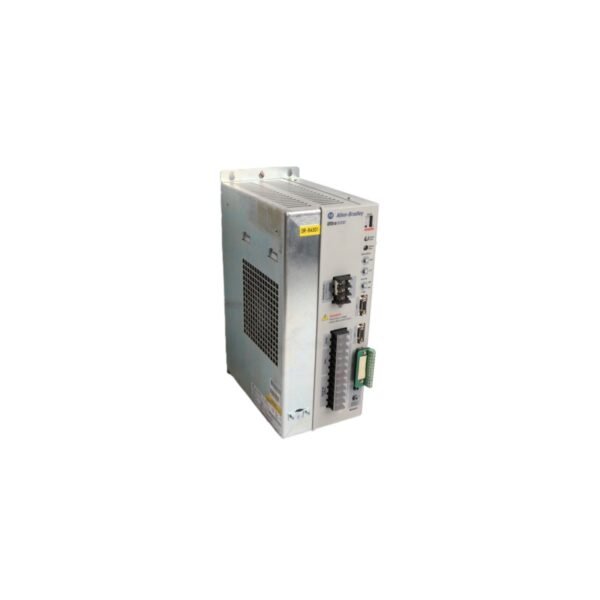

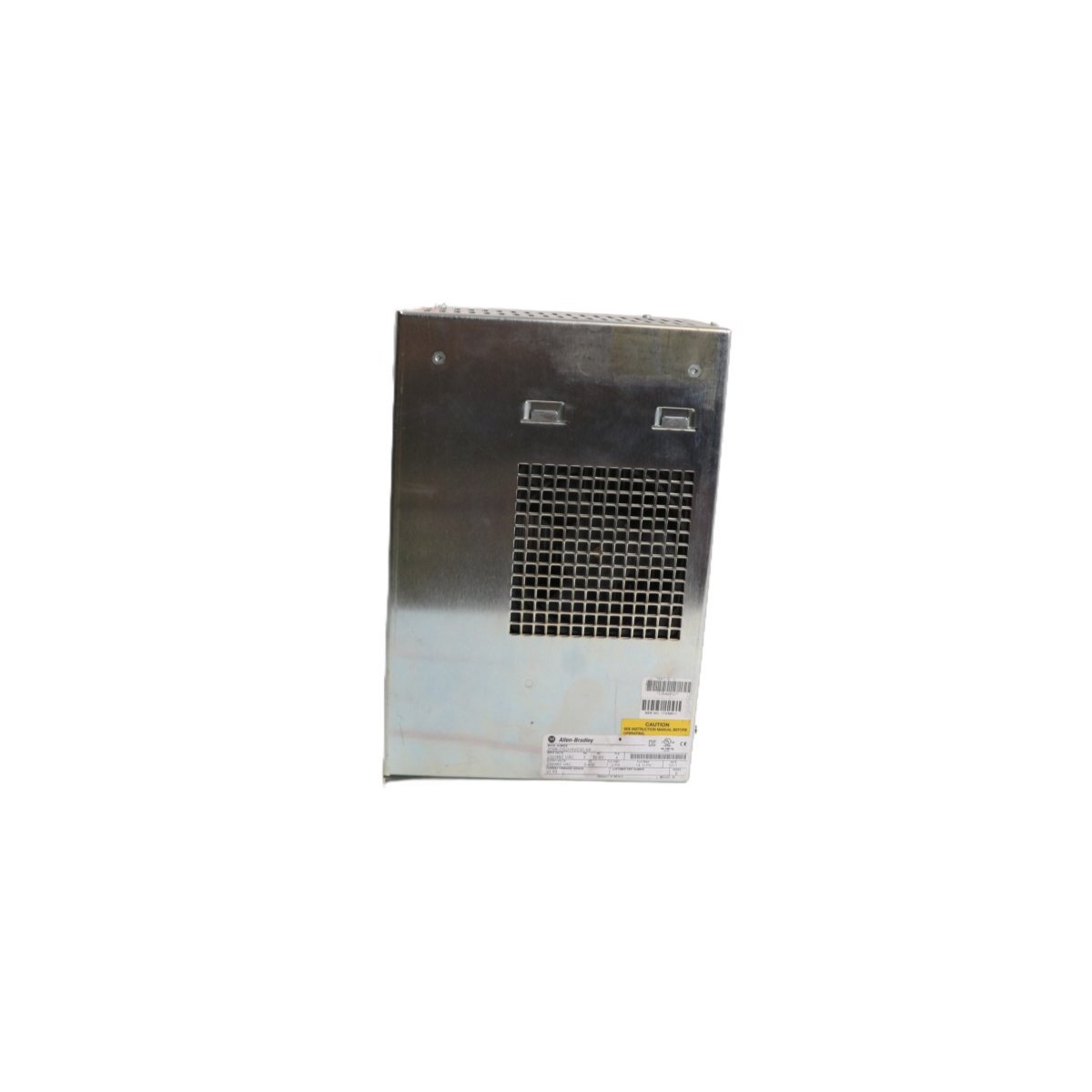

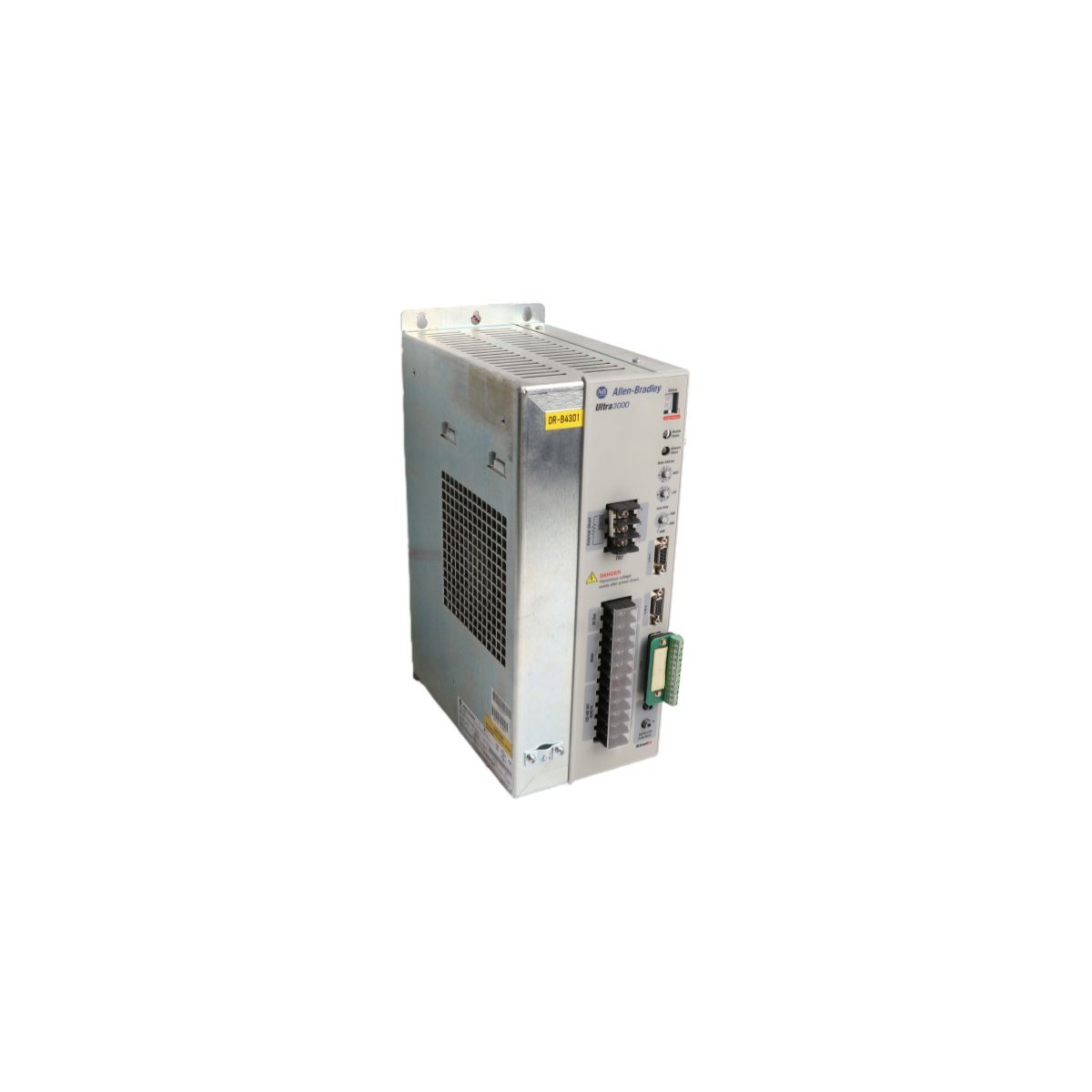

The Allen-Bradley 2098-DSD-020-SE is a high-performance Ultra3000 digital servo drive featuring a SERCOS interface for synchronized multi-axis motion control. This unit delivers a 10A continuous output current and integrates seamlessly into Kinetix motion architectures to provide precise motor regulation.

Product Description

Integrated Motion and SERCOS Connectivity

The Allen-Bradley 2098-DSD-020-SE functions as a cornerstone of the Ultra3000 digital motion platform, specifically optimized for the SERCOS (Serial Real-time Communication System) interface. This fiber-optic communication protocol allows the drive to achieve high-speed, jitter-free synchronization with Logix-based controllers. By leveraging the Kinetix integrated motion framework, the 2098-DSD-020-SE simplifies complex wiring and reduces the overhead associated with traditional analog command signals. Consequently, engineers can implement sophisticated multi-axis coordination with greater reliability and less electromagnetic interference.

Power Management and Performance

Designed for versatile power handling, this servo drive operates on a 230V AC input and supports single-phase voltage ranges from 115V to 230V AC. The hardware generates a continuous output current of 10 Amps (RMS), while maintaining the capability to reach 30 Amps during intermittent peak demands. Furthermore, the drive includes a built-in 7-segment LED display that provides immediate diagnostic feedback and real-time operational status. To ensure stability during rapid deceleration, the unit supports external shunt modules and brake assemblies, protecting the internal DC bus from regenerative voltage spikes.

Flexible Interface and Diagnostics

The 2098-DSD-020-SE provides a comprehensive set of interface ports (CN1, CN2, and CN3) to facilitate rapid motor feedback and I/O integration. While SERCOS handles the primary motion commands, the drive also features RS-232 and RS-485 serial ports to support localized configuration and troubleshooting via Ultraware software. This robust connectivity ensures that the drive adapts easily to varied industrial environments, from simple indexing tasks to complex process safety applications. Its thermal design allows for continuous operation in ambient temperatures up to 55°C, making it a dependable choice for high-density control cabinets.

Technical Specifications
