Description

Brief Product Description

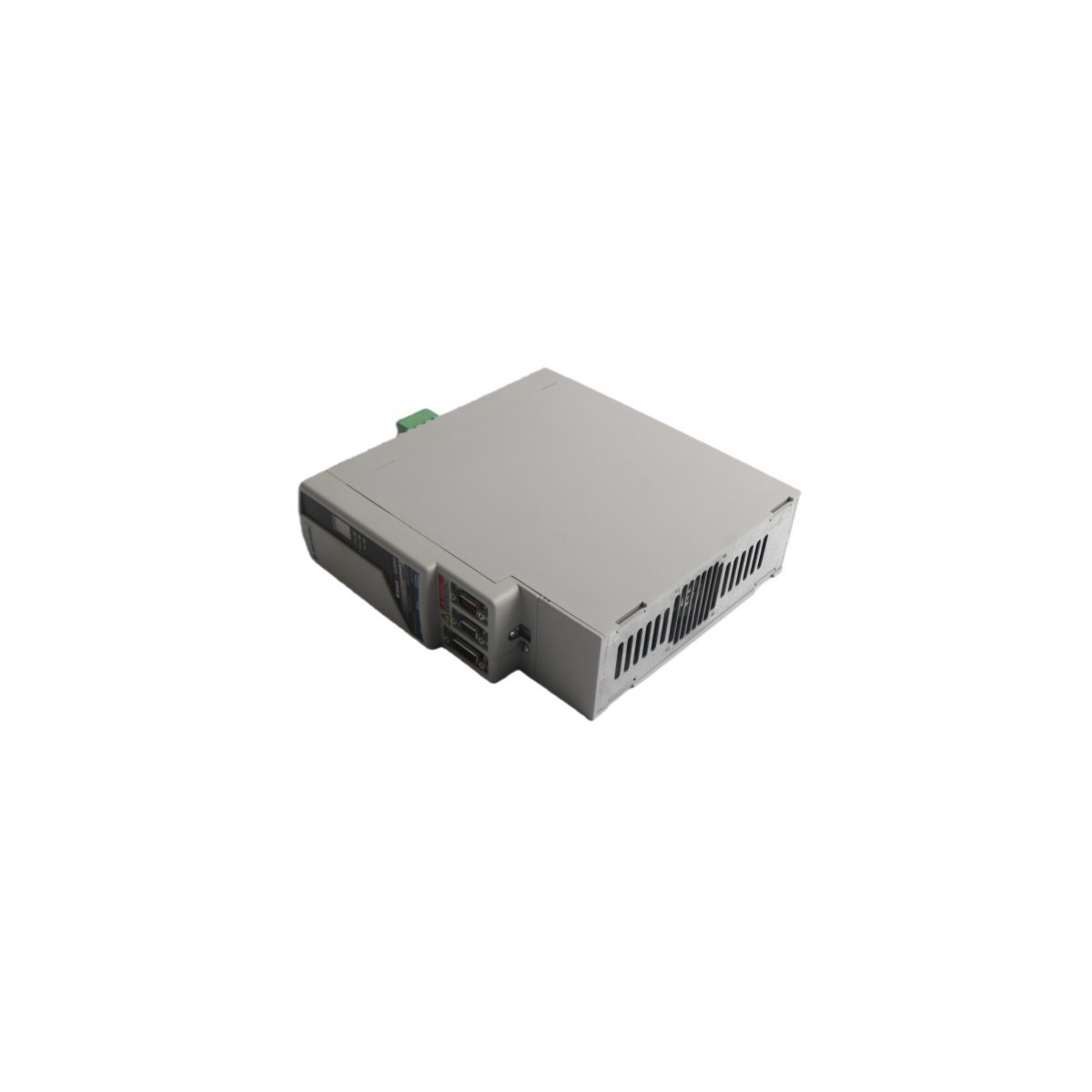

The Allen-Bradley 2094-BM02-M is a high-performance, single-axis inverter module for the Kinetix 6200 and 6500 servo drive families. Operating at 460V, this 15A axis module provides modular power conversion for integrated motion applications requiring advanced safety and precise motor control.¹

Product Description

Modular Inverter Architecture

The Allen-Bradley 2094-BM02-M functions as a core power component within the Kinetix 6200 and 6500 modular drive systems. This axis module contains the 15A inverter section, which converts DC bus power from a compatible 2094 integrated power module (IPM) into controlled three-phase AC for servo motor operation. Because this unit utilizes a modular design, users can easily scale their motion systems by adding or removing axes on a common power rail. This architecture effectively reduces the footprint of the control cabinet and simplifies the overall electrical distribution for multi-axis machinery.

Integrated Safety and Operational Control

Safety serves as a primary feature of the 2094-BM02-M, which supports advanced functional safety through the addition of interchangeable control modules.² The power module facilitates Safe Torque Off (STO) and Safe Speed Monitoring, allowing operators to perform maintenance or machine adjustments without a complete power-down.³ Transitioning to these embedded safety functions reduces the need for external safety relays and complex wiring. Furthermore, the module supports Safe Direction and Safe Maximum Speed monitoring, which ensures that the drive stays within defined velocity limits during manual intervention, significantly enhancing both personnel safety and machine productivity.⁴

Enhanced Diagnostics and Network Compatibility

Integration into automated workflows is seamless with the AB 2094-BM02-M, as it maintains compatibility with both SERCOS and EtherNet/IP communication protocols depending on the chosen control head. The module features a robust diagnostic interface that communicates real-time error codes and status updates to the primary controller. This transparency allows maintenance teams to identify faults quickly, minimizing mean time to repair (MTTR). Additionally, the module’s energy-efficient design and reduced wiring requirements lower the total cost of ownership, providing a future-ready solution for high-speed packaging, converting, and assembly applications.

Technical Specifications
