Product Overview

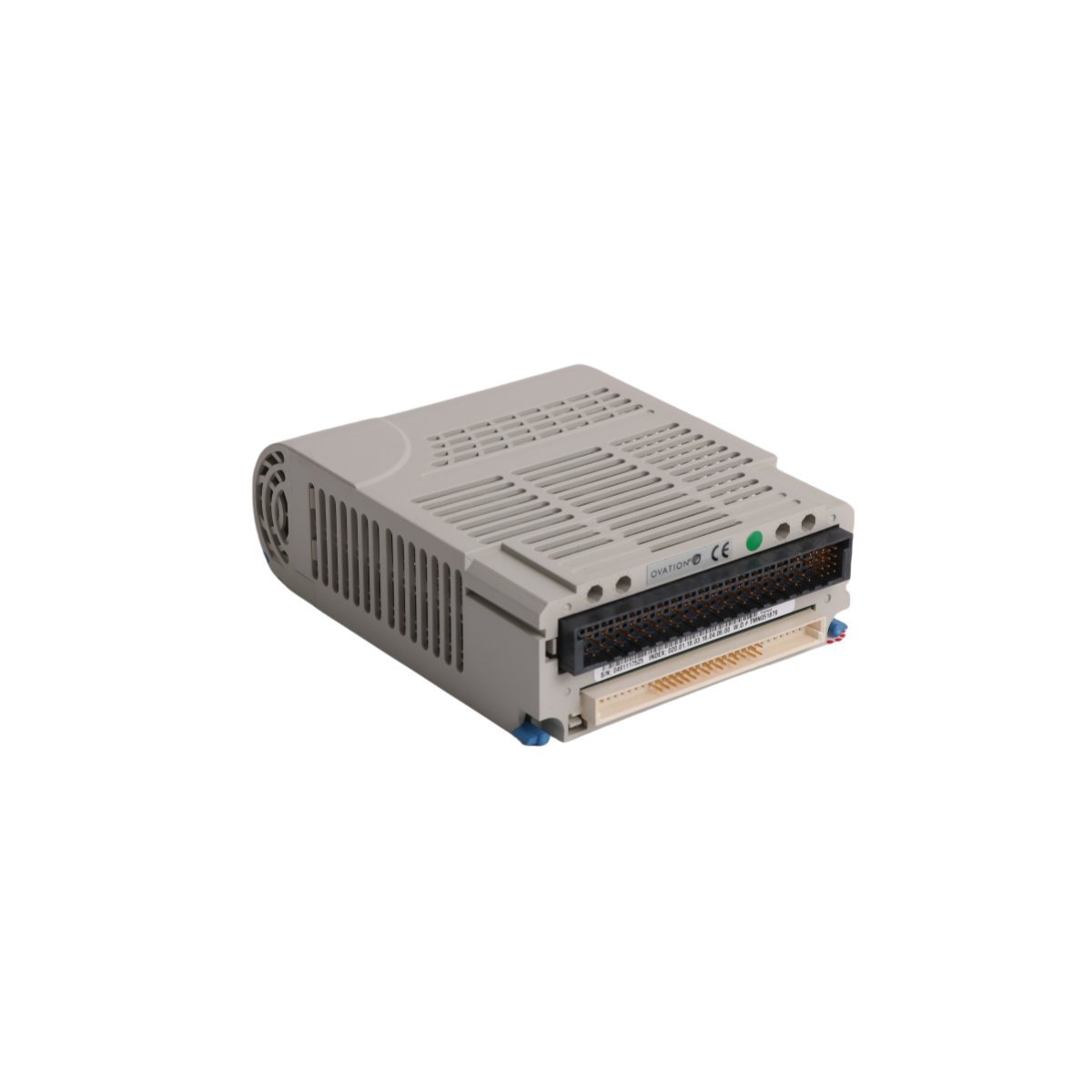

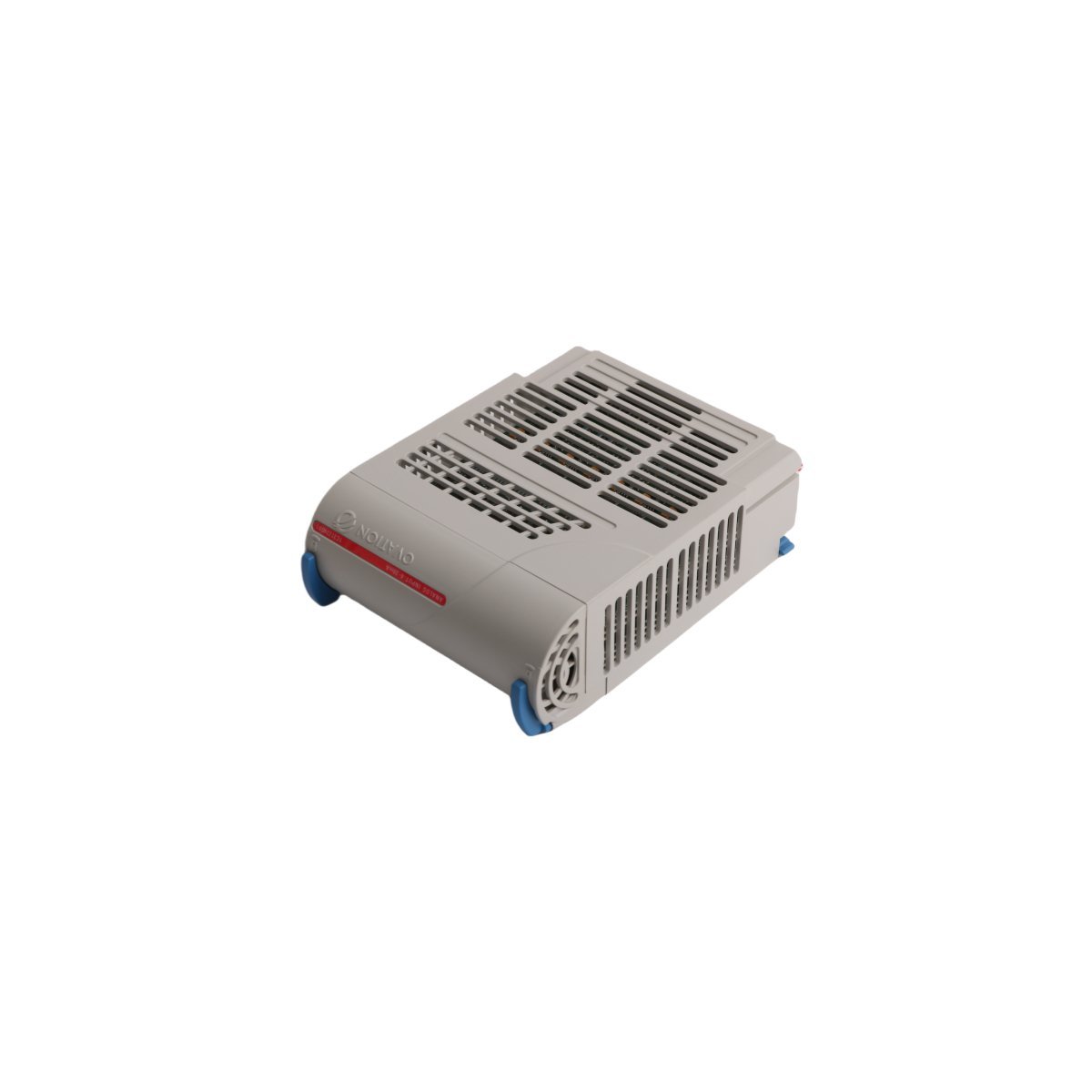

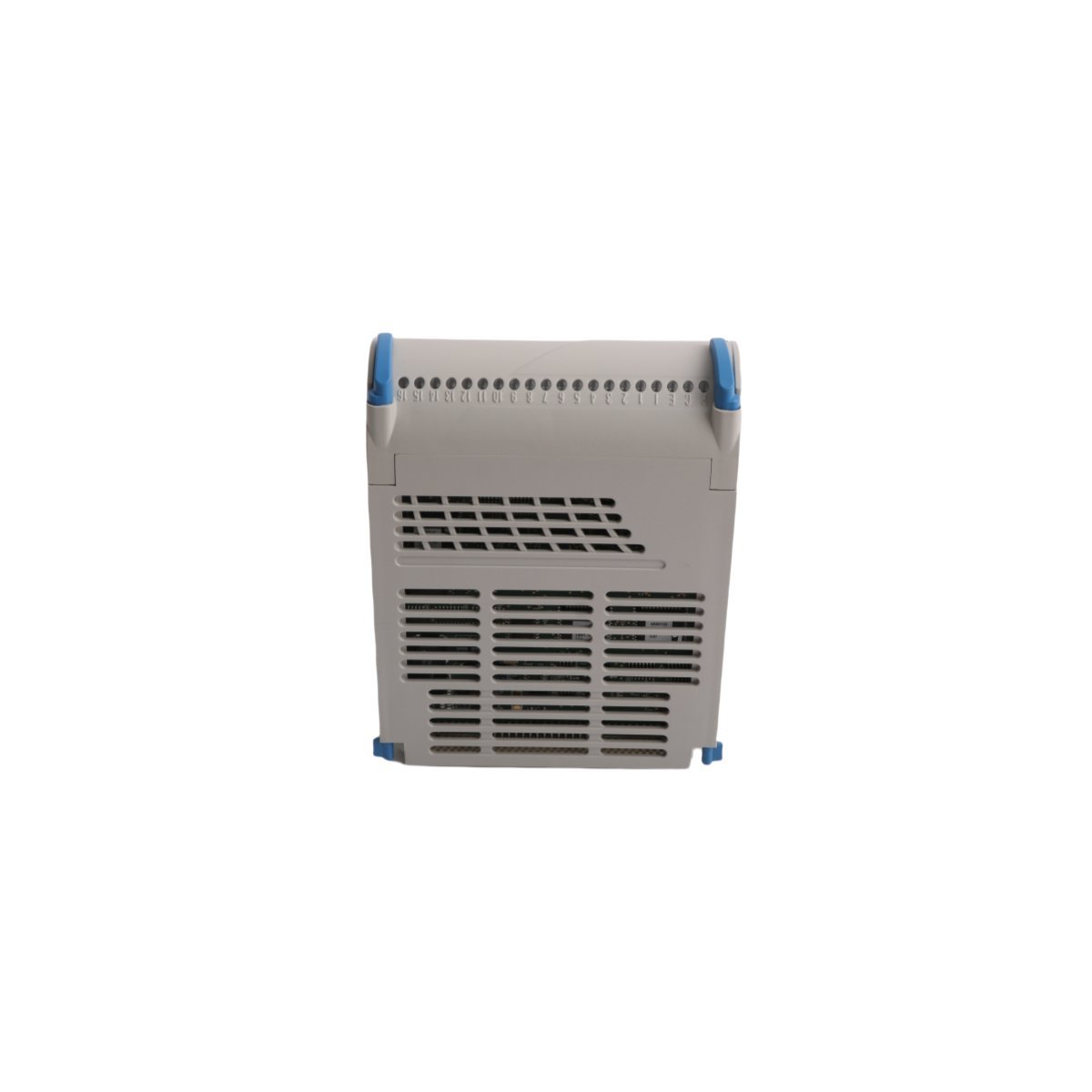

The Emerson 1C31224G01 is a specialized 8-channel analog input module engineered for the Ovation™ Distributed Control System and DeltaV SIS™ platforms. This high-performance card serves as a critical interface for translating field-side analog signals into actionable digital data for process safety and industrial automation.

Precision Signal Acquisition and Processing

The 1C31224G01 module excels in converting low-level analog signals from field transmitters into high-resolution digital values. By utilizing eight independent channels, this device monitors multiple process variables—such as pressure, temperature, and flow—simultaneously. The module incorporates high-speed sampling and sophisticated filtering techniques to ensure that the control system receives clean, accurate data. Furthermore, this precision directly impacts the effectiveness of PID loops and safety logic, allowing for tighter process control and reduced variability in demanding industrial environments.

Industrial Durability and Safety Integration

Designed specifically for the DeltaV SIS and Ovation architectures, the 1C31224G01 emphasizes system availability and long-term reliability. The hardware architecture features ruggedized components that withstand electrical transients and harsh ambient conditions typical of power generation and chemical processing facilities. Transitioning to integrated diagnostics, the module constantly performs self-checks to verify the integrity of the internal circuitry and the health of connected field loops. This proactive monitoring approach identifies potential faults before they escalate, significantly lowering the Mean Time to Repair (MTTR) and preventing unscheduled system shutdowns.

Seamless Architecture Compatibility

This analog input module integrates effortlessly into standard Emerson I/O racks, utilizing the native communication bus for rapid data throughput. Because it supports the legacy Ovation hardware standards while maintaining compatibility with DeltaV safety systems, it offers a versatile solution for both system expansions and the maintenance of established installations. Its compact form factor optimizes cabinet density, enabling engineers to maximize I/O capacity within a limited physical footprint without compromising on cooling or accessibility.

Technical Specifications
