Description

Brief Product Description

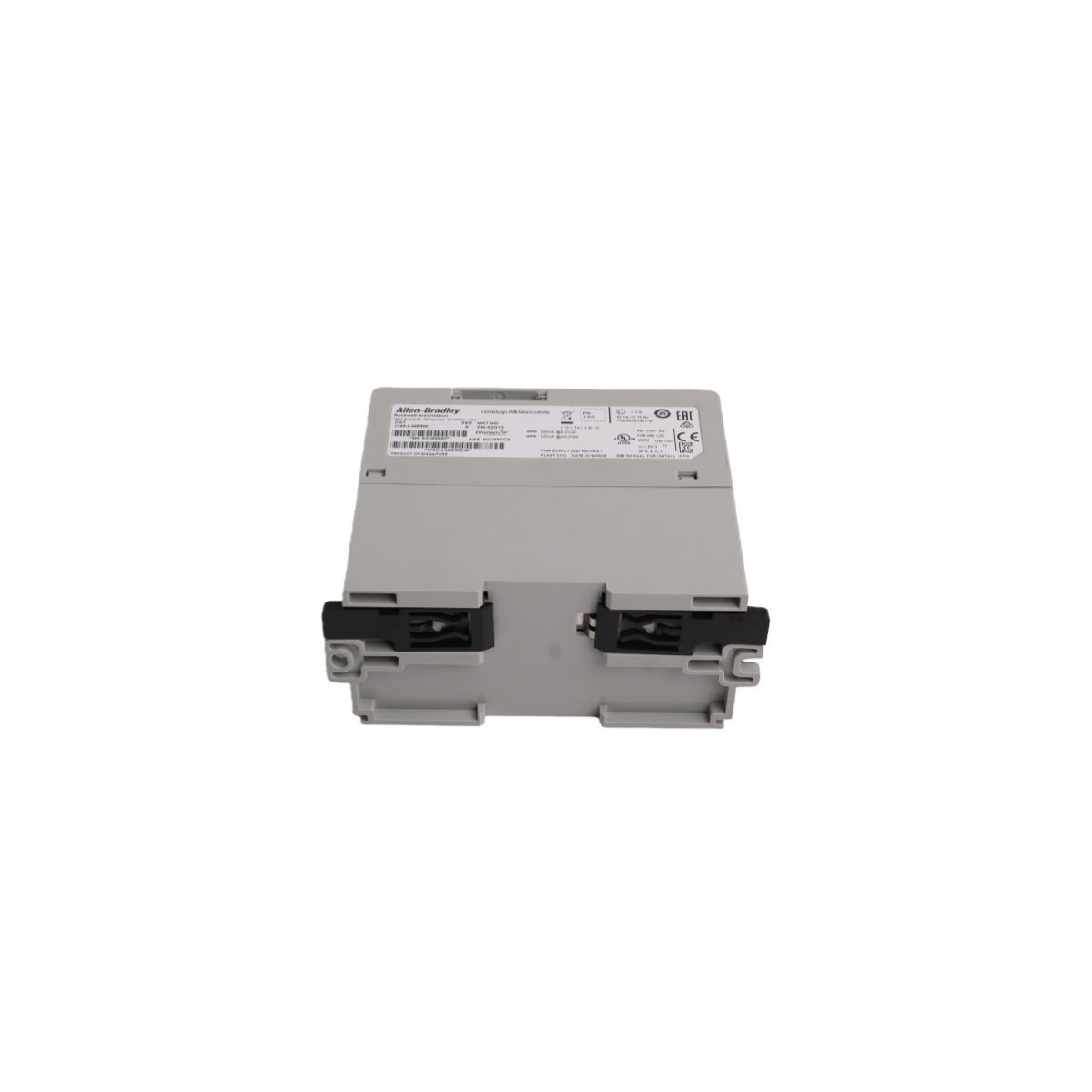

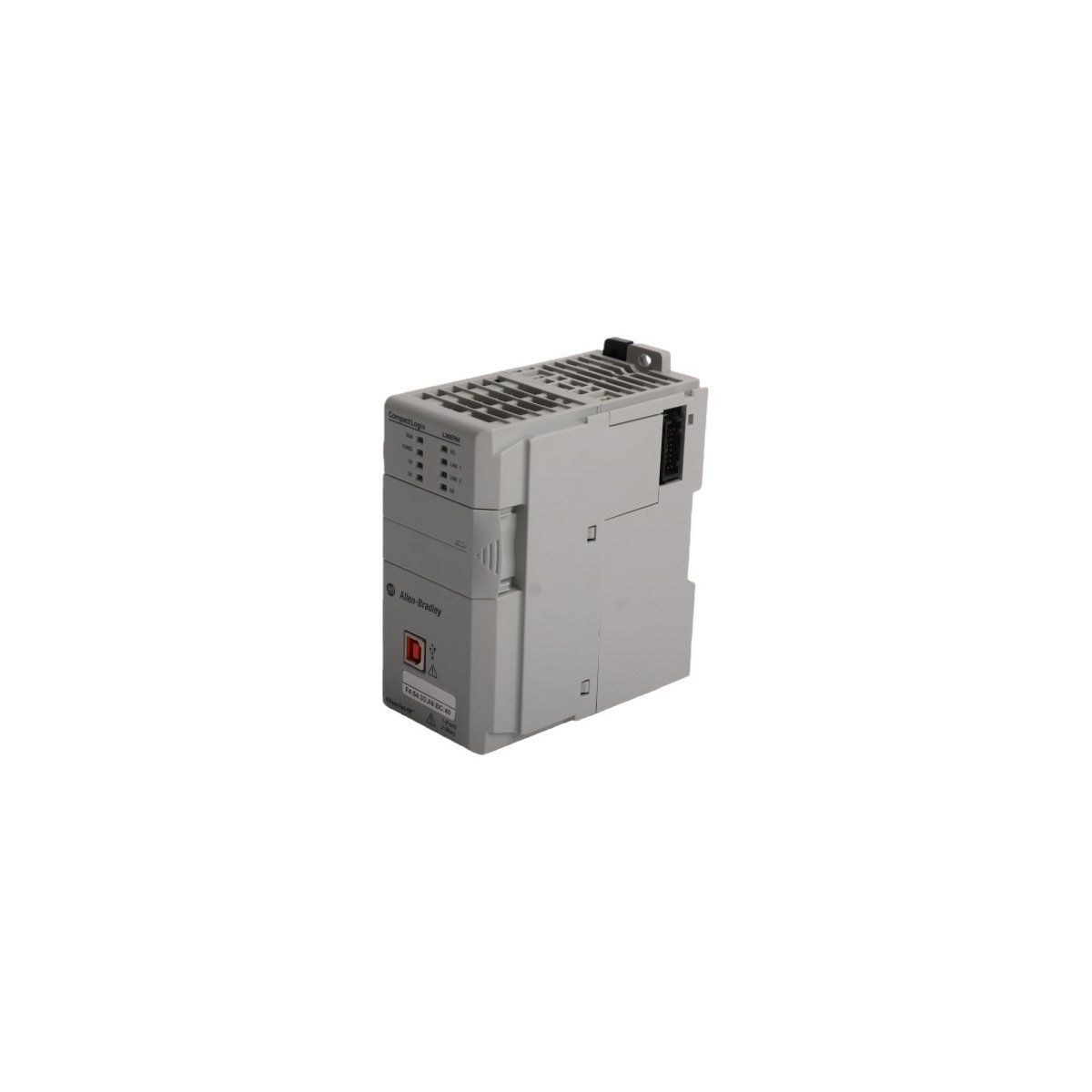

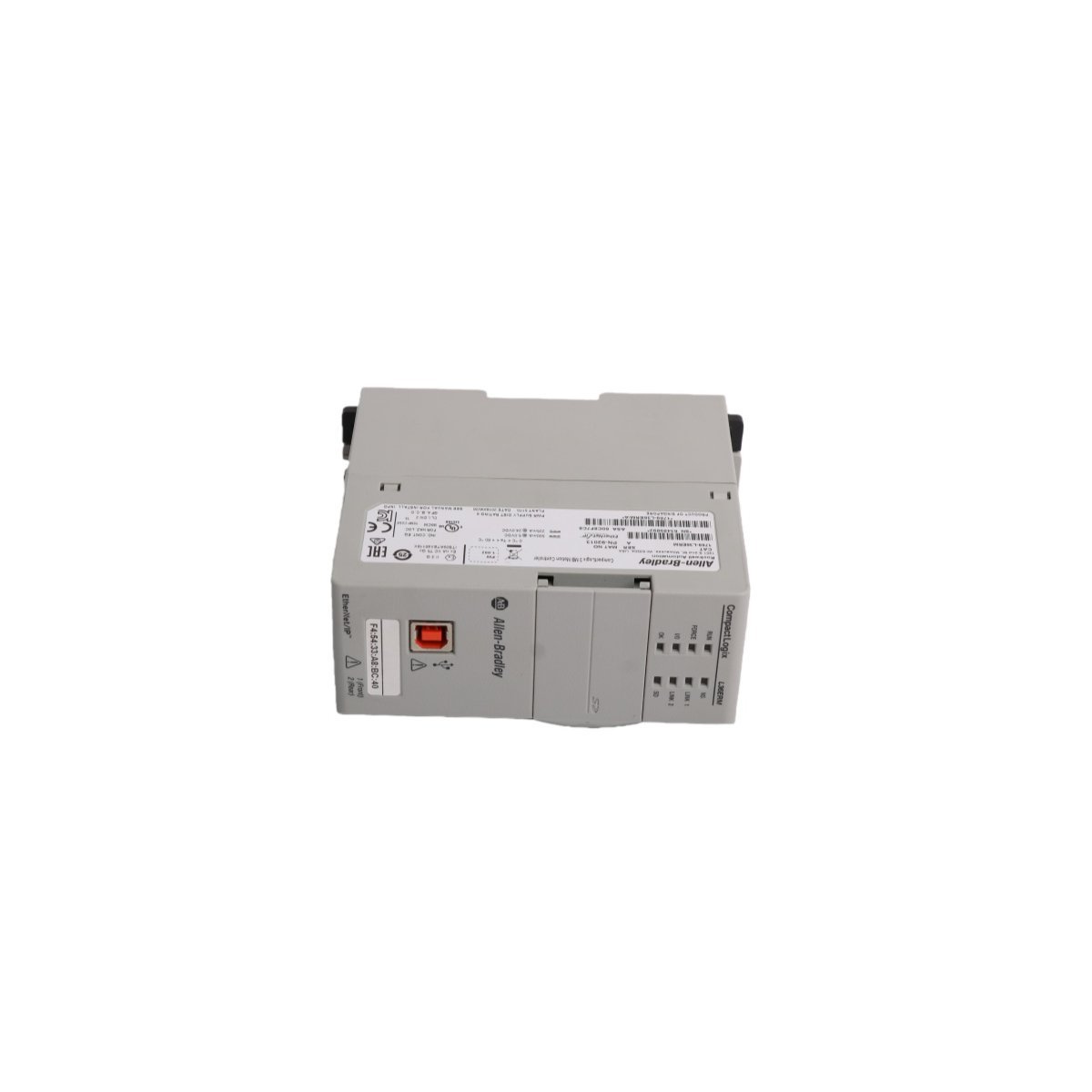

The Allen-Bradley 1769-L36ERM is a high-performance CompactLogix 5370 L3 processor equipped with 3 MB of user memory and integrated motion control capabilities over EtherNet/IP.³ It serves as a centralized automation hub, managing up to 16 axes of coordinated motion and 30 local I/O modules for complex industrial machinery.⁴

Product Description

High-Performance Processing and Memory

The Allen-Bradley 1769-L36ERM functions as a cornerstone of the CompactLogix 5370 L3 controller family, offering a balanced blend of processing power and memory capacity. Featuring 3 MB of built-in volatile memory, this controller efficiently manages large-scale application code and extensive data logging tasks.⁵ To ensure data persistence and portablity, the module utilizes a Secure Digital (SD) card for non-volatile storage, which eliminates the need for internal batteries.⁶ This architecture supports up to 32 multitasking priorities, allowing engineers to separate high-speed motion tasks from standard logic for optimized system performance.

Integrated Motion and Network Connectivity

Designed for modern “Connected Components” environments, the 1769-L36ERM features dual Ethernet ports that support Device Level Ring (DLR) topologies.⁷ This connectivity enables the controller to bridge communications across plant-wide networks while maintaining high-speed links to distributed I/O and drives. A standout characteristic of this specific model is its Integrated Motion on EtherNet/IP, which supports up to 16 axes of coordinated motion.⁸ By consolidating logic and motion control into a single processor, the unit reduces cabinet complexity and simplifies the synchronization of servo drives in high-speed packaging or assembly applications.

Scalable I/O and Industrial Resilience

The hardware design of the AB 1769-L36ERM emphasizes scalability within a compact footprint.⁹ The processor supports a maximum of 30 local 1769 Compact I/O modules, which can be distributed across three expansion banks to meet diverse application requirements.¹⁰ Furthermore, the controller operates reliably within a temperature range of 0 to 60°C and withstands significant industrial vibration and shock.¹¹ Because the module uses the Studio 5000 Logix Designer environment, it provides a consistent programming experience that adheres to IEC 61131-3 standards, ensuring that maintenance teams can easily troubleshoot and update control strategies in the field.
