Description

Brief Product Description

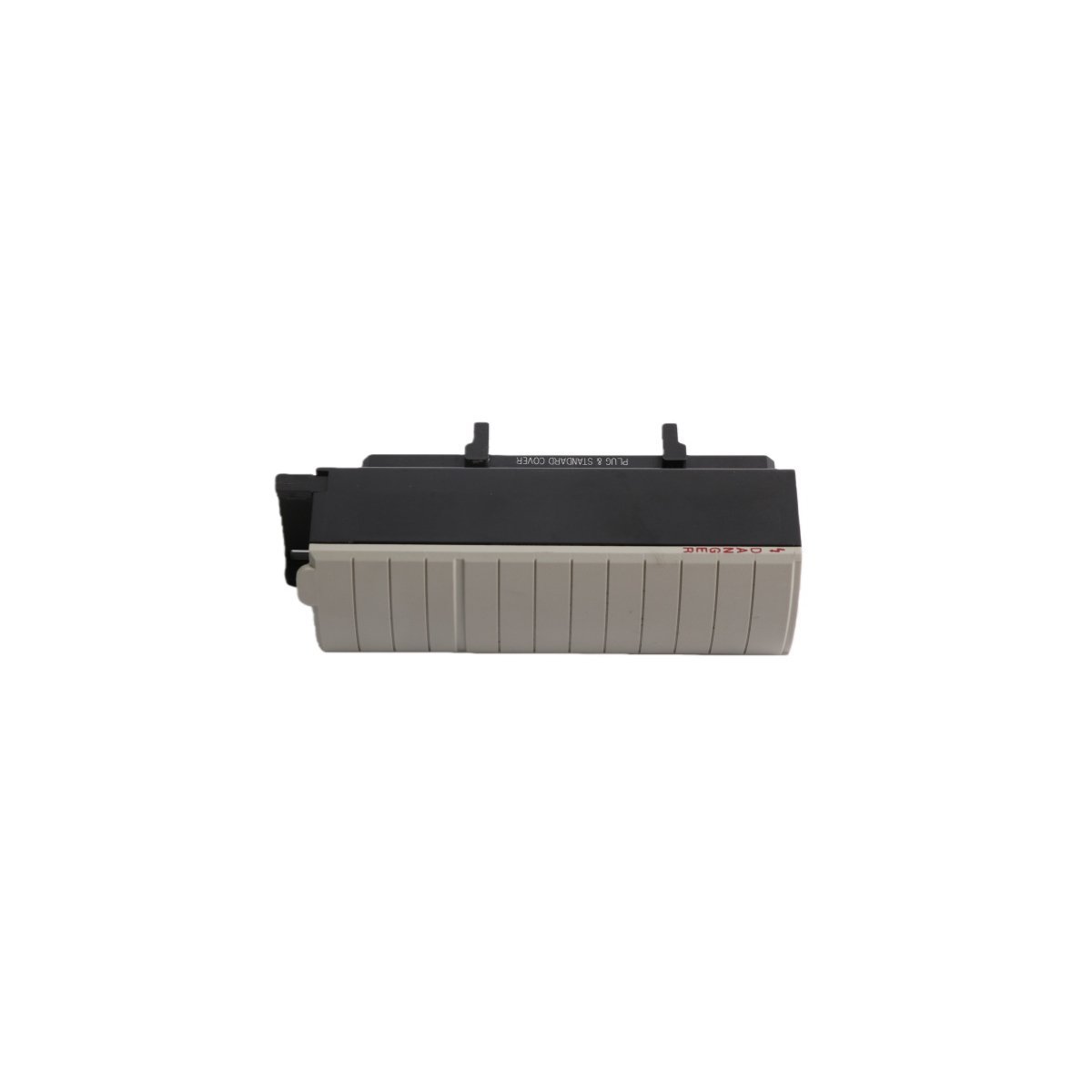

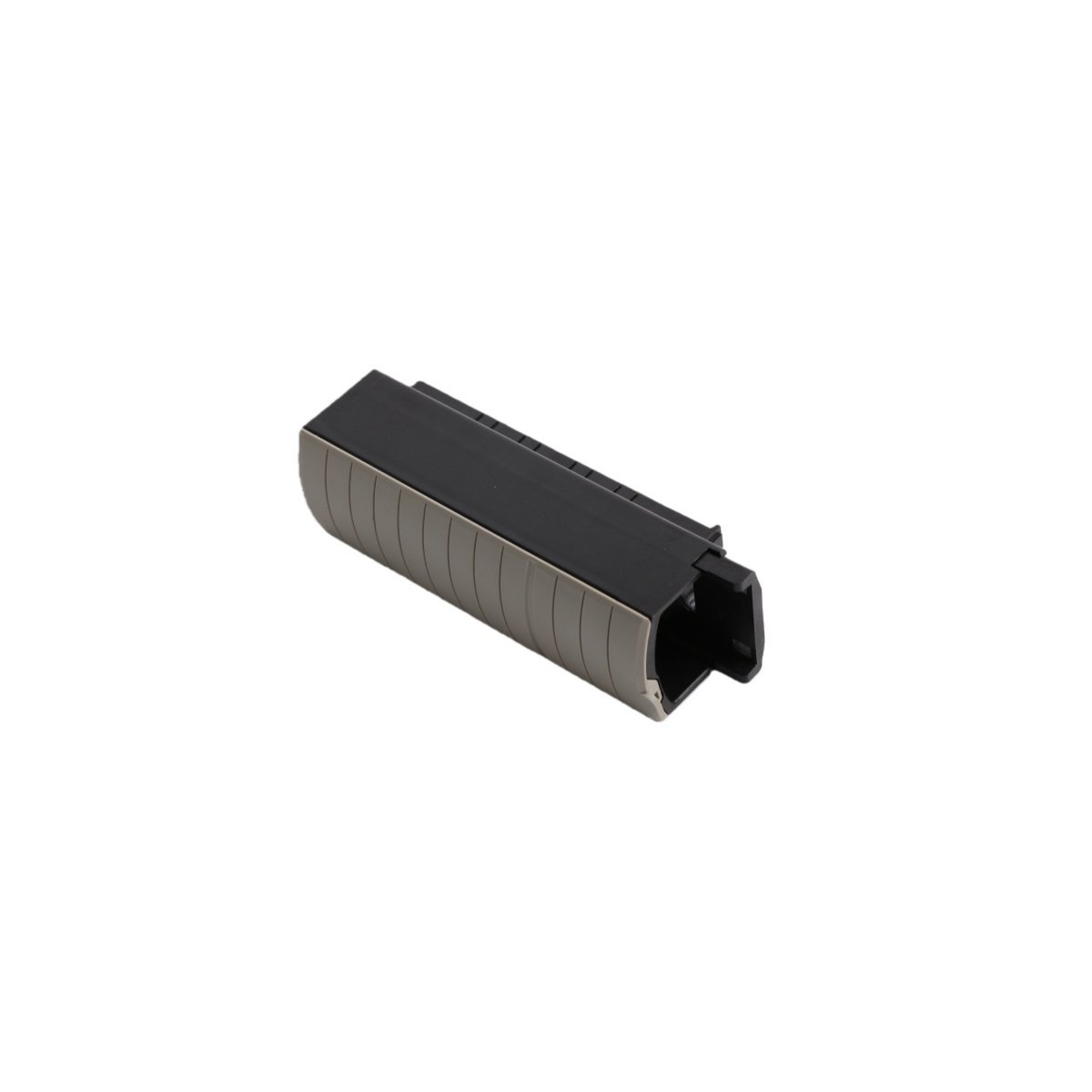

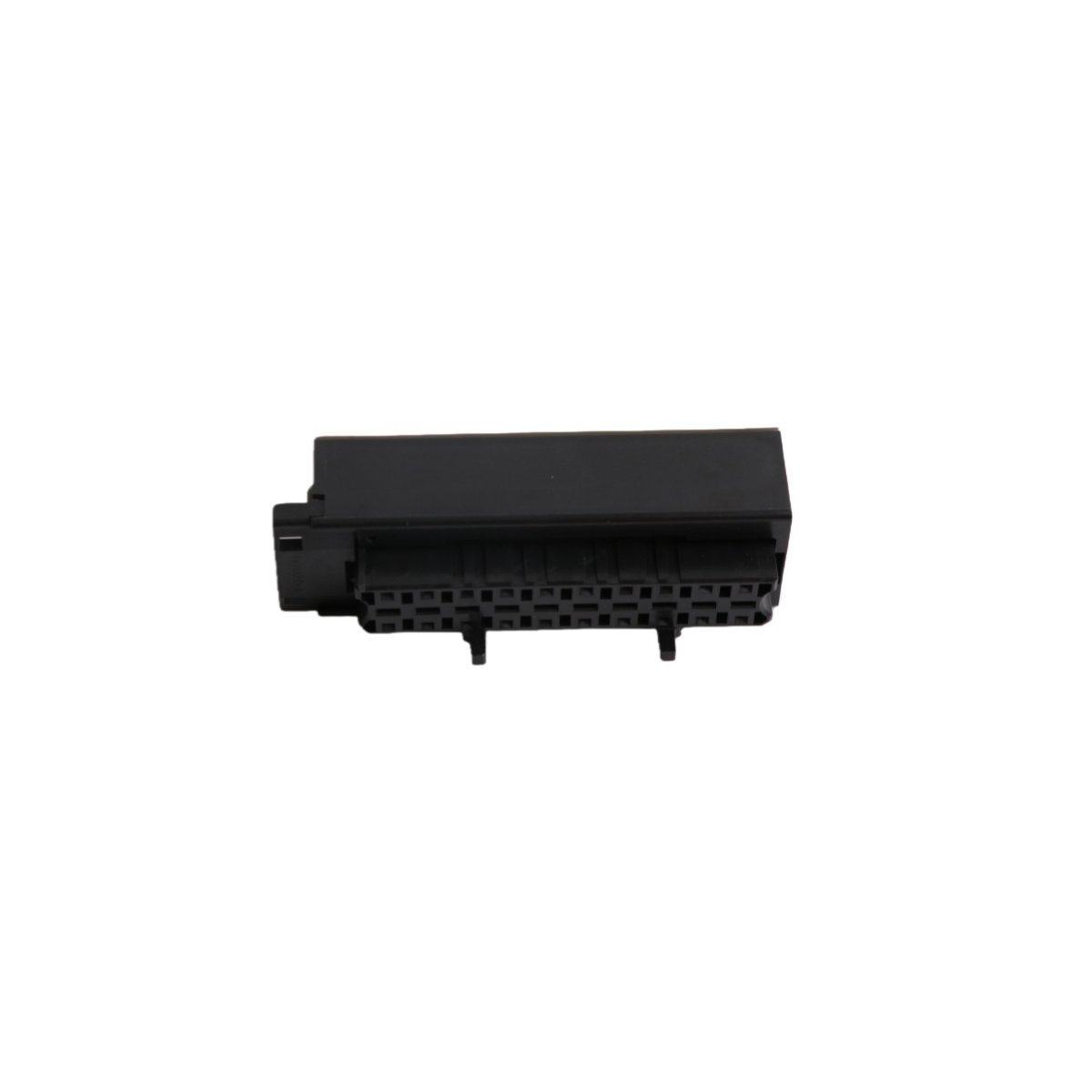

The Allen-Bradley 1756-TBNH is a 20-position Removable Terminal Block (RTB) designed to provide a secure interface between field wiring and ControlLogix I/O modules. It utilizes NEMA-standard screw-clamp terminations to ensure high-vibration resistance and simplified maintenance in industrial automation environments.

Product Description

Versatile Field Wiring Interface

The Allen-Bradley 1756-TBNH functions as a high-reliability Removable Terminal Block (RTB) specifically engineered for the ControlLogix platform. This 20-pin accessory allows technicians to terminate field sensors and actuators independently of the I/O module. By separating the wiring from the electronic hardware, the module facilitates rapid system maintenance and hardware upgrades. Consequently, operators can replace I/O modules without disconnecting individual field wires, which significantly reduces the risk of wiring errors and minimizes machine downtime.

Robust Termination and Industrial Durability

To ensure electrical stability in harsh environments, the 1756-TBNH employs NEMA-standard screw-clamp connections. These terminals provide a secure mechanical grip on conductors, requiring a precise torque of 1.36 Nm for optimal contact. The assembly supports a wide variety of copper wire sizes, specifically accommodating gauges from 22 AWG to 14 AWG. Furthermore, the terminal block’s construction supports a broad operating temperature range of 0°C to 60°C. Because it withstands operational shocks of up to 30g, this component maintains signal integrity even in applications characterized by heavy machinery vibration.

Optimized Integration and Efficiency

The design of the AB 1756-TBNH prioritizes cabinet space and wiring flexibility. It allows for the termination of two conductors per signal point where necessary, enabling more complex control configurations within a compact footprint. This terminal block integrates seamlessly with both standard and safety-rated ControlLogix I/O modules, supporting the producer-consumer communication model inherent to the Rockwell Automation architecture. Additionally, the low backplane current draw ensures that the accessory does not compromise the power budget of the overall chassis, contributing to a more energy-efficient control solution.

Technical Specifications
